基本信息产品详情证书
基本信息
| 型号 | CPF-600XD2 |
| 应用程序 | 行业 |
| 电压 | 220V |
| 消毒方法 | 二氧化氯 |
| 控制 | 手动/自动 |
| 原始化学品 | 次氯酸钠和氯化氢 |
| 反应堆材料 | 钛合金 |
| 壳材质 | 聚氯乙烯 |
| 运输包 | 胶合板箱 |
| 规格 | 每小时600克 |
| 商标 | 水曼 |
| 起源 | 中国制造 |
| 商品编码 | 8419200000 |
| 生产能力 | 4,000 PCS/年 |
产品详情
Product Description
Preview
Place of Origin: Jiangsu, China
Model: CPF-600D2
Capacity: 600 grams per hour
Certification: CE Marked
EINECS No. 233-162-8
CAS NO. 10049-04-4
Control Mode: Manual / Linkage / Residual CLO2 auto-control
Installation Method: Wall-mounted or vertical
Power Supply: 380V/50Hz
Working principle: 5 NaCLO2 + 4HCL = 4CLO2 + 5NaCL + 2H2O
Description:
Two raw chemicals of NaClO2
and HCl
are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO2
solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.The outlet pressure of ClO2 <=
0.40Mpa.Raw chemicals conversion rate >
90%
The dosage of ClO2
can be adjusted manually or automatically by receiving 4-20mA signal sent by flowrate or residual CLO2 sensor.
Model: CPF-600D2
Capacity: 600 grams per hour
Certification: CE Marked
EINECS No. 233-162-8
CAS NO. 10049-04-4
Control Mode: Manual / Linkage / Residual CLO2 auto-control
Installation Method: Wall-mounted or vertical
Power Supply: 380V/50Hz
Working principle: 5 NaCLO2 + 4HCL = 4CLO2 + 5NaCL + 2H2O
Description:
Two raw chemicals of NaClO2
and HCl
are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO2
solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.The outlet pressure of ClO2 <=
0.40Mpa.Raw chemicals conversion rate >
90%
The dosage of ClO2
can be adjusted manually or automatically by receiving 4-20mA signal sent by flowrate or residual CLO2 sensor.
Preview

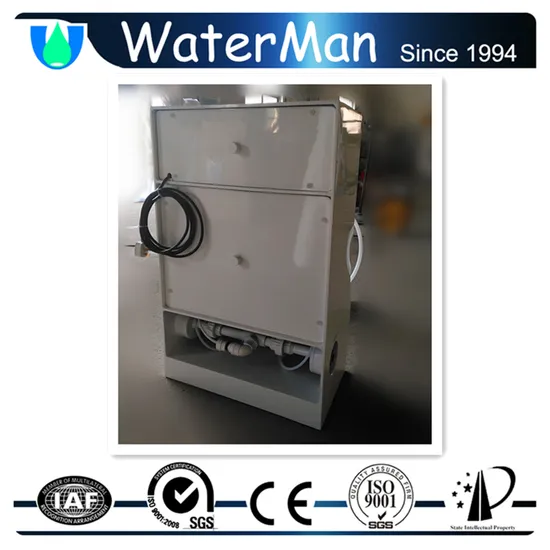

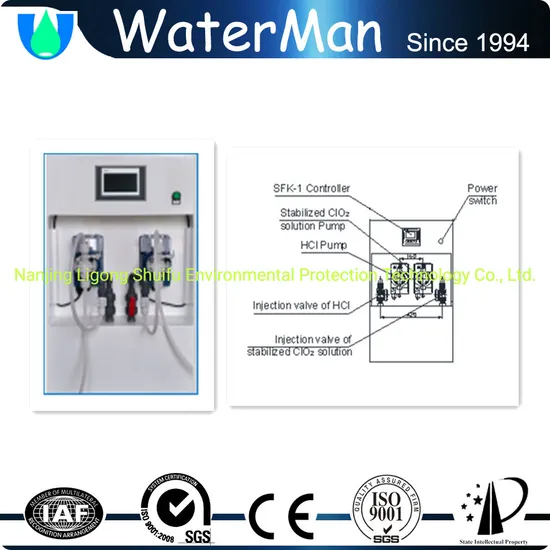

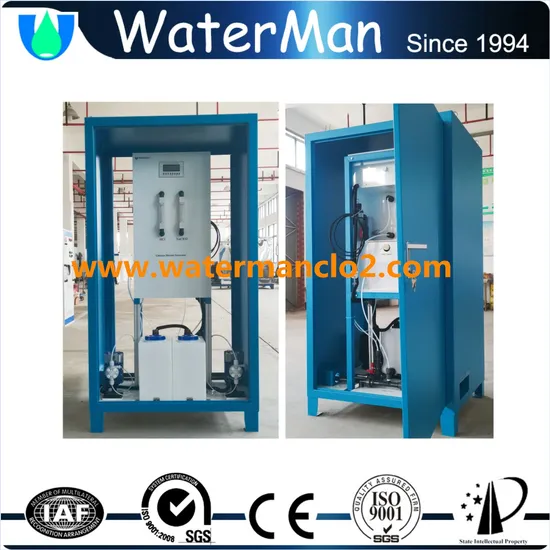

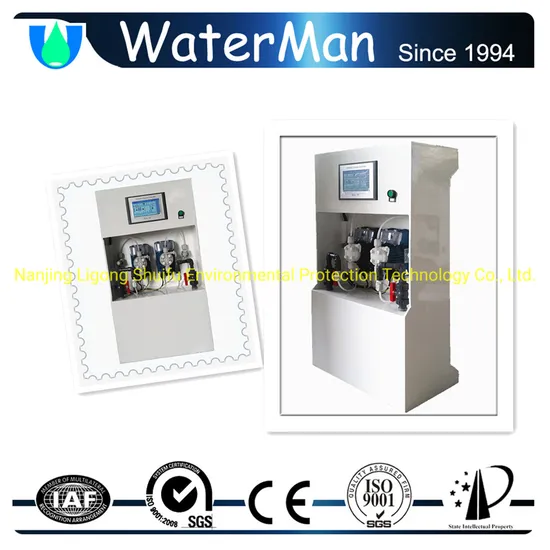

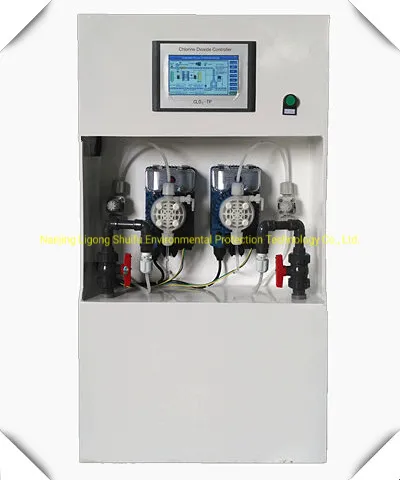

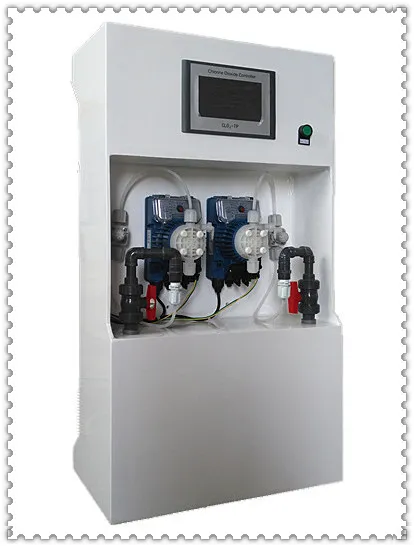

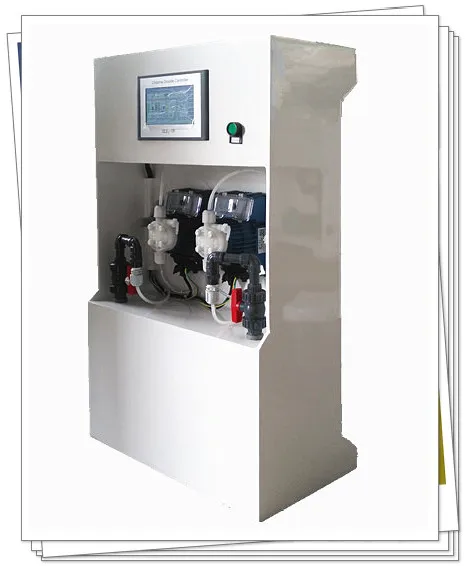

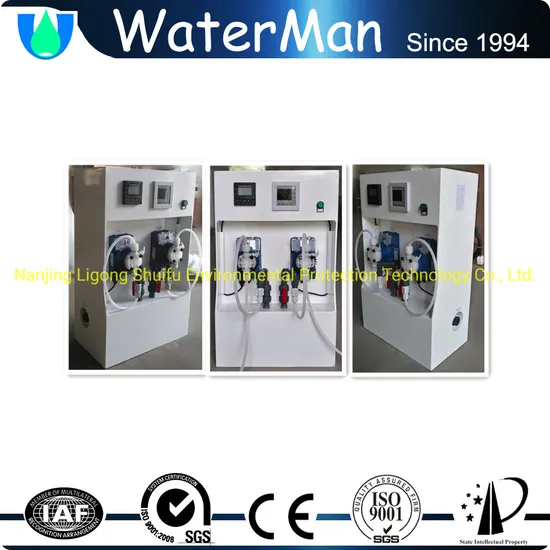

Detailed Photos
Preview
Preview
Preview
Preview
Preview
Product Parameters
1. Operating voltage: AC220V plus or minus 10%
1. Operating voltage: AC220V plus or minus 10%
2. Working temperature: -5--50 Celsius degrees
3. Relative humidity: 80%
4. Max. pressure of water-pipe-line: <0.7MPa
5. There should be no strong electromagnetic field interference around the equipment
6, Function: Manual / Linkage / Flow auto-control
Low level alarm function
Timing start / stop function
Alarm remote transferMarket Applications:
Market Applications:
1. Operating voltage: AC220V plus or minus 10%
1. Operating voltage: AC220V plus or minus 10%
2. Working temperature: -5--50 Celsius degrees
3. Relative humidity: 80%
4. Max. pressure of water-pipe-line: <0.7MPa
5. There should be no strong electromagnetic field interference around the equipment
6, Function: Manual / Linkage / Flow auto-control
Low level alarm function
Timing start / stop function
Alarm remote transferMarket Applications:
Market Applications:
Preview
