Basic Info.
Model NO. | CPF-30D1X |
Application | Industry |
Voltage | 220V |
Disinfection Method | Chlorine Dioxide |
Control Mode | Manual / Flow Auto-Control |
Raw Chemical | Naclo2, HCl |
Reactor Material | Titanium Alloy |
Shell Material | PVC |
Transport Package | Plywood Box |
Specification | 30 grams per hour |
Trademark | Waterman |
Origin | Made in China |
HS Code | 8419200000 |
Production Capacity | 4, 000 PCS/Year |
Product Description
Product Description
Preview

Preview
Place of Origin: Jiangsu, China (Mainland)
Model: CPF-30D1X
Capacity: 30 grams per hour
Certification: ISO9001, CE Marked
EINECS No. 233-162-8
CAS NO. 10049-04-4
Control Mode: Manual / linkage / Flow auto-control
Installation Method: Wall-mounted or vertical
Power Supply: 220V/50Hz
Model: CPF-30D1X
Capacity: 30 grams per hour
Certification: ISO9001, CE Marked
EINECS No. 233-162-8
CAS NO. 10049-04-4
Control Mode: Manual / linkage / Flow auto-control
Installation Method: Wall-mounted or vertical
Power Supply: 220V/50Hz
Preview

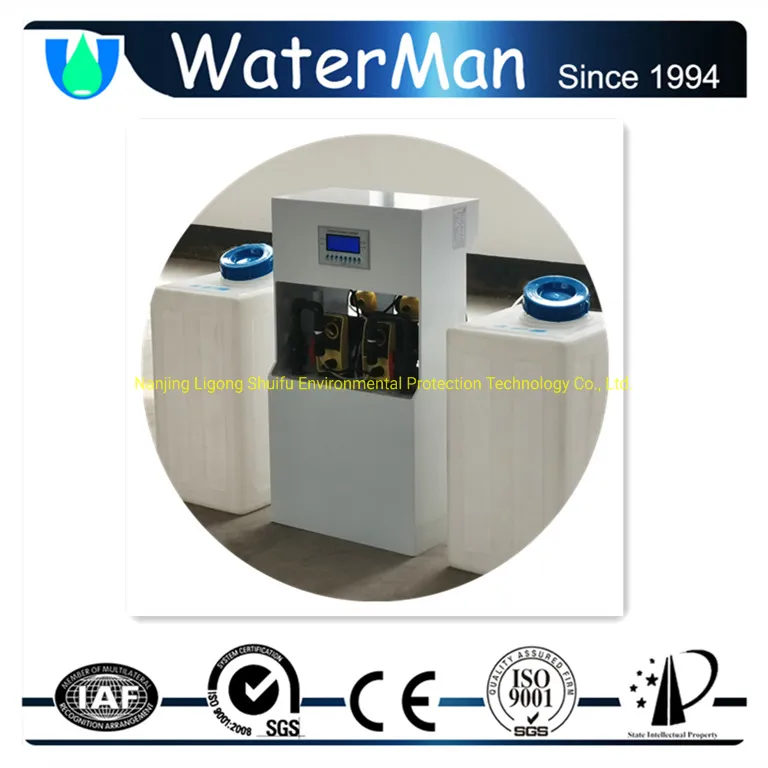

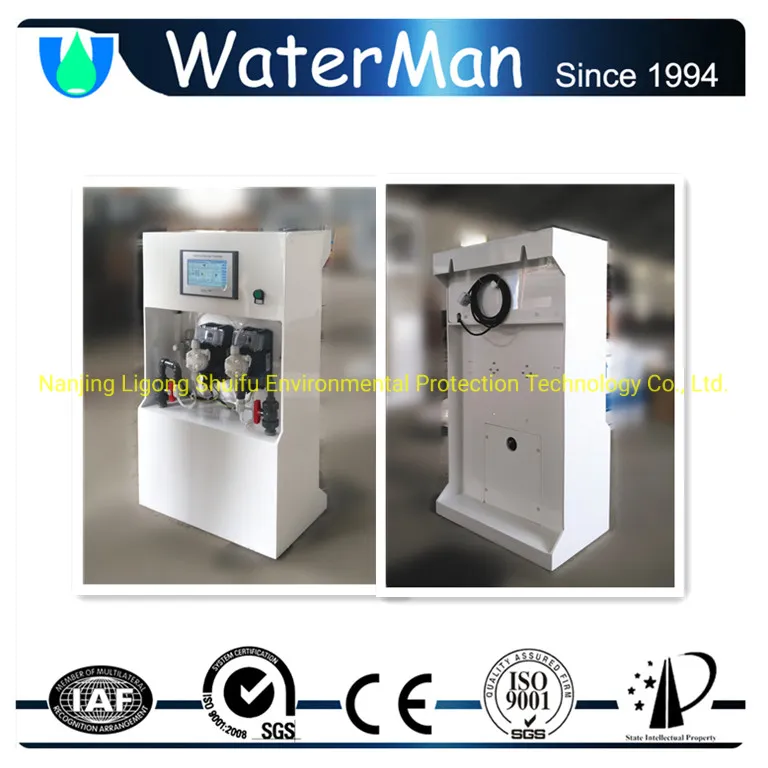

Detailed Photos
Preview

Preview

Preview

Preview

Preview

Preview

Preview
Product Parameters
Main parameters:
1. Operating voltage: AC220V plus or minus 10%2. Working temperature: -5 ~ 50 degrees Celsius3. Relative humidity: 80%4. Maximum pressure of water-pipe-line: <0.7Mpa5. There should be no strong electromagnetic field interference around the equipment.6. Function:
Manual / Linkage / Flow auto-control
Low liquid level alarm function
Timing start / stop function
Alarm remote transfer
Main parameters:
1. Operating voltage: AC220V plus or minus 10%2. Working temperature: -5 ~ 50 degrees Celsius3. Relative humidity: 80%4. Maximum pressure of water-pipe-line: <0.7Mpa5. There should be no strong electromagnetic field interference around the equipment.6. Function:
Manual / Linkage / Flow auto-control
Low liquid level alarm function
Timing start / stop function
Alarm remote transfer
Preview

Preview
5 NaClO2
+ 4HCl = 4ClO2
+ 5NaCl + 2H2O
NaClO2: industrial sodium chlorite (purity≥78% ) or liquid
Activator: industrial first grade compound hydrochloric acid (purity≥31%) or other weak acid or strong acid
Two raw chemicals of NaClO2
and HCl
are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO2
solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.The highest outlet pressure of ClO2
solution is 0.40Mpa.Raw chemicals conversion rate is higher than 90%. The dosage of ClO2
can be adjusted manually or automatically by receiving 4-20mA signal sent by flow rate sensor.
+ 4HCl = 4ClO2
+ 5NaCl + 2H2O
NaClO2: industrial sodium chlorite (purity≥78% ) or liquid
Activator: industrial first grade compound hydrochloric acid (purity≥31%) or other weak acid or strong acid
Two raw chemicals of NaClO2
and HCl
are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO2
solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.The highest outlet pressure of ClO2
solution is 0.40Mpa.Raw chemicals conversion rate is higher than 90%. The dosage of ClO2
can be adjusted manually or automatically by receiving 4-20mA signal sent by flow rate sensor.
Preview
Certifications
Name:质量管理系统



Preview
30g/H Flow Control Chlorine Dioxide Generator for Water Treatment
$2900 ~ $6880.99
