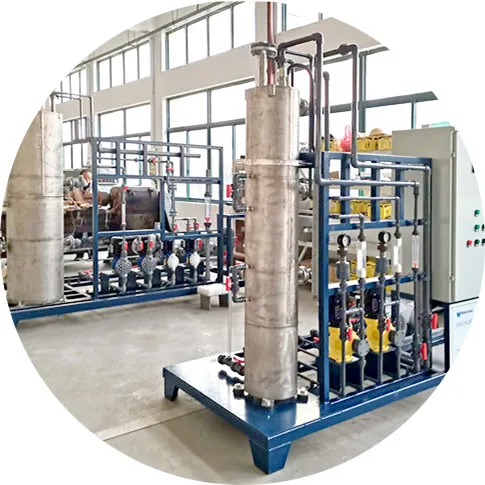

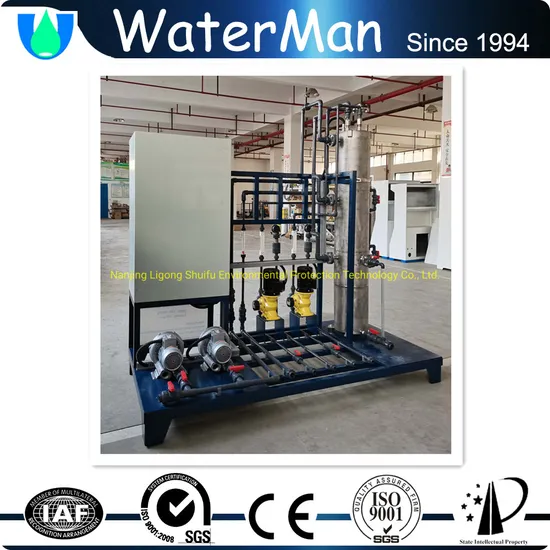

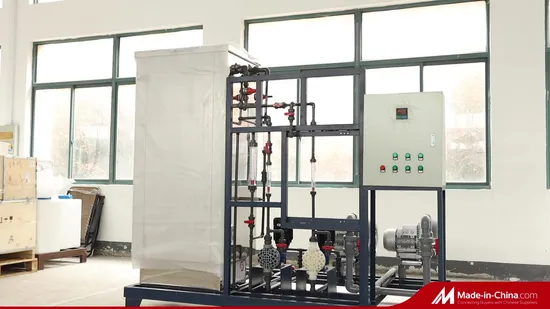

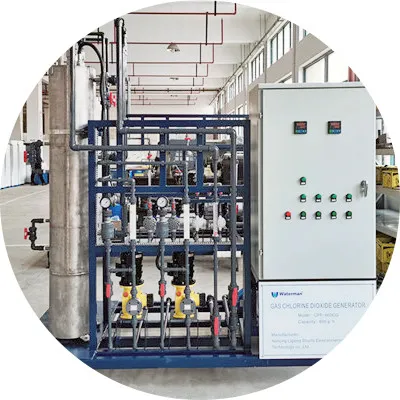

Equipment structure components:
It

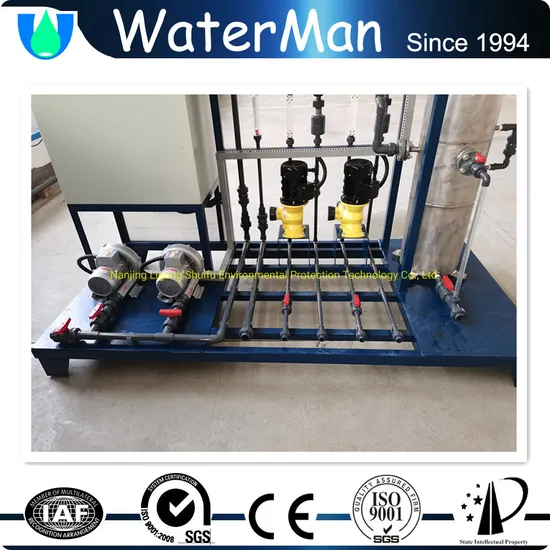

consists of several parts of equipment, such as
raw chemical
feeding system, metering system, chemical reaction system, gas stripping device and control system.The connecting pipes, wires and signal wires of the equipment in the skid have bee installed and
multiple external interfaces are reserved for on-site installation.It uses sodium chlorite (NaClO2) and hydrochloric acid
(HCl)
as raw chemicals
to produce

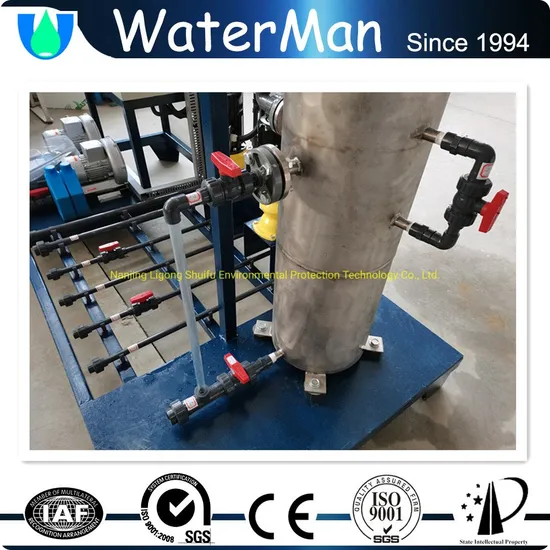

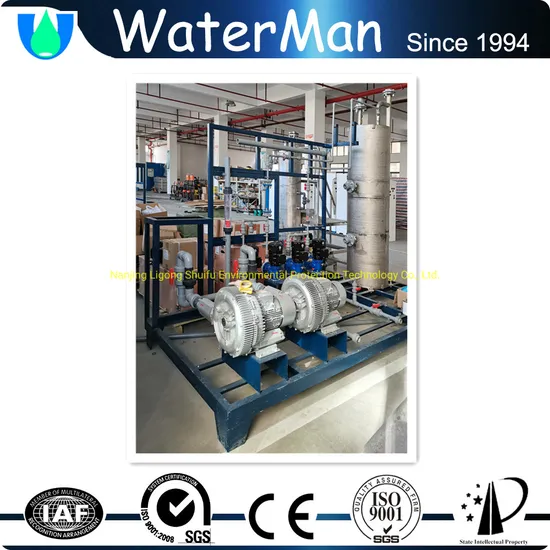

chlorine dioxide (ClO2) through a chemical reaction. The gas ClO2
in the reaction solution is stripped out and blown into the combustion flue gas. The residual acidic waste liquid
after gas stripping is discharged into the sewer.
Gas chlorine dioxide generator can be used for atmospheric treatment, such as flue gas desulfurization and denitrification treatment (DeSOx and DeNOx), so that the flue gas can meet the emission standards.

Product Parameters

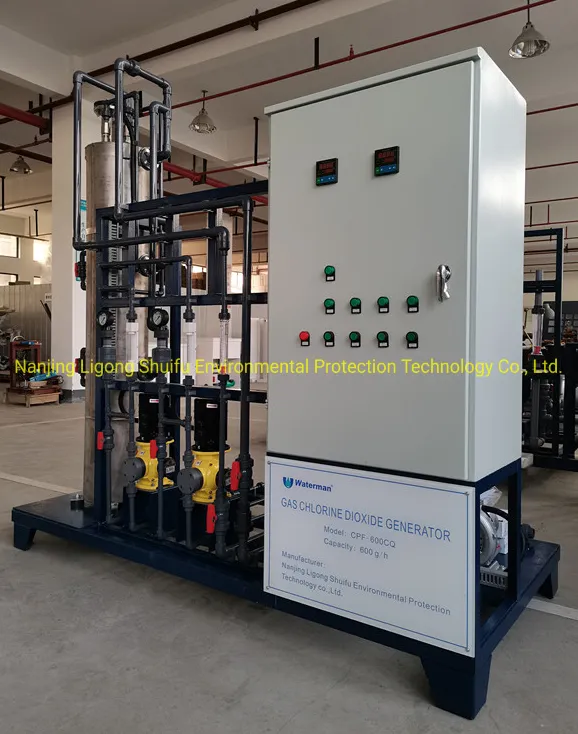

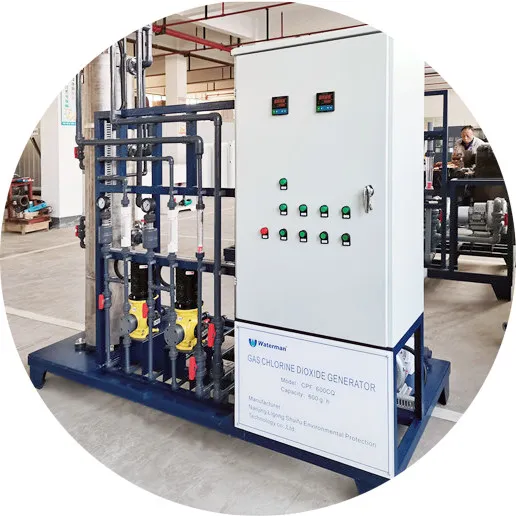

Place of Origin: Jiangsu, China (Mainland)Model Number: CPF-600CQ1Certification: ISO9001, CE Marked
Ambient temperature: 5 - 40
ºCControl method of ClO2 yield: ManualPower supply: 380V±10%Capacity: 600 g/h
Chlorine dioxide state: Gas phase
Raw chemicals: Sodium chlorite solution (NaClO2)
Hydrochloric acid (HCl)
