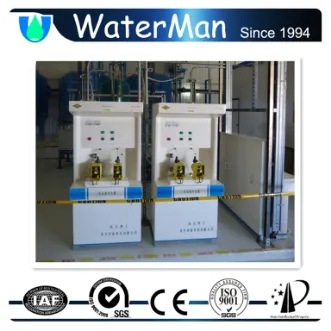

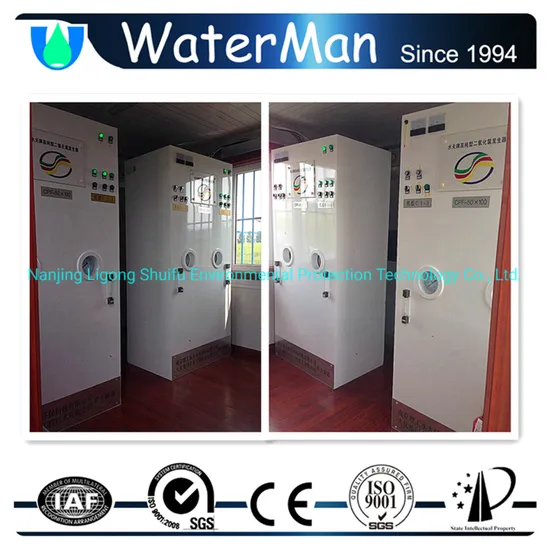

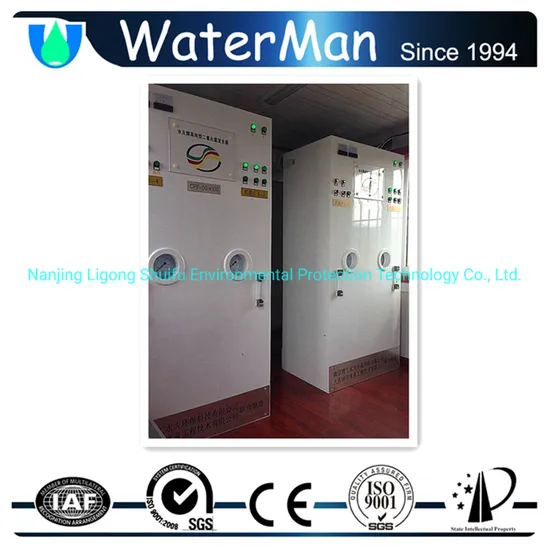

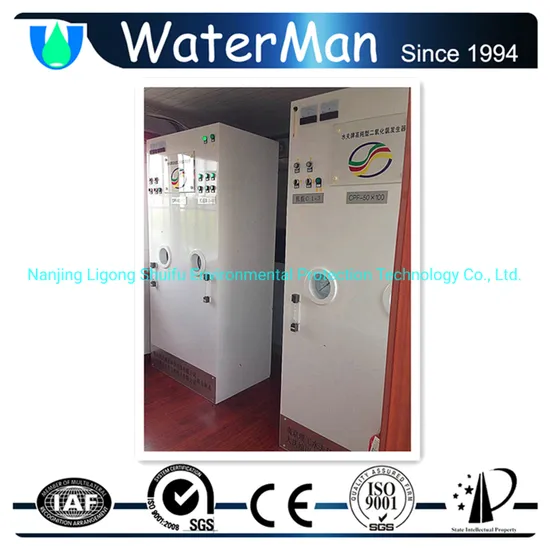

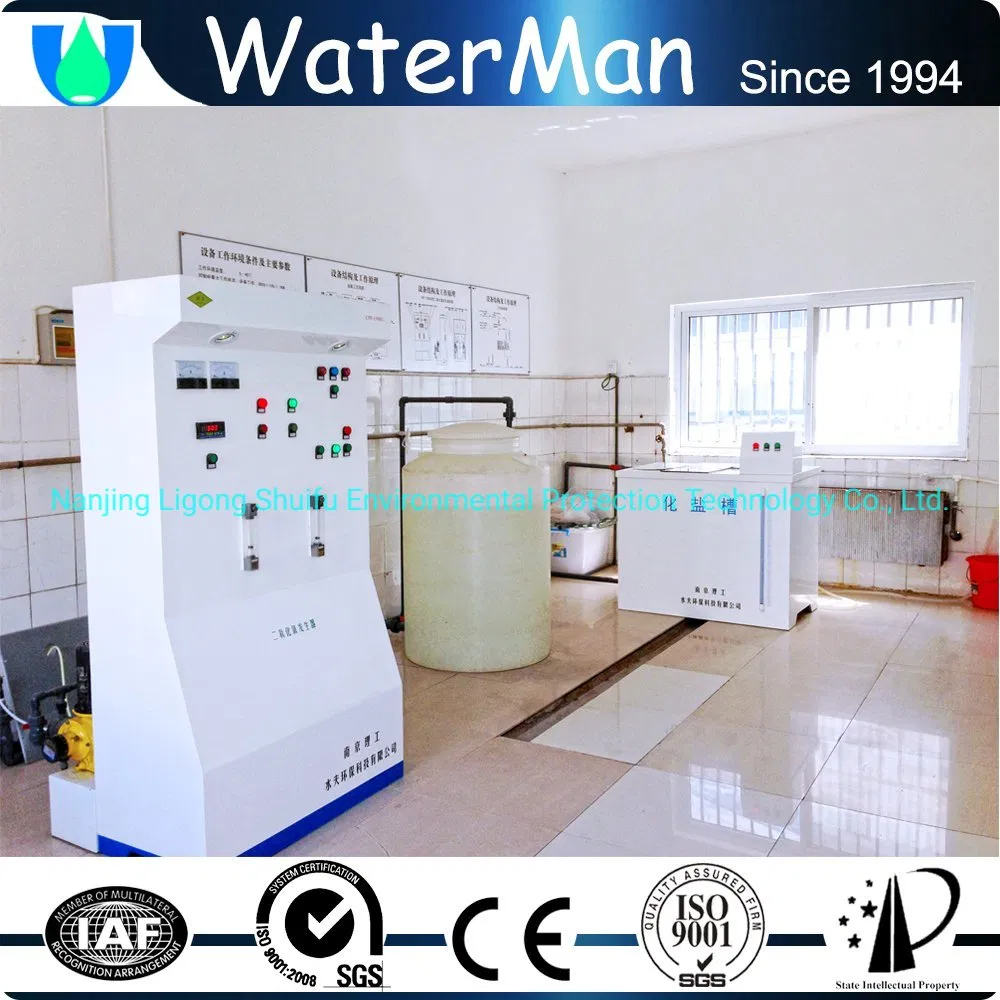

Waterman brand Chlorine Dioxide Generator is specially designed for water purification. It is a disinfection system of producing chlorine dioxide solution on site and adding them to water for disinfection, algae removal, bleaching, deodorization, etc.It has many unique and prominent features of optimized structural design, good materials choice, good quality, low cost, safe and reliable operation and good applicability.We always provide the most economical, reasonable and suitable disinfection solutions to our customers according to their special requirements and special circumstances of the scene.CPF-E series ClO2 generator is a kind of positive pressure and remote automatic control disinfecting system. It is adopted Positive Pressure dosing technology for the first time in the world. It can brought disinfectant solution directly to the pressured water with simple, safe, reliable, stable operation and other characteristics. It can be realized site-control and remote-control. The clo2 generating system can be incorporated into the user's central control system.The way of clo2 producing:
5NaClO2+4HCl = 4ClO2+5NaCl+2H2O
Use of raw materials:
Sodium Chlorite: 78% Industrial Sodium Chlorite
Hydrochloric Acid: 31% Industrial Hydrochloric Acid
Technology:

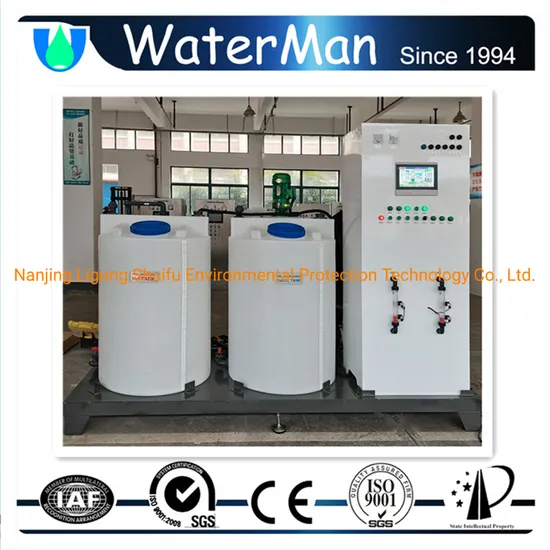

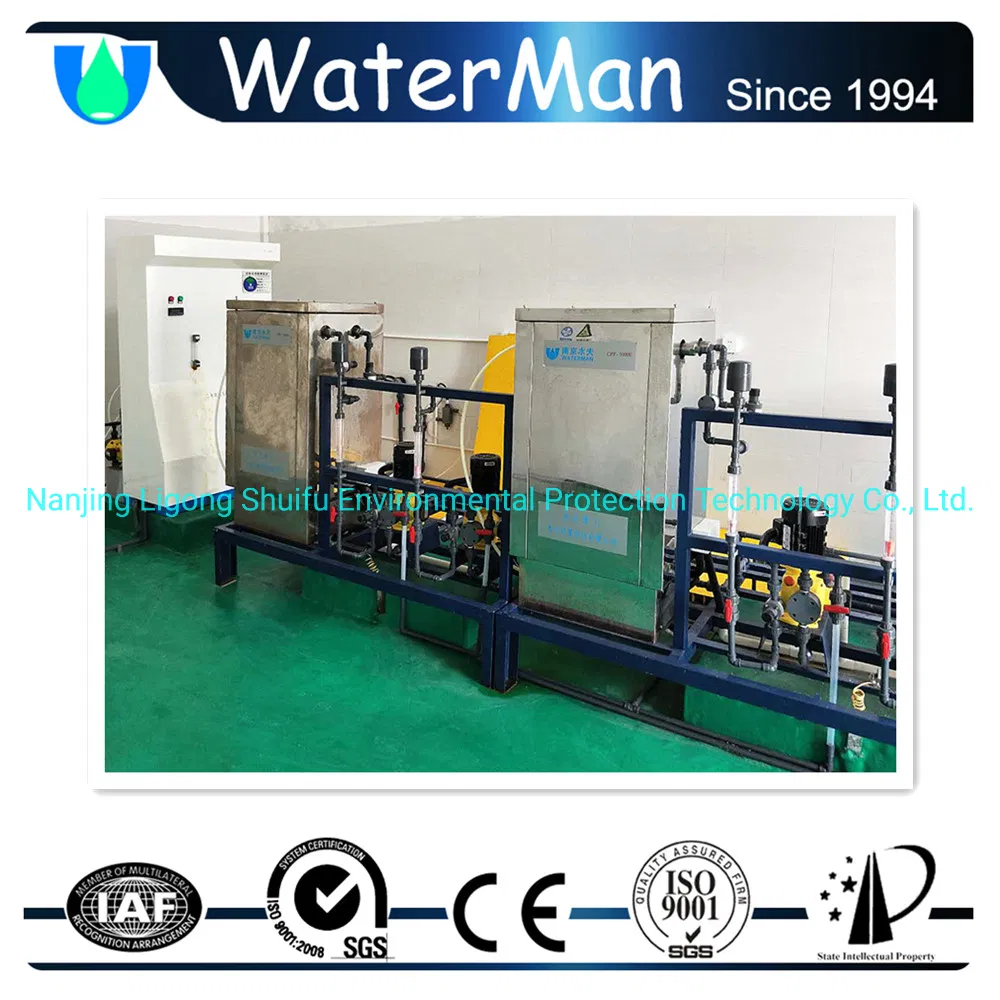

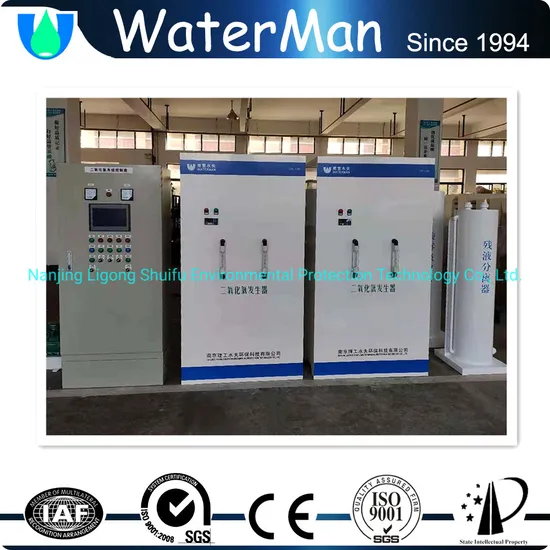

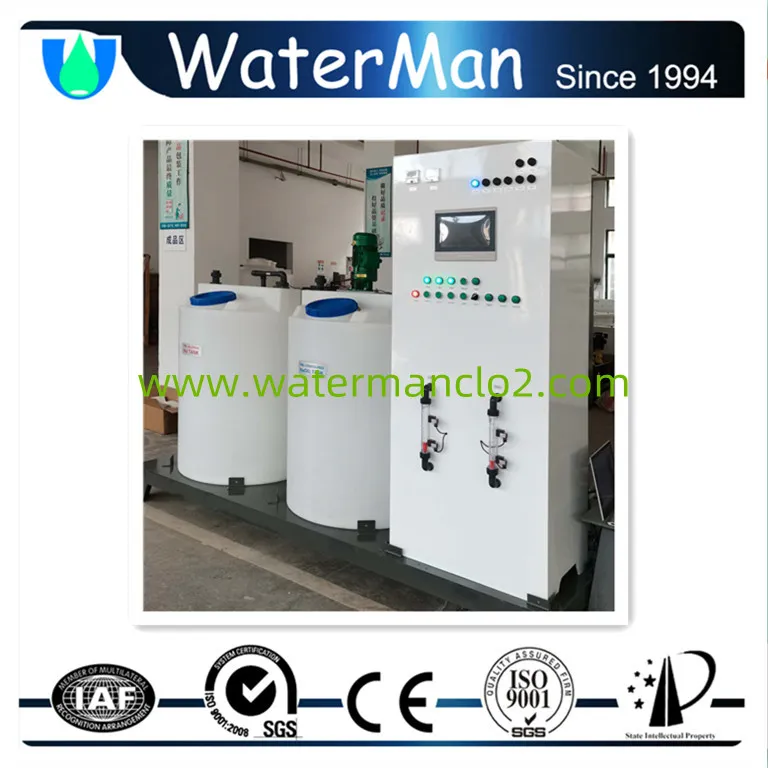

Use sodium chlorite and hydrochloric acid as raw materials, transmission of raw materials through two metering pumps to the reactor, produce the concentration of more than 95% of high-purity chlorine dioxide solution added to water for disinfection. It can automatically adjust the dosage of clo2 solution through flow control and residual chlorine display system. When lack of raw materials, the liquid level alarm system will give audible and visible alarm signals and automatically cut off the power supply of equipment. The entire control system use PLC as the core, on-site parameters setting through the touch screen and remote control through the computer, to realize high-performance automated management of disinfection system. Raw materials conversion rate is more than 95%.

Product Parameters
Main parameters:
