PTN85 Hollow Rotary Platform For Nema42 Stepper Motor
Specificaitons:
1)Product size: 85
2)Ratio range:5/10/18
3)Motor range: type 42/57
(stepper motor)
50/100/200/400W AC
(servo motor)

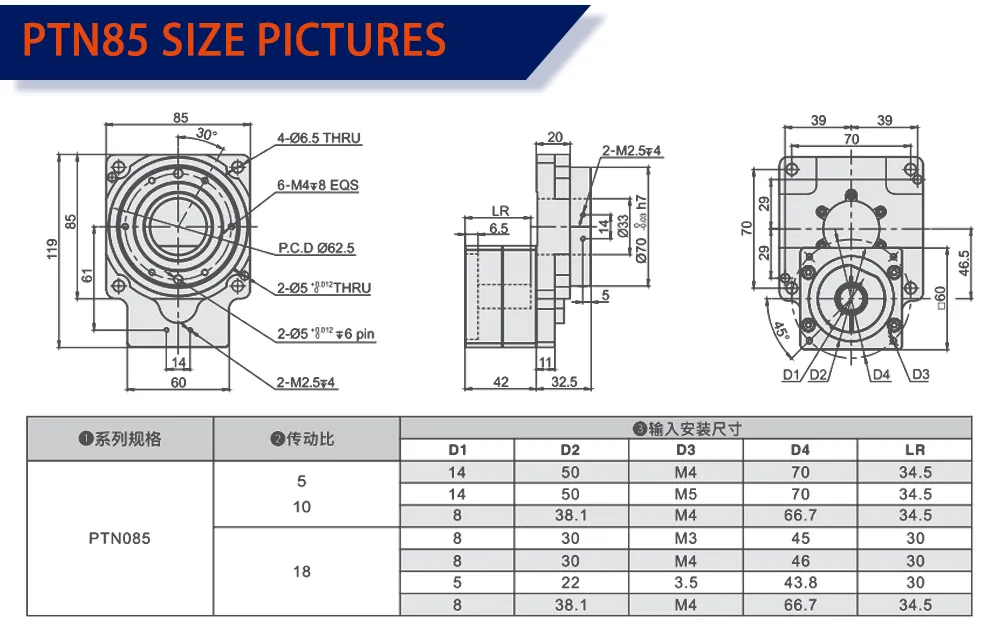

4)Input installation size code: 1450M470LR34.5
(ratio:5/10); 1450M570LR34.5 (ratio:5/10); 838.1M466.7-LR34.5
(ratio:5/10);
830M345LR30 (ratio:18);830M446LR30
(ratio:18); 5223.543.83LR34.5 (ratio:18); 838.1M466.7LR34.5
(ratio:18)
5)Work objects can be directly locked: the rotating disk surface can directly lock the work objects to improve the convenience of workpiece loading;
6)Convenient wiring: the rotary platform is of hollow design, which is convenient for wiring or piping;
7)High accuracy: the positioning accuracy is less than 1arcmin; The repetition accuracy can reach ± 5arcsec;
8)Stable operation: the panel rotates smoothly and smoothly, and the cutting and positioning is fast

1.Lead time: 10-15 working days as usual, 30 days in busy season, it will based on the detailed order quantity;
2.Delivery of samples: by DHL, Fedex, UPS, TNT, EMS

1. who are we?
Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. how to choose the suitable planetary gearbox?
First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc
4. why should you buy from us not from other suppliers?
We are 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts
5. what services can we provide?
Accepted Delivery Terms: Fedex,DHL,UPS;
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
