750W Motor PTN200 Hollow Rotary Actuator for Laser Marking Machine
Specificaitons:

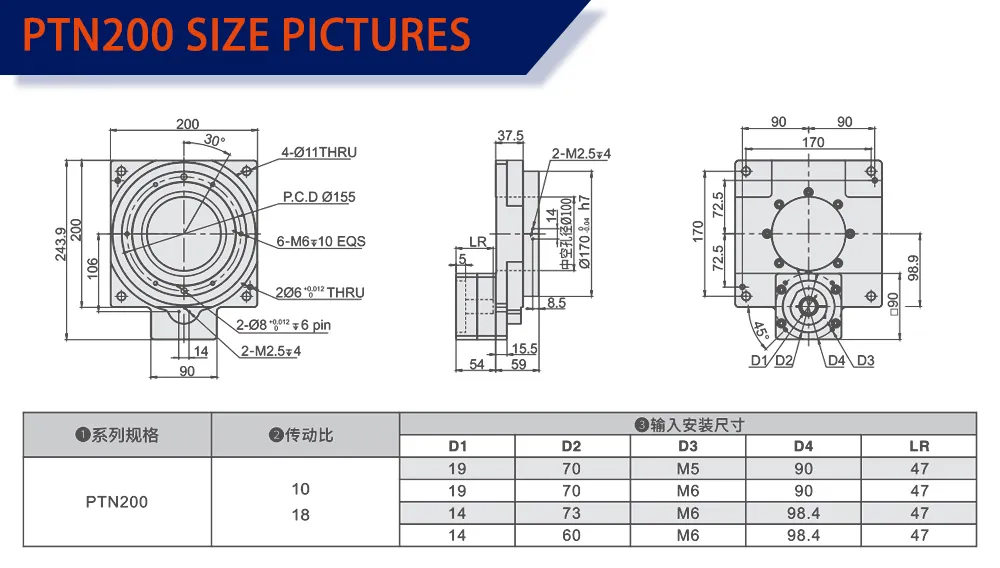

1)Product size: 200
2)Ratio range:10/18
3)Motor range: type 86
(stepper motor)
750W AC
(servo motor)
4)Input installation size code: 1970M590LR47 (ratio:10/18); 1970M690LR47
(ratio:10/18);
1473M698.4LR47 (ratio:10/18)
1460M698.4LR47
(ratio:10/18);
5)Work objects can be directly locked: the rotating disk surface can directly lock the work objects to improve the convenience of workpiece loading;
6)Convenient wiring: the rotary platform is of hollow design, which is convenient for wiring or piping;
7)High accuracy: the positioning accuracy is less than 1arcmin; The repetition accuracy can reach ± 5arcsec;
8)Stable operation: the panel rotates smoothly and smoothly, and the cutting and positioning is fast

1.Lead time: 10-15 working days as usual, 30 days in busy season, it will based on the detailed order quantity;
2.Delivery type: DHL/Fedex/UPS/TNT/EMS
