用于400 W Sever电机的高精度Ptn 130空心旋转致动器

Preview

基本信息产品详情证书

基本信息

型号	PTN 130
开放	开放
安装	垂直
发送形式	齿轮
类型	凸缘
比范围	10、18
马达范围	踏板57
运输包装	用运输纸箱包装
规范	尺寸130
商标	新装备
起源	中国
HS编码	84839000
产能	100000套

产品详情

High Precision PTN130 Hollow
Rotary Actuator for 400W Sever motor
Specificaitons:
1)Product size: 130
2)Ratio range:10/18
3)Motor range: type 57
(stepper motor)
200/400W AC
(servo motor)

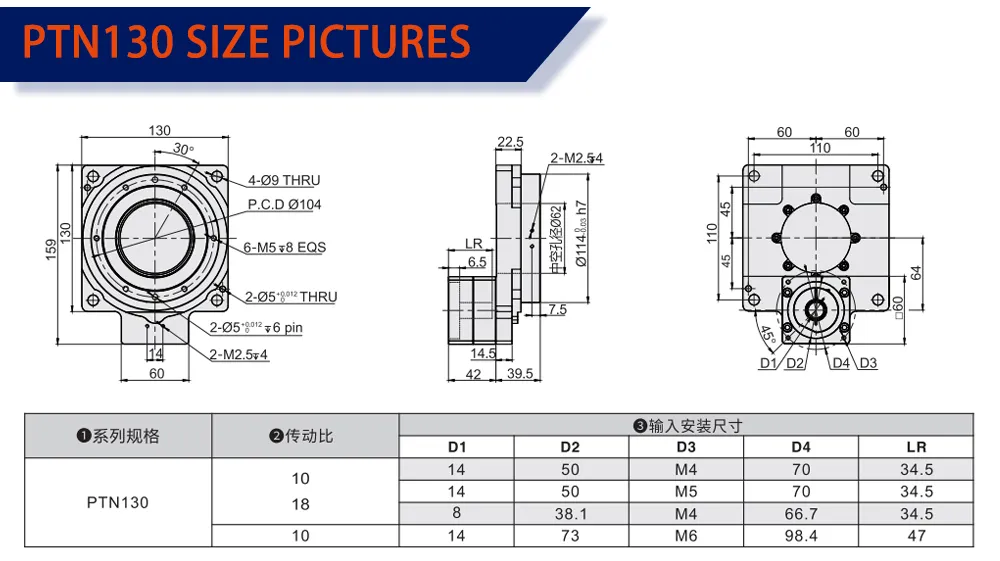

4)Input installation size code: 1450M470LR34.5 (ratio:10/18);
1450M570LR34.5
(ratio:10/18);
838.1M466.7LR34.5 (ratio:10/18);
1473M698.4LR47 (Ratio: 10)
5)Work objects can be directly locked: the rotating disk surface can directly lock the work objects to improve the convenience of workpiece loading;
6)Convenient wiring: the rotary platform is of hollow design, which is convenient for wiring or piping;
7)High accuracy: the positioning accuracy is less than 1arcmin; The repetition accuracy can reach ± 5arcsec;
8)Stable operation: the panel rotates smoothly and smoothly, and the cutting and positioning is fast
