基本信息
| 型号编号 | 8818 |
| 颜色 | 黑/白选项 |
| 频率 | 900/1800兆赫或850/1900兆赫 |
| 来电显示 | 双音多频信号 |
| 备用电池 | 支持 |
| 液晶显示屏 | 支持 |
| SMS控制 | 支持 |
| 保修 | 一年 |
| 商标 | 埃特罗斯或OEM品牌 |
| 起源 | 中国深圳 |
| 生产能力 | 每周3000件 |
| 包装尺寸 | 30.00cm * 18.00cm * 7.00cm |
| 包装总重量 | 0.750千克 |
| 包装尺寸 | 30.00cm * 18.00cm * 7.00cm |
| 包装总重量 | 0.750kg |
产品详情
Product Description
Preview
Etross 8818 GSM Fixed Wireless Terminal / FWT / Fixed Cellular Terminal / FCT / Wireless Local Loop / WLL / Dialer / GSM Gateway
Brand: Etross or OEM brand
Model No.: Etross-8818
Product name: GSM Fixed Wireless Terminal
Frequencies: GSM 900/1800MHz, GSM850/900/1800/1900MHz Optional
Features and Functions:
1) LCD display GSM FWT, Simple to install and easy to maintain
2) Steady module(SIM500W, 300W, Quectel M35) and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for extensions
4) Compatible to most telephones, PBX (for call extensions), Alarm panels (for security) and VoIP gateways (for call terminations)
5) Strong signals with high gain antenna
6) Attractive plastic casing
7) SIM card supported (1.8V, 3V)
8) Caller ID display
9) Provides reversal polarity signal for metering
10) No noise and clear voice
11) Suitable for wide voltage range and low power consumption
12) Suitable for all kinds of weather and environmen
13) RJ-11 ports
14) Locking PIN / network (optional)
Specification:
1) Air interface standard: GSM 900 / 1, 800MHz phase 2+
2) Frequency ranges:
A) GSM 900:
I) Transmission: 890 ~ 915MHz
Ii) Reception: 935 ~ 960MHz
B) GSM 1800:
I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 1, 805 ~ 1, 880MHz
3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity: -105dB
8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10° C ~ +40° C
10) Relative humidity: 45% ~ 90% (without frost)
11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction / chosen direction)
14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)
18) Connector of power: EU/US/AU type (optinal)
19) Dimensions (L x W x H) (average): 185 x 135 x 22mm
20) Weight:
A) FWT: 350g
B) Full set with AC adapter, antenna and box: 650g
21) Colors: White / black (optional)
22) Connection mode: RJ-11 phone sockets
23) Antenna connection: SMA antenna connection
Brand: Etross or OEM brand
Model No.: Etross-8818
Product name: GSM Fixed Wireless Terminal
Frequencies: GSM 900/1800MHz, GSM850/900/1800/1900MHz Optional
Features and Functions:
1) LCD display GSM FWT, Simple to install and easy to maintain
2) Steady module(SIM500W, 300W, Quectel M35) and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for extensions
4) Compatible to most telephones, PBX (for call extensions), Alarm panels (for security) and VoIP gateways (for call terminations)
5) Strong signals with high gain antenna
6) Attractive plastic casing
7) SIM card supported (1.8V, 3V)
8) Caller ID display
9) Provides reversal polarity signal for metering
10) No noise and clear voice
11) Suitable for wide voltage range and low power consumption
12) Suitable for all kinds of weather and environmen
13) RJ-11 ports
14) Locking PIN / network (optional)
Specification:
1) Air interface standard: GSM 900 / 1, 800MHz phase 2+
2) Frequency ranges:
A) GSM 900:
I) Transmission: 890 ~ 915MHz
Ii) Reception: 935 ~ 960MHz
B) GSM 1800:
I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 1, 805 ~ 1, 880MHz
3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity: -105dB
8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10° C ~ +40° C
10) Relative humidity: 45% ~ 90% (without frost)
11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction / chosen direction)
14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)
18) Connector of power: EU/US/AU type (optinal)
19) Dimensions (L x W x H) (average): 185 x 135 x 22mm
20) Weight:
A) FWT: 350g
B) Full set with AC adapter, antenna and box: 650g
21) Colors: White / black (optional)
22) Connection mode: RJ-11 phone sockets
23) Antenna connection: SMA antenna connection
Preview
Preview

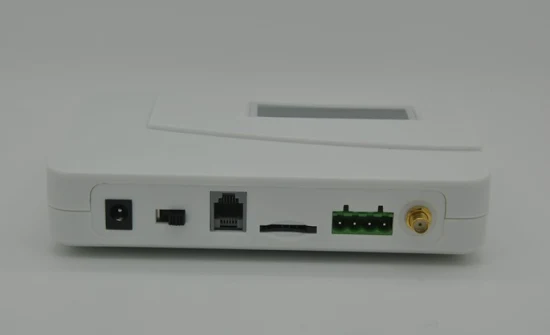

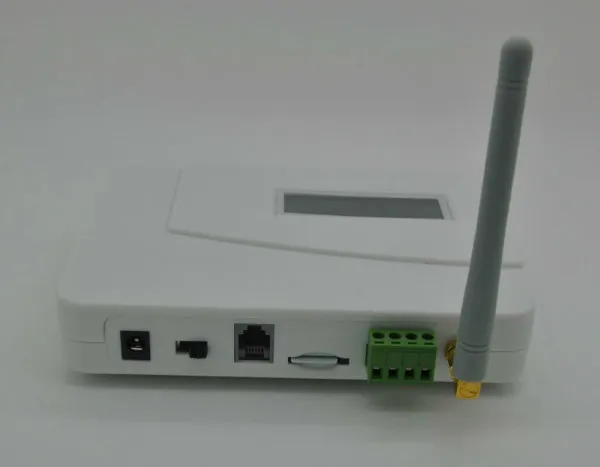

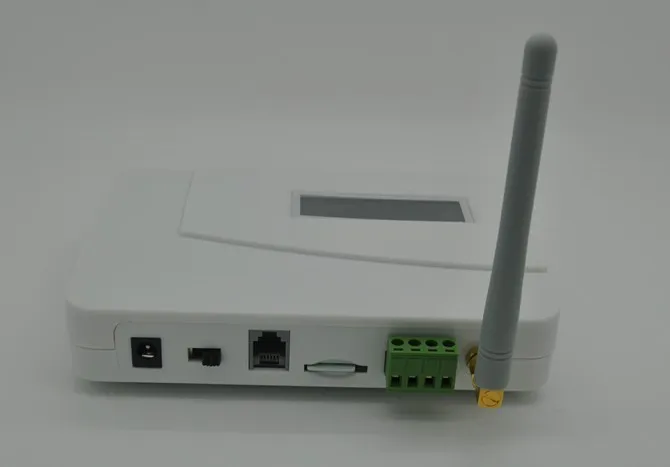

RJ11 Port, SIM card slot & RELAY:
Preview
Preview
Preview
Preview
证书
标题：GSM FWT 8848 FCC ID
