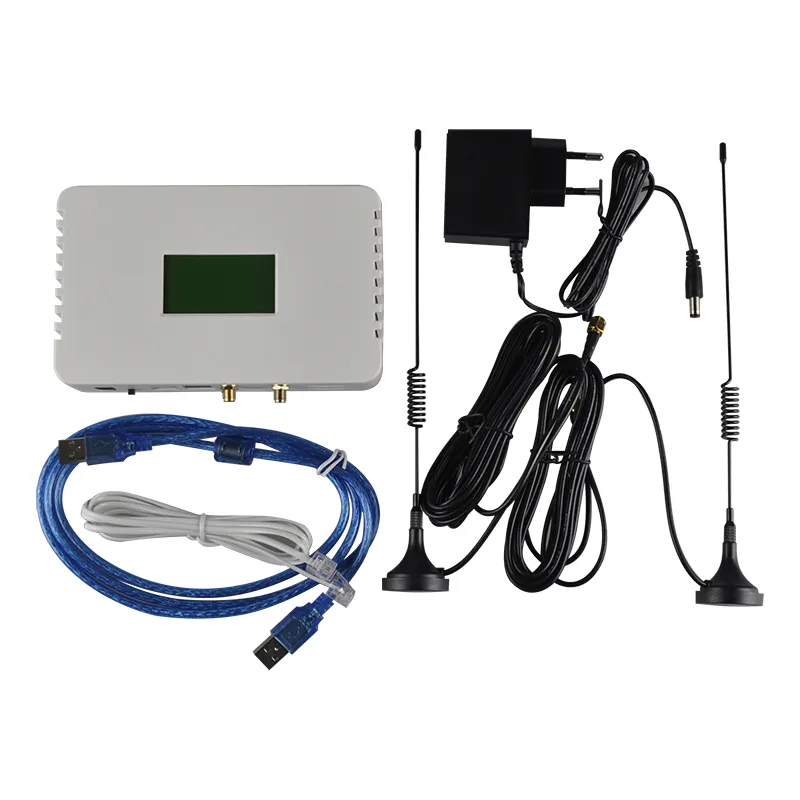

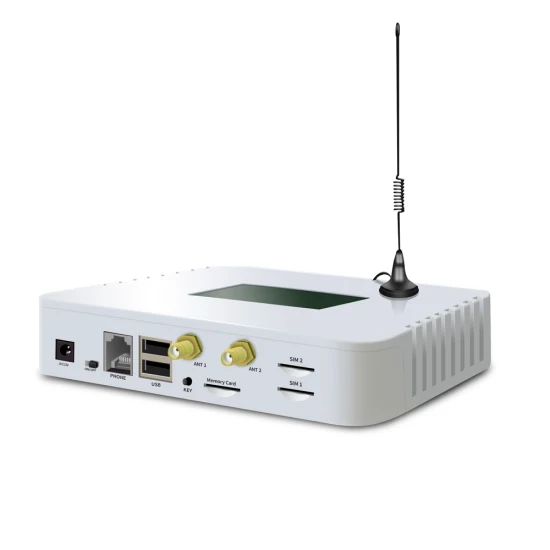

Dual Sim Cards GSM Telemarketing / Advertising Terminal with Auto Dial & Play IVR function
Etross Factory GSM SIM Card to Landline Converter with 2 SIM Slots/IVR Device
Auto Call Dual SIM GSM Fixed Wireless Gateway 1688
Telemarketing Advertising Terminal
ETS-1688
1. General Instruction
2. Main features1)

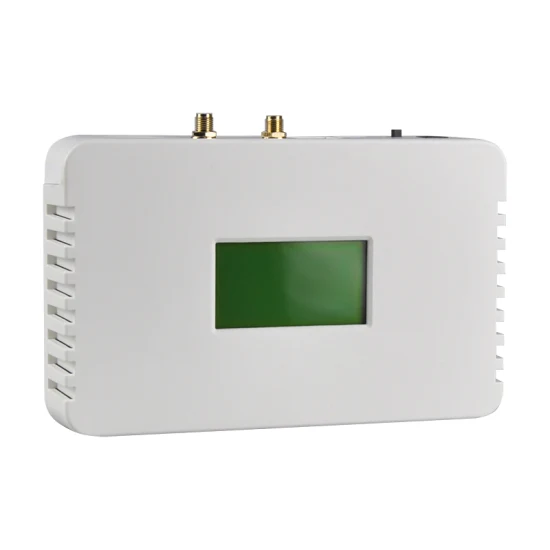

Dot matrix
LCD monitor;
2)
Call in & Call out control route;3)
DC 12V external power supply, or 5V Power Bank;4)
2 GSM chips will call by turns, support remote control;5)
1 button used for Start / Pause the calling task or check the task status;6)
Can store up to 10000 calling task's phone number and record of 1000 calling in number;7)
Support maximum storage 32G
Micro SD card
to save record files, support mp3 & wav
format;8)
1 RJ-11 phone jack, using for connecting with desktop phone as local control or normal calling;
9)
2 USB Jacks, one used for transfering record files as an U Disk, the other is used for connecting with the controlling
software which installed in PC.

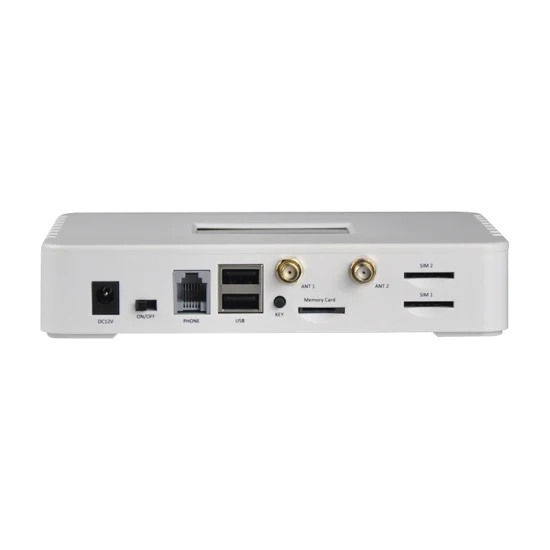

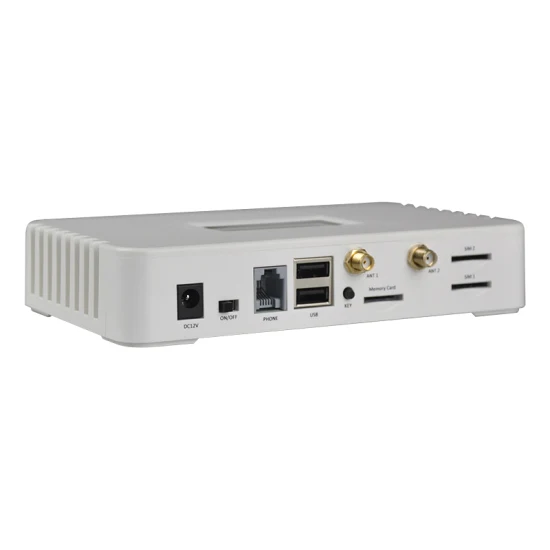

3.Device back panel description
4.LCD monitor display description
5. Setting & Running
Figure 4-2 Status
As
Figure
4-2
show, select the
correct
COM port and click "Connect" button, then in the state of the page you can see the equipment work's
status. Click "new" button
, import number
file , the call task appears telephone number that
save in number file. Click "start"
to
execute the calling task.Figure 4-3 Configure page
From Configure page, user can set the GSM volume, microphone sensitivity, automatic call enable, automatic dialing interval, waiting time, maximum talk time, task start time, task time period control, administrator phone number, call completion SMS pent to the administrator, the content of the SMS.Figure 4-4 Call out IVRE.G.:
In Figure
4-4 Call out IVR ,
Event 1 means : when the phone call connected and in the other end of the call input a key 3 number , then will send the Content of SMS to the phone you call.Event 2 means:
when the phone call connected, after 10 secs, device will goto IVR1 process.Figure 4-5 Call In IVRIn Figure 4-5 Call In IVR , Event 1 means: when the phone call connected after 10 secs ,the device will goto IVR1 process.
