CDMA 800 MHZ Fixed wireless terminal FWT-8848RUIM OR NON-RUIM Support
Connect devices : PBX,Telephone,Billing machine,FXD gateway,Elevator/Security Alarm system etc.
1.General DescriptionCDMA 800MHZ FWT-8848 is a
CDMA
to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will

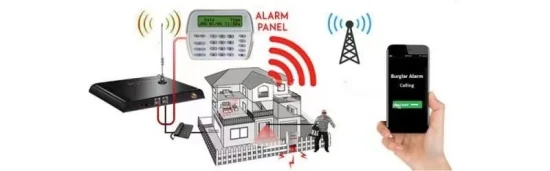

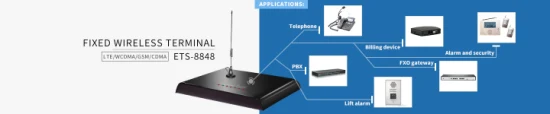

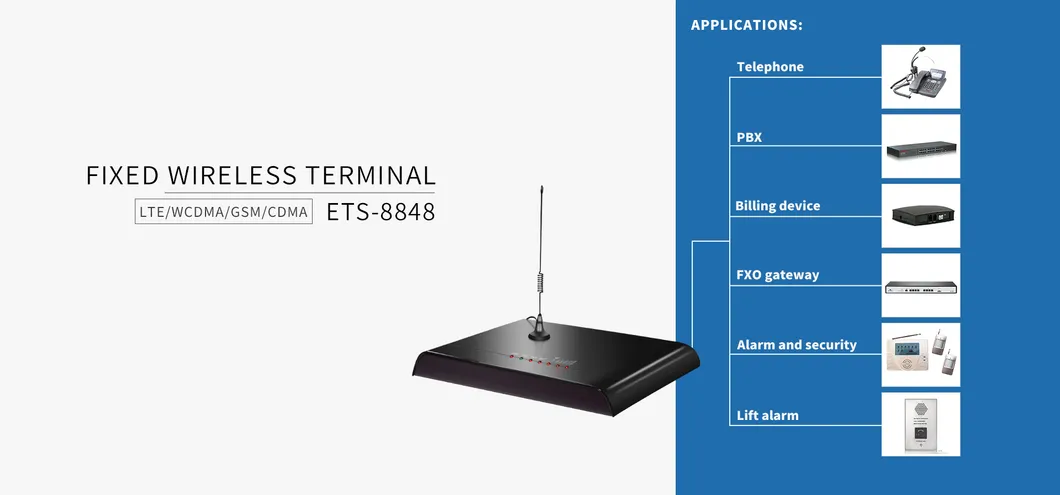

go out the CDMA network. This device can both receive and make calls.The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a CDMA+VOIP gateway, It is a CDMA
Fixed Wireless Terminal that produces an analog FXS phone line .2.Main Features:
1) It is a 1 channel CDMA FWT
which has 2 RJ-11 outputs for extensions;2) It can connect with ordinary telephone set, Alarm system,PBX ,Billing meter, VOIP Gateway etc. ;3) Dialing tone frequency:450hz;4) Employ Industrial module to make;5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);8) Caller ID display;9) DTMF Dialing;10) Bell signal;11)
The RJ-11 socket which connect the phone or billing system for metering purpose;12) Antenna socket (SMA);
13) IP Presetting;14)

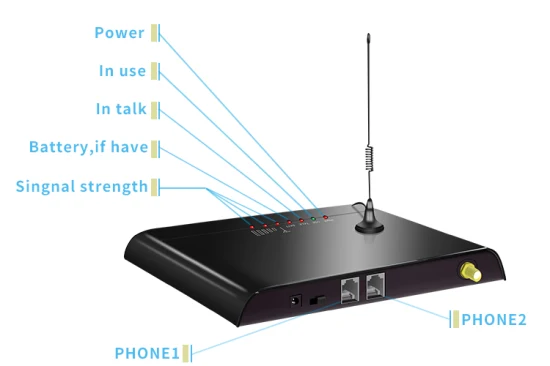

Working status and Signal Strength by LED indicator;
15) IMEI Change (optional).16) PIN Lock

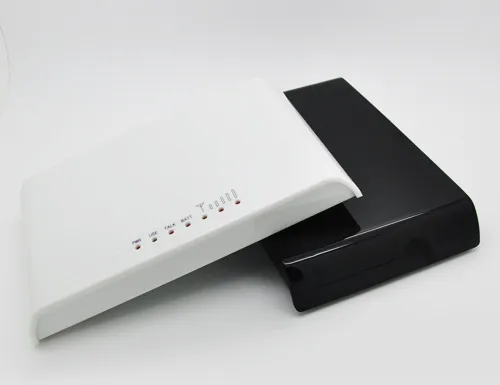

&Network Lock(optional)17) Back up Li-ion battery( Optional) 7.4V 900mAh.standby 24hrs,talking time: 2.5hrs.3.Technical Specifications:Phone interface: supply RJ-11 Phone InterfaceHanging voltage: 45VPicking off voltage: 30mA / 41mADialing tone Frequency: 450HzAntenna interface: Antenna amplifying>2.5dbSensitivity:<-104DBMTransmitting power<3WColor: White /Black (optional)AC-Adapter interface: Input: AC 110~240VAC
50~60Hz;Output: 12DC 1A.AC-Adapter type: EU,
US,
AU,
British can be optional4,
Packing
List
