Basic Info.
Model NO. | CF-G-2-200g |
Dielectric Material | Glass Tube |
Cooling Method | Water-Cooling |
Gas | Oxygen |
Frequency | 800-1000Hz |
Installation | Foundation Installation |
Type | High Voltage Discharge |
Ozone Production (G/H) | 200 |
Ozone Concentration(Mg/L) | 100-120 |
Power Consumption(Kw/H) | 2 |
Oxygen Flow (M³/H) | 2.05 |
Cooling Water (M³/H) | 0.4 |
Cooling Water Temperature | 5~28 |
Ozone Outlet Pressure (MPa) | 0.095 |
Cooling Water Inlet Pressure (MPa) | 0.2 |
Dimension (mm) | 1160*700*1700 |
Weight (Kg) | 450 |
Application | Swimming Pool Water Treatment |
Product Name | Swimming Pool Ozone Generator |
Transport Package | Wooden |
Specification | 1160*700*1700mm |
Trademark | GUOLIN |
Origin | China |
HS Code | 8543709990 |
Production Capacity | 50000pieces/Year |
Package Size | 200.00cm * 100.00cm * 150.00cm |
Package Gross Weight | 1000.000kg |
Package Size | 200.00cm * 100.00cm * 150.00cm |
Package Gross Weight | 1000.000kg |
Product Description

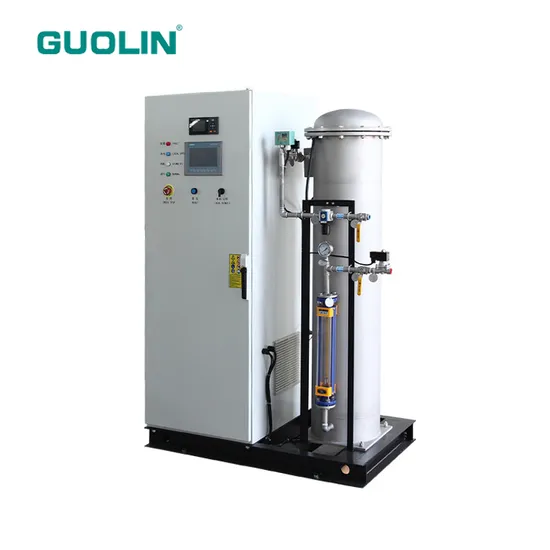

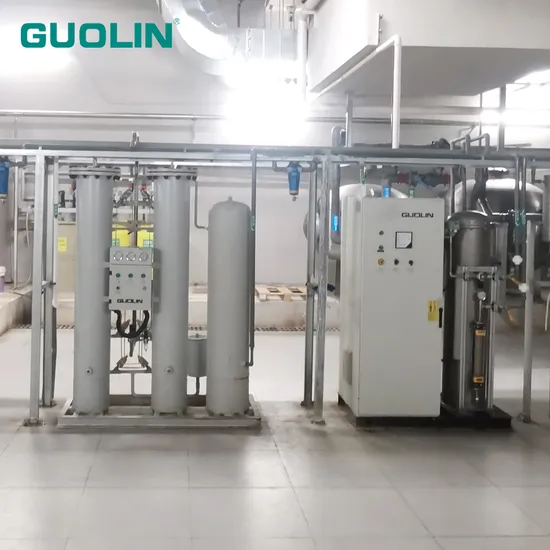

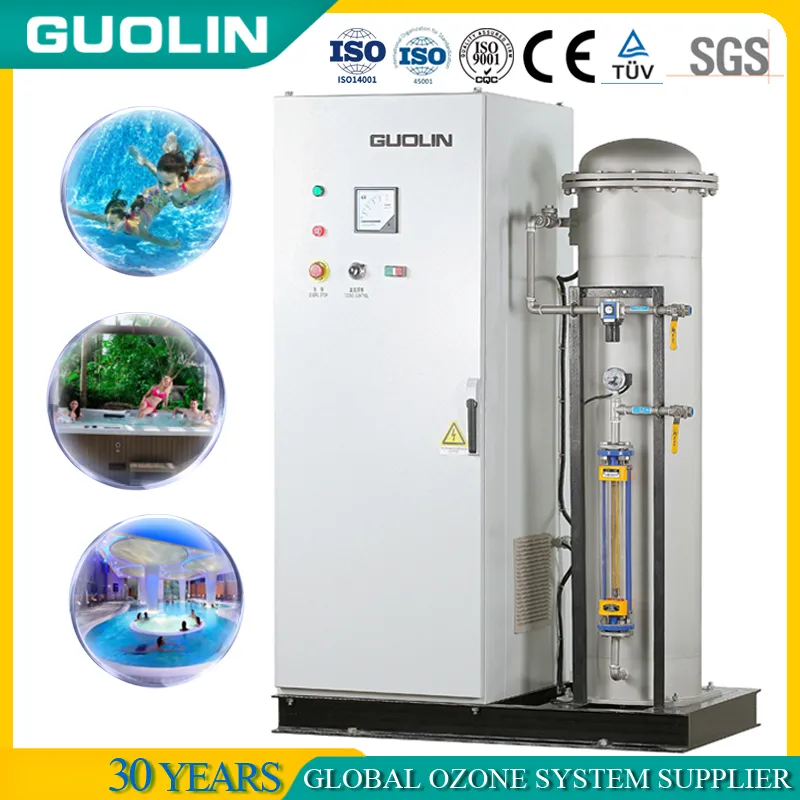

High Ozone Concentration Capacity Is Adjustable Ozone Generator For Swimming Pool
Preview
Product Description
Preview

Preview
Specifications
Air Source
Air Source
Preview

Preview
Products Characteristics
Preview

Preview

Preview

Preview

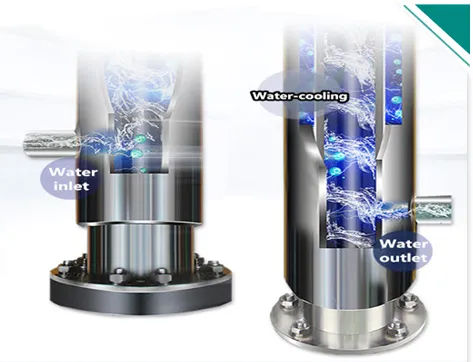

1.External electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube.2.Negative pressure discharge technology is specially used for swimming pool water treatment; high targeted and high adaptability.3.The heat regeneration feed gas treatment way creates high drying efficiency and good feed gas quality, which is more suitable for the humid and corrosive environment of swimming pool.
Preview

Preview

Preview

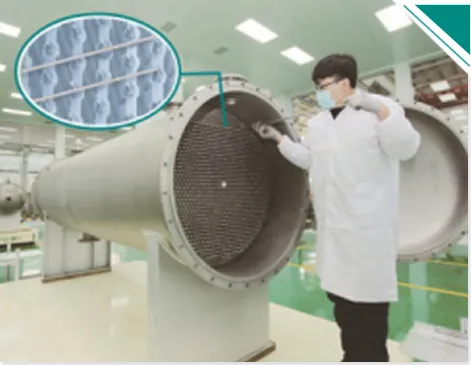

4.Patented enamel dielectric tube with features of high strength, good pressure resistance and good heat resistance; easier to be maintained.5.Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time.6.Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions.7.Control method includes manual control and automatic control for option.
Core Technology
CORE TECHNOLOGY

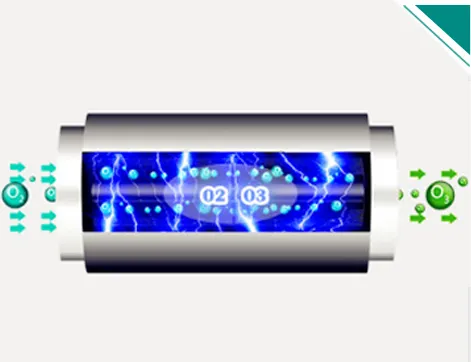

International leading glass and non-glass discharge dielectric technology
Capacitive load high power inverter resonant power supply technology
Capactive load high power dry type high voltage transformer technology
Power control technoloay based on IP core and digital logic circuit
Embedded on-line detection and remote monitoring technology of ozone system
Core Technology
CORE TECHNOLOGY
International leading glass and non-glass discharge dielectric technology
Capacitive load high power inverter resonant power supply technology
Capactive load high power dry type high voltage transformer technology
Power control technoloay based on IP core and digital logic circuit
Embedded on-line detection and remote monitoring technology of ozone system
Preview
Company Profile
Preview

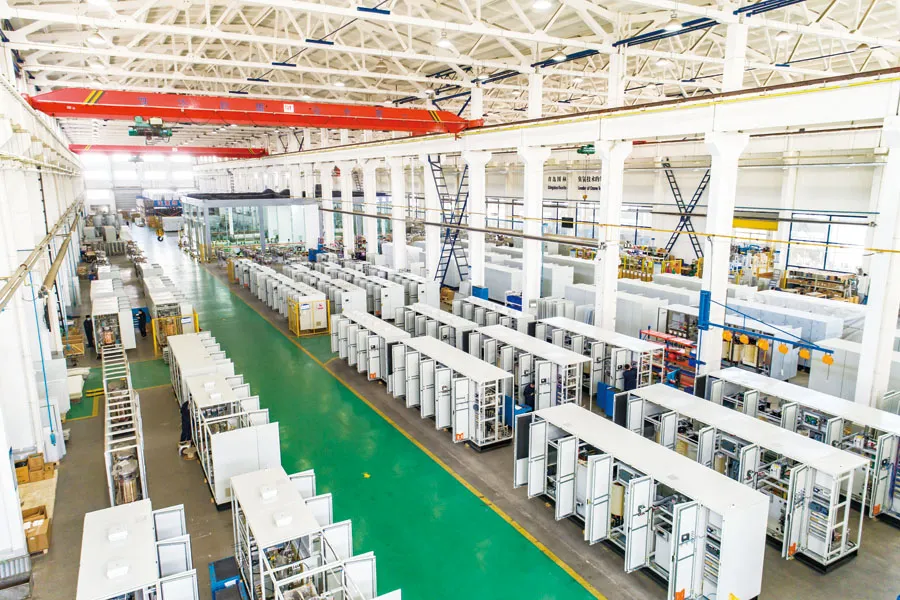

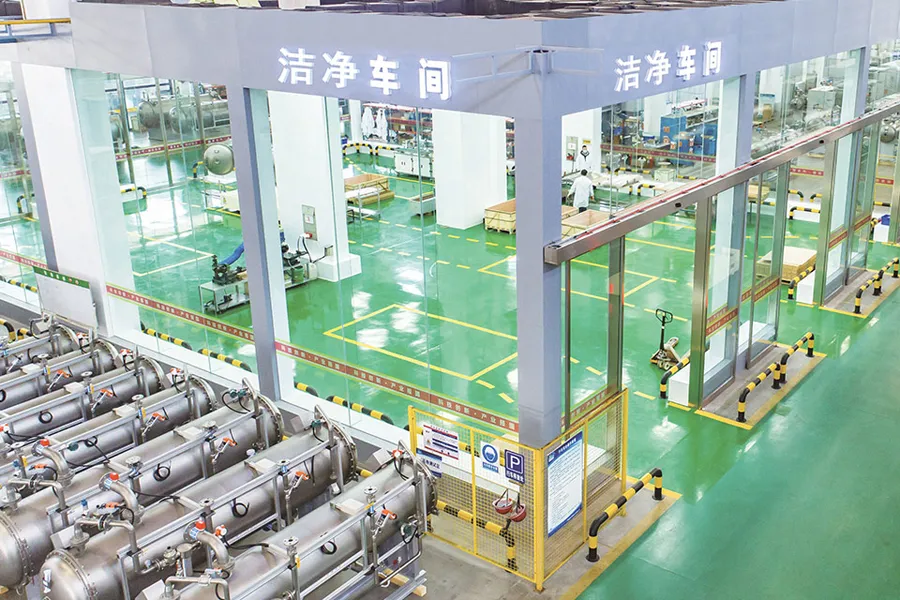

Qingdao Guolin Technology Group Co., Ltd. (hereinafter referred to as Guolin Technology) was established in 1994, which is a high-tech enterprise focusing on ozone research, manufacture and trade. As a professional organization, Guolin invests itself in ozone generation mechanism research, ozone equipment design and manufacture, ozone application engineering design, installation, commissioning, operation and maintenance. Guolin has an ozone equipment production base covering an area of over 86,666.00 m2 and is a leading enterprise in the ozone industry of China. Guolin Technology (Stock code: 300786.SZ) was officially listed on the GEM of Shenzhen Stock Exchange on July 23, 2019, becoming the first listed enterprise of ozone industry.
Preview

Preview
GuoLin Technology adheres to the business philosophy of "Science and Technology Innovation make the world harmony," persisting in independent research and development of core technologies to achieve domestic production of core components. After more than thirty years of effort, it has successively overcome the manufacturing technologies of tube-type ozone generators, plate-type ozone generators, and electrolytic water ozone generators. GuoLin Technology has become the first Chinese enterprise to break through the manufacturing technology of ozone generators in 1kg/h, 10kg/h, 100kg/h and 500kg/h. Its products have been widely applied in various fields, including municipal water treatment, wastewater treatment, flue gas denitrification, chemical oxidation, petroleum, semiconductor, medical, agriculture, and other fields.
The company's R & D center is granted the honor of the "Provincial enterprise Technology Center" and "Shandong Ozone Engineering Technology Research Center". Also, it has presided over the formulation of the national standard "Technical requirements for ozone generator for water and waste treatment" (GB/T37894-2019), presided over the revision of China's urban construction industry standard "Ozone generator for water and waste water treatment" (CJ/T322-2010); It undertook the national "Twelfth Five-Year Major Science and Technology Special Water project" project, the national "Thirteenth Five-Year Key Research and Development Plan" project, and the national "Thirteenth Five-Year Major science and Technology special Water project" project.Guolin Technology is the first enterprise in ozone industry to be honored with the National Specialized "New Little Giant" title given by the Ministry of Industry and Information Technology. In addition, Guolin is recognized as environmental protection equipment manufacture enterprise with standard conditions of air pollution treatment , environmental protection equipment manufacture enterprise with standard conditions of sewage treatment , the state encouraged enterprise developed major environmental protection technology and supporting equipment. Guolin Technology is holding over a hundred patents, including invention patents, practical new-type patents, and software copyrights.Guolin Technology has always committed to the "Develop Ozone Technology and Cast Green Industry ". Currently, it is becoming a global ozone system supplier, and will continue to focus on ozone technology research and application in the future. Guolin Technology always provides professional ozone system solutions for clients in different fields and with different needs.
The company's R & D center is granted the honor of the "Provincial enterprise Technology Center" and "Shandong Ozone Engineering Technology Research Center". Also, it has presided over the formulation of the national standard "Technical requirements for ozone generator for water and waste treatment" (GB/T37894-2019), presided over the revision of China's urban construction industry standard "Ozone generator for water and waste water treatment" (CJ/T322-2010); It undertook the national "Twelfth Five-Year Major Science and Technology Special Water project" project, the national "Thirteenth Five-Year Key Research and Development Plan" project, and the national "Thirteenth Five-Year Major science and Technology special Water project" project.Guolin Technology is the first enterprise in ozone industry to be honored with the National Specialized "New Little Giant" title given by the Ministry of Industry and Information Technology. In addition, Guolin is recognized as environmental protection equipment manufacture enterprise with standard conditions of air pollution treatment , environmental protection equipment manufacture enterprise with standard conditions of sewage treatment , the state encouraged enterprise developed major environmental protection technology and supporting equipment. Guolin Technology is holding over a hundred patents, including invention patents, practical new-type patents, and software copyrights.Guolin Technology has always committed to the "Develop Ozone Technology and Cast Green Industry ". Currently, it is becoming a global ozone system supplier, and will continue to focus on ozone technology research and application in the future. Guolin Technology always provides professional ozone system solutions for clients in different fields and with different needs.
Preview

Preview

Preview
Certifications
Preview

Preview

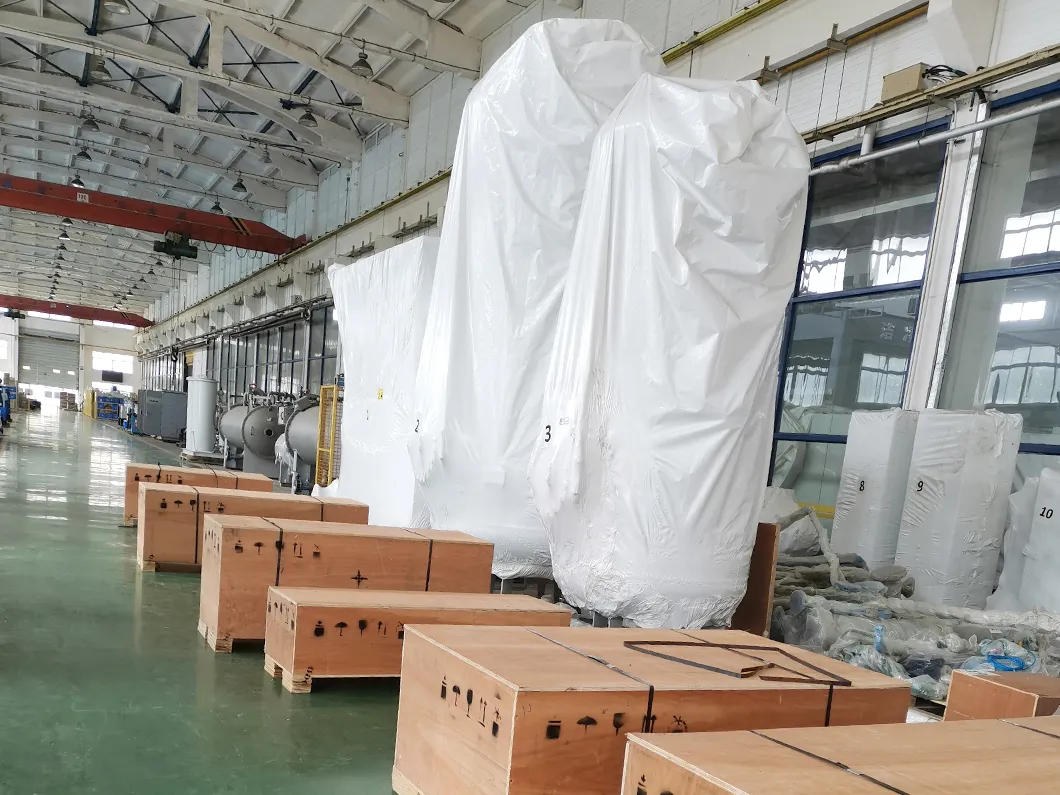

Packaging & Shipping
Preview

Preview

Preview

Preview
Exhibition
Preview

Preview

Preview

Preview

Preview

Preview

Preview
FAQ
Q: Are you trading company or manufacturer?
We are professional ozone generator manufacturer with more than 25years experience.Q: How long is your delivery time of ozone water treatment system?
Generally it is 30-60 days depends on different models.Q: What is your term of payment?
We support TT, Western union, Alipay , Paypal, LC.Q: Which market do you already sell?
Spain, Italy, Turkey, Iran, Israel, Croatia, Indonesia, Australia, Brazil, Chile, Uganda, Ghana, etc.Q: How does your factory control the quality of ozone generator?
Safety production under strict quality control management system ISO9001; quality
priority. 100% tested products with 72hours running test time. CE certification is available.
Q: Are you trading company or manufacturer?
We are professional ozone generator manufacturer with more than 25years experience.Q: How long is your delivery time of ozone water treatment system?
Generally it is 30-60 days depends on different models.Q: What is your term of payment?
We support TT, Western union, Alipay , Paypal, LC.Q: Which market do you already sell?
Spain, Italy, Turkey, Iran, Israel, Croatia, Indonesia, Australia, Brazil, Chile, Uganda, Ghana, etc.Q: How does your factory control the quality of ozone generator?
Safety production under strict quality control management system ISO9001; quality
priority. 100% tested products with 72hours running test time. CE certification is available.
