Air Source Ozone Generator Technical Parameters
Oxygen Source Ozone Generator Technical Parameters
Note
1. Power consumption is based on different ozone concentration and cooling water conditions.2. Customerize for higher ozone concentration ozone generator.

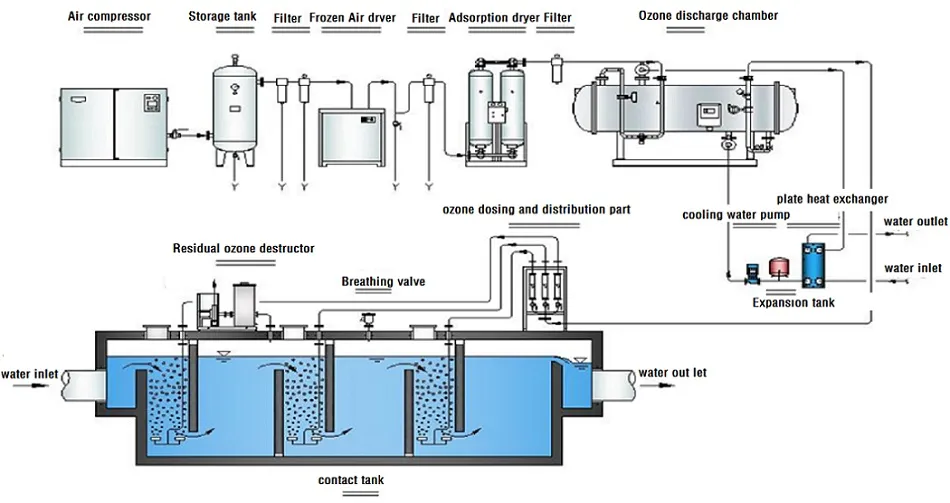

Work Diagram

Basic knowledge of ozone
Ozone is an oxygen molecule made up of three oxygen atoms. The molecular formula is O3, one of which is connected with the other two oxygen atoms in the form of a single bond. Ozone is known as "green chemicals", is a strong oxidizing agent. It has four main functions of sterilization, decolorization, oxidation, deodorization and no residue, no pollution, is one of the environmental friendly green industrial raw materials. Ozone is one of the most powerful solutions for municipal, industrial and commercial water treatment challenges.
Environmental conditions
Waste water treatment oxidation process by ozone
It is generally used for the outlet end of water, further reducing COD, decolorizing and ensuring the effluent index.The upgrading of grade B to A is achieved by ozone plus filtration technology.Intermediate water reuse is applied to bleaching and deodorization
Ozone function
To further degrade the biodegradable organic matter.Reduce the chromaticity and turbidity of the effluent.Kill Escherichia coli and virus in water
Remove the odor of water
Our Products advantage
All in one equipment, easy to operate
Over temperature protection, over-current protection, and over-voltage abnormality monitoring.Ozone leakage alarm, operation fault alarm monitorin
Supply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc.Use special stainless steel tube for discharge chamber
With SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions.

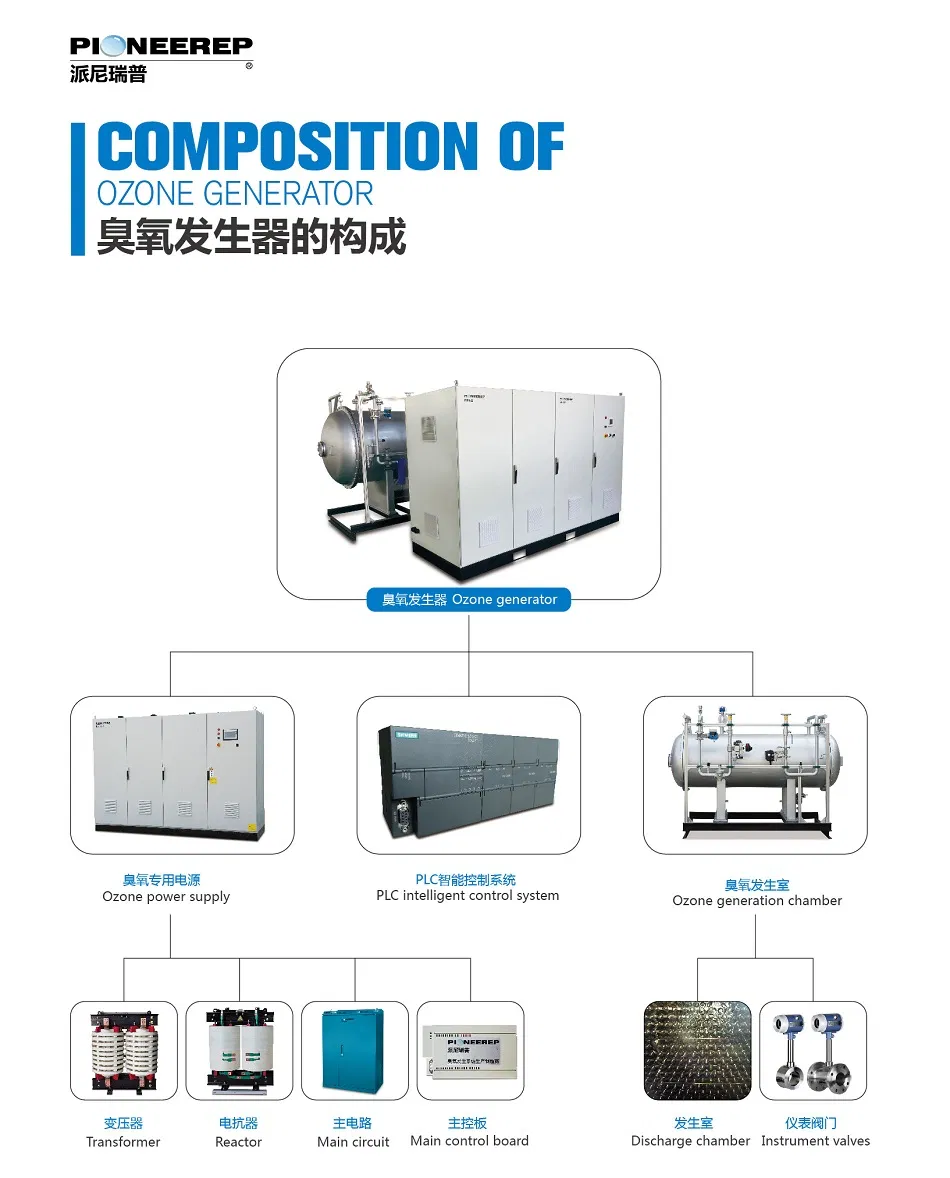

Core Technology

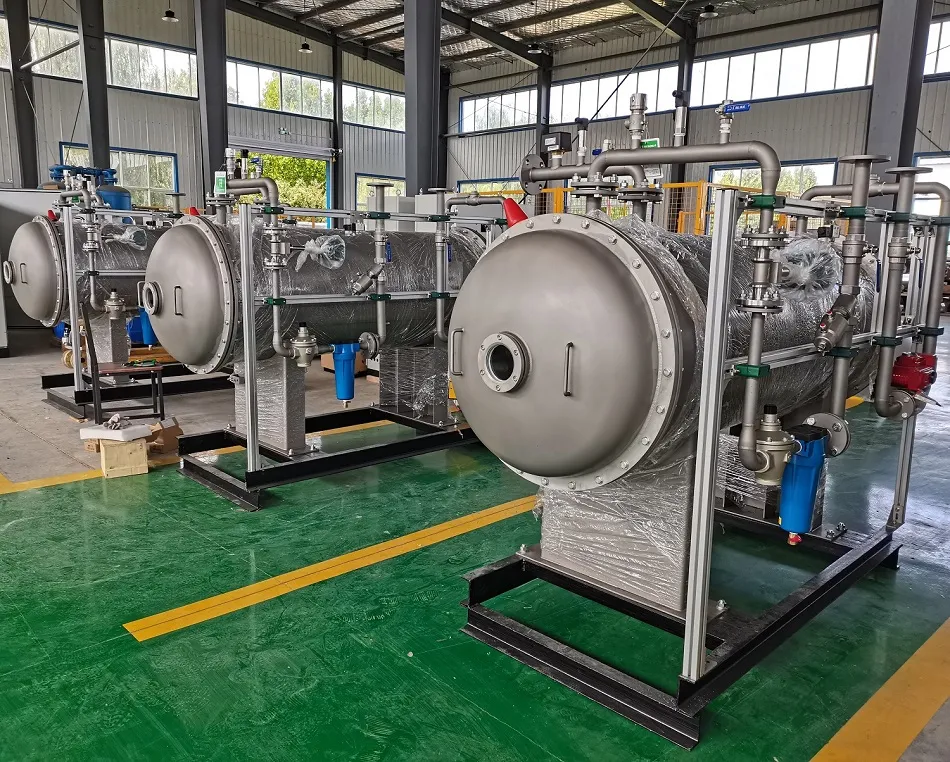

Ozone discharge chamber technology
Special glass tube discharge chamber(Patent No ZL2011 2 0385785) adopts double air gap discharge technology, high quality glass medium and matching dedicated power supply, fully exerts the efficiency of corona discharge to produce ozone, ensuring large output, high concentration and lower power consumption.
High power ozone dedicated dry-type transformer technology
The high voltage transformer converts the alternating current output from the inerter circuit into high voltage electricity suitable for generation of ozone by generating a dielectric barrier discharge in the chamber discharge body. In order to match the capacitive characteristics of the occurrence of the discharge of the chamber discharge body, the requirements of its parameters are different from those of ordinary transformers.
Ozone special frequency conversion power supply technology
The ozone generator control system is independently developed by the company to control the normal operation of the ozone generator power supply, and has anti-jamming, load short circuit protection, high operating temperature protection, with industry leading level, high operation reliability.
After sales service
Our company is responsible for the maintenance of the equipment and the establishment of equipment user files from the date the equipment leaves the factory.
The intelligent remote monitoring center monitors the operation of equipment in real time through the intelligent remote monitoring system.
After-sales service guarantee center, built a
complete after-sales parts warehouse and supporting facilities.Provide free equipment use training and equipment maintenance training.Provide customers with equipment components and maintenance materials in time.Beyond the warranty period, a
long-term maintenance contract can be signed.Strengthen the contact with users, pay attention to the opinions of users, develop user quality tracking information card, improve the user profile.The professional training team pays regular visits to understand the operation of the equipment to ensure the long-term safe and reliable operation of the equipment.

About Us
Qingdao Wingoal Trade Co., Ltd. is located in the beautiful
coastal city Qingdao and is the subsidiary of Shandong Pioneer Environmental Protection Technology Co., Ltd. PIONEER is a well-known professional Ozone Generator System manufacturer in China. We mainly offer ozone generators (air source and oxygen source) in wide range applications especially in water-treatment. With R&D centers and international advanced ozone generator manufacturing technology, PIONEER products have exquisite structure, stable performance, simple operation and convenient maintenance. In different fields, Pioneer designs and offers complete ozone generator system solutions according to customers′ actual situation and requirements. Pioneer products have exported to more than 20 countries around the world and got recognition from customers.Pioneer will as always work hard to supply premium products and devote to environmental protection industry. Contact us today for your needs! We are looking forward to your inquiry.

Package and delivery

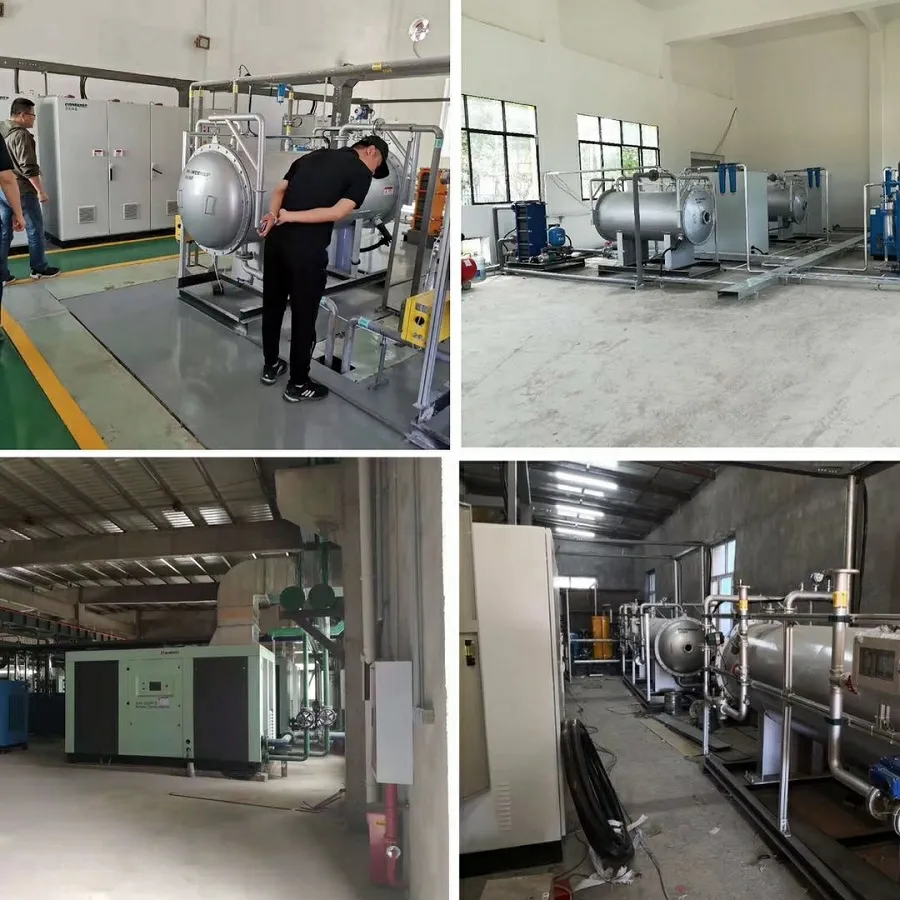

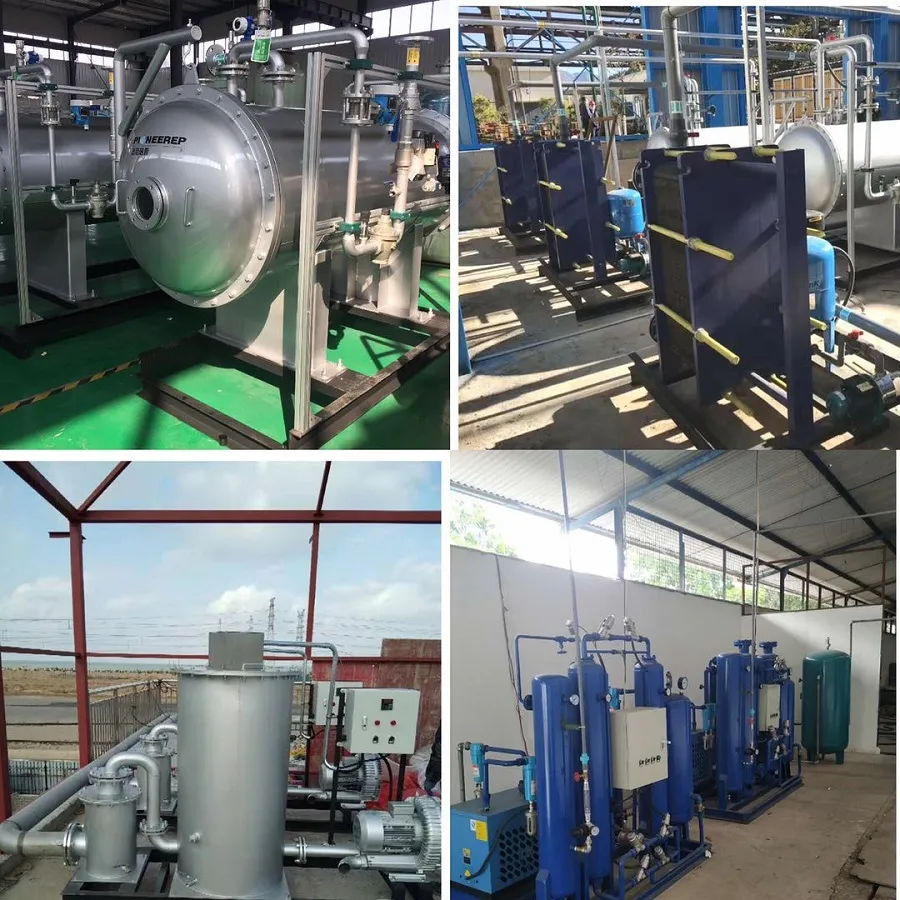

Field installation

Why Choose Us?
