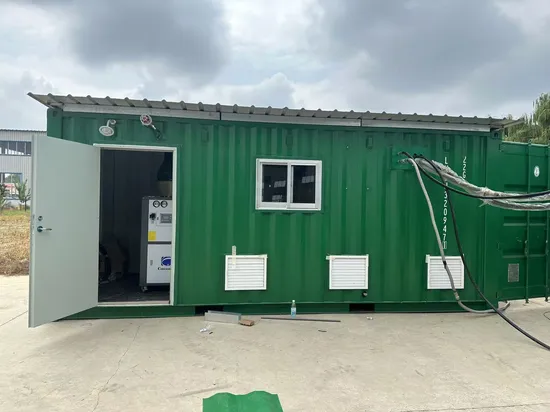

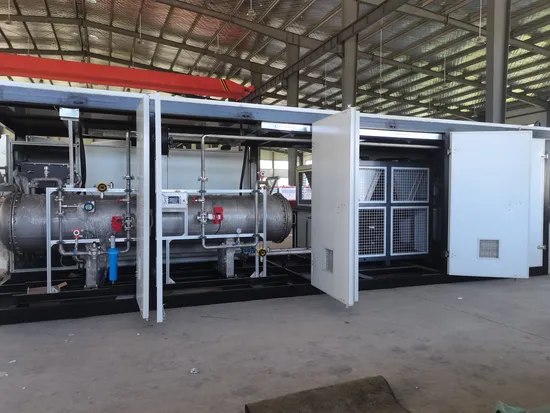

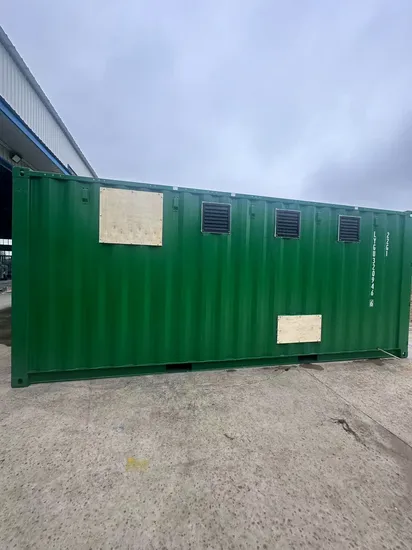

product40hq, 20gp Containerized Ozone Generator System to Save Space and Cost for Customers
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.PONZO-5K
Dielectric MaterialQuartz Tube
Cooling MethodWater-Cooling
GasAir
Frequency50-60Hz
InstallationFloor Mounted
TypeHigh Pressure Discharge Type
Material304/316L Stainless Steel
Power Supply220V/50Hz or 380V/50Hz
Life Span>10 Years
UsageOzonated Water, Ozonation, Ozonator
ApplicationWater Treatment, Disinfection, Aquaculture
Transport PackagePlywood Pallet
Specification100-500g
TrademarkPIONEEREP
OriginChina
HS Code8543709990
Production Capacity1000 Units /Month
Package Size160.00cm * 100.00cm * 200.00cm
Package Gross Weight4000.000kg
Package Size160.00cm * 100.00cm * 200.00cm
Package Gross Weight4000.000kg

Product Description

Product Description
detail
Preview
Basic knowledge of ozone
For a
long time, in medical and health, pharmaceutical, food processing and other aspects, disinfection and sterilization of water and air has been used ultraviolet radiation, chemical fumigation, spraying and other methods, there are many defects in the use. The emergence of ozone sterilization and disinfection products provides a
fast, efficient, safe and reliable disinfection method, which is the ideal substitute for traditional disinfection equipment and will inevitably be widely used.Ozone O3 is the oxygen O2 isomorphism, the composition element is the same, the composition form is different, the property is very different.Ozone is gaseous at room temperature, colorless and grassy at low concentration, and soluble in water. It is known as one of the strongest oxidants. The chemical properties of ozone are more active and have strong oxidation ability. When met with bacteria and harmful chemicals (such as formaldehyde, benzene, ammonia), immediately produce oxidation reaction, so as to play the function of sterilization and disinfection, mildew, taste, decomposition of harmful gases and so on. Ozone is unstable, and its aerobic O2 changes, reducing it to O2, within a
few minutes, so it is free of pollution and residue. It is so far the world recognized that food and beverage direct disinfection of the only substance!The high concentration ozone generator produced by our company is a
kind of high concentration ozone generator equipment dedicated to air purification and water treatment. It adopts the latest ozone generating device and many kinds of protection function circuits inside, and has excellent performance and extremely long working life.
SPACE DISINFECTION OZONE GENEATOR
Application principle
The sterilization principle of ozone: the cell walls of oxidizing bacteria can make the cytoplasm of cells flow out, kill the active enzyme in cells, and decompose the hereditary substances DNA and RNA. Thus, the pathogenic bacteria are killed.
Ozone is a
broad-spectrum bactericidal, which has a
strong killing effect on Escherichia coli, Salmonella, Staphylococcus aureus, hepatitis B
virus, dysentery, mould, Bacillus subtilis and so on.
The principle of disinfection of Ozone is that the molecular structure of ozone is unstable at normal temperature and atmospheric pressure, which is quickly decomposed into oxygen and single oxygen atom; the latter has strong activity, has a
strong oxidation effect on bacteria and ozone oxidizes the enzymes necessary for the oxidation of glucose inside the bacteria, thereby destroying the cell membrane, which will destroy the cell membrane. When it is killed, the superfluous oxygen atom will recombine itself as a
common oxygen molecule, and there is no toxic residue, so it is called no pollution disinfectant. It not only has strong killing ability to various bacteria, including hepatitis virus, Escherichia coli, green bacilli and heterozygous bacteria, but also is very effective for killing mould.
Our Products advantage
All in one equipment, easy to operate
Over temperature protection, over-current protection, and over-voltage abnormality monitoring.Ozone leakage alarm, operation fault alarm monitoring

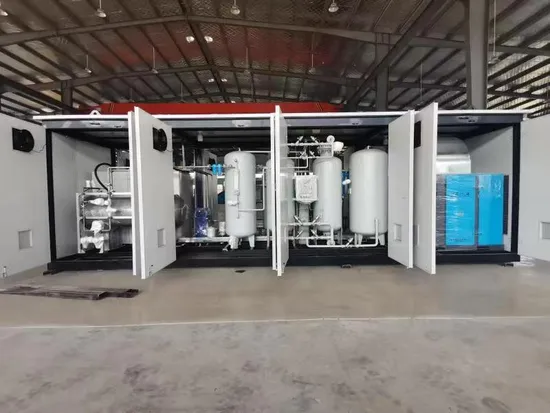

Supply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc.Use special stainless steel tube for discharge chamber
With SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions.
Our Core Technology
1.Ozone discharge chamber technology
Special glass tube discharge chamber(Patent No ZL2011 2 0385785) adopts double air gap discharge technology, high quality glass medium and matching dedicated power supply, fully exerts the efficiency of corona discharge to produce ozone, ensuring large output, high concentration and lower power consumption.
2.High power ozone dedicated dry-type transformer technology
The high voltage transformer converts the alternating current output from the inerter circuit into high voltage electricity suitable for generation of ozone by generating a dielectric barrier discharge in the chamber discharge body. In order to match the capacitive characteristics of the occurrence of the discharge of the chamber discharge body, the requirements of its parameters are different from those of ordinary transformers.
3.Ozone special frequency conversion power supply technology
The ozone generator control system is independently developed by the company to control the normal operation of the ozone generator power supply, and has anti-jamming, load short circuit protection, high operating temperature protection, with industry leading level, high operation reliability.
Pioneer Ozone Generator products and core components such as electronic control, transformers, reactors, ozone electrodes are researched and developed independently, quality and production can be controlled.
Outsourcing components such as: quartz discharge body, fan, flowmeter, instrument and other components are all from domestic top brands and international famous brands high-quality manufacturers.
All specifications of products are produced in accordance with the company's standardized configuration. One specification must have one set of standard drawings, to ensure that each product meets the actual customized requirements and kilograms.
The product is stable in operation and easy to operate. Products above 1kg ozone capacity adopt Siemens PLC control system, the operating data is displayed in real time, and the multiple fault alarms protection to ensure work safely.
With rich products application experience, Pioneer could provide customers with pre-sales technical support and ODM design.
Application
Food industry, Agriculture, Aquaculture:
workshop disinfection, food processing equipment disinfection,edible fungus industry, cosmetic plant, Cafeteria, pharmaceutical workshop air sterilization and purification, schools, hotel, hospitals, restaurants etc;
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
Daily Training
detail
Preview
detail
Preview
detail
Preview
Why Choose Us?
detail
Preview
FAQ
detail
Preview
Contact us today for your needs!
detail
Preview

Certifications

Name:SGS stands for Society of Government Surveillance.
