Specification
Basic knowledge of ozone
Ozone has strong oxidation, has been recognized as a kind of broad-spectrum efficient fungicide, 600-3000 times faster than the chlorine in the water, and even can kill bacteria, within a few seconds including common coli, streptococcus, pseudomonas aeruginosa, staphylococcus mould etc. If keeping the environment 0.3 PPM concentrations of ozone in 5 minutes, the killing rate can reach more than 99%.Its sterilization and disinfection effects occur almost instantaneously. When ozone concentration in water reaches 0.3-2ppm, bacteria can be killed within 0.5-1min.The dose of ozone water is required to achieve the same sterilization effect (e.g., 99% of escherichia coli kill rate) is only 0.0048% of that of chlorine.
For a long time, in medical and health, pharmaceutical, food processing and other aspects, disinfection and sterilization of water and air has been used ultraviolet radiation, chemical fumigation, spraying and other methods, there are many defects in the use. The emergence of ozone sterilization and disinfection products provides a fast, efficient, safe and reliable disinfection method, which is the ideal substitute for traditional disinfection equipment and will inevitably be widely used.Ozone O3 is the oxygen O2 isomorphism, the composition element is the same, the composition form is different, the property is very different. Ozone is gaseous at room temperature, colorless and grassy at low concentration, and soluble in water. It is known as one of the strongest oxidants. The chemical properties of ozone are more active and have strong oxidation ability. When met with bacteria and harmful chemicals (such as formaldehyde, benzene, ammonia), it immediately produces oxidation reaction, so as to play the function of sterilization and disinfection, mildew, taste, decomposition of harmful gases and so on. Ozone is unstable, and its aerobic O2 changes, reducing it to O2, within a few minutes, so it is free of pollution and residue. It is so far the world recognized that food and beverage direct disinfection of the only substance!The high concentration ozone generator produced by our company is a kind of high concentration ozone generator equipment dedicated to air purification and water treatment. It adopts the latest ozone generating device and many kinds of protection function circuits inside, and has excellent performance and extremely long working life.
Our Products advantage

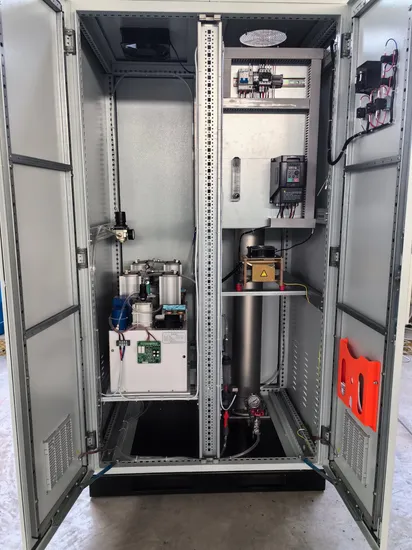

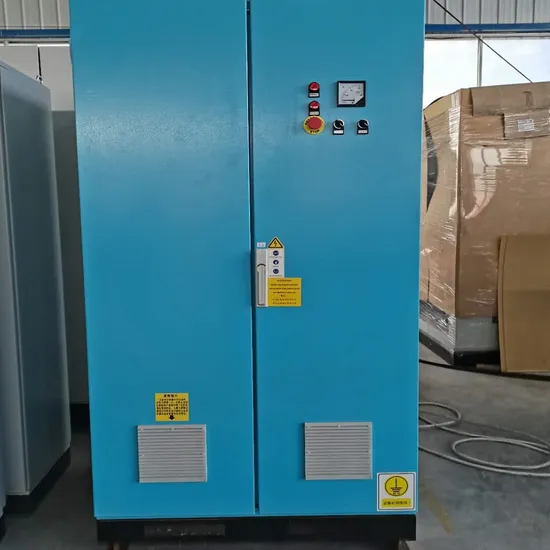

All in one equipment, easy to operate
Over temperature protection, over-current protection, and over-voltage abnormality monitoring.Ozone leakage alarm, operation fault alarm monitoring

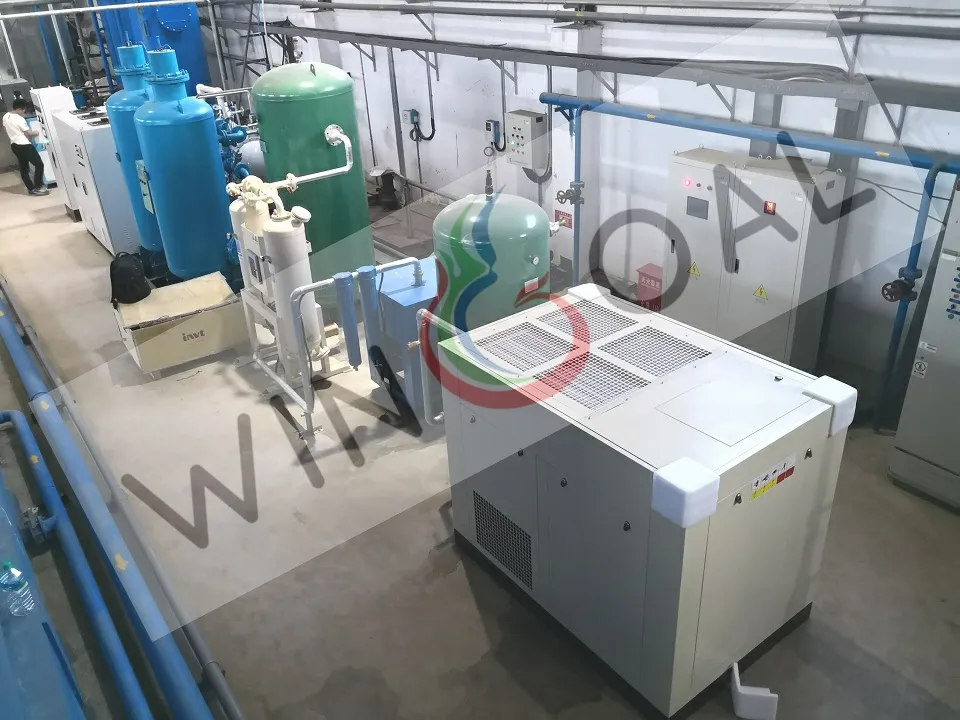

Supply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc.Use special stainless steel tube for discharge chamber
With SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions.
Environmental conditions
Core Technology
Ozone discharge chamber technology
Special glass tube discharge chamber(Patent No ZL2011 2 0385785) adopts double air gap discharge technology, high quality glass medium and matching dedicated power supply, fully exerts the efficiency of corona discharge to produce ozone, ensuring large output, high concentration and lower power consumption.
High power ozone dedicated dry-type transformer technology
The high voltage transformer converts the alternating current output from the inerter circuit into high voltage electricity suitable for generation of ozone by generating a dielectric barrier discharge in the chamber discharge body. In order to match the capacitive characteristics of the occurrence of the discharge of the chamber discharge body, the requirements of its parameters are different from those of ordinary transformers.
Ozone special frequency conversion power supply technology
The ozone generator control system is independently developed by the company to control the normal operation of the ozone generator power supply, and has anti-jamming, load short circuit protection, high operating temperature protection, with industry leading level, high operation reliability.
Product Application
Food and pharmaceutical industry: sterilization of raw water, washing of containers, washing and keeping fresh fruits and vegetables, sterilization of utensils, etc.The livestock industry: hydroponic liquid sterilization, the sterilization of metal rich oxidation egg wash, pig sheds deodorant.Aquaculture: sterilization of fish shellfish, cleaning and deodorization of containers and refrigerators.Semiconductor industry: purification of ultra-pure water and cleaning of semiconductor parts.General industry: industrial circulating water sterilization, deodorization, algae removal, container sterilization, deodorization, hospital operation clothing sterilization an washing, swimming pool and bathroom recycling water sterilization, decolonization, sewage deodorization, decolorization, improvement of COD etc.
After sales service
Our company is responsible for the maintenance of the equipment and the establishment of equipment user files from the date the equipment leaves the factory.
The intelligent remote monitoring center monitors the operation of equipment in real time through the intelligent remote monitoring system.
After-sales service guarantee center, built a complete after-sales parts warehouse and supporting facilities.Provide free equipment use training and equipment maintenance training.Provide customers with equipment components and maintenance materials in time.Beyond the warranty period, a long-term maintenance contract can be signed.Strengthen the contact with users, pay attention to the opinions of users, develop user quality tracking information card, improve the user profile.The professional training team pays regular visits to understand the operation of the equipment to ensure the long-term safe and reliable operation of the equipment.

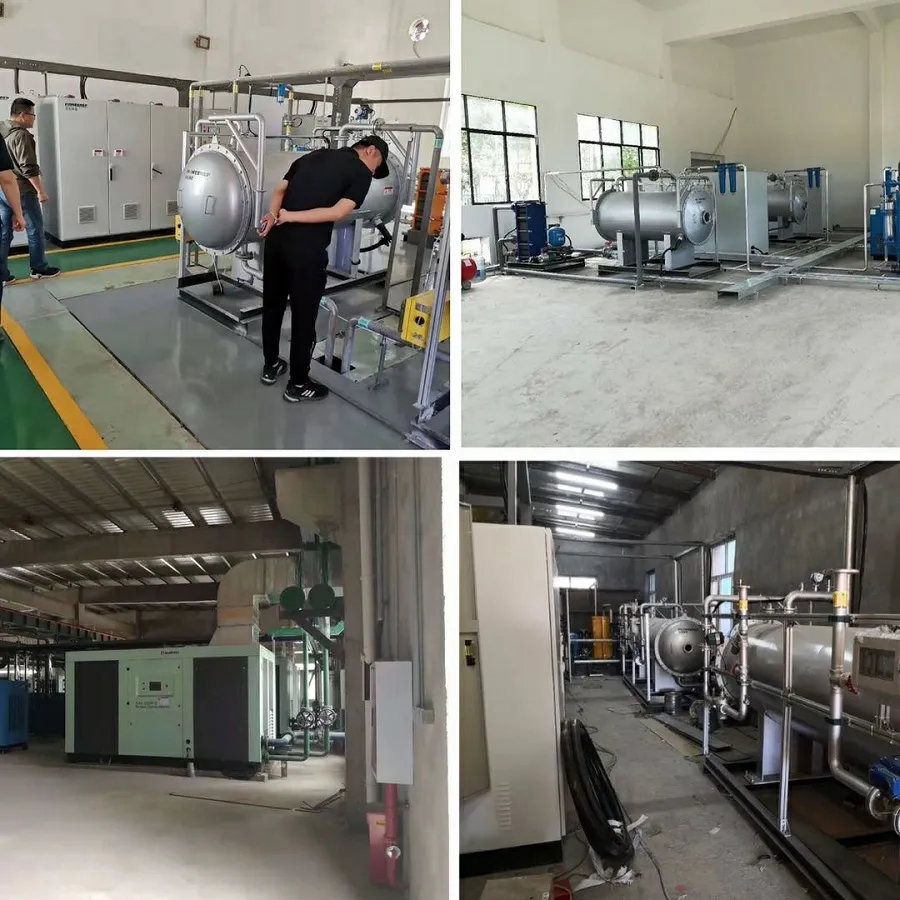

Field installation
