LED Curing Repair System CIPP Rehabilitation Short Liner Spot Repair System
(X120-D2)
About our company:
Wuhan Easy-Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection and rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system,
3D manhole scanner, GIS data management system and so on.The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees and products. Easy-Sight, as an
intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.

Product description
X120-D2, as a rehabilitation equipment mainly used to repair the defect points of drain pipe, can restore the defect points accurately by selecting the packer with different size according to the pipelines with different diameters.X120-D2 rehabilitation system is mainly comprised of main control (tablet), cable drum and packers,wide-view camera, air compressor ,with the key features of high efficiency, accuracy and controllability, silica gel replaceable on site. After the pre-treatment of pipelines, move the packer with liner to the position to be restored, and inflate the packer to the given pressure to stick the liner onto the pipe wall tightly. The curing will be finished after 5-8 minutes after turning on the ultraviolet lamp inside the packer. Then, deflate the packer, take back the cable and remove the packer. And at the time, the rehabilitation is completed.
Main Control:
• Huawei Android tablet with control software
• Retrieve the cable automatically and adjust the cable retrieve speed
• control the packer inflation and deflation as well as the switches of the ultraviolet lamp
• Display the state of the light source, packer type, pressure value, distance value, packer inflation and deflation state, repair time
• Display the image of front side of packer, with the help of auxiliary light to locate
Cable Drum:
• Standard cable length 80m
• Cable parameters: The cable interior includes 8mm diameter air hose ,and four-core
1.5 square milimeter cables. Total cable diamter ≤15mm,
water resistance, abrasive resistance, alkali resistance and corrosion resistance
• Automatic winding displacement,
ensure the regular distribution of the cable on the cable reel in the course of take-out and retrieve
• Adopt the high-precision encoder with the counting resolution ratio of 1mm
• Normal voltage: AC220V
• Normal power: 600W
• Normal frequency: 50Hz
• Maximum inflation air pressure: 0.7MPa
• Dimension: 800mm*392mm*660mm
• Weight: 70kg (including the weight of cable)

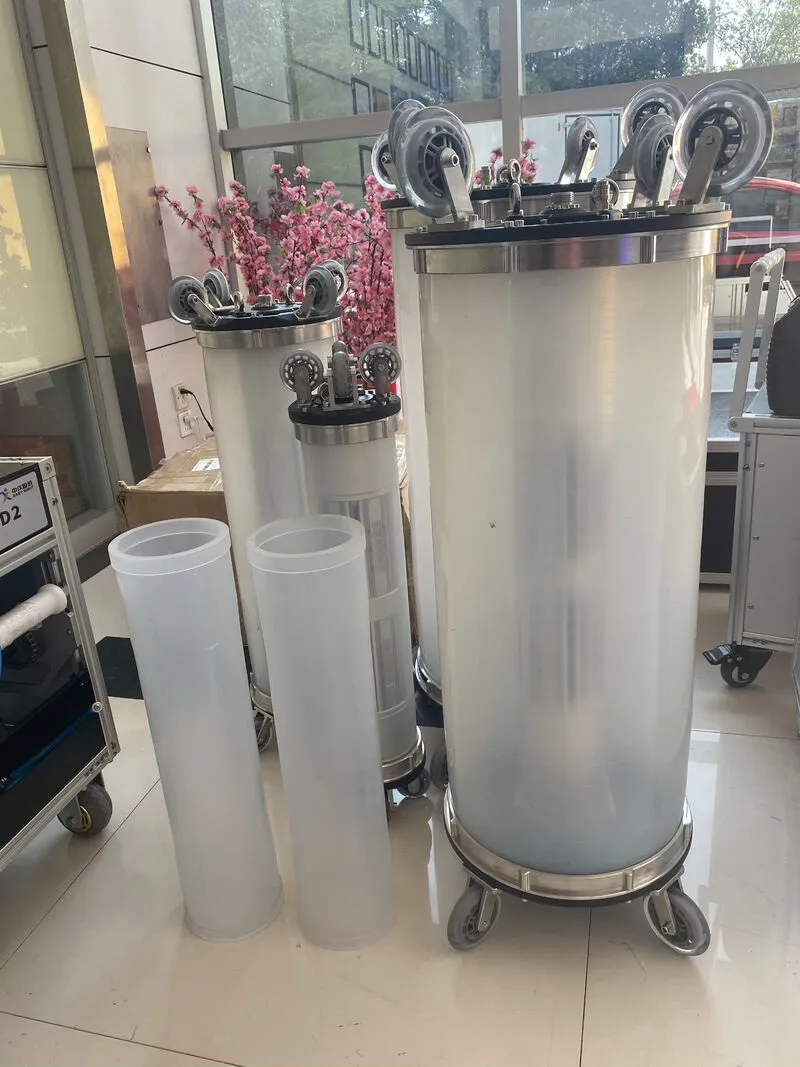

Packer:
• There are total four size packers for pipe DN200-600
• The silica gel is easily replaceable on site

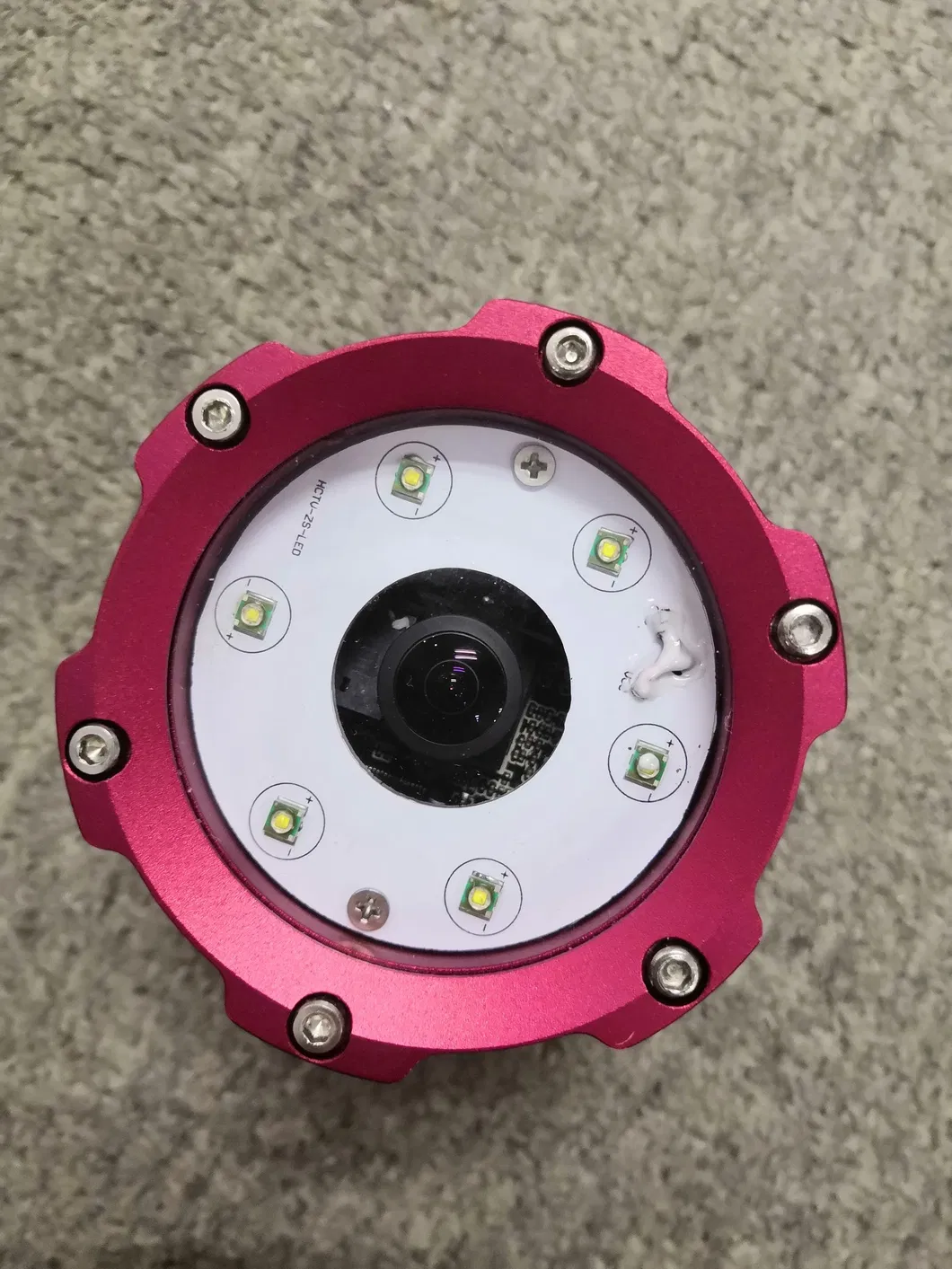

HD Camera:
• High definition 200W pixels
• Wide-view angle len

Air compressor(optional)
• Optional, customer can buy air compressor themselves
• Nominal voltage above 750W
• Cylinder volume above 30L

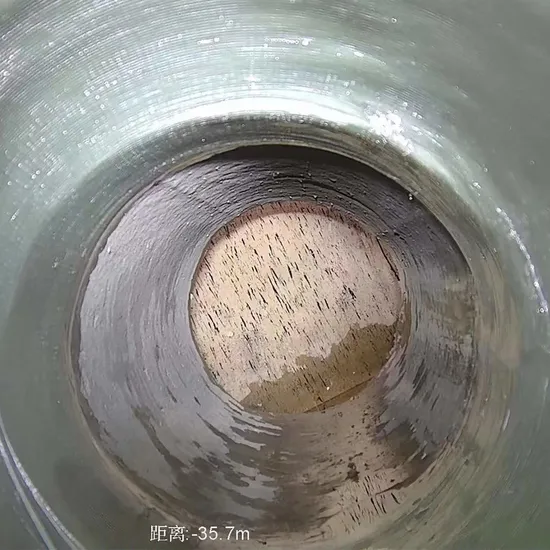

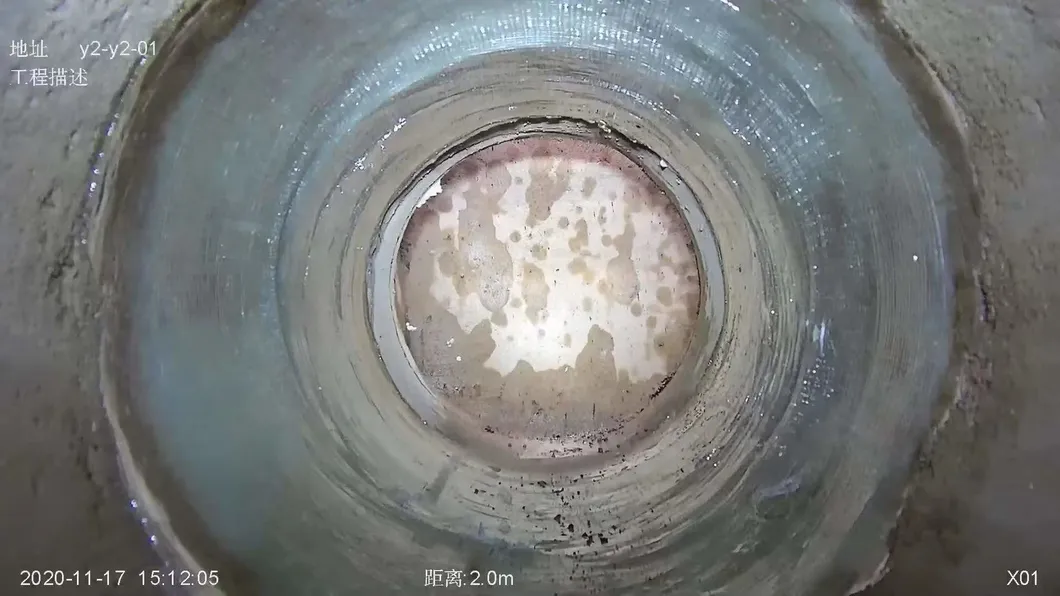

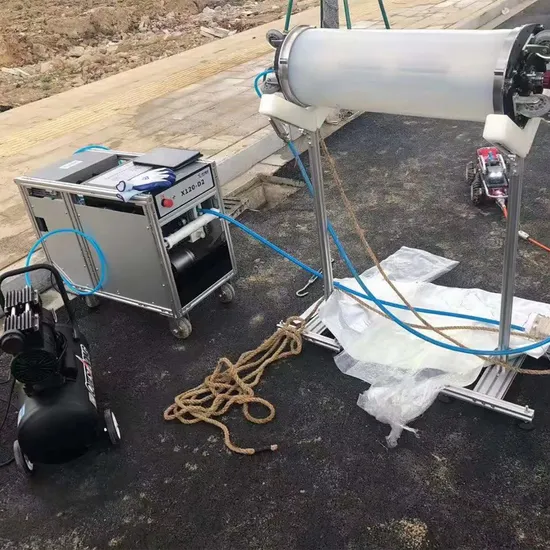

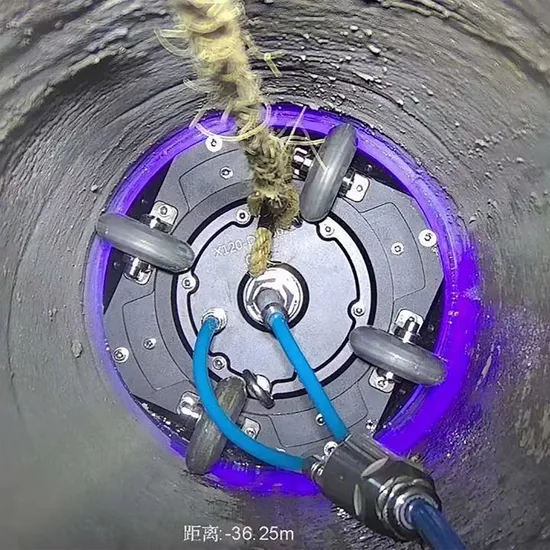

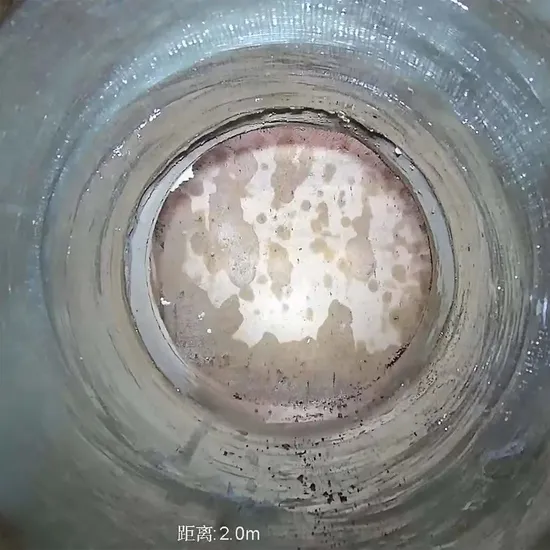

Working on site:
