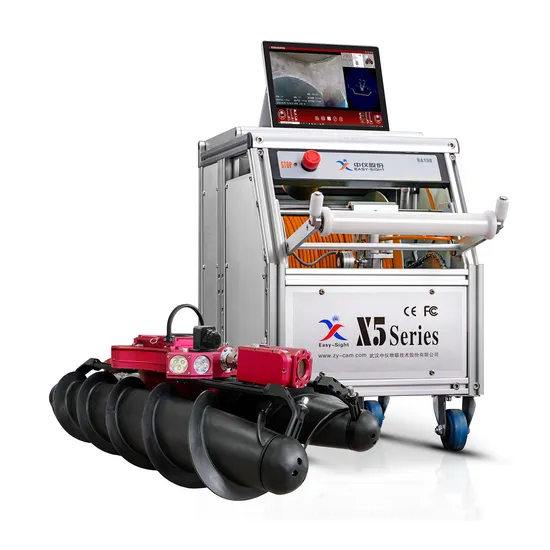

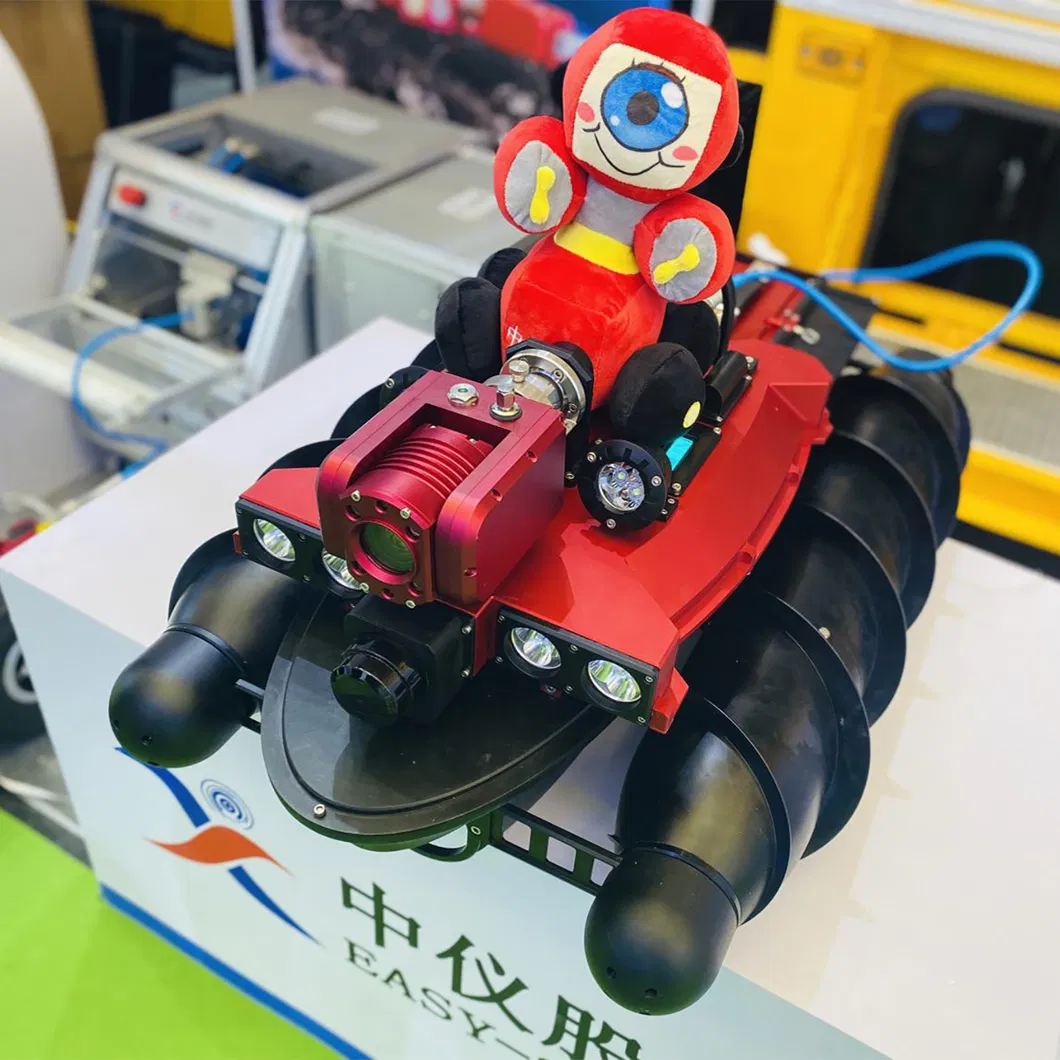

Easy Sight New Model Motor Driven Floating Inspection Crawler Combined Sonar and Ladar
(X5-HR4)

Wuhan Easy-Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection and rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system,
3D manhole scanner, GIS data management system and so on.
The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees and products. Easy-Sight, as an
intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.

Product Specification

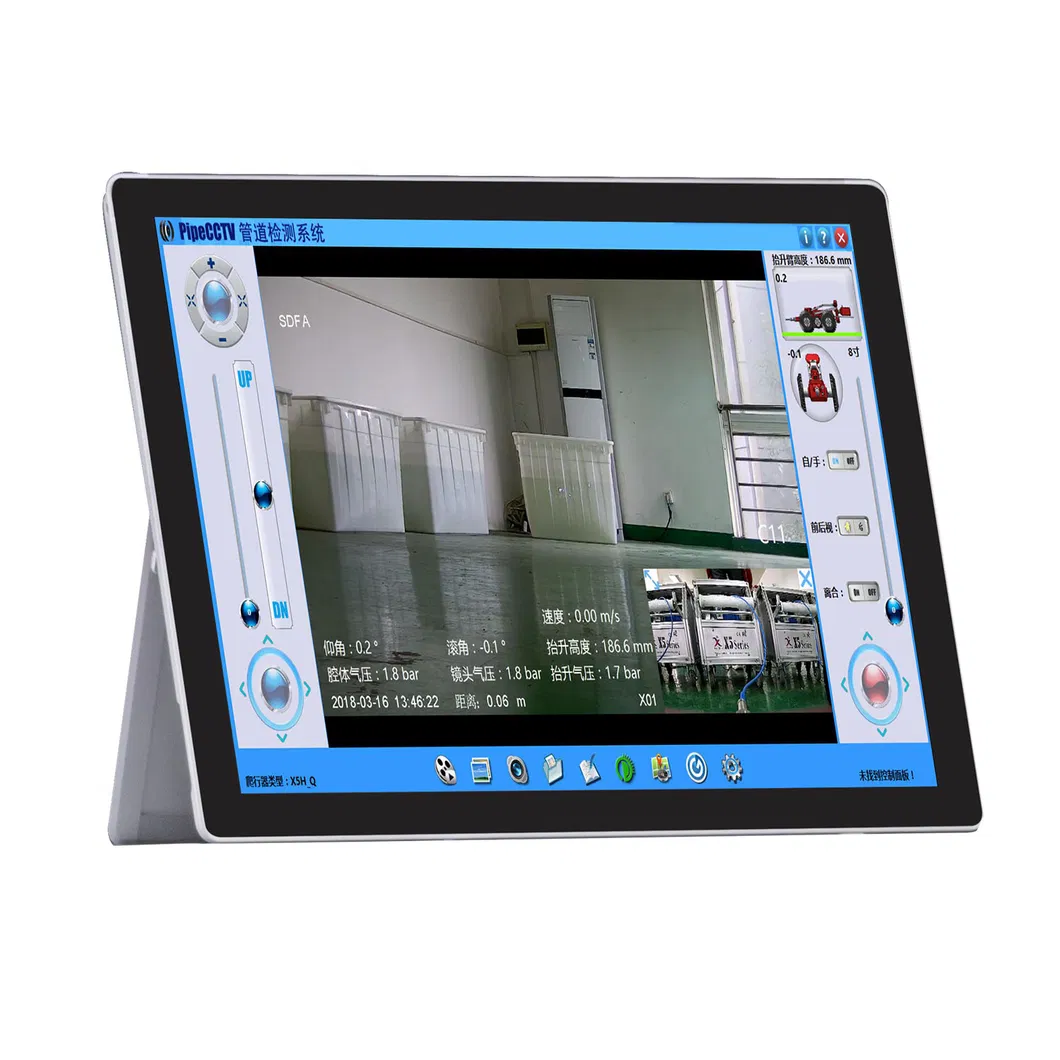

PC, tablet and mobile phone can be used as Controller, with built-in PIPECCTV video collection
software and PIPESONAR sonar imaging analysis and report software; Parameters such as CPU/ memory/storage capacity/screen size can be choosed freely.

Protection class
IP68, suitable for water depth of 10m, airtight protection, built-in air pressure sensor and pressure indicator light;
Operating temperature
-10ºC~50ºC;
Rotation of the lens
electric rotation, infinite rotation of 360 degrees in radial direction, 2*135 degrees in vertical, one-button repositioning;
Lighting
4X3W floodlight LED
Zoom
auto focus, or manual adjustment, 10x optical zoom
Laser
used to measure crack width
Viewpoint indicator
used to indicate the clock direction of the current inspection object

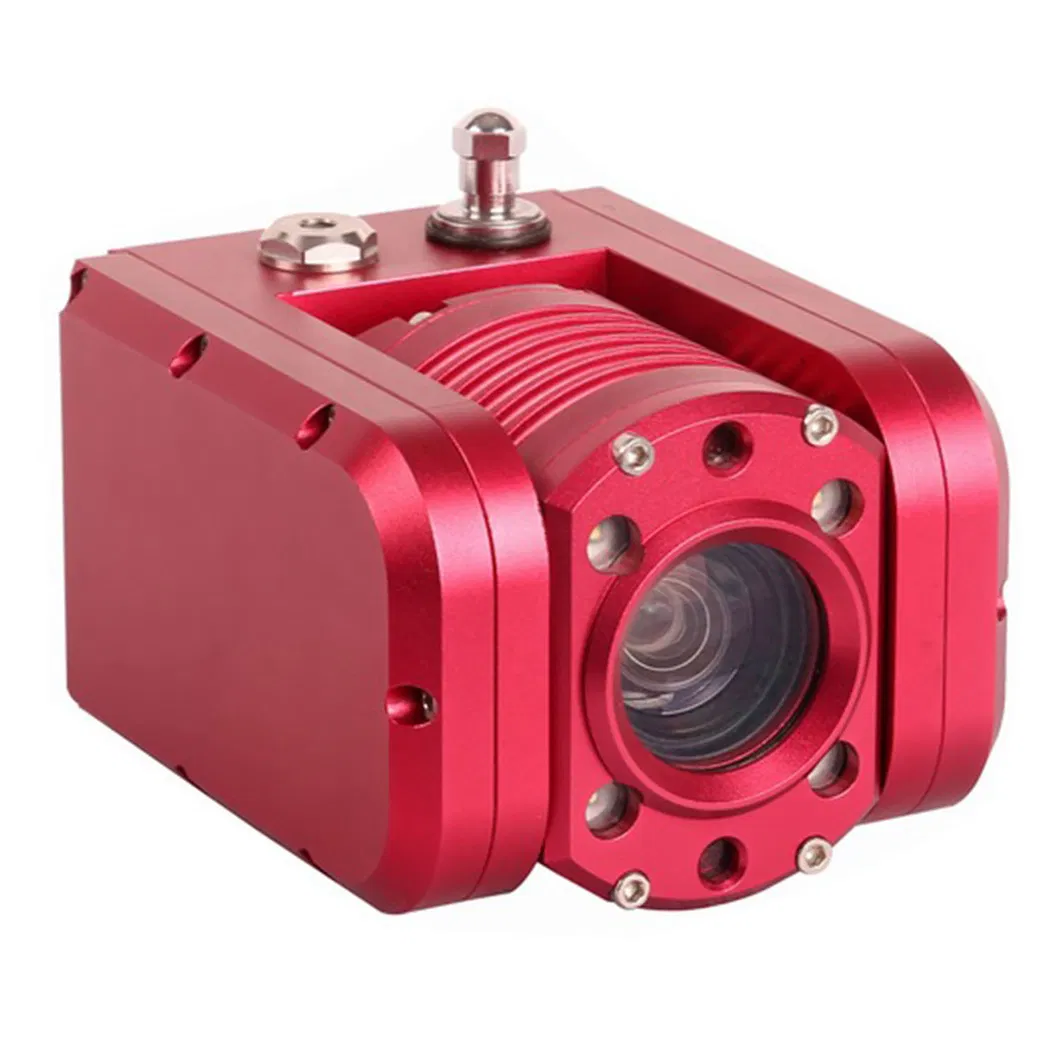

Imaging system
color 1/3 ", 4 million pixels (2592*1520) CMOS, viewing Angle of 6.7°-68°, sensitivity 0.1lux;
Size
155mm*95*90mm
10

Cable length
320 meters standard cables
Cable specification
2 core Cable,diameter 7mm , 300kg kevlar wire-drawing resistance, imported polyurethane sheath,
Waterproof, anti - wear, acid and alkali resistance, corrosion resistance
manual speed adjustment, matching drum speed
Automatic wiring
ensure the regular distribution of cables on the cable reel in the process of winding and laying out wires
Counting
high precision encoder,
counting resolution of 1mm
Interface
wireless interface and network interface

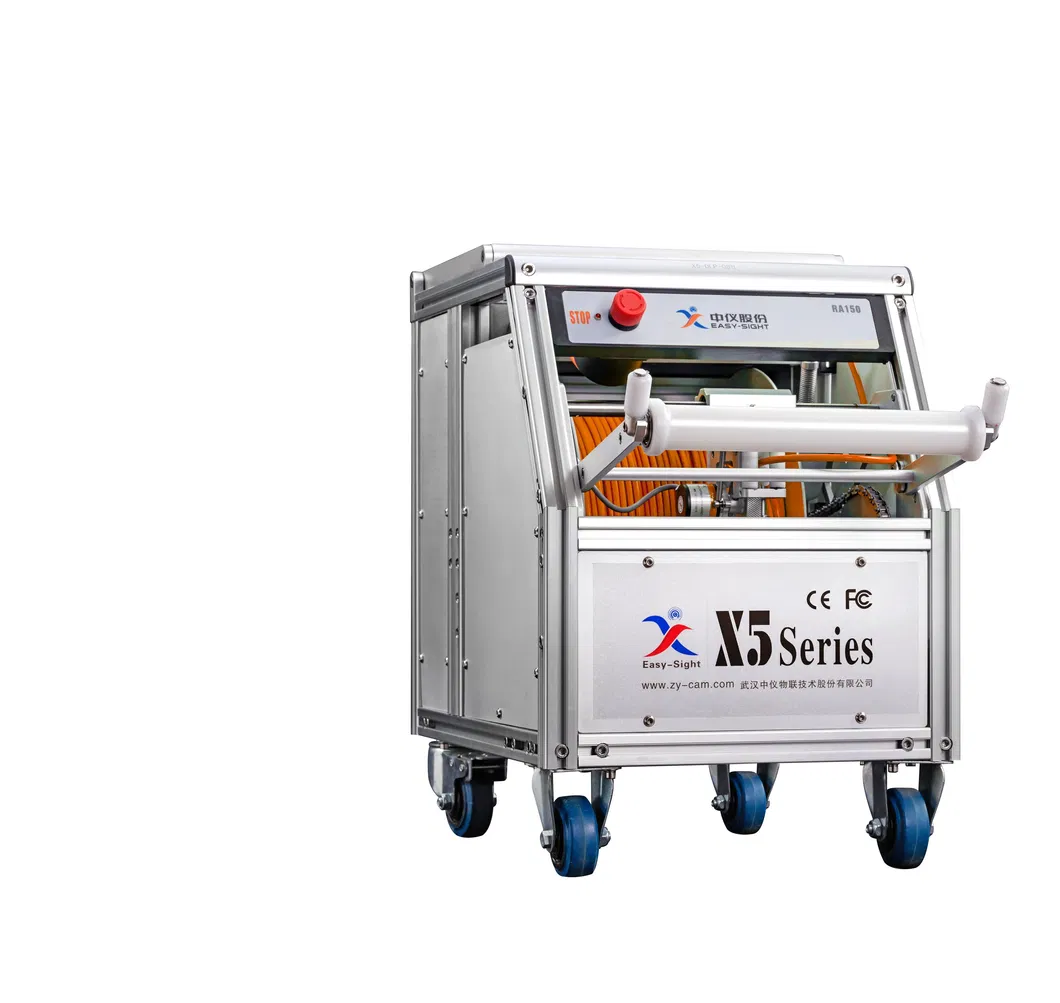

Compatible with X5-H series cable reel
Protection
IP63, dust proof, splash proof

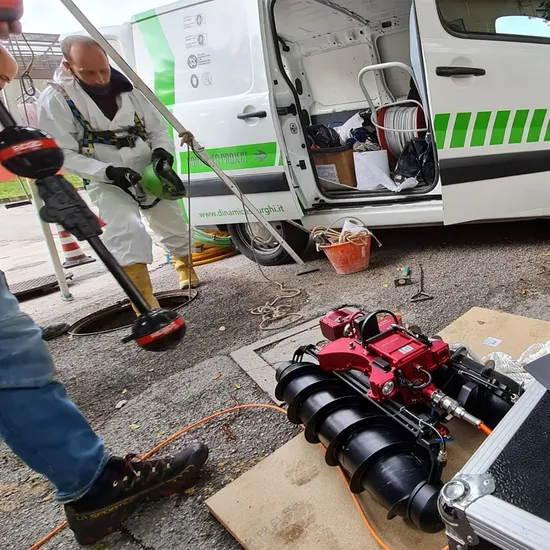

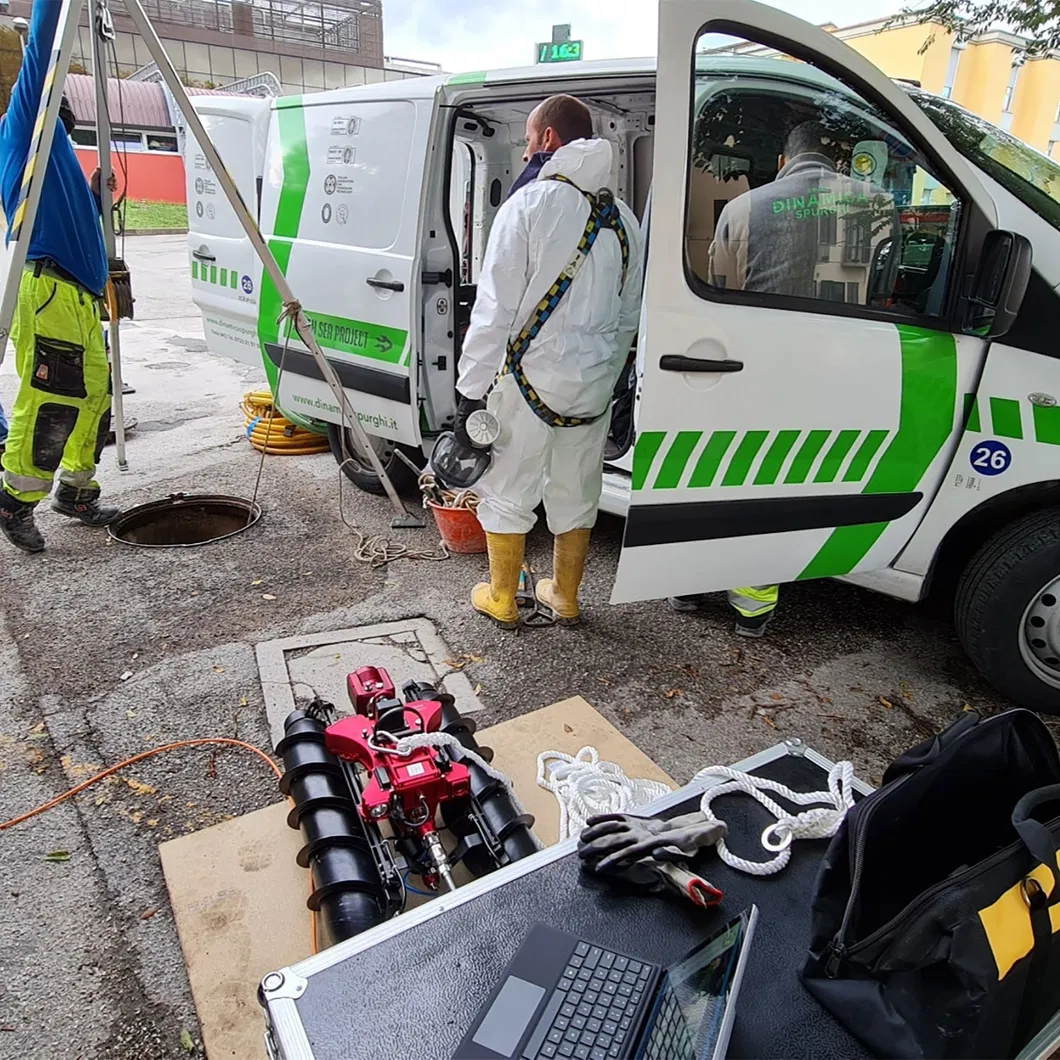

Product Application

Our Advantages
1.Light
The whole machine is light weight: light weight master control, light weight cable reel, and light weight crawler;
PC control: use laptop (tablet) as a
host to control crawler;
2.Fast
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3.Good
Good synchronization: synchronization display of the before and after video screens;
4.HD highlight: high definition camera with highlight combination light source;
Convenient
5.Stable performance: the whole machine is waterproof and explosion-proof;
Little effort with no worries :
easy to disassemble, and master control has zero failure;

After Sales Service
1.After -service:We firmly believe that depending on the abundant strength, advanced equipment, perfect detection method, stable technology and outstanding professionals as well as our good faith and excellent service, we will certainly bring you satisfactory returns.
4.Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
5.Lifelong Services:
We provide lifelong services for all the products we sold out, and supply the spare parts with competitive price.6.Language: We have a
professional sales team who are good at English to ensure zero communication barriers.7.Detailed Operational Manual &Training CD in English Version will be offered. We also provide free training if you worried operation matters, welcome you visit our factory, our professional technicians will teach you how to use the machine in correct way.
8.OEM order is welcomed ,
and we can print the customer brand
logo on the product free of charge.

Q: What's the package?
A: We have standard plywood packing case. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. So please don't worry, you will receive the parcel in good condition.Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.Q: How can I
do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
