基本信息
| 型号编号 | Q50A |
| 生产过程 | 整合 |
| 材料 | 金属 |
| 准确度等级 | 0.1G |
| IP等级（IP Rating） | IP65 |
| 认证 | IEC60044-1 |
| 定制的 | 定制的 |
| 比率 | 1000:1或2000:1（定制） |
| 准确分类 | 0.1%、0.2%、0.5% |
| 主营业务电流 | 0至1000安培交流电 |
| 次级电流 | 0-5A交流电（定制） |
| 最大连续输入电流 | 1200安培 |
| 过电压类别 | 第三类600V |
| 输出信号 | 额定输入电流为500mA、1A、5A AC |
| 频率范围 | 40赫兹至2000赫兹 |
| 输出 | 带D01连接器的2.5米电缆 |
| 未绝缘导体的最大电压 | 600伏 |
| 运输包 | 标准包 |
| 规格 | 102.9乘以219.6乘以28 |
| 商标 | GFUVE |
| 起源 | 中国 |
| 生产能力 | 每5万件 |
产品详情
Product Description
Preview

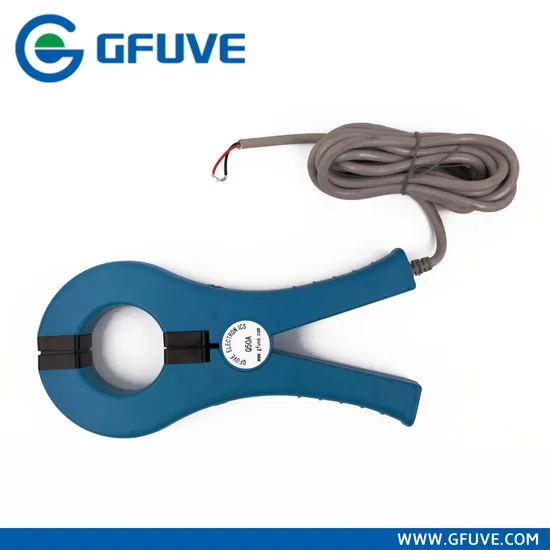

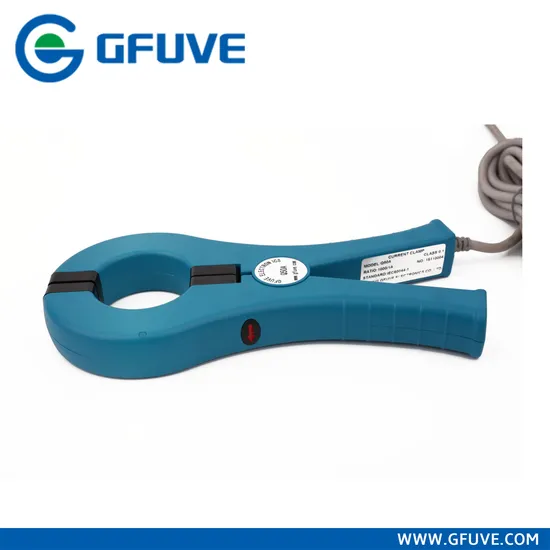

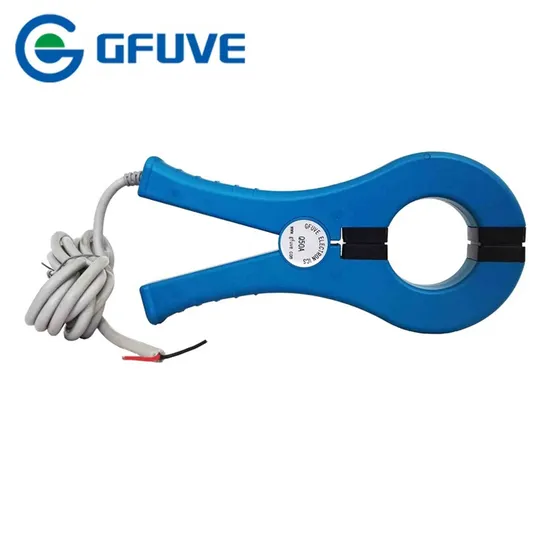

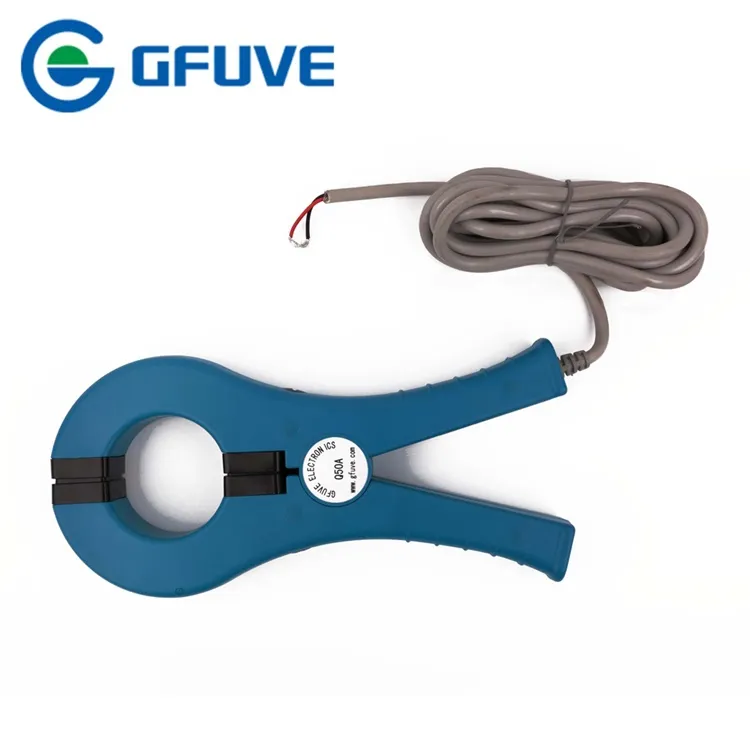

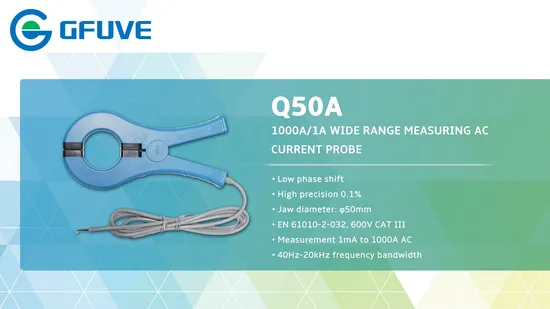

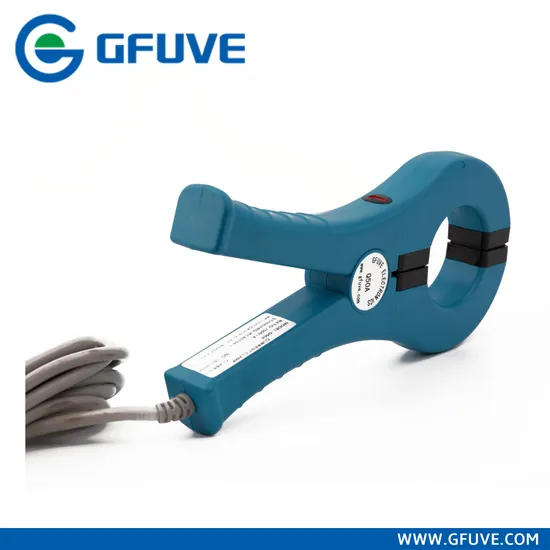

Q50A
High Precision of Ratio Customised Wide Measuring Range Current Probe
The model Q50A current probe is designed for fast and easy measure the current
in
industrial
and
power environment, it has wide range of current measurement.
Features
Suitable for 1000A cable online measurement
Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameters
MORE INFORMATION PLEASE CLICK OUR WEBSITE: h
http://guangfuhui.en.made-in-china.com
High Precision of Ratio Customised Wide Measuring Range Current Probe
The model Q50A current probe is designed for fast and easy measure the current
in
industrial
and
power environment, it has wide range of current measurement.
Features
Suitable for 1000A cable online measurement
Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameters
MORE INFORMATION PLEASE CLICK OUR WEBSITE: h
http://guangfuhui.en.made-in-china.com
