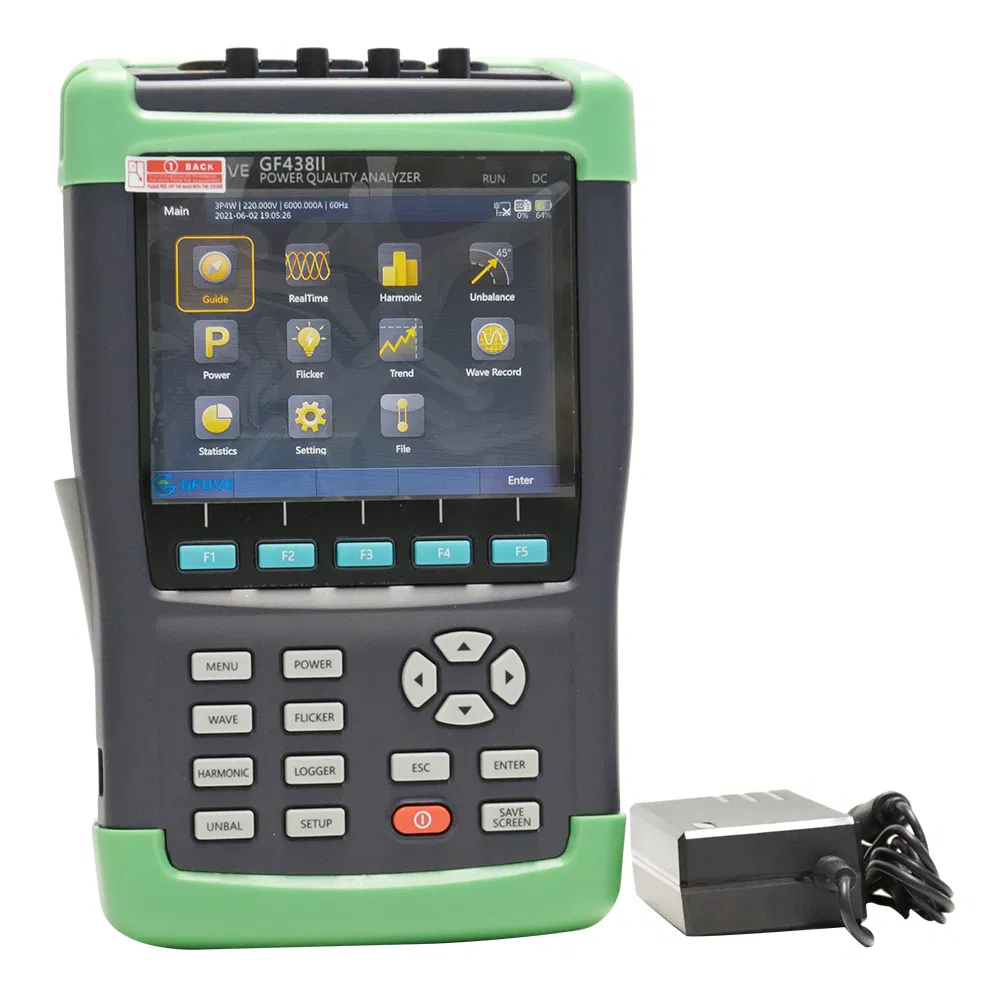

3000A current probe GF438II IEC61000-4-30 CLASS A Handheld Three Phase Power Quality Analyzer with power analyzer

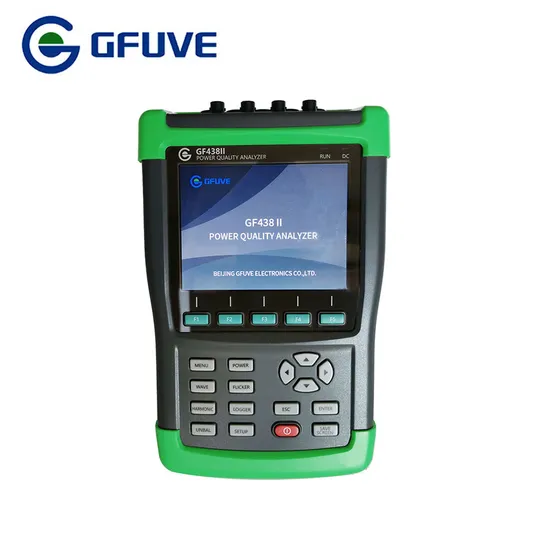

GF438II handheld three phase power quality analyzer offer the best ability in power quality analysis, GF438II handheld power quality analyzer help locate, predict, prevent and troubleshoot power quality problems in three phase and single phase power distribution systems. Additionally, GFUVE patented energy loss algorithm, unified power measurement, measuring and counting energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy losses in the system.
Features
Troubleshoot real-time: Analyze the trends using the cursors and zoom tools-even while background recording continues.
Automatic Transient Mode: Capture 200 kHz waveform data on all phases simultaneously up to 6 kV

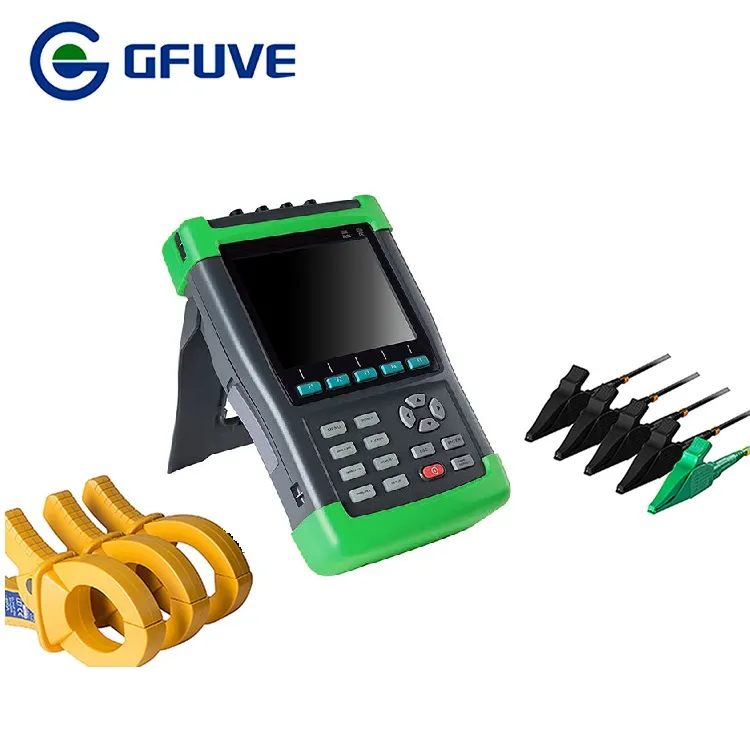

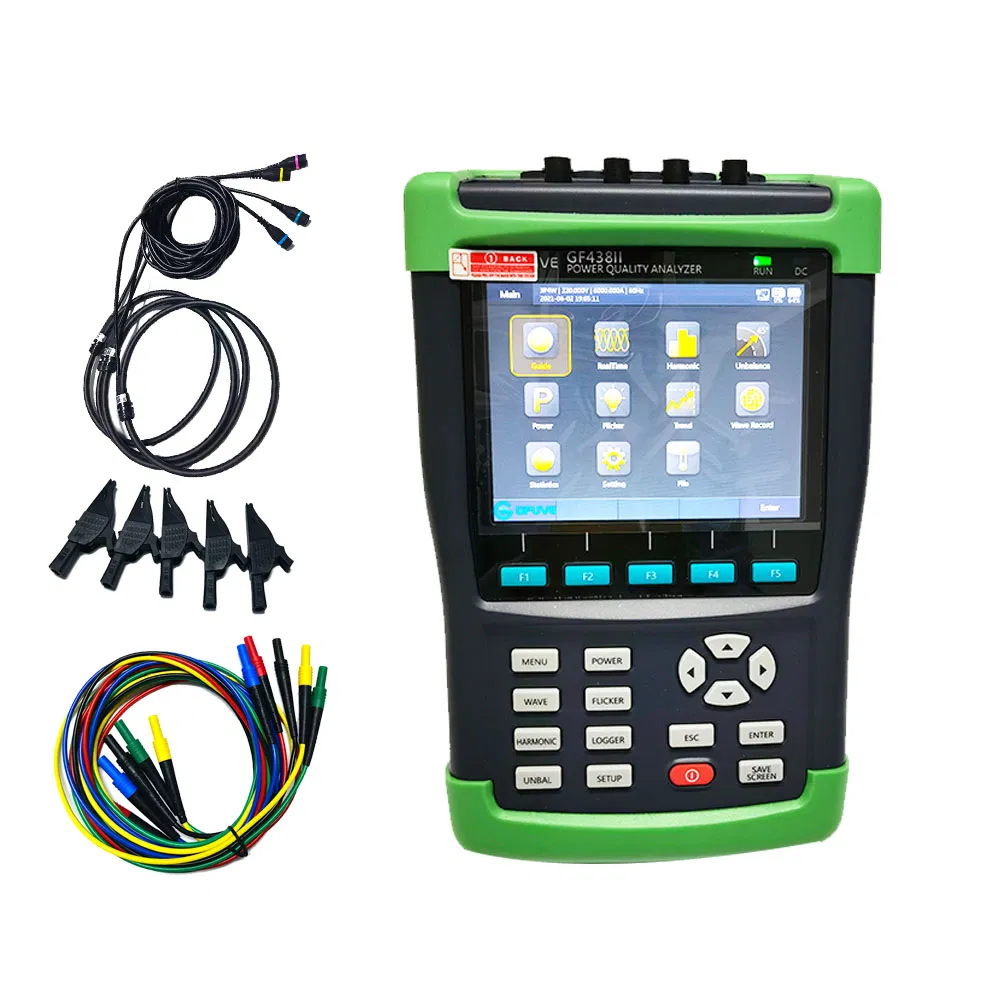

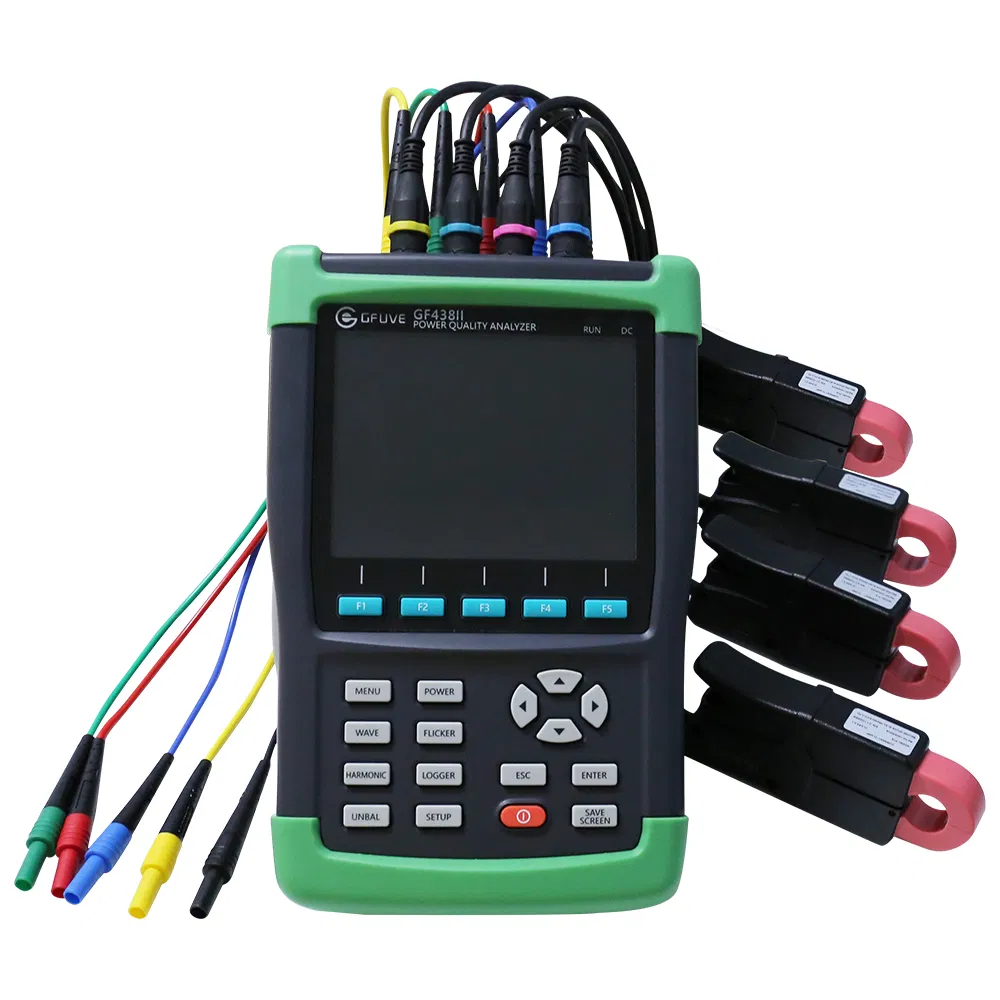

Measure all three phases and neutral: With included four current probes
System-Monitor: Up to ten power quality parameters on one screen according to EN50160 power quality standard
View graphs and generate reports: With included analysis software
Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals.
Mains signaling: Measure interference from ripple control signals at specific frequencies
Inrush mode: For troubleshooting nuisance circuit breaker tripping.
AutoTrend: Every measurement you see is always automatically recorded, without any setup.
Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard.
Battery Life: Seven hours operating time per charge on NiMH battery pack
High safety rating: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
Comparing to online power quality analyzer, E6000 handheld type with small size, light weight, easy for the engineer to carry and carry out to survey work
whenever and wherever.

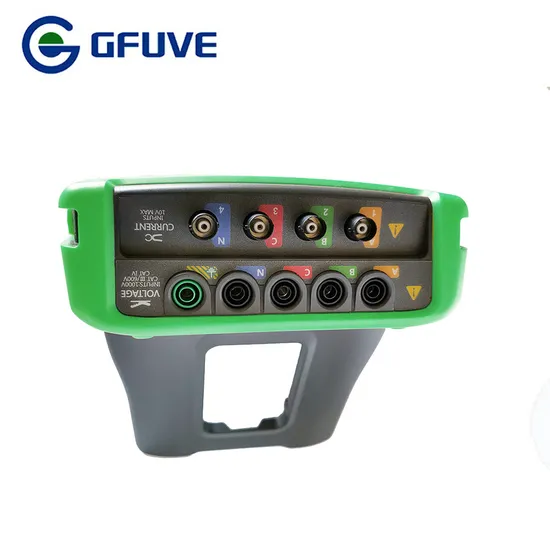

Easy to wiring
Multi-range current switching
based on actual demand, the different range of current clamp can be replaced to improve measurement accuracy.
Applications
Frontline troubleshooting - quickly diagnose problems on-screen to get your operation back online
Predictive maintenance - detect and prevent power quality issues before they cause downtime
Quality of service compliance - validate incoming power quality at the service entrance
Long-term analysis - uncover hard-to-find or intermittent issues
Load studies - verify electrical system capacity before adding loads
Energy assessments - quantify energy consumption before and after improvements to justify energy saving devices.
Electricity power company;
Power generation;
Wind power plant;
Photovoltaic power station;
Renewable power
plants;
Hydroelectric power;
Power distribution;
Uninterruptible power supply;
Power quality reports;
Power quality;
Recording transients of switching manoeuvers;
Uninterruptible power supply in healthcare;
Effects of power quality issues on living and working environment;
FUNCTIONS
Energy loss calculator: classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available).Power inverter efficiency: simultaneously measure AC output power for power electronics systems.Power wave data capture: GF438II analyzers capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).Waveform capture: GF438II capture 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up
Automatic transient GF438II analyzers capture 200 kHz waveform data on all phases simultaneously up to 1000V.Fully class-A compliant: GF438II analyzers conduct tests according to the stringent international IEC 61000-4-30 class-A standard.Mains signaling: GF438II analyzer measure interference from ripple control signals at specific frequencies.Troubleshoot: analyze the trends using the cursors and zoom tools.Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.Measure all three phases and neutral: with included four flexible current probes with enhanced thin flex designed to fit into the tightest places.Automatic trending: every measurement is always automatically recorded, without any set-up.System-monitor: ten power quality parameters on one screen according to EN50160 power quality standard
Logger function: configure for any test condition with memory for up to 600 parameters at user defined intervals.View graphs and generate reports: with included analysis software.Battery life: up to 5 hours operating time per charge on Li-ion battery pack.
PARAMETERS
