MP Recorder
Collect and analyze load profiles

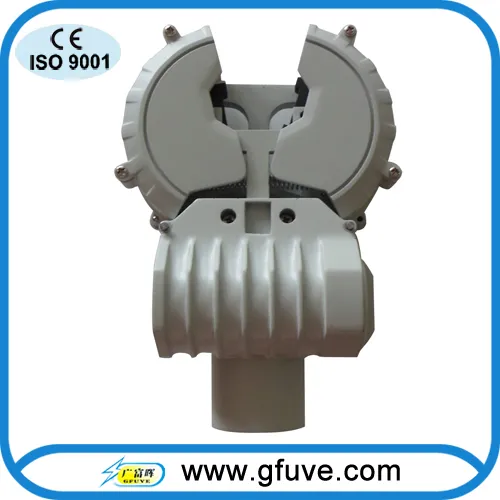

Easily clamps to the line in seconds
Check for load balance
Patented open CT sensor with ± 1% accuracy
433M communication with no annoying cables to connect
Recorded data quickly downloads into the user's PC
PC-LinkSoftware interface downloads directly into Microsoft Excel
Generate reports and create graphs for profile analysis

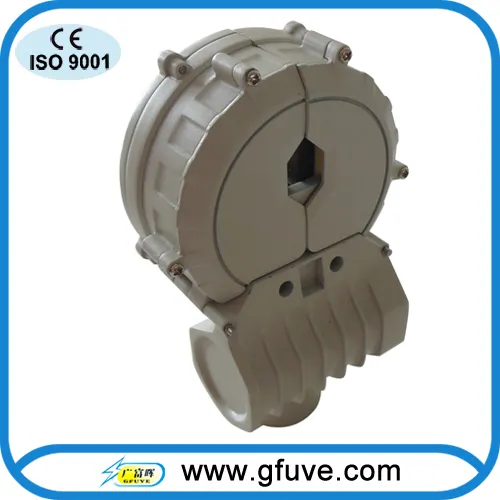

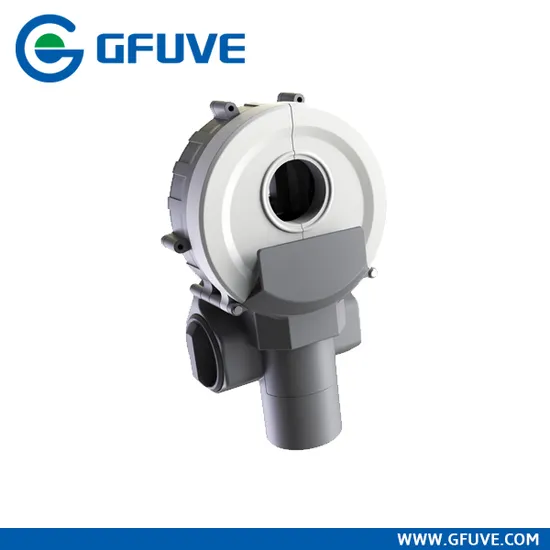

The Primary current recorder uses the same sensor technology as the original Rogowski coil. The True RMS inductive sensor does not use magnetic materials. The opening of the sensor is electronically closed and external currents are electronically rejected.
The accuracy, external current reject, and range of currents measured by the patented AMP sensor substantially exceed the performance of the best clamp-on sensors. The true power factor is calculated by measuring the electric field in comparison with the current reported from the AMP sensor. The key feature of the unit is the ability to leave it deployed on the line to record readings every 15 minutes for 90+ days. It easily attaches to the line with a standard insulating bar. Once on the line, it immediately begins to collect and record the current and power factor on the line.
The Primary current recorder is equipped with an 433M wireless port for communicating the recorded data into the user's PC. The data is downloaded through GF2015S PC-LinkSoftware software, which allows the user to download, view and query the data stored on the Primary current recorder.

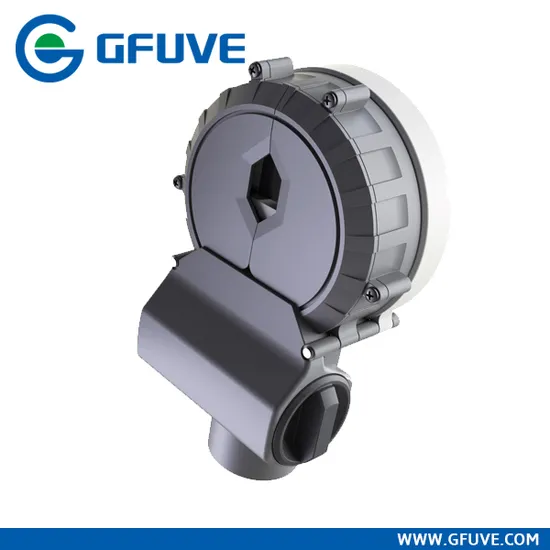

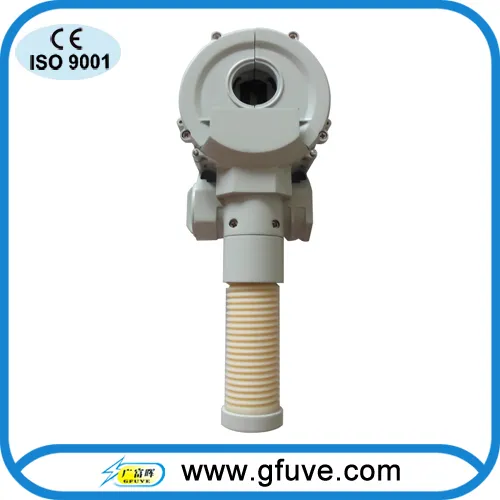

The housing of the Primary current recorder is made of ABS+PC and is built to operate safely, even in severe utility environments. It is resistant to shock, repels water and is unsusceptible to flame. It also operates within a wide temperature range. The Primary current recorder has a the screw insulation bar of installation, which allows it to hang on the line securely in all weather conditions.
PC-LinkSoftware is a user-friendly software interface that allows the user to download, view, graph and export data from the Primary current recorder into Microsoft Excel. The data directly transfers from the Primary current recorder into Excel through an 433M Port.
