基本信息产品详情证书
基本信息
| 型号编号 | OSG90R1K2FF TO220F-1 |
| 冷却方法 | 自然冷却管 |
| 功能 | 开关晶体管 |
| 工作频率 | 高频 |
| 结构 | 扩散 |
| 封装结构 | 塑料密封晶体管 |
| 权力等级 | 中功率 |
| 材料 | 硅 |
| 描述 | 极低开关损耗 |
| 特性 | 优异稳定性与均匀性 |
| 应用程序 | PC电源 |
| 产业 | LED照明 |
| 保修 | 24个月 |
| 运输包 | 纸箱 |
| 规格 | TO220F |
| 商标 | 非晶半导科技 |
| 起源 | 中国 |
| 商品编码 | 八亿五千四百一十二万九千 |
| 生产能力 | 每月2万克/ |
| 包装尺寸 | 15.00cm长 * 3.00cm宽 * 2.00cm高 |
| 包装总重量 | 0.160千克 |
| 包装尺寸 | 15.00cm×3.00cm×2.00cm |
| 包装总重量 | 0.760公斤 |
产品详情
Product Description
Preview
General Description
OSG90R1K2xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is suitable for active power factor correction and switching mode power supply applications.
Features

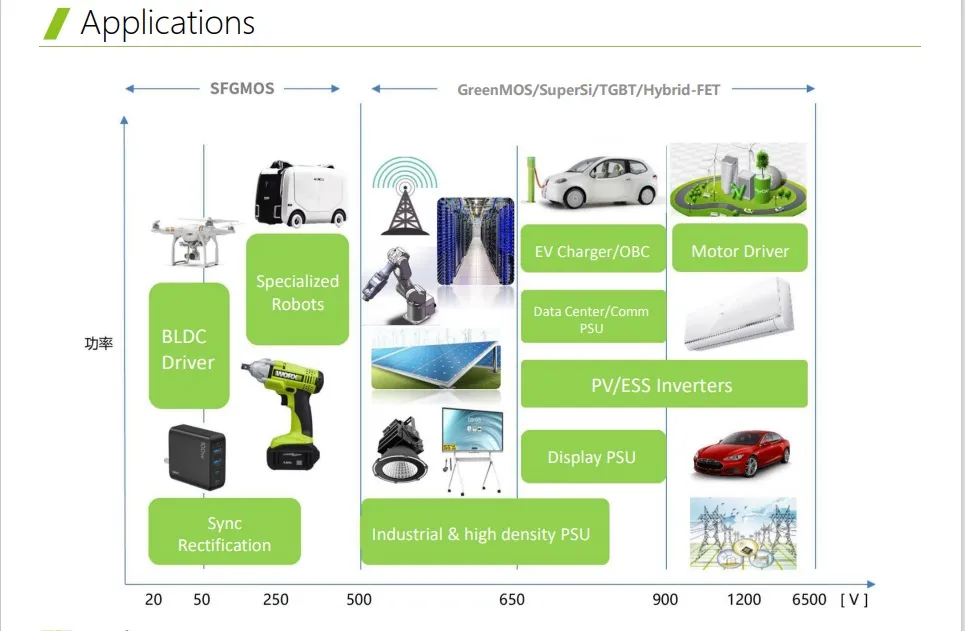

Applications
Low RDS(on) & FOM
Lighting
Extremely low switching loss
Hard switching PWM
Excellent stability and uniformity
Server power supply
Easy to drive
Charger
Key Performance Parameters
Marking Information
Dynamic Characteristics
Gate Charge Characteristics

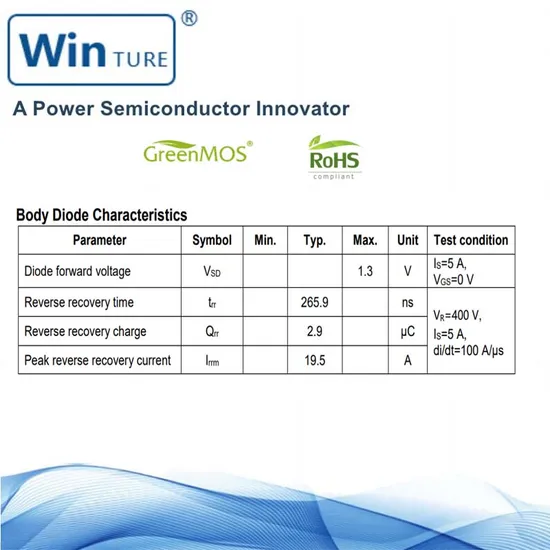

Body Diode Characteristics
Note
Calculated continuous current based on maximum allowable junction temperature.Repetitive rating; pulse width limited by max. junction temperature.Pd is based on max. junction temperature, using junction-case thermal resistance.The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with Ta=25 °C.VDD=300 V, VGS=10 V, L=40 mH, starting Tj=25 °C.
OSG90R1K2xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is suitable for active power factor correction and switching mode power supply applications.
Features
Applications
Low RDS(on) & FOM
Lighting
Extremely low switching loss
Hard switching PWM
Excellent stability and uniformity
Server power supply
Easy to drive
Charger
Key Performance Parameters
Marking Information
Dynamic Characteristics
Gate Charge Characteristics
Body Diode Characteristics
Note
Calculated continuous current based on maximum allowable junction temperature.Repetitive rating; pulse width limited by max. junction temperature.Pd is based on max. junction temperature, using junction-case thermal resistance.The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with Ta=25 °C.VDD=300 V, VGS=10 V, L=40 mH, starting Tj=25 °C.
