Features:

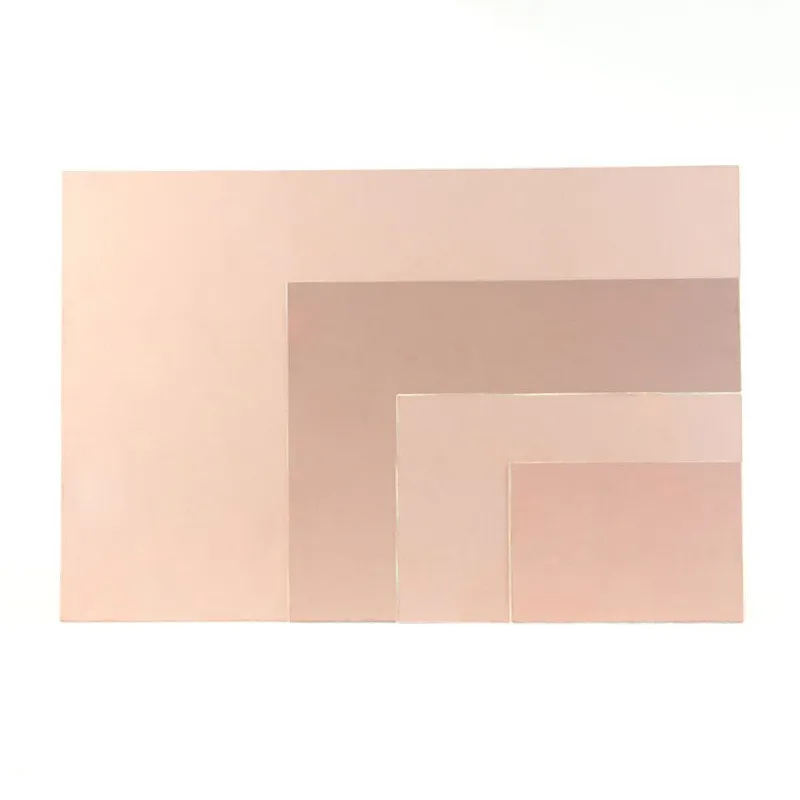

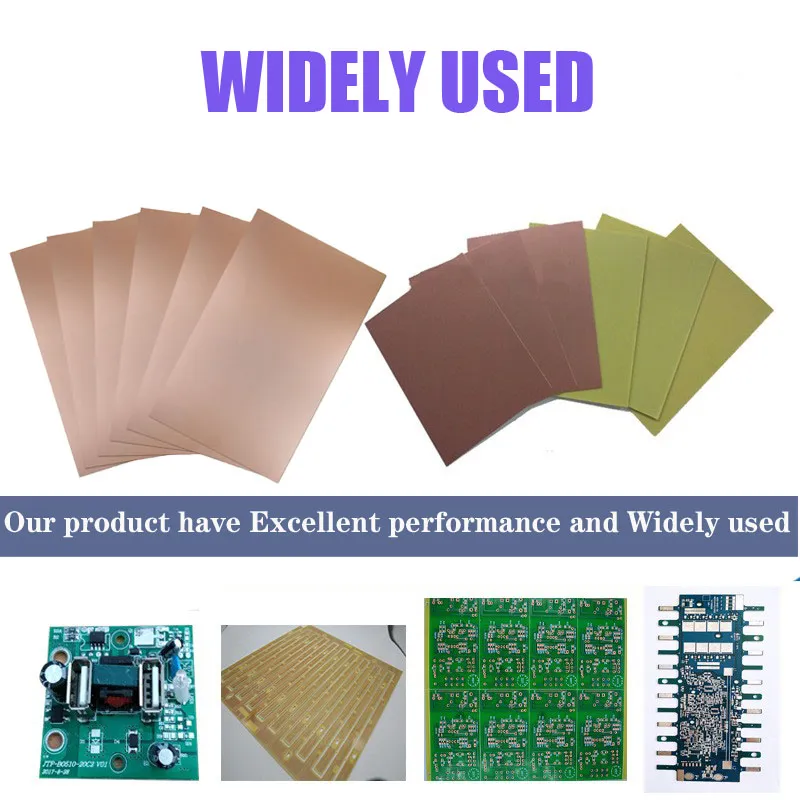

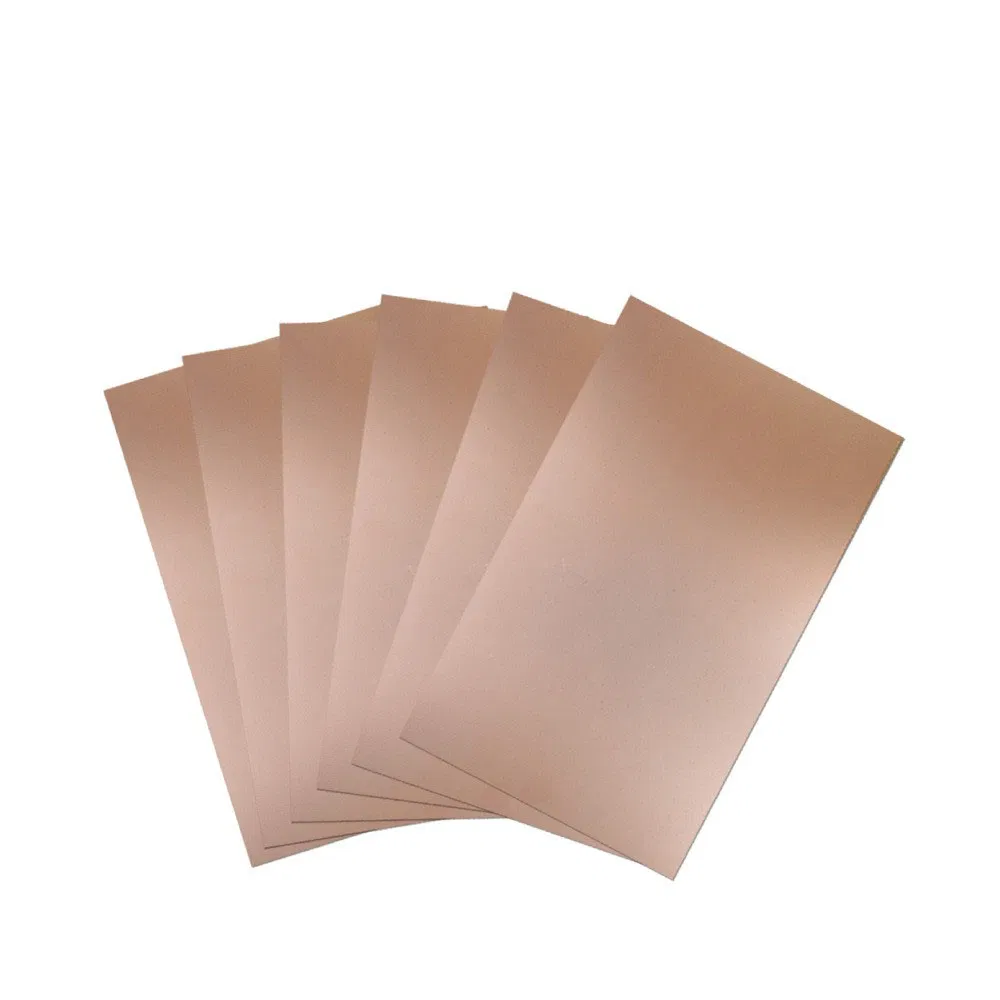

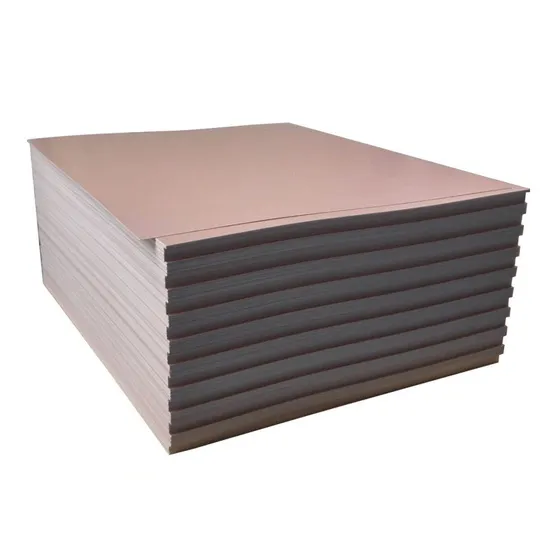

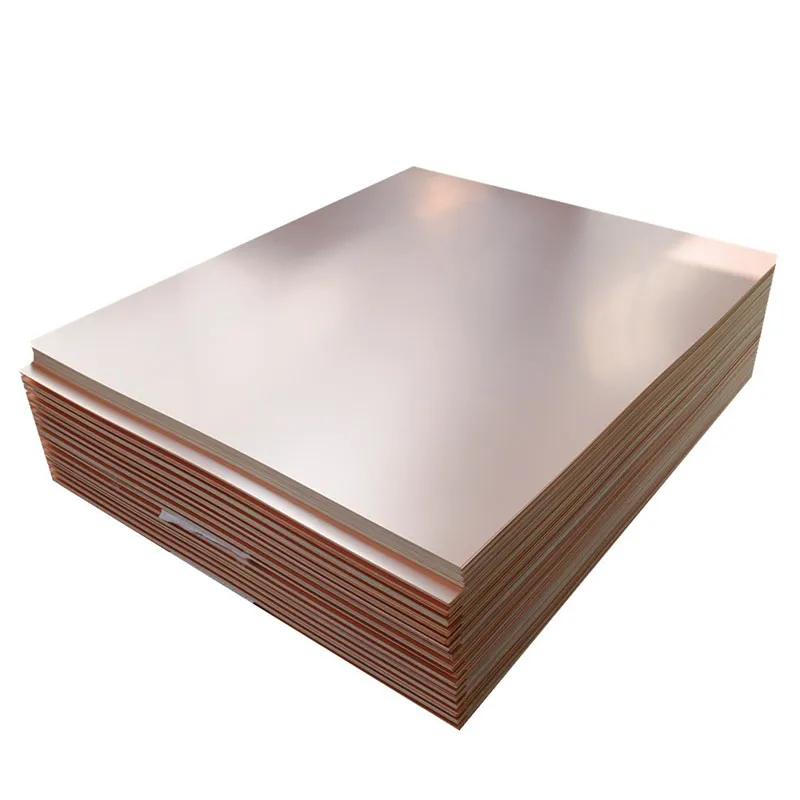

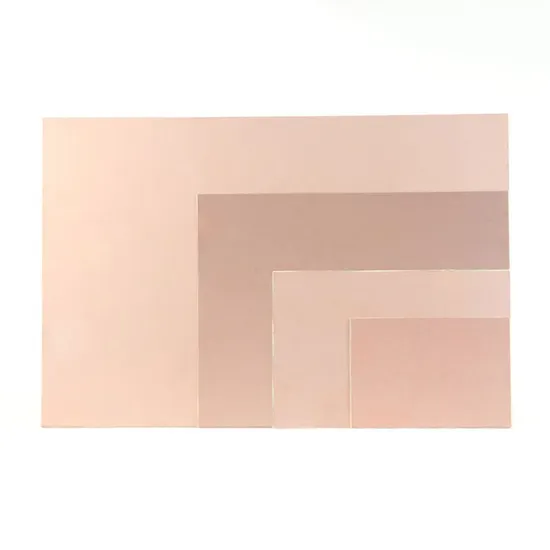

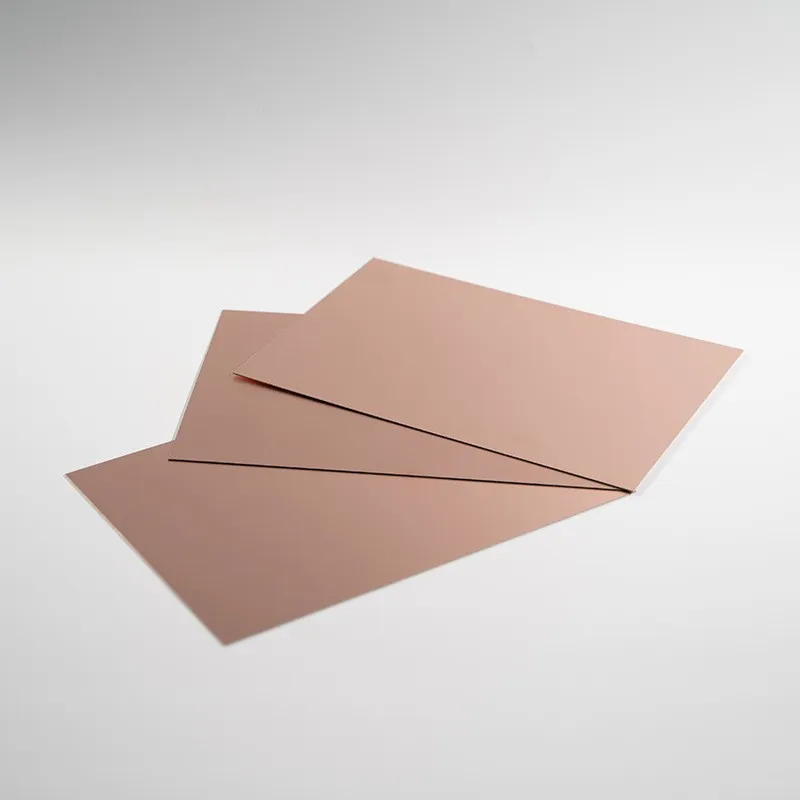

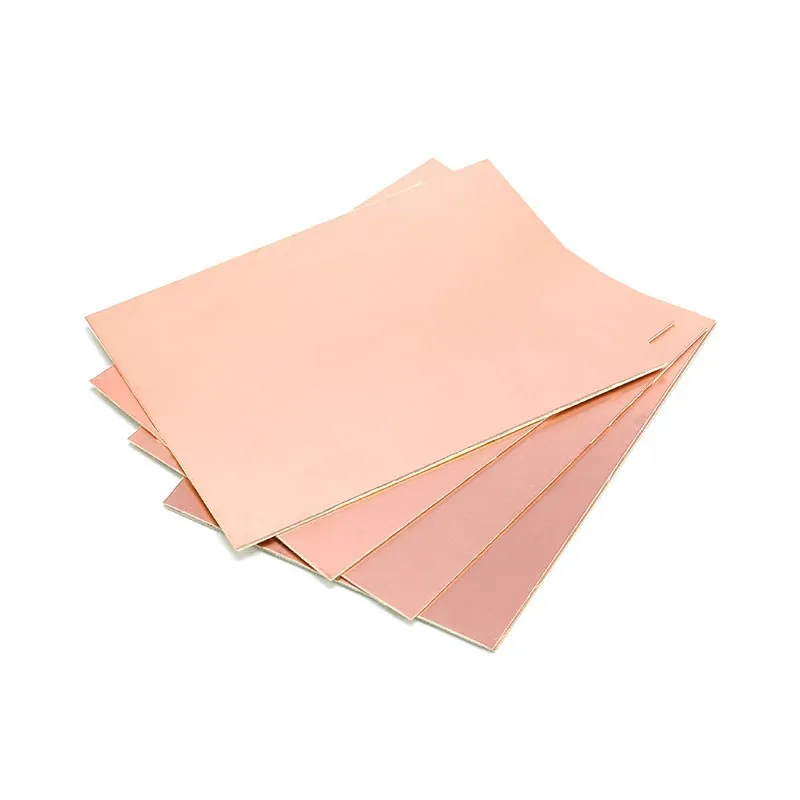

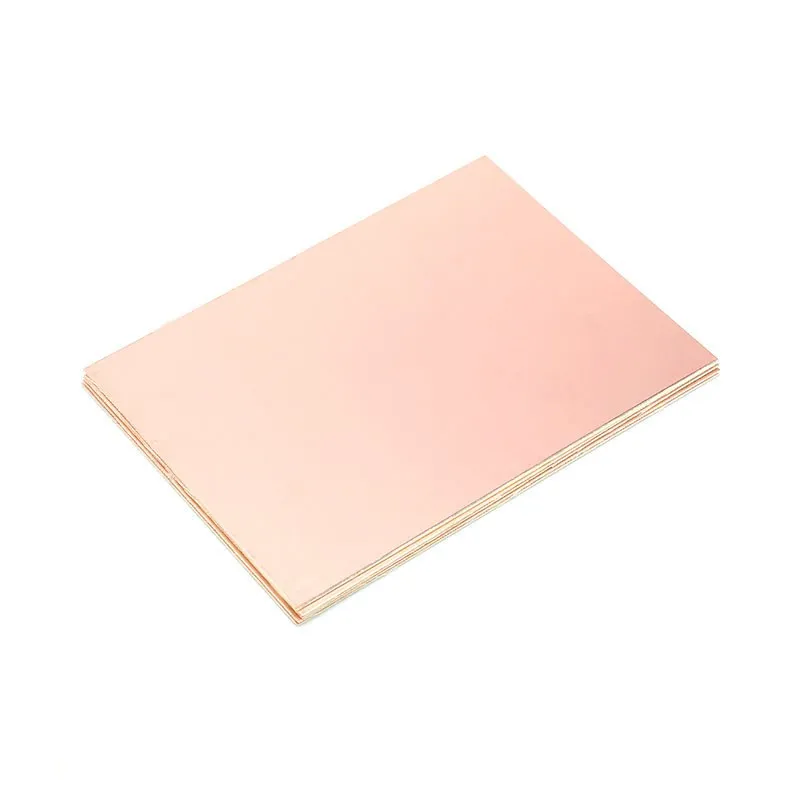

XPC Copper clad laminated sheet/CCL consist of bleached wood pulp paper, impregnated with modified phenolic resin and clad with electrolytic copper foil.It has high dimension stability, good punching behavior at low temperature, high thermal resistance and are widely used for computers, telephones, Hi-Fi acoustic devices, electronic toys and etc.
Note:Different thickness copper foil in one side or double sides can be supplied. 18um,25um,35um,70umCopper clad laminate sheet ( the full name of copper clad laminate, CCL for short), is made of wood pulp paper or glass fiber cloth as a reinforcing material, impregnated with resin, and covered with copper foil on one or both sides. into a product. CCL is the basic material of the electronics industry, mainly used for processing and manufacturing printed circuit boards (PCB), widely used in televisions, radios, computers, computers, mobile communications and other electronic products. The copper clad laminate industry has a history of nearly 100 years. The development of CCL began in the early 20th century. At that time, there was a gratifying progress in the manufacture of resins, reinforcing materials and substrates for copper clad laminates.

INTRODUCE
:
Aluminum/FR4/FR1/CEM-3 CCL copper clad laminate

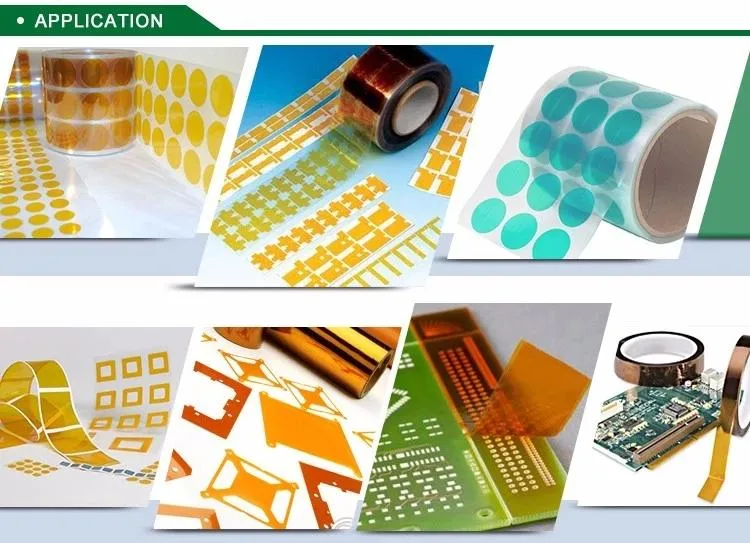

is used Polyimide film as carrier and coated with silicone adhesive single side. With excellent Acid resistance, anti-solvent, anti-radiation and easy peel off. Widely used in printed circuit board (PCB), SMT tin stove, Lithium battery,electronics industry transformers, motors, coils, capacitors and variable frequency power supply etc...

Classification
1. According to the mechanical rigidity of CCL, it is divided into rigid CCL and flexible CCL;
2. According to the insulating material and structure of CCL, it is divided into organic resin CCL, metal-based CCL, and ceramic-based CCL;
3. According to the thickness of the copper clad laminate, it is divided into thick plate (the thickness range is 0.8~3.2mm (including Cu)), thin plate (the thickness range is less than 0.78mm (excluding Cu));
4. According to the reinforcing material of CCL, it is divided into glass cloth base CCL, paper base CCL and composite base CCL (CME-1, CME-2).5. According to the flame retardant grade, it is divided into flame retardant board and non-flame retardant board.6. According to some properties of CCL, it is divided into high Tg board (Tg≥170ºC), high dielectric performance board, high CTI board (CTI≥600V), environmentally friendly CCL (halogen-free, antimony-free), ultraviolet light Shielded CCL.

DATA SHEET:

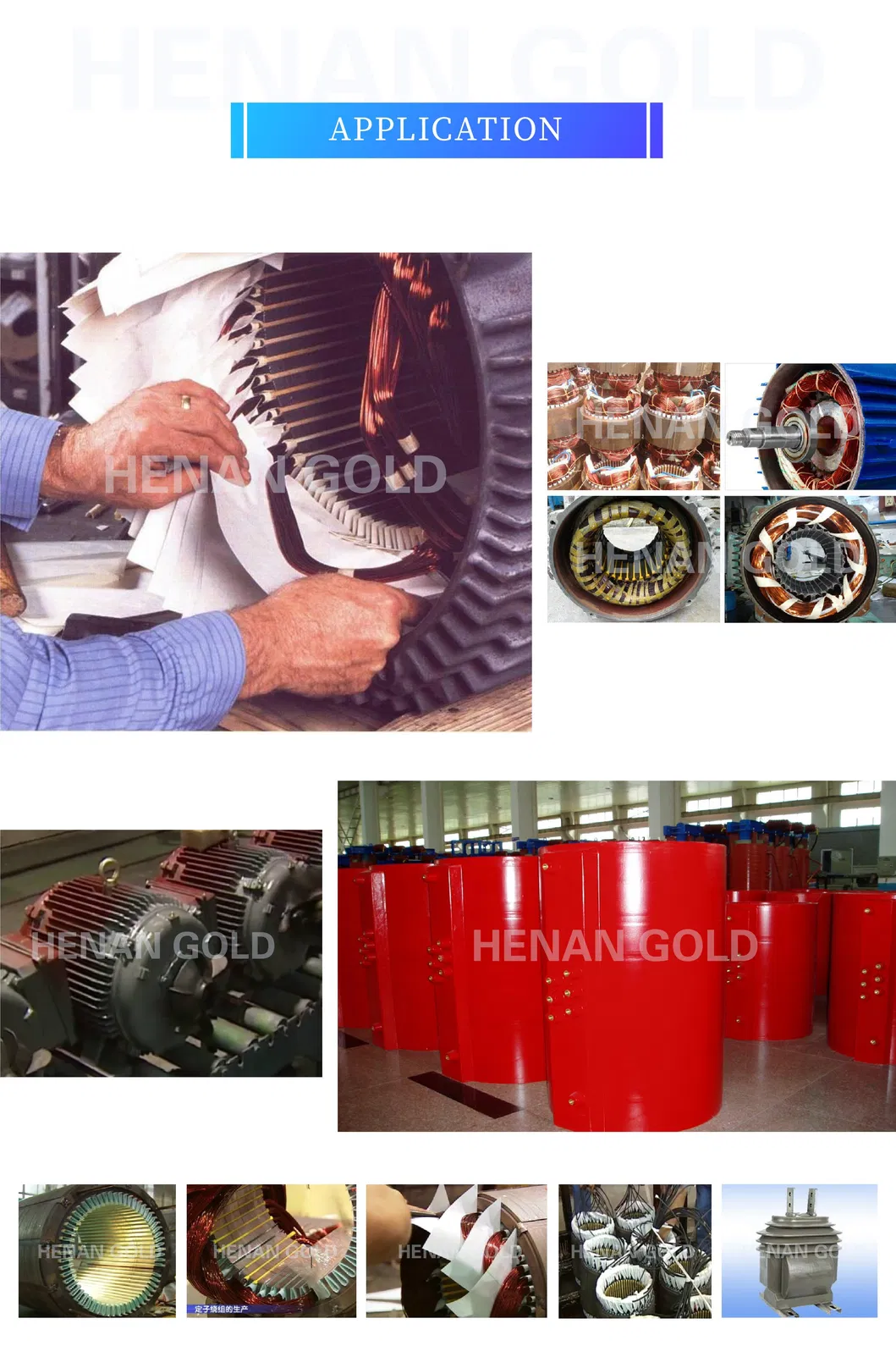

Henan jinzhi Electrical Insulation new Material Co.,Ltd is a professional electrical insulation products manufacturer since 2009, we are commited to serve and satisty with degree of excellence the needs of the manufacturing industry, we have been pursuing "Quality is Gold, Reputation is life" as our business Philosophy, and established "Jinzhi" as our brand ,we are strickly in higher standard quality control and advanced managment system, Henan jinzhi has become one of leading company in electrical insulation material filed.We have 8 production lines with 12000 tons of capacity annually, there is more than 100 styles of products which including: Electrical insulation flexible laminates, Insulation paper, Insulation film, insulation fiberglass sleeve, heat shrinkable tube,Epoxy Prepreg & Diamond Dotted Electricainsulationmaterial,Electrical Insulation Banding tape, laminated insulation sheet, Mica Board etc ,the insulation material products are mainly applied for dry-type transformers, oil-immersed transformers and motors etc, the products with excellent performance has gained SGS,ROHS,CE certificates.Henan jinzhi has acquired ISO9001 certificate.Henan jinzhi was founded based on the foundation of virtues & faith, we will be a world-wide class commercial company with the constant effort to serve our customers. our company objective is to find OEM and distributors who want and fullfill the requirements of quality and loyalty as far as the service for our business partner from overseas and domestic for mutual benefits and bright future!!Packaging&Shipping

1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples?
-Yes. Please feel free to contact us.
3. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4. What is your payment term?
- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
5. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
