Features:

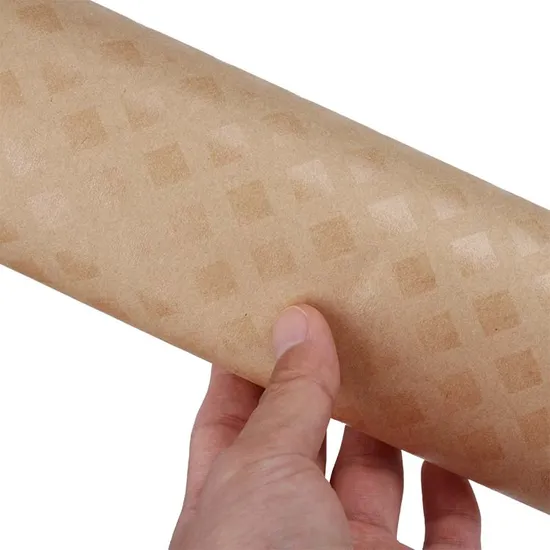

DIAMOND DOTTED PAPER (DIAMOND DOTTED PAPER) is commonly known as dotted paper. It is a special modified epoxy resin in the shape of diamond coating on electrical insulation paper insulation material. It is widely used in interlayer insulation and turn insulation of oil-immersed power transformer. When used, the coating layer begins to melt at a certain temperature during the coil drying process, resulting in adhesion. As the temperature rises, it begins to cure again, so that the adjacent layers of the winding are reliably bonded into a fixed unit. The bonding strength of the epoxy resin is sufficient to prevent the displacement of each layer of the winding during short circuit, thus ensuring the long-term mechanical and electrical properties of the insulation structure..

INTRODUCE
:

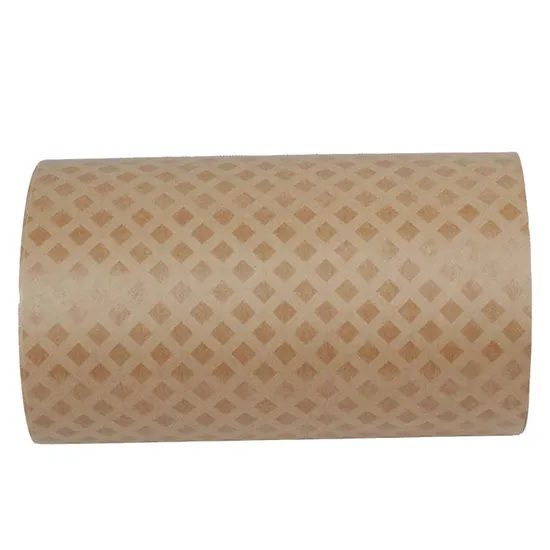

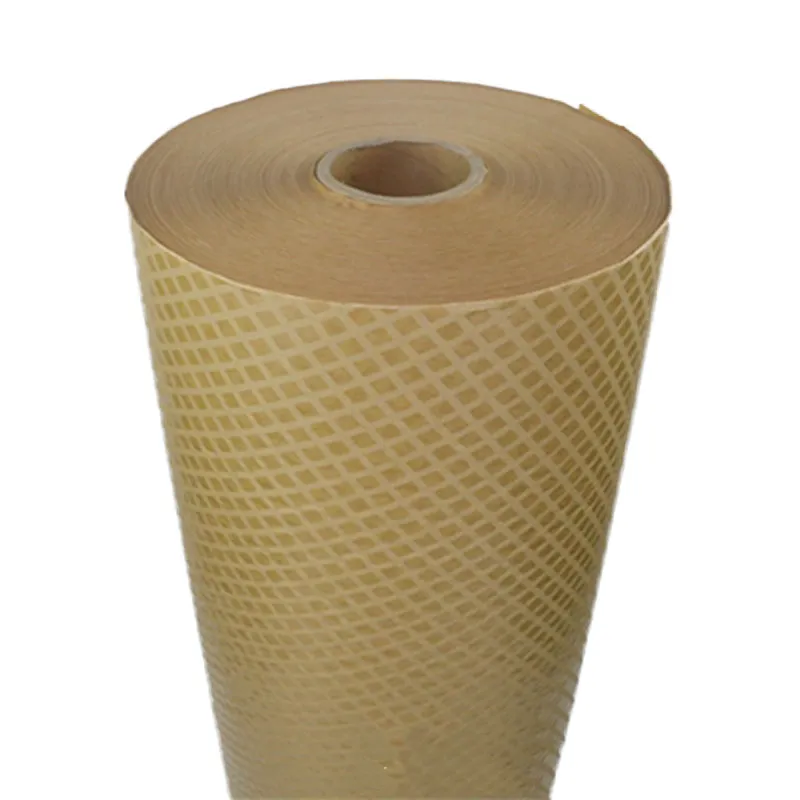

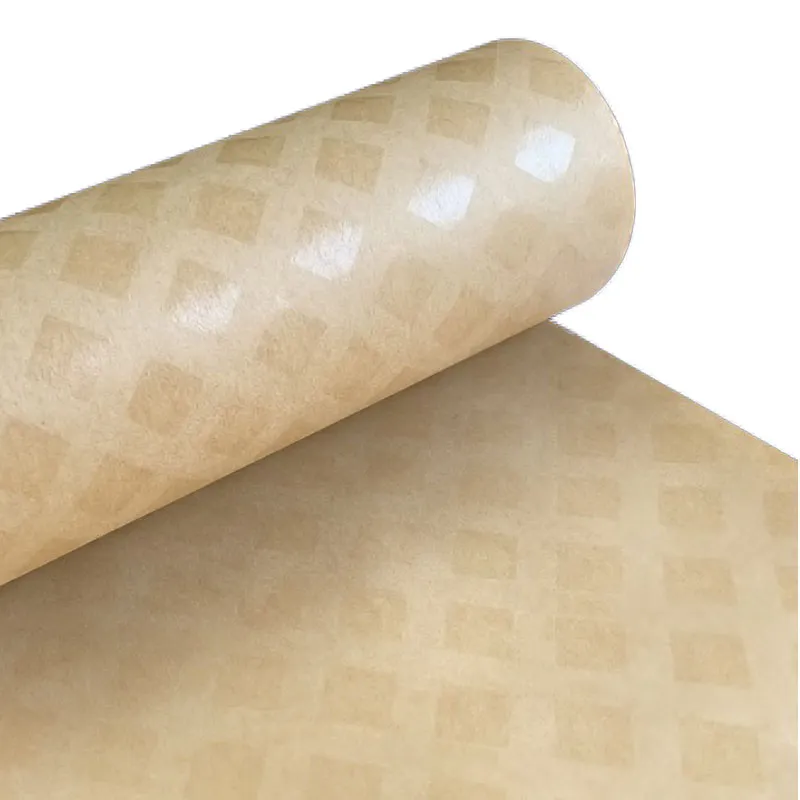

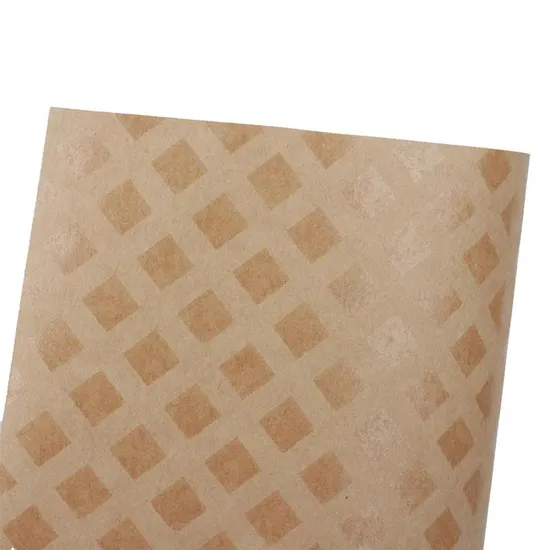

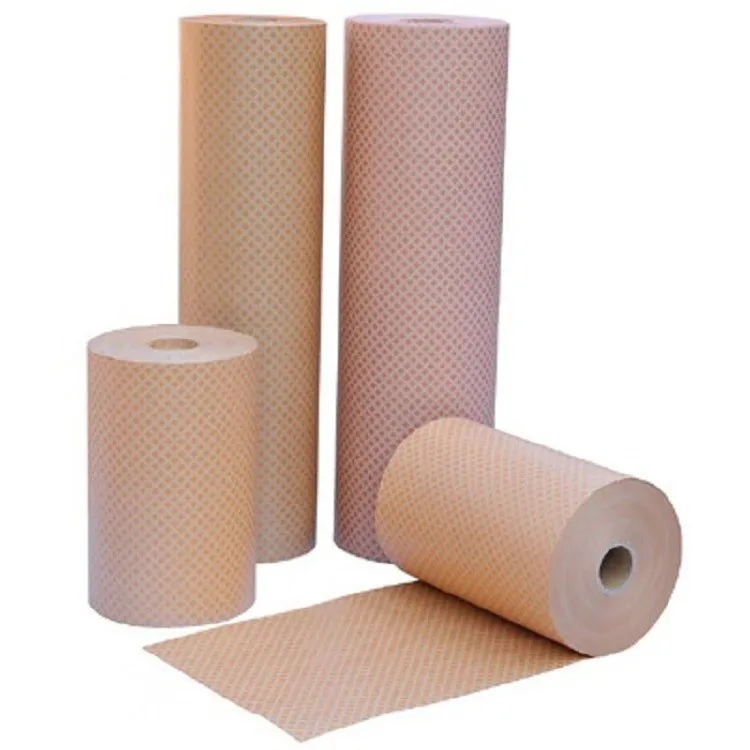

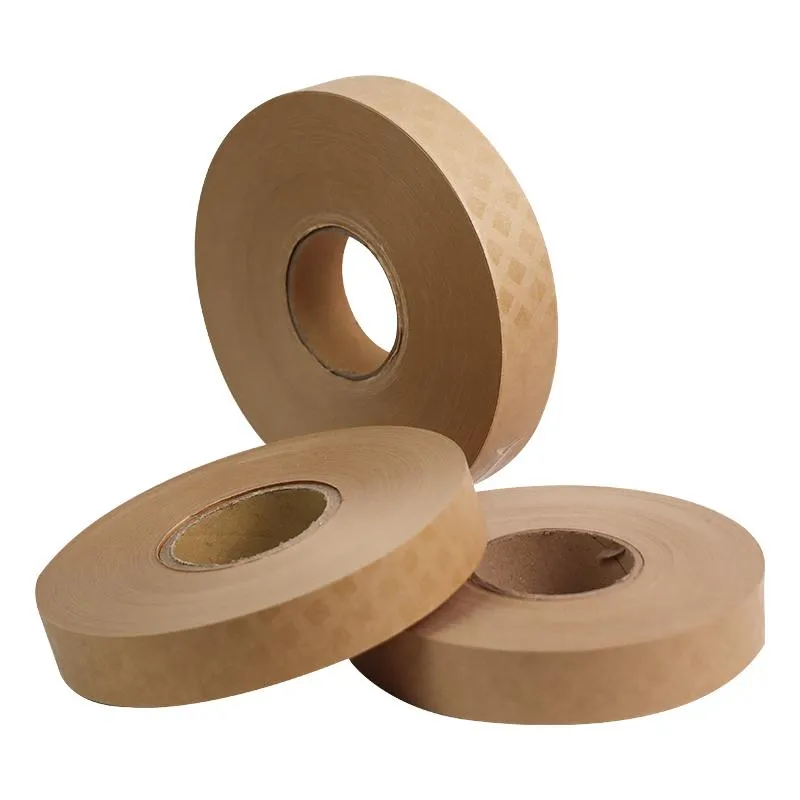

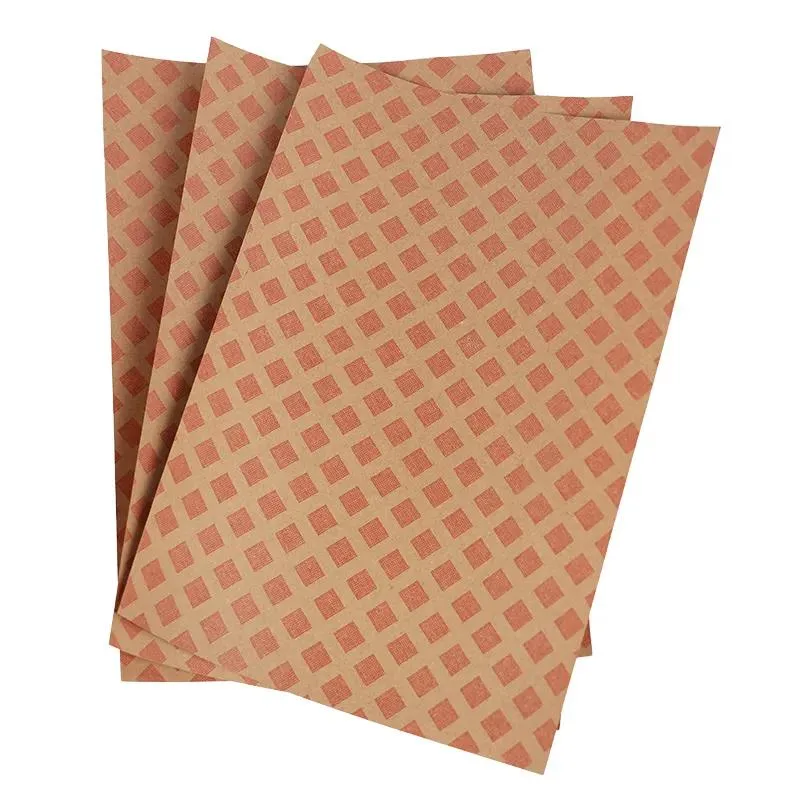

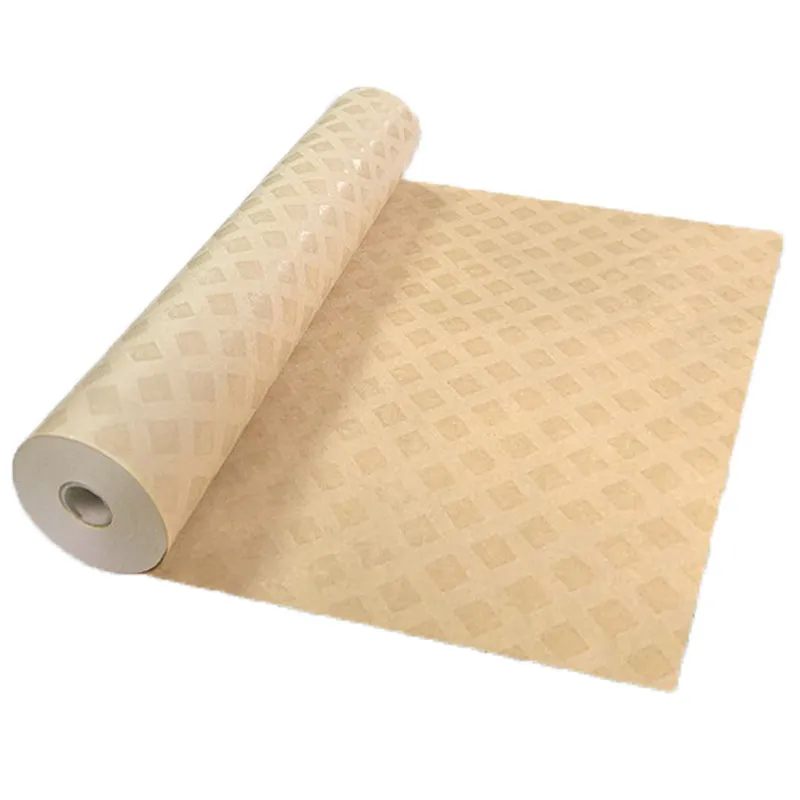

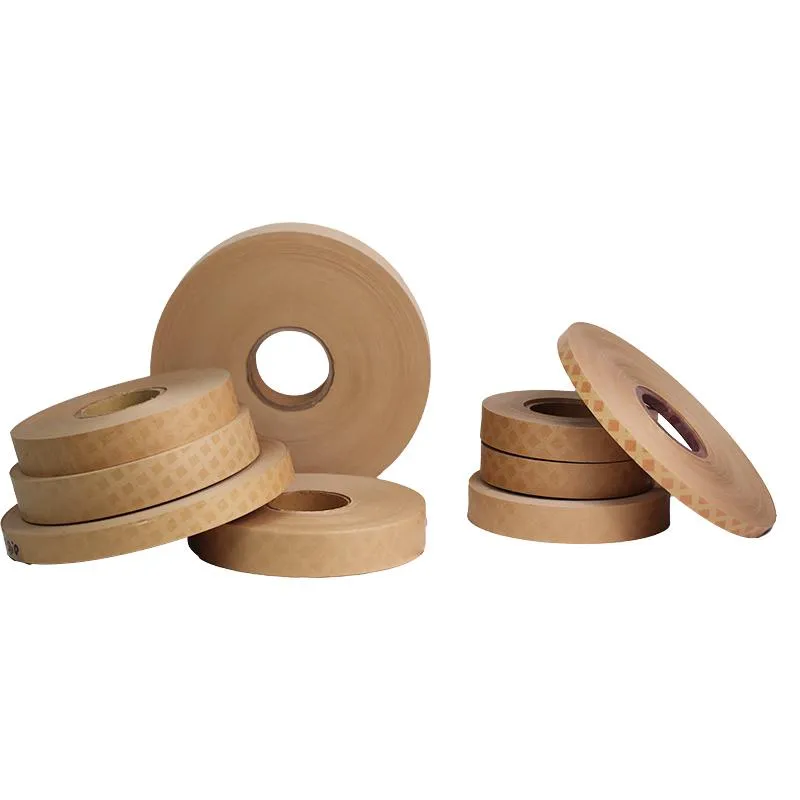

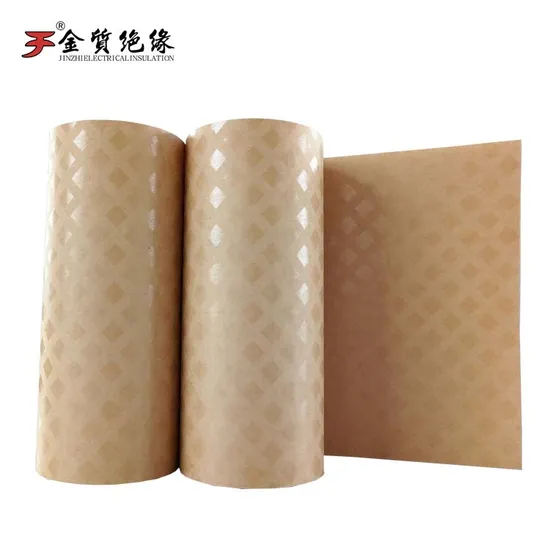

Diamond Dotted Paper is made of Kraft coated with heat curable epoxy resin, the epoxy adhesive is applied to both sides of the paper in a diamond pattern consisting of 9.5mm×9.5mm diamonds with 15.9mm center spacing.Usage: DDP is primarily used as layer and winding insulation in the LV and HV coils of transformers. After curing, the partial resin coating bonds the electric conductors with the insulation, which brings about the mechanical consolidation of the coils. In this way the radial and axial forces that arise in the event of short
circuit can be safely controlled
.

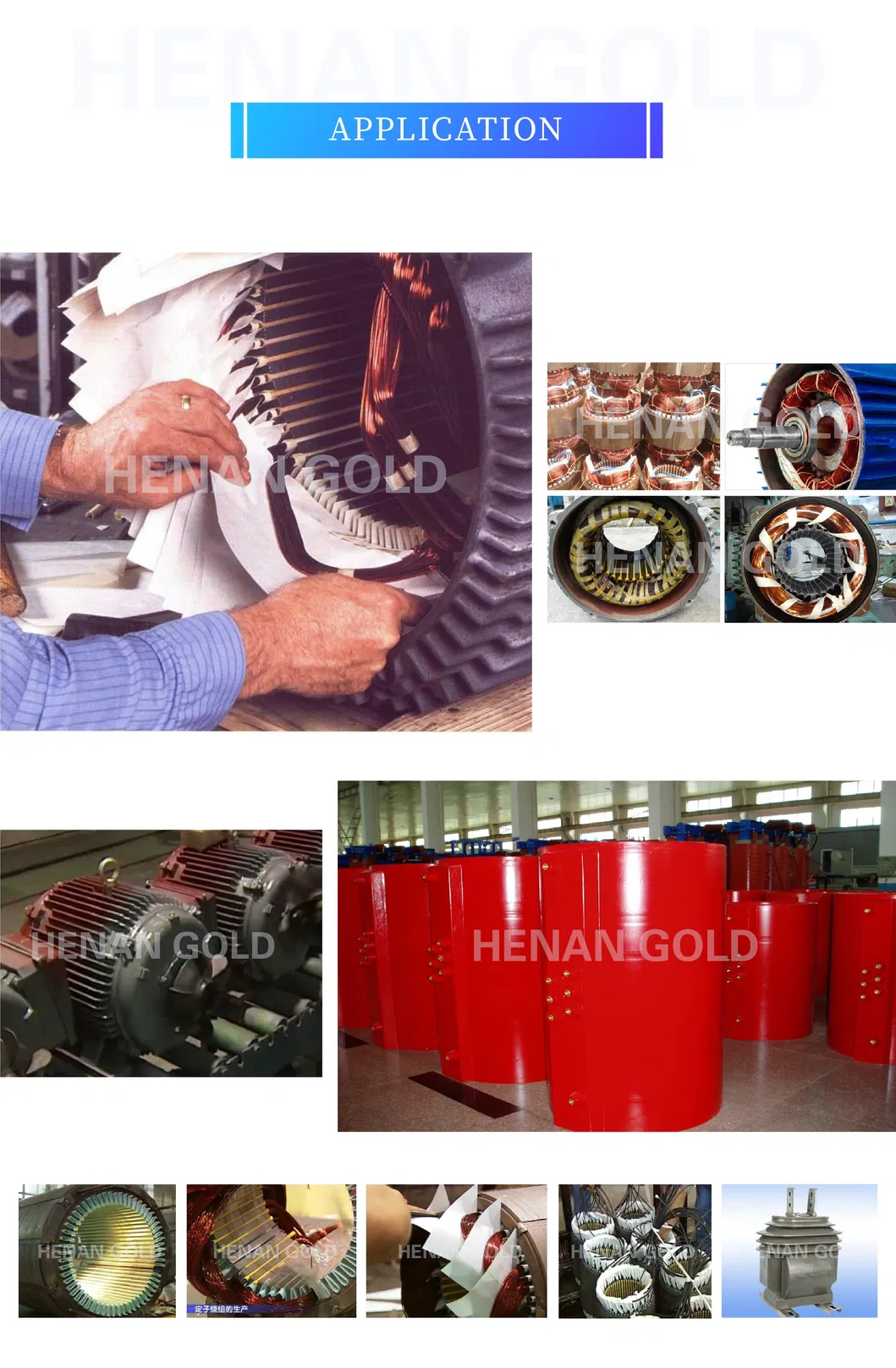

Usage:

DATA SHEET:

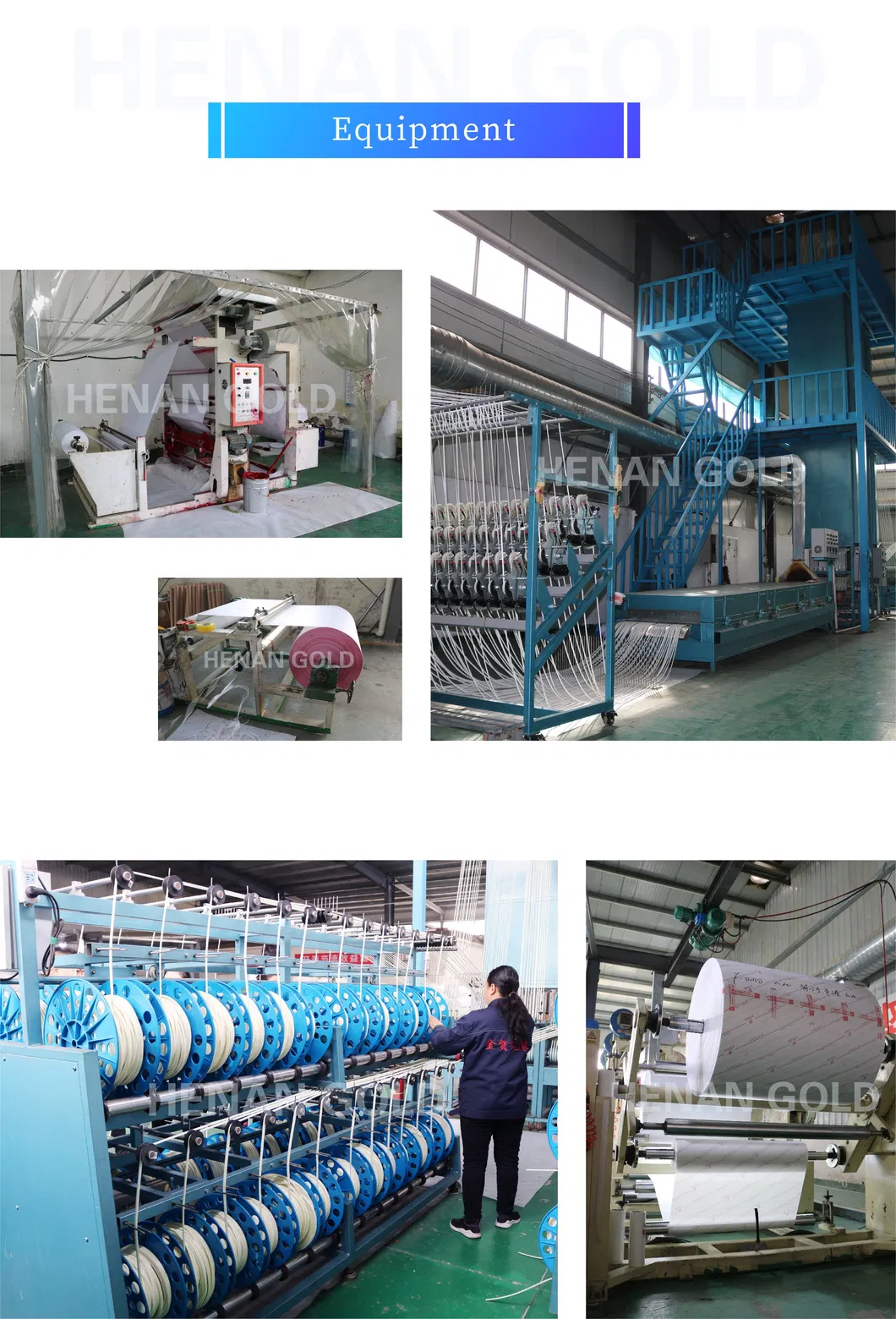

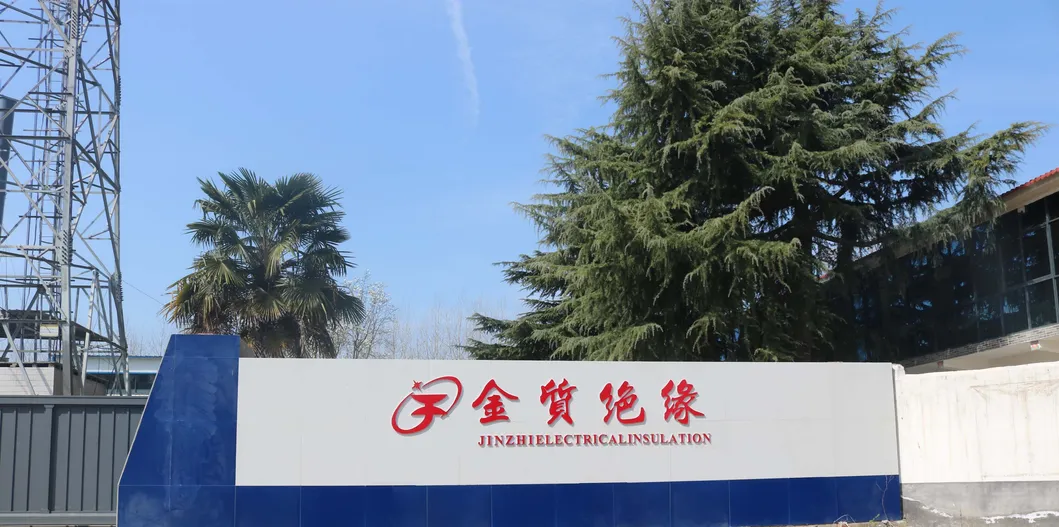

Henan jinzhi Electrical Insulation new Material Co.,Ltd is a professional electrical insulation products manufacturer since 2009, we are commited to serve and satisty with degree of excellence the needs of the manufacturing industry, we have been pursuing "Quality is Gold, Reputation is life" as our business Philosophy, and established "Jinzhi" as our brand ,we are strickly in higher standard quality control and advanced managment system, Henan jinzhi has become one of leading company in electrical insulation material filed.We have 8 production lines with 12000 tons of capacity annually, there is more than 100 styles of products which including: Electrical insulation flexible laminates, Insulation paper, Insulation film, insulation fiberglass sleeve, heat shrinkable tube,Epoxy Prepreg & Diamond Dotted Electricainsulationmaterial,Electrical Insulation Banding tape, laminated insulation sheet, Mica Board etc ,the insulation material products are mainly applied for dry-type transformers, oil-immersed transformers and motors etc, the products with excellent performance has gained SGS,ROHS,CE certificates.Henan jinzhi has acquired ISO9001 certificate.Henan jinzhi was founded based on the foundation of virtues & faith, we will be a world-wide class commercial company with the constant effort to serve our customers. our company objective is to find OEM and distributors who want and fullfill the requirements of quality and loyalty as far as the service for our business partner from overseas and domestic for mutual benefits and bright future!!Packaging&Shipping
