基本信息产品详情证书
基本信息
型号编号 | MB33 |
用法 | 无线电,IP网状网络 |
信息内容 | 视频、音频 |
类型 | 哈里斯 |
数据速率 | 90兆位每秒(峰值@20兆赫) |
运输包 | 纸箱 |

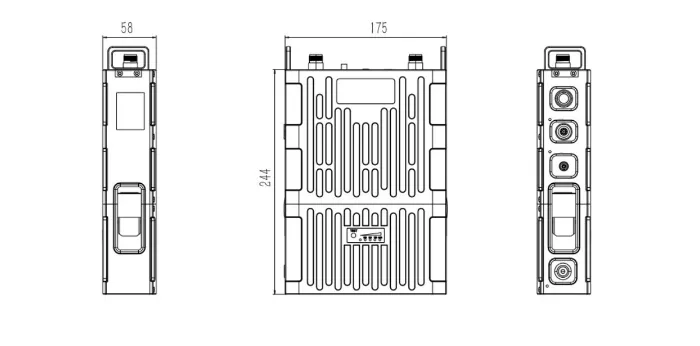

规格 | 244*175*58毫米 |
商标 | BOOSTEL |
起源 | 深圳 |
商品编码 | 8517629900 |
生产能力 | 每年一万 |
产品详情
Product Description
Preview

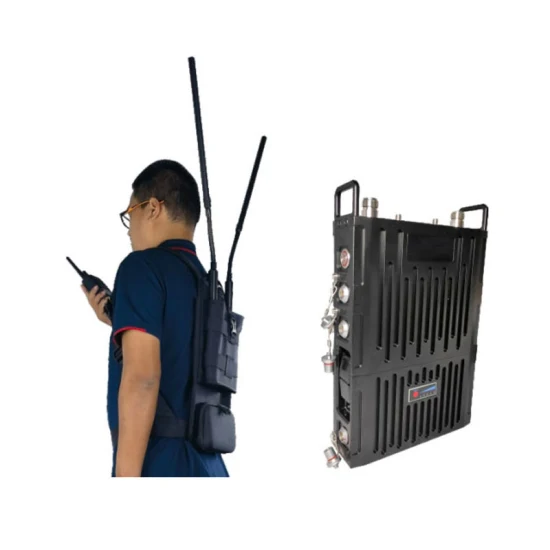

Backpack-type waterproof soldier broadband self-organizing network equipment, with removable battery, quick unplug navigation plug connector design, support two-way wireless IP data transmission, support PTT voice intercom, wifi coverage, full waterproof design, simple and convenient operation, strong environmental adaptability, professional engineering design, beautiful appearance and atmosphere. The equipment supports fast access to the network, mobile network transmission, according to the changes in the formation, the system can freely switch the network architecture, automatically find the best transmission path, the actual application can be transformed into a wireless mesh network, chain network, star-shaped network, but also according to the needs of different types of broadband wireless network equipment with the formation of a mixed network of communication network mode. It can provide clear multi-channel voice, video, data transmission and other multimedia broadband communication services for soldiers, squads and command systems, realizing efficient cooperation, tactical command and control. In practical application, combined with 4G/5G network or satellite network and other remote network resources, it can realize the application of tactical and strategic communication of line-of-sight transmission, non-line-of-sight transmission and ultra-line-of-sight transmission.Equipment frequency range: 300~3000MHz (the range can be customized according to the needs of the guests), wireless mesh equipment transmission distance, ground unimpeded environment (about 2 meters above the ground) transmission distance: ≥10km, air to the ground (flight altitude above 200m) : ≥60km, 500 to 2000m (depending on the blocking environment).
Product Features
Centerless, distributed network architecture design, each node in the network architecture, i.e., it is both the gateway (Gateway), routing (Router), client (Client) and relay;
Supports any network topology: wireless mesh network, chain network, star network and hybrid wireless networking;
Supports non-line-of-sight transmission, multi-hop relay relay forwarding;
Wide coverage, ground without blocking environment, transmission distance: ≥10km, air to ground ≥60km, blocking environment, 500~2000m (depending on the blocking environment);
High transmission bandwidth: peak rate not less than 52Mbps, not less than 95Mbps in MIMO mode (optional);
Low transmission delay, single hop unidirectional ≤ 7ms;
Supports bi-directional IP network data transmission;
Support PTT two-way voice intercom function;
Support wifi signal coverage;
Wide frequency range, 300~3000MHz (within the range can be customized according to the needs of guests);
Support 1.25/2.5/5/10/20MHz bandwidth (MIMO version 40MHz bandwidth can be selected);
Networking nodes: 16 nodes, 32 nodes, 128 nodes, 256 nodes (choose different configurations as needed);
The device supports fast mobile transmission with a maximum speed of up to Mach 2.5;
Product Parameters
Application

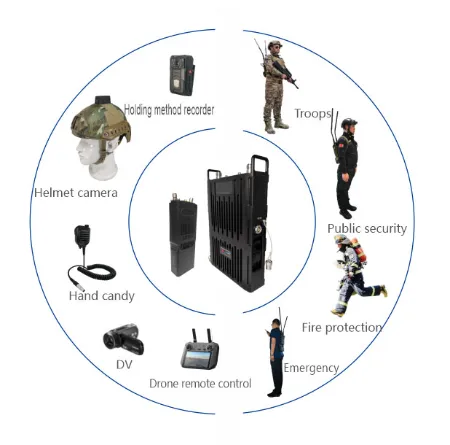

The products can be widely used in the armed, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, maritime and air communication and other departments and fields, to provide users with reliable, timely, safe, efficient voice, data, video and visual command and dispatch and other rich comprehensive business. To meet the user's wireless broadband communication needs in peacetime or emergency situations to the greatest extent, and truly achieve "anytime and anywhere on demand".
Product Features
Centerless, distributed network architecture design, each node in the network architecture, i.e., it is both the gateway (Gateway), routing (Router), client (Client) and relay;
Supports any network topology: wireless mesh network, chain network, star network and hybrid wireless networking;
Supports non-line-of-sight transmission, multi-hop relay relay forwarding;
Wide coverage, ground without blocking environment, transmission distance: ≥10km, air to ground ≥60km, blocking environment, 500~2000m (depending on the blocking environment);
High transmission bandwidth: peak rate not less than 52Mbps, not less than 95Mbps in MIMO mode (optional);
Low transmission delay, single hop unidirectional ≤ 7ms;
Supports bi-directional IP network data transmission;
Support PTT two-way voice intercom function;
Support wifi signal coverage;
Wide frequency range, 300~3000MHz (within the range can be customized according to the needs of guests);
Support 1.25/2.5/5/10/20MHz bandwidth (MIMO version 40MHz bandwidth can be selected);
Networking nodes: 16 nodes, 32 nodes, 128 nodes, 256 nodes (choose different configurations as needed);
The device supports fast mobile transmission with a maximum speed of up to Mach 2.5;
Product Parameters
Application
The products can be widely used in the armed, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, maritime and air communication and other departments and fields, to provide users with reliable, timely, safe, efficient voice, data, video and visual command and dispatch and other rich comprehensive business. To meet the user's wireless broadband communication needs in peacetime or emergency situations to the greatest extent, and truly achieve "anytime and anywhere on demand".
Preview

Preview
Detailed Photos
Preview

Preview

Preview
FAQ
Preview
Q1. Could I get a sample before bulk order?
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models with charges.Q2. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, frequencies and etc....Q3. Delivery & Shipment Date:
It is expected 25-30 working days after the fund/deposit
received.Q4. How can i get the price?
We usually response within 24 hours after we get your inquiry(Except weekend and holidays). If any urgent situation, please contact us by WhatsApp or E-mail.
Q2. Do you accept OEM / ODM order?
Q3. Delivery & Shipment Date:
Q4. How can i get the price?
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models with charges.Q2. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, frequencies and etc....Q3. Delivery & Shipment Date:
It is expected 25-30 working days after the fund/deposit
received.Q4. How can i get the price?
We usually response within 24 hours after we get your inquiry(Except weekend and holidays). If any urgent situation, please contact us by WhatsApp or E-mail.
Q2. Do you accept OEM / ODM order?
Q3. Delivery & Shipment Date:
Q4. How can i get the price?
