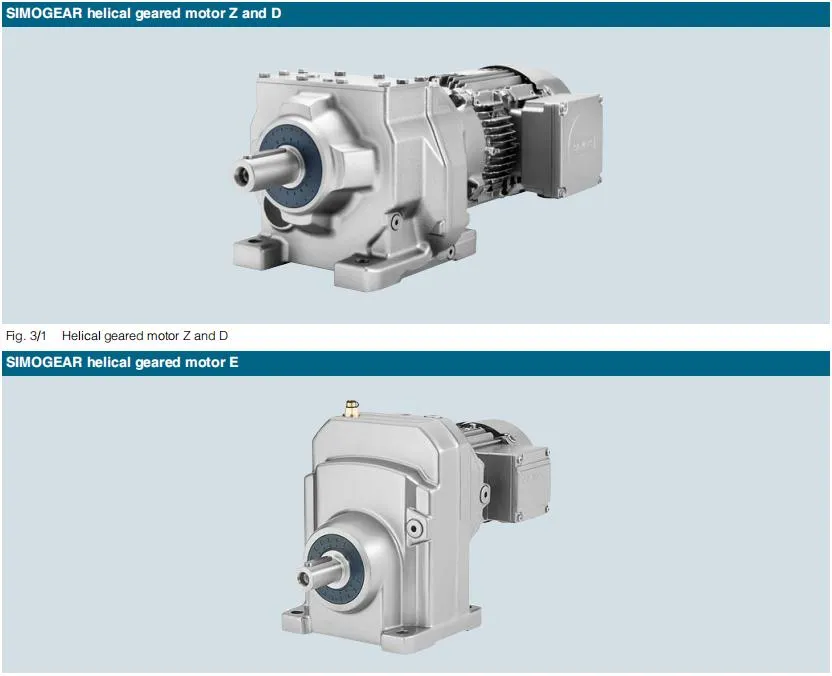

Overview

SIMOGEAR
helical
geared
motors
Features
High range of transmission ratios (plug-on pinion)
Very economic performance
Very energy efficient (efficiencies of 98
% per stage)
High power range
Mechanical construction
Stages: 1, 2 or 3
Mounting types: foot-mounted and flange-mounted designs, housing flange
Shaft design: solid shaft
Transmission stages
• 2-stage or 3-stage helical geared motors
• 1-stage helical geared motors for high output speeds
• 4-stage to 6-stage helical geared motors for very low output
speeds
Typical applications
Conveyor belt
Transport of packaged goods
Vertical conveyor

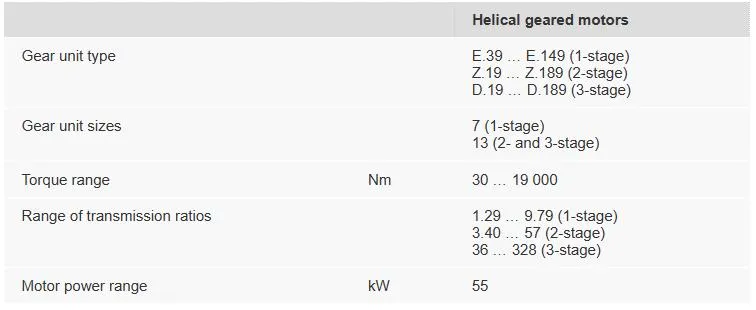

Technical data§§
About new SIMOGEAR geared motors

The SIMOGEAR
geared
motor delivers performance from 0.09
kW up to 55
kW. It can achieve a gear
unit
torque up to 19
500
Nm with helical, parallel shaft, bevel, helical worm and worm geared motors Due to accordance to the current measures, SIMOGEAR is compatible to many other suppliers of geared motors.

•
SIMOGEAR geared motors are the new generation of geared motors from Siemens.•

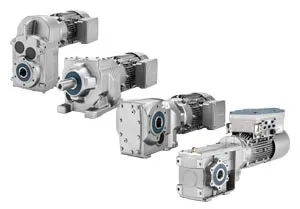

SIMOGEAR geared motors can be obtained as helical geared motors, parallel shaft geared motors, bevel geared motors
and helical
worm geared motors.•
The fine-tuned sizes of the SIMOGEAR gearboxes offer you the right drive regarding the gearbox type, output nominal torque and ratio.•
SIMOGEAR geared motors stand out especially due to their energy efficiency, compactness and their little weight.

•
State-of-the-art production technology and improved testing methods ensure the highest degree of quality and reliability.§§

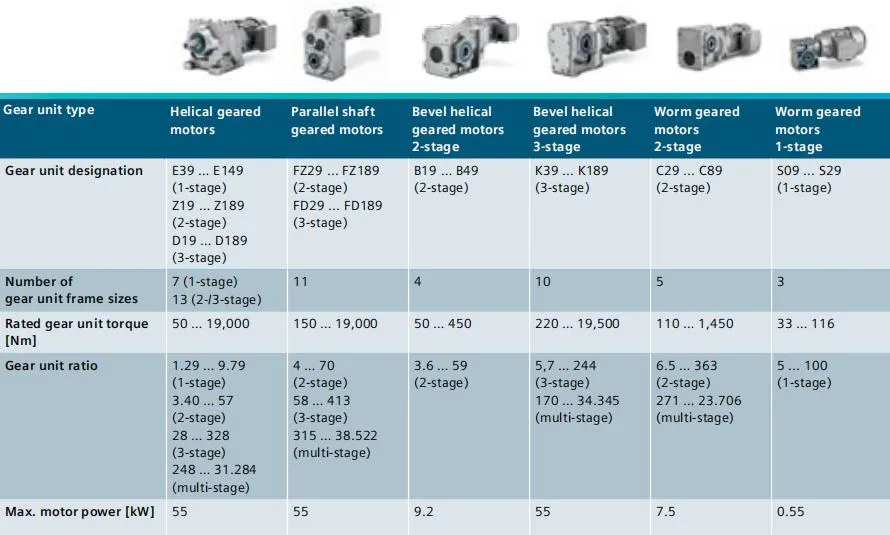

Gearbox type

§§
Advantages at a glance
• Based on an optimum design principle on the gear
unit side, and by using new, energy-efficient motors,
SIMOGEAR plays a role in reducing the
energy costs
of your plant or system
• As a result of the finely scaled portfolio, you only pay
for the power rating that you actually require
• As a result of the compact dimensions, SIMOGEAR
can even be integrated into the smallest spaces
