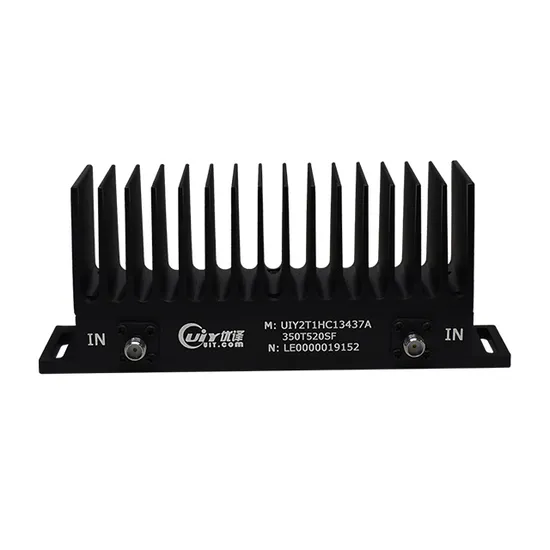

UHF混合组合器UIY2T1HC13437A 350-520MHz

Preview

基本信息产品详情证书

基本信息

型号	UIY2T1HC13437A
风格	微波炉
条件	新
标准	标准
屏幕	没有屏幕
频率范围（兆赫）	350到520
插入损耗	0.7（耦合3分贝）
隔离	大于25分贝
VSWR（电压驻波比）	少于1.2
功率	把100（乘以2再乘以50）
连接器类型	N型母头、SMA型母头
运输包	Uiy标准出口包装标准纸箱

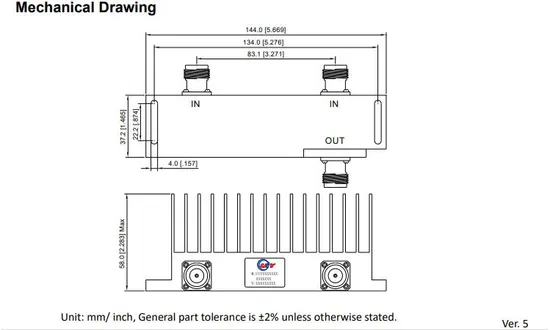

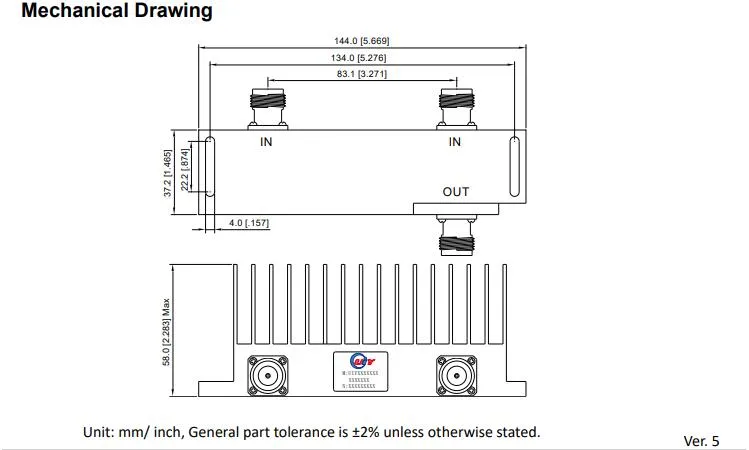

规格说明	144×58×37.2毫米
商标	UIY
起源	中国深圳
商品编码	8517709000
生产能力	每年八万件
包装尺寸	这是 31.00cm 长 x 23.00cm 宽 x 6.00cm 高的尺寸
包装总重量	1.000千克
交货时间	7天（1-1件）、 7天（2-10件）、 20天（11-100件）、待商议（> 100件）
包装尺寸	31.00厘米* 23.00厘米* 6.00厘米
包装总重量	1.000千克
交货时间	7天（1-1件） 7天（2-10件） 20天（11-100件）待商议（> 100件）

产品详情

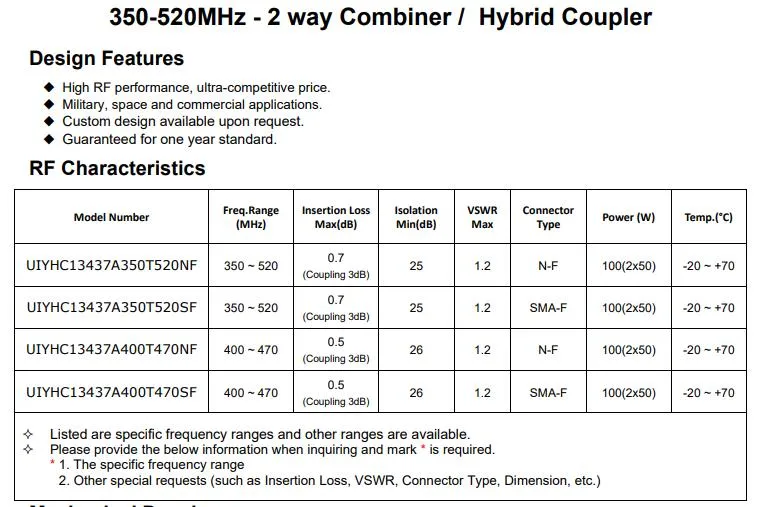

Product Parameters

Preview

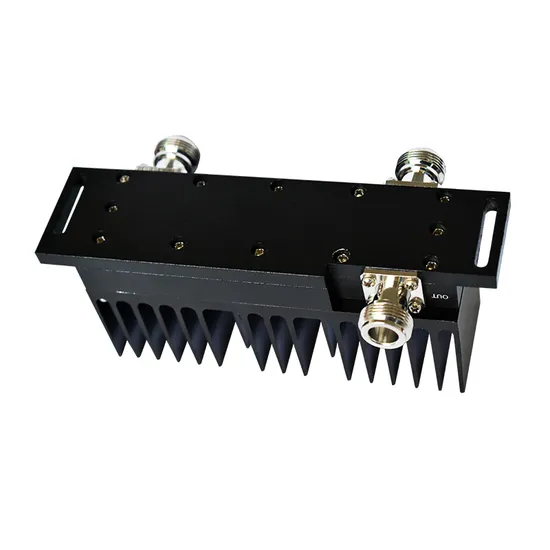

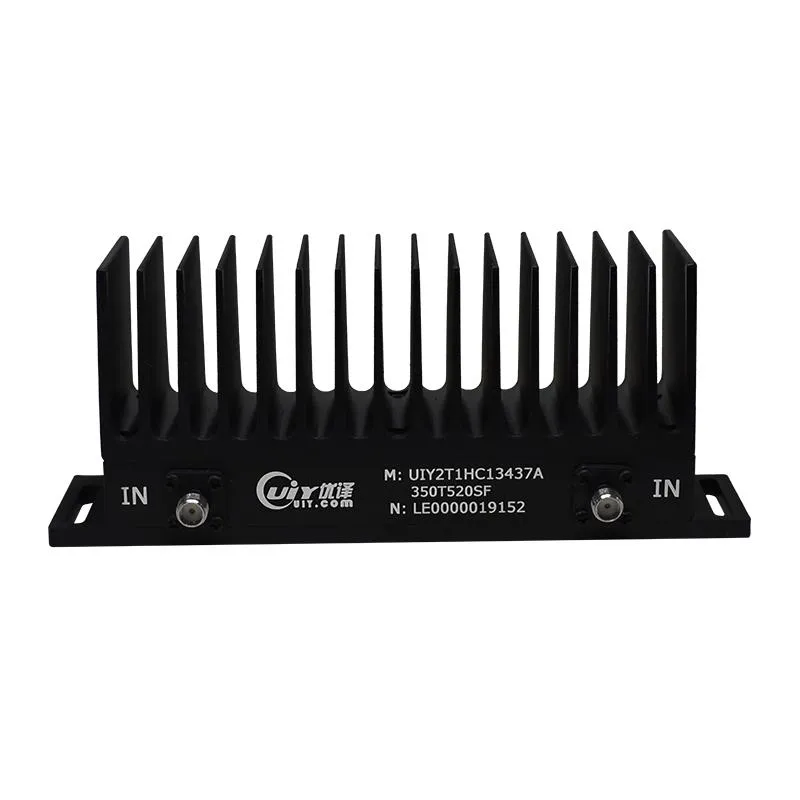

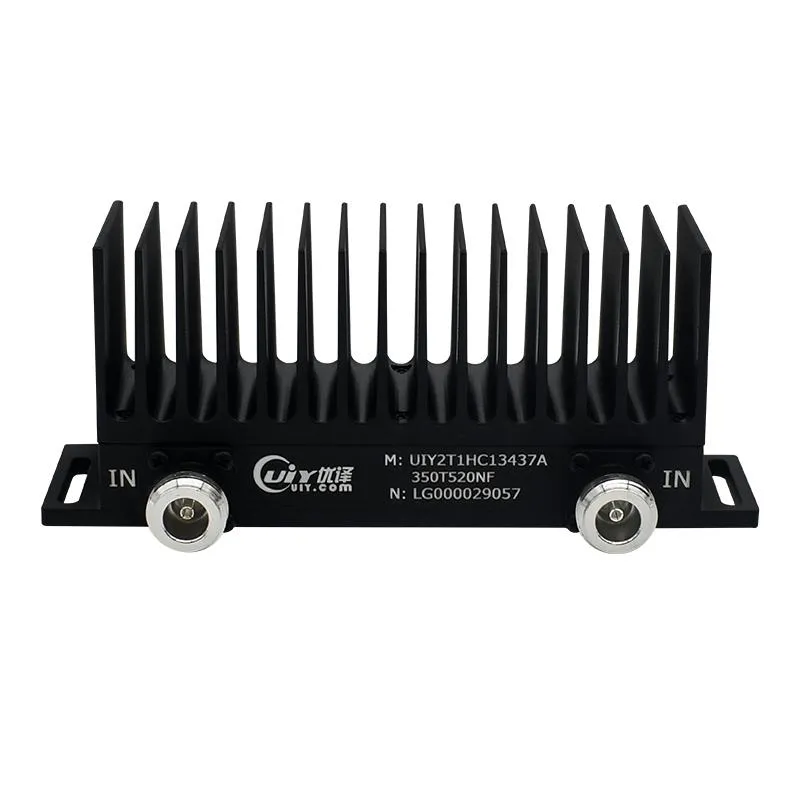

Detailed Photos

Preview

Custom Design
Applications:
Aviation and Navigation
Public Address System Radio Set
Meteorological Monitoring
Biomedical Instrumentation
Optical Communication Technology
Wireless Infrastructure
Microwave Subsystems
4G LTE 5G NR Mobile Communciations

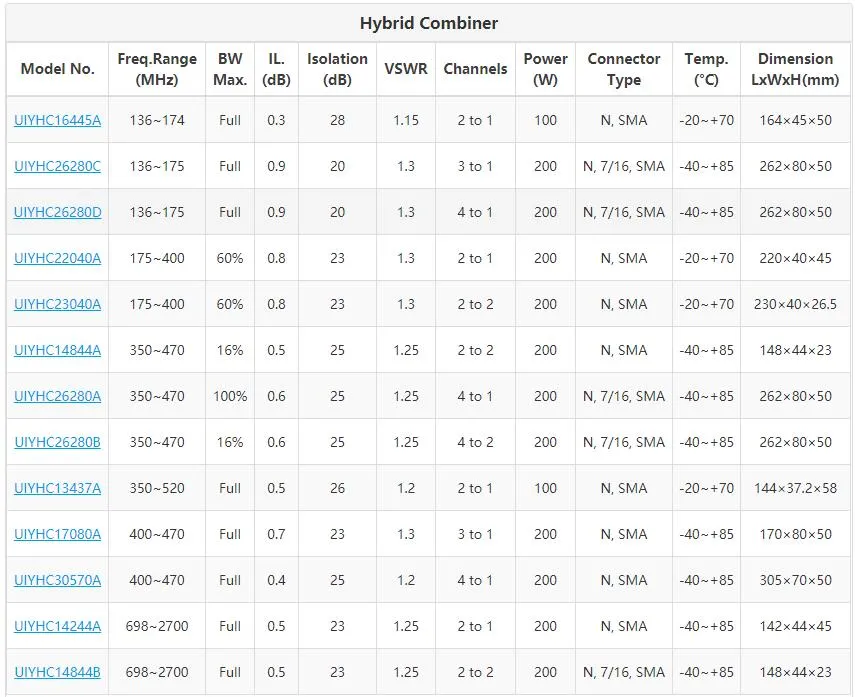

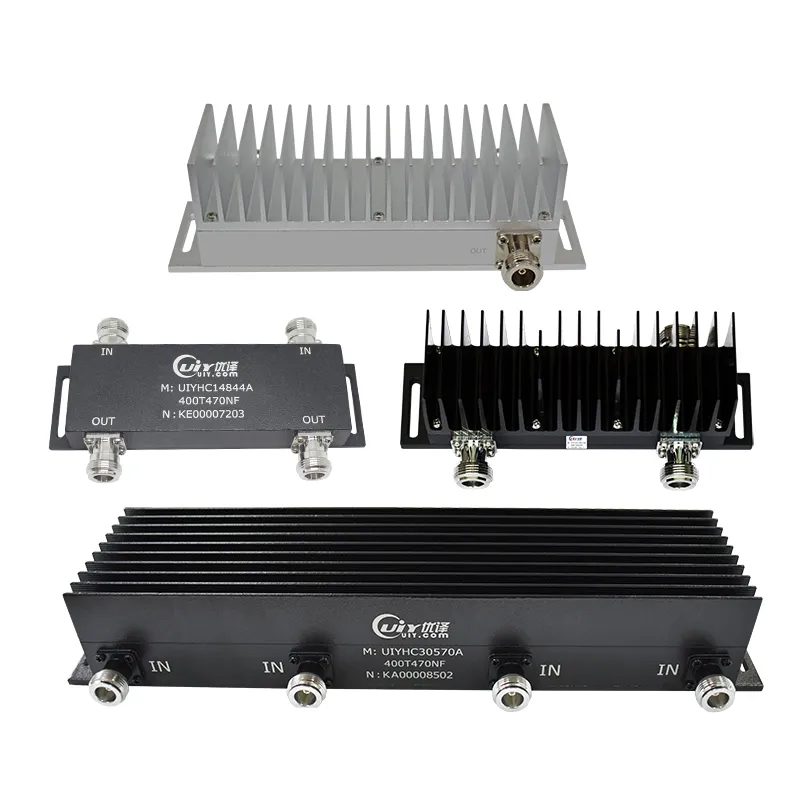

UIY Hybrid Combiner Coupler
Custom Design available:
•Operating Frequency 88MHz to 3800MHz.
•Connector Type optional SMA, N, 4.3-10 and 7/16 with female, jack, male, male to female and plug genders.
•Power Offered 50 Watts, 100 Watts, 200watts.
UIY Inc. focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of quality, technology and pretty competitive price.broadest inventory of microwave and RF products available.UIY Inc. Exceptional customer service and technical support are on hand to support our customers on RF terminators.
Low insertion loss, high isolation, high power handling. Exceptional customer service and technical support are on hand to support our customers on RF Module.

Preview

Certifications

Preview

Packaging & Shipping

Preview

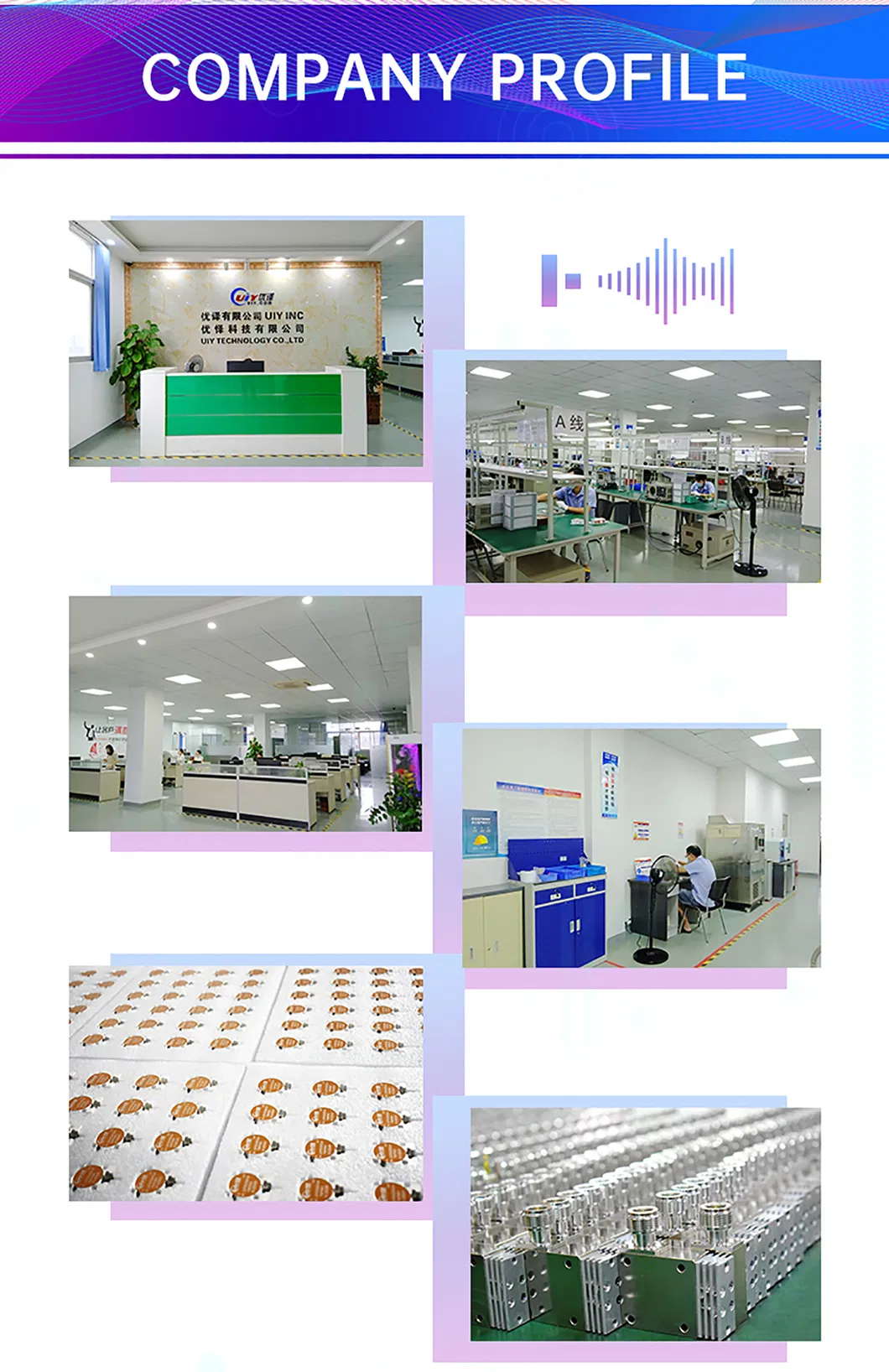

Company Profile

Preview

Our Advantages
______________________________________________________________________________________________________________________

Preview

FAQ

Preview

1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.
