DC to 26.5GHz RF Coaxial Attenuator Passive Device 10W Attenuation Value 30dB
Preview
Basic Info.Product DescriptionCertifications
Basic Info.
| Model NO. | UIYCA10AS265A30 |
| Usage | Radio, Television, Satellite, Plane |
| Information Content | Text, Picture, Audio |
| Type | RF Attenuator |
| Freq. Range (GHz) | DC-26.5GHz |
| Vswr Max | 1.35 |
| Power | 10 |
| Connector Type | SMA-M / SMA-F |
| Attenuation Value(dB) | 30dB |
| Attenuation Tolerance | ±2.0dB |
| Impedance(Omega) | 50 |
| Warranty | 1 Year |
| Transport Package | Uiy Standard Carton for Standard Export Package Do |
| Specification | standard |
| Trademark | UIY |
| Origin | Shenzhen, China |
| HS Code | 8517799000 |
| Production Capacity | 20000pieces/Year |
Product Description
Quick Details
Product Description
Model NO.UIYCA10AS265A30
Type
RF Coaxial Attenuator
Brand Name
UIY
Freq. Range (GHz)
DC-26.5GHz
Attenuation Value(dB)
30dB
Attenuation Tolerance(dB)
±2.0dB
VSWR Max
1.35
Power
10W
Connector Type
SMA-M/SMA-F
Impedance(omega)
50
Certification
ISO9001,ISO14001,RoHS
Warranty
1 year

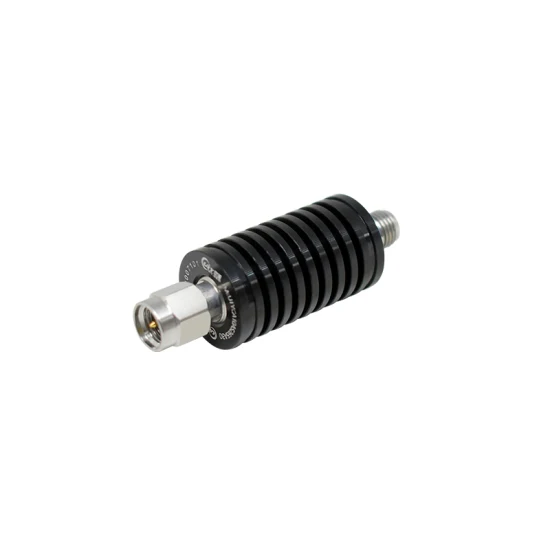

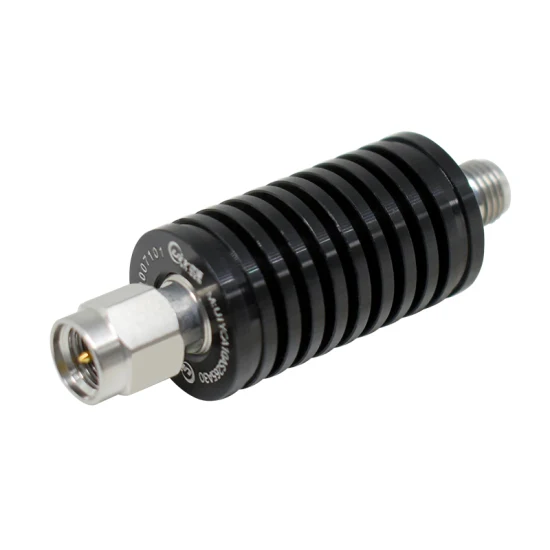

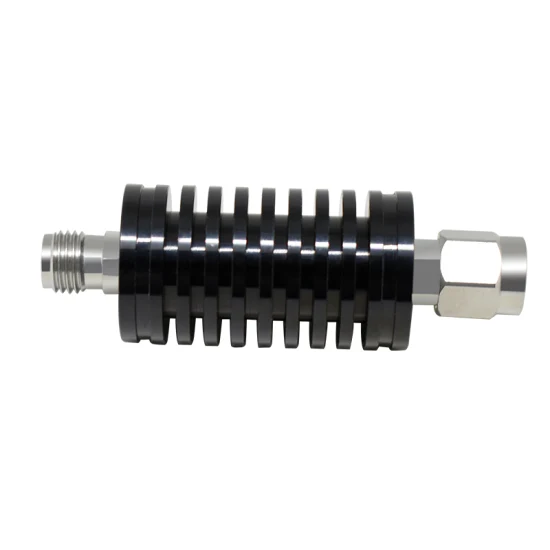

Detailed Photos
Custom Design
Applications:
Radar System
Telecom Infrastructure
Microwave Radio Systems
Communication Systems
Wireless Radio Systems
R&D labs
Public Address System Radio Transmitter
Biomedical Instrumentation
4G LTE 5G NR Mobile Communciations
UIY
Coaxial Attenuator Custom Design available:
•Operating Frequency from DC-3GHz to DC-18GHz.•Connector Type optional SMA, N,
with female, Male.•Power up to 2000W.Select the appropriate connector according to the working frequency and purpose.UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.Certifications
Packaging & Shipping
Company Profile
Our Advantages
______________________________________________________________________________________________________________________
Product Description
Model NO.UIYCA10AS265A30
Type
RF Coaxial Attenuator
Brand Name
UIY
Freq. Range (GHz)
DC-26.5GHz
Attenuation Value(dB)
30dB
Attenuation Tolerance(dB)
±2.0dB
VSWR Max
1.35
Power
10W
Connector Type
SMA-M/SMA-F
Impedance(omega)
50
Certification
ISO9001,ISO14001,RoHS
Warranty
1 year
Detailed Photos
Custom Design
Applications:
Radar System
Telecom Infrastructure
Microwave Radio Systems
Communication Systems
Wireless Radio Systems
R&D labs
Public Address System Radio Transmitter
Biomedical Instrumentation
4G LTE 5G NR Mobile Communciations
UIY
Coaxial Attenuator Custom Design available:
•Operating Frequency from DC-3GHz to DC-18GHz.•Connector Type optional SMA, N,
with female, Male.•Power up to 2000W.Select the appropriate connector according to the working frequency and purpose.UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.Certifications
Packaging & Shipping
Company Profile
Our Advantages
______________________________________________________________________________________________________________________
