Wholesale OEM Factory 100m 8 Ports Industrial Network Switch DIN Rail with Best Price

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	UT08F
Transmission Rate	10/100mbps
Structure of Port	Fixed Port PBX
Information Transmission Method	Digital
Connection Mode	Time Connection
Application	Universal Type, Industrial Type
Scope of Cover	LAN PBX
Brand	Utoptek
Product Name	Industrial Ethernet Switch
Ethernet Ports	8port RJ45
Uplink	Auto Uplink UTP
Distance	100meters Cat5,5e,6...
Installation	DIN Rail, Wall Mount
Power Supply	External Power Supply
Power Input Range	DC12-52V
Product Size	144 X 103 X 48 mm
Working Temp.	-40~+85 Degrees
Switch Bandwith	1.6GB
Lightning Protection	6kv
Materials	Aluminum Alloy
Product Weight	0.8kg
MOQ	1PC
Transport Package	50PCS/Carton
Specification	0.5kg/pc
Trademark	UTOPTEK
Origin	Shenzhen, China
HS Code	8517622990
Production Capacity	15000PCS/Day
Package Size	21.00cm * 16.00cm * 9.00cm
Package Gross Weight	1.500kg
Lead Time	7 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces)
Package Size	21.00cm * 16.00cm * 9.00cm
Package Gross Weight	1.500kg
Lead Time	7 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces)

Product Description

Industrial 8-port 10/100Mbps RJ45 ports UTP network ethernet switch Din rail
Ordering Informations

Preview

Product Description

Preview

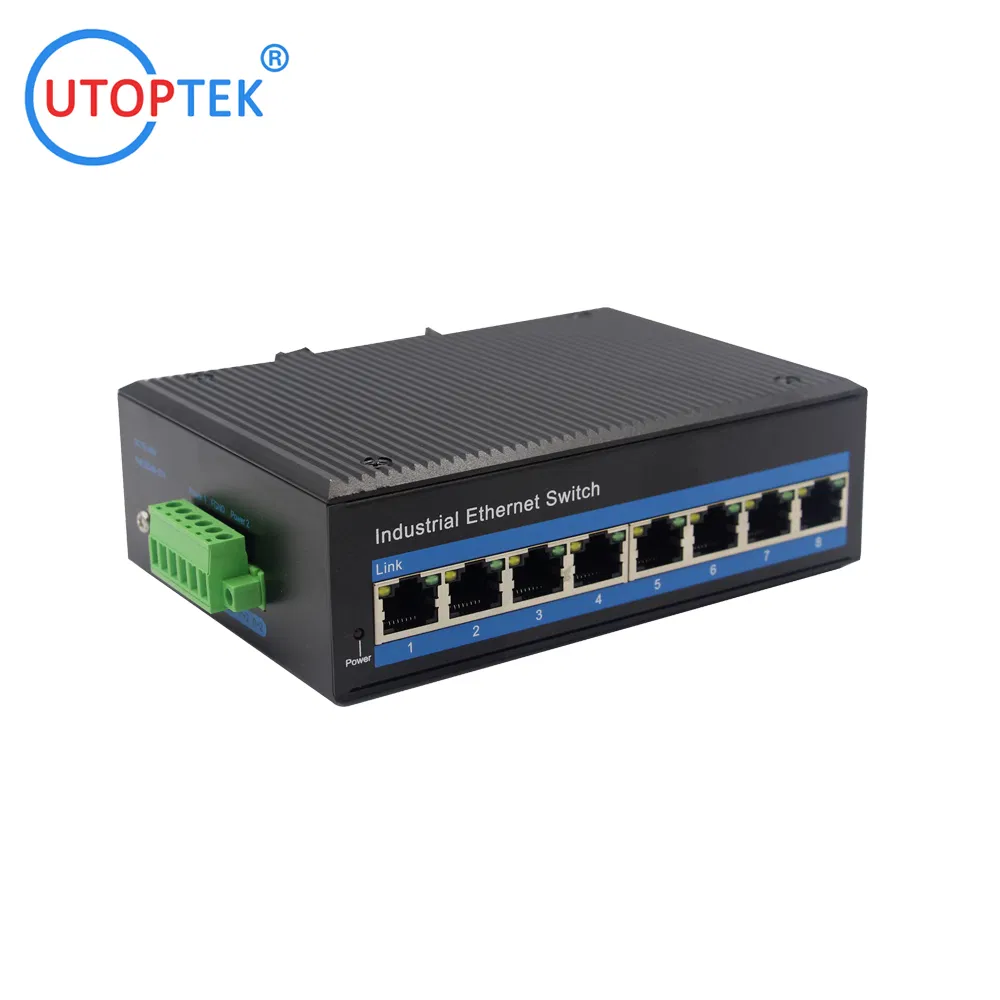

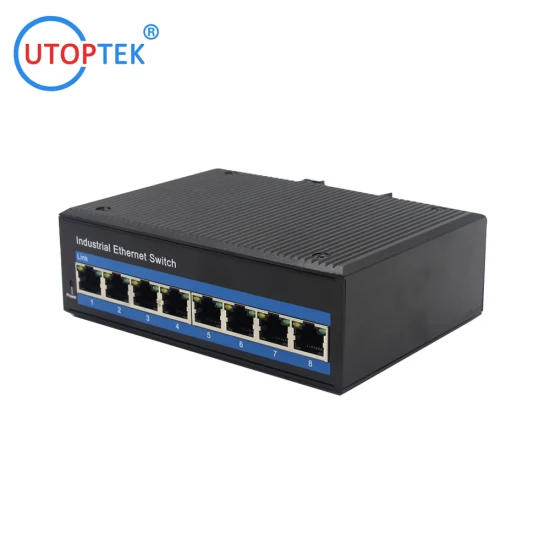

UT08F
8-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40ºC to 85ºC. The switch provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. It is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Features

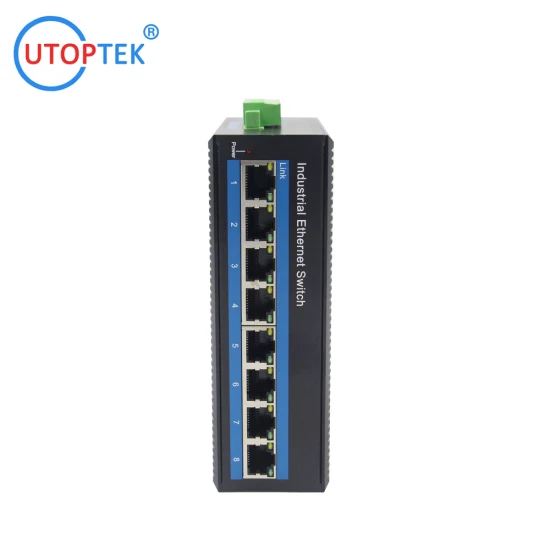

8-port 10/100Base-Tx RJ-45 with auto
negotiation and auto-MDI/MDI-X function

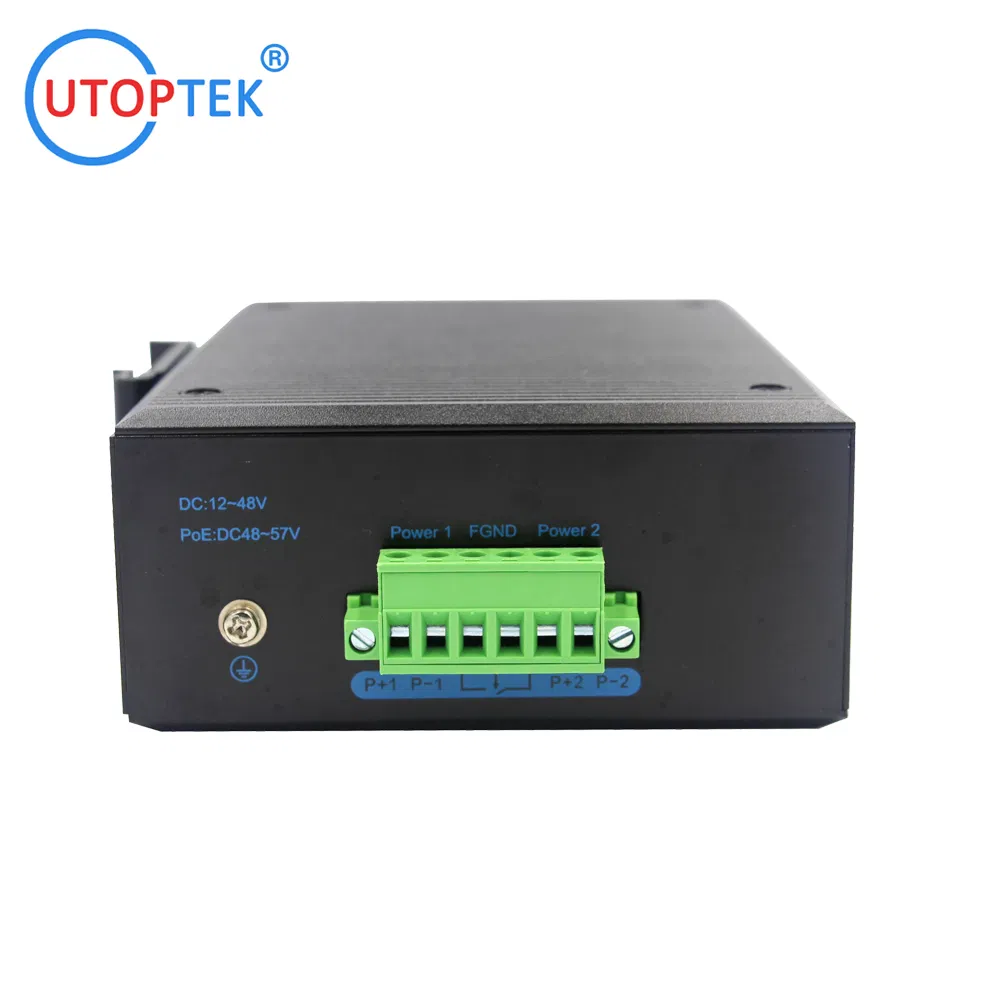

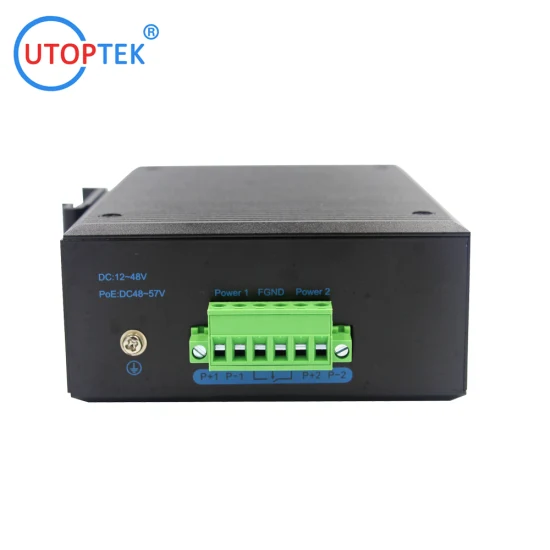

12V to 52V DC, redundant power input
-40ºC
to 85ºC
operating temperature
IP40 aluminum housing
Supports 6KV DC Ethernet ESD
protection
Supports 6KV DC EFT protection for power
line
Free Fall, Shock and Vibration
Stability

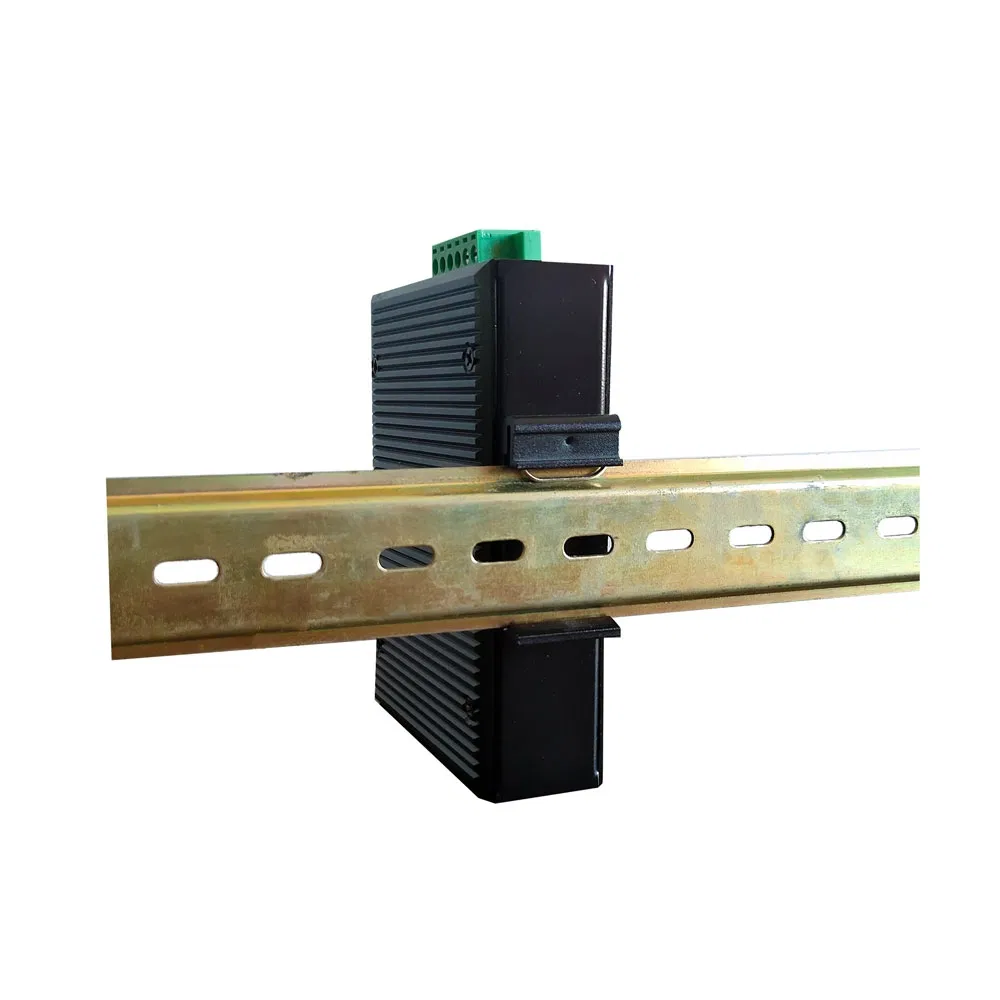

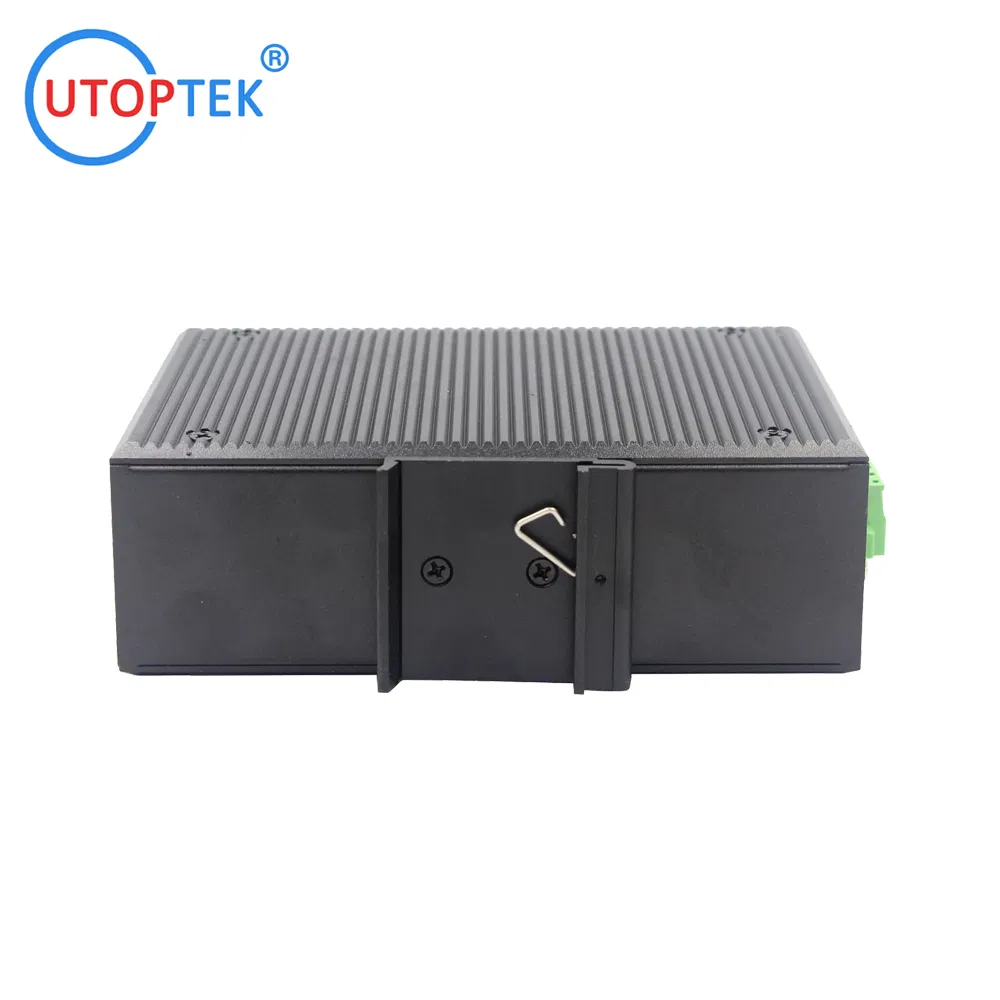

DIN-rail design
Product Parameters

Preview

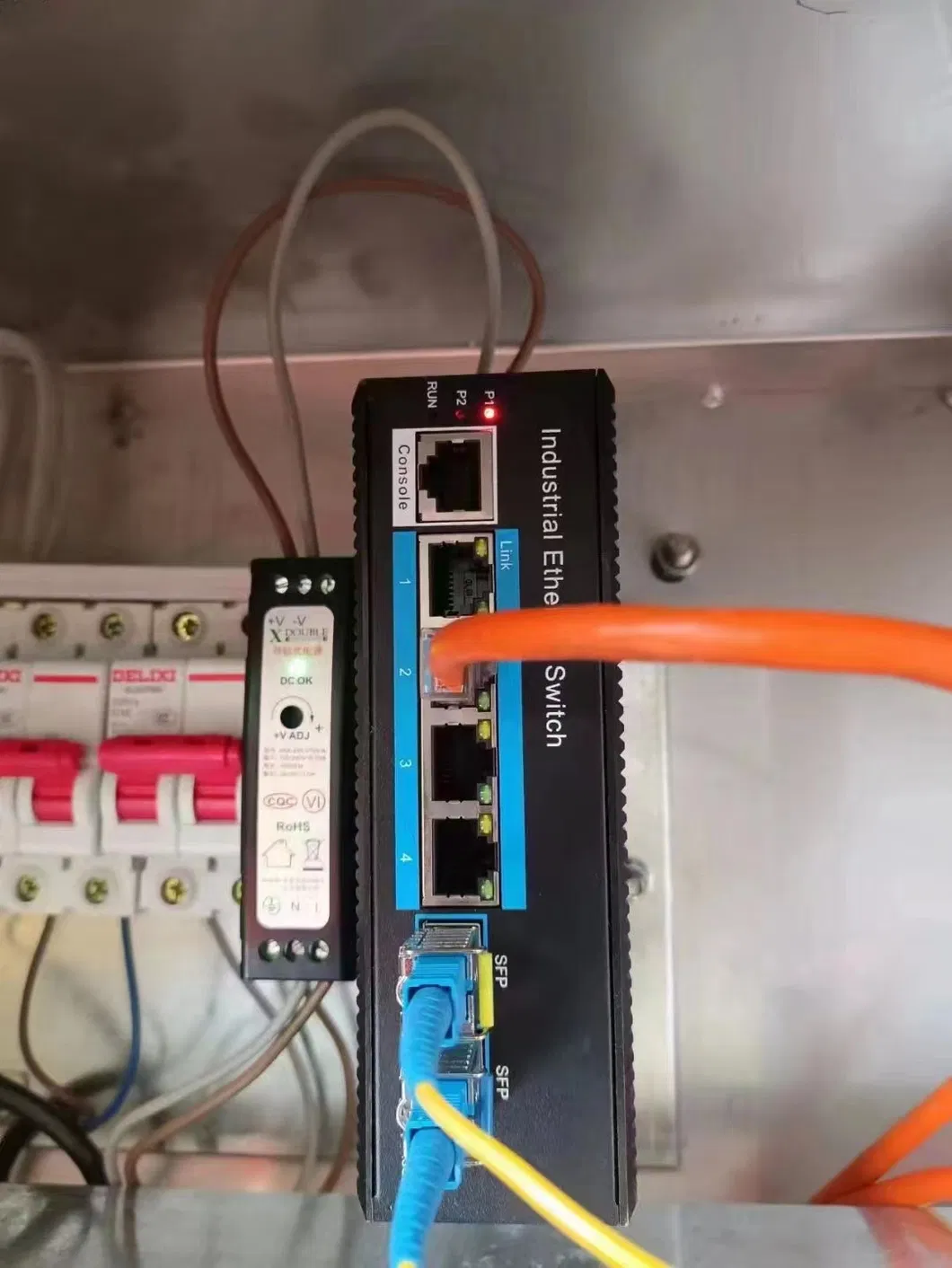

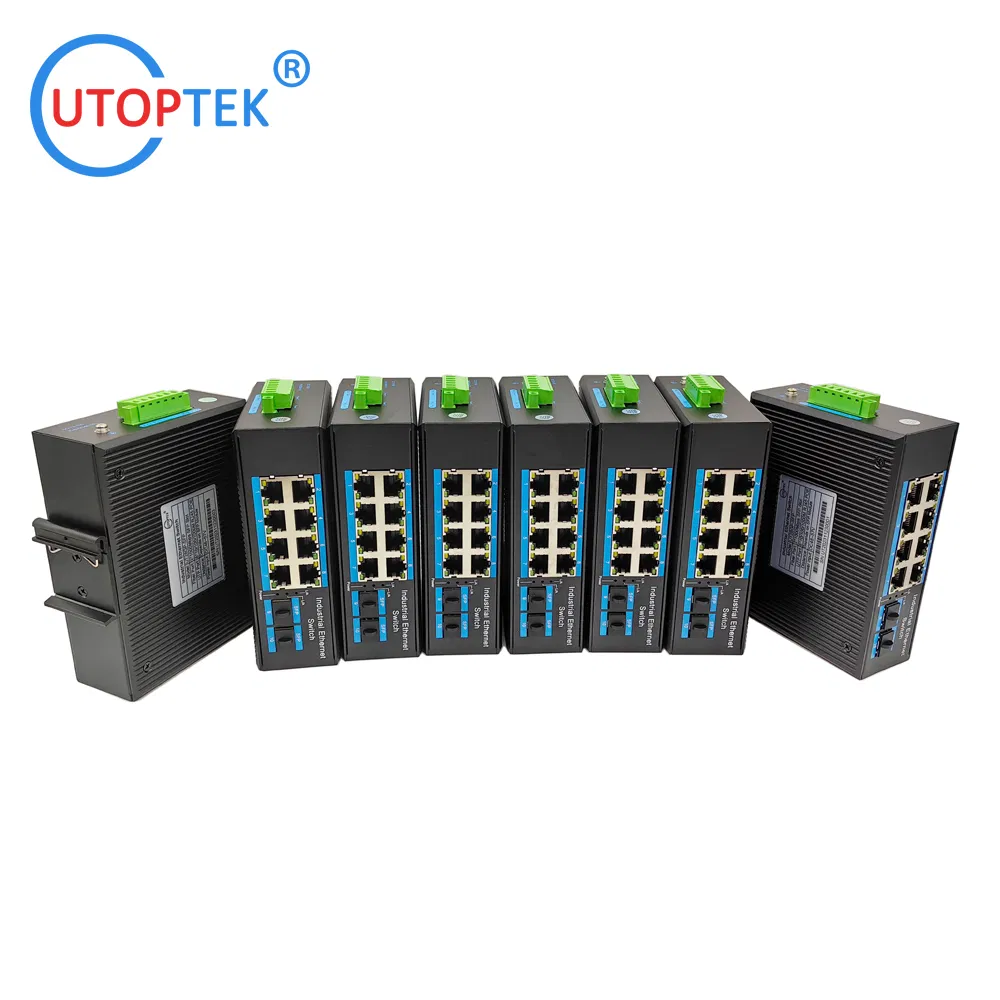

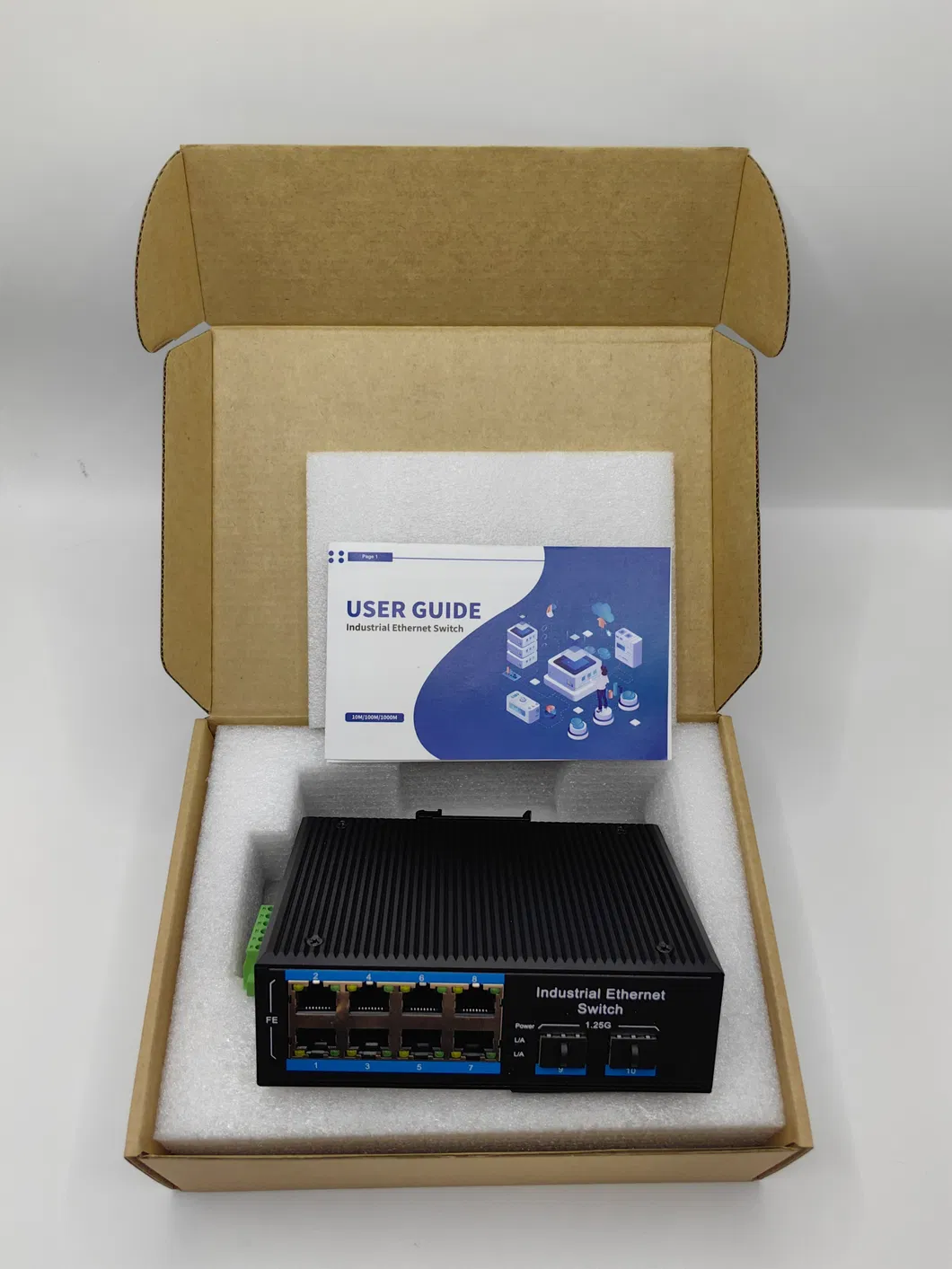

Detailed Photos

Preview

Company Profile

Preview

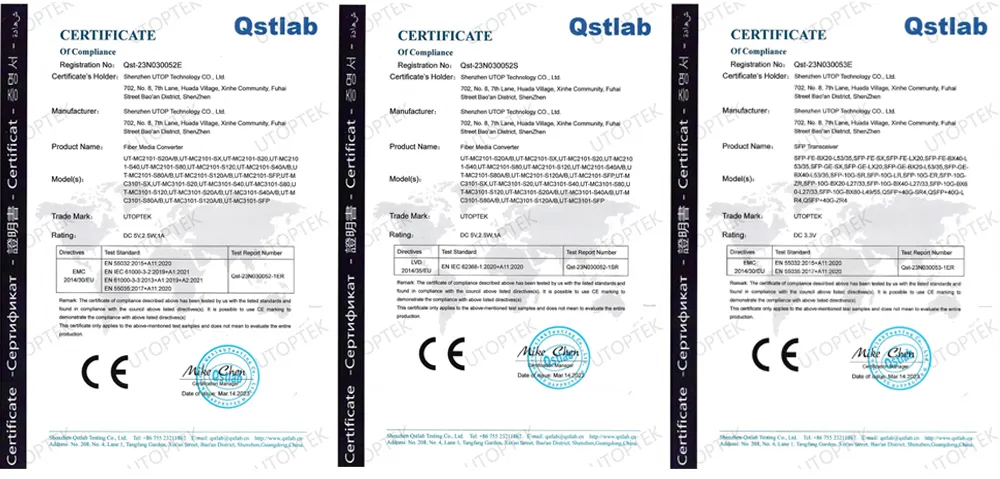

Certifications

Preview

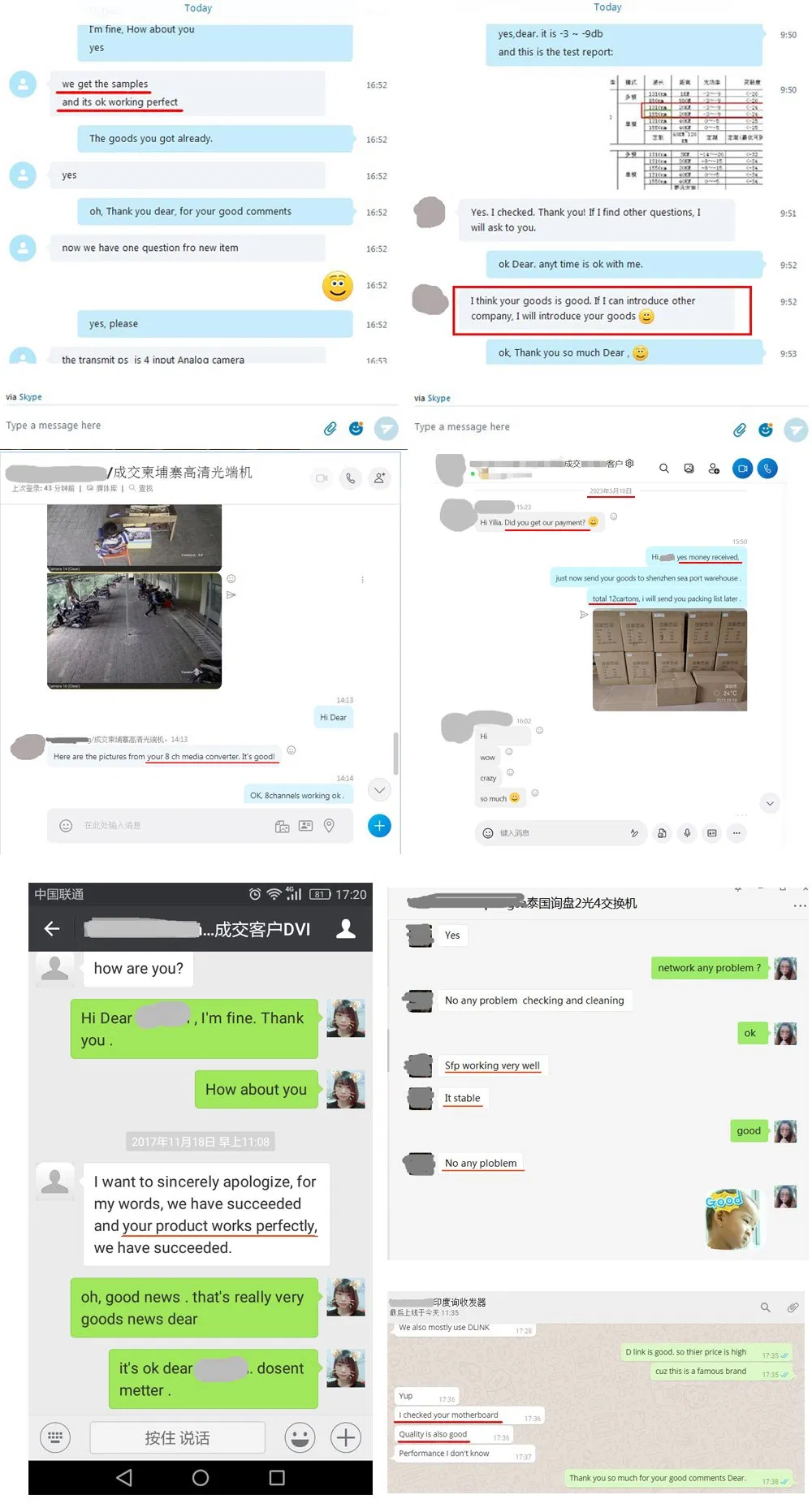

Customer's Feedbacks

Preview

FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
