基本信息
| 型号（NO.） | UT11F-SC20A/B |
| 传输速率 | 10/100兆位每秒 |
| 港口结构 | 固定端口PBX |
| 信息传输方法 | 数字的 |
| 连接模式 | 时间连接 |
| 应用程序 | 通用型、工业型 |
| 覆盖范围 | LAN PBX |
| 品牌 | Utoptek |
| 产品名称 | 工业以太网交换机 |
| 界面。 | 1个端口RJ45 |
| 上行链路 | 1端口光纤 |
| 光纤类型 | 单模或多模可选 |
| 距离 | 20公里/40公里/60/80/120公里 可选 |
| 交换带宽 | Sc/FC/St/LC 可选 |
| 安装 | DIN Rail指DIN导轨，Wall Mount指壁挂式 |
| 电源 | 外部电源 |
| 功率输入范围 | 直流12-52V |
| 产品尺寸 | 118毫米乘86毫米乘33毫米 |
| 工作温度 | 负40度至正85度 |
| 雷电防护 | 6千伏 |
| 材料 | 铝合金 |
| 产品重量 | 0.8千克 |
| 最小订单量 | 1个 |
| 交通包裹 | 每箱50件 |
| 规格说明 | 每片重0.5公斤 |
| 商标 | 优特科特 |
| 起源 | 中国深圳 |
| 商品编码 | 8517622990 |
| 生产能力 | 每天 15000 件 |
| 包装尺寸 | 16.50厘米×13.50厘米×5.50厘米 |
| 包装总重量 | 0.5千克 |
| 交货期 | 7天（1-1件）面议（> 1件） |
| 包装尺寸 | 16.50厘米*13.50厘米*5.50厘米 |
| 包装总重量 | 0.5千克 |
| 交货时间 | 七天 |
产品详情

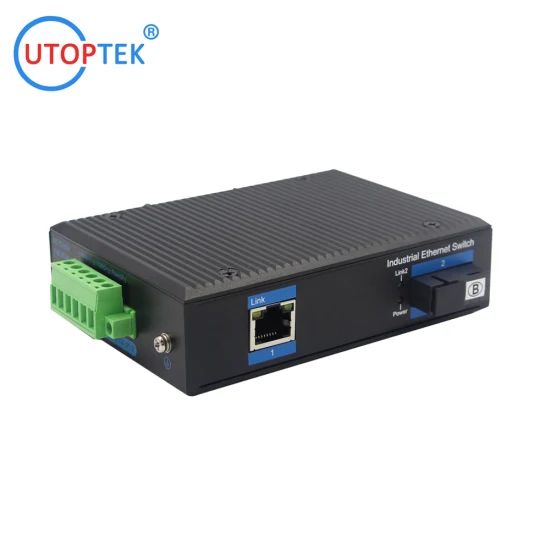

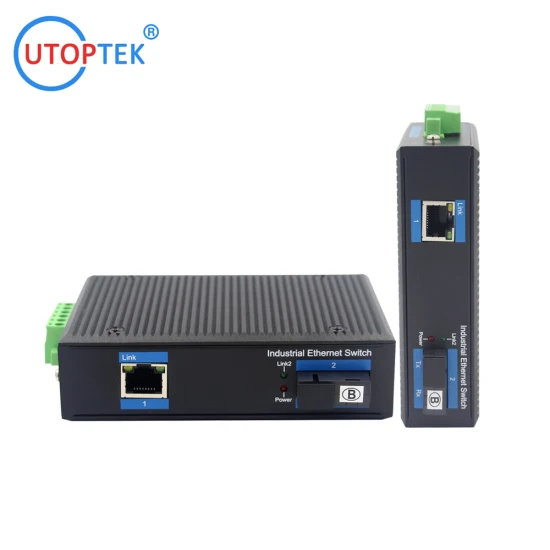

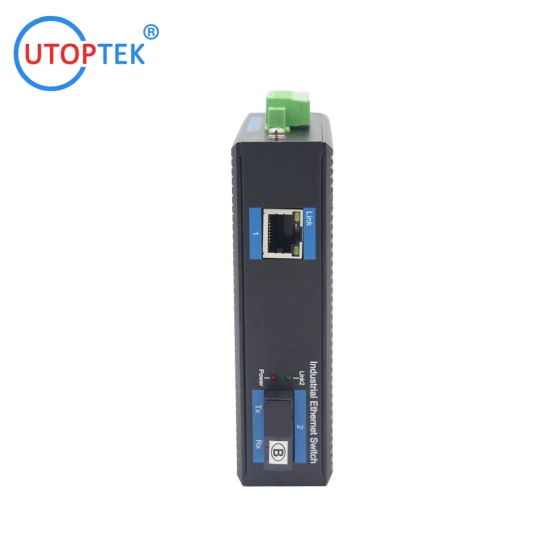

Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC12~52V
Ordering Informations
Ordering Informations
Preview
Product Description
Preview
UT11F-SC20
series Industrial
Media converter, 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the UT11F-SC2, up to 20km
with the UT11F-SC20 .The UT11F
series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under
the temperature range from -40ºC
to 85ºC
allows the UT11F
series to be placed in almost any difficult environment.
Features
1-port 10/100Base-Tx RJ-45 with
auto
negotiation and
auto-MDI/ MDI-X function
1-port 100Base-Fx interface SC/FC/ST/SFP
Multi-Mode up to 2km
Single-Mode up to 20km/40km/60km/80km

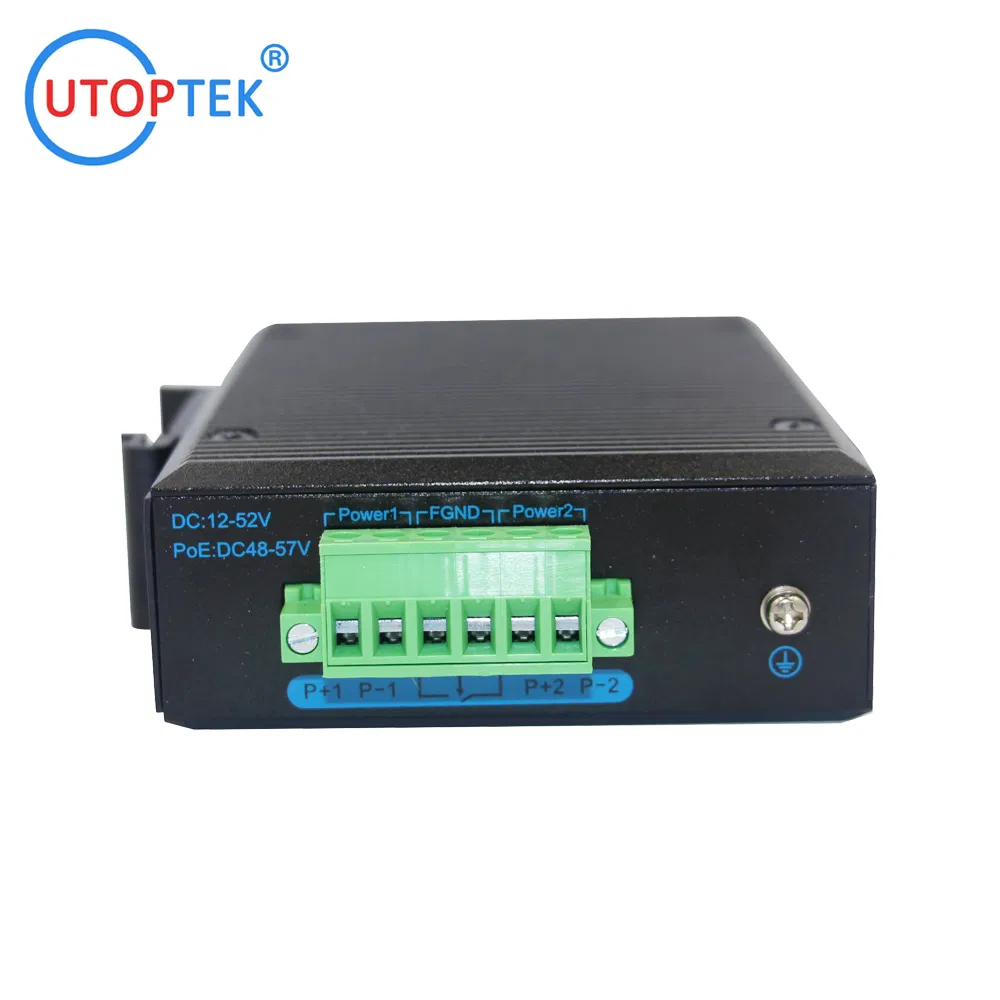

12V to 52V DC, redundant power input
-40ºC
to 85ºC
operating temperature
IP40 aluminum housing
Supports 6KV DC Ethernet ESD
protection
Supports 6KV DC EFT protection for power
line
Free Fall, Shock and Vibration
Stability

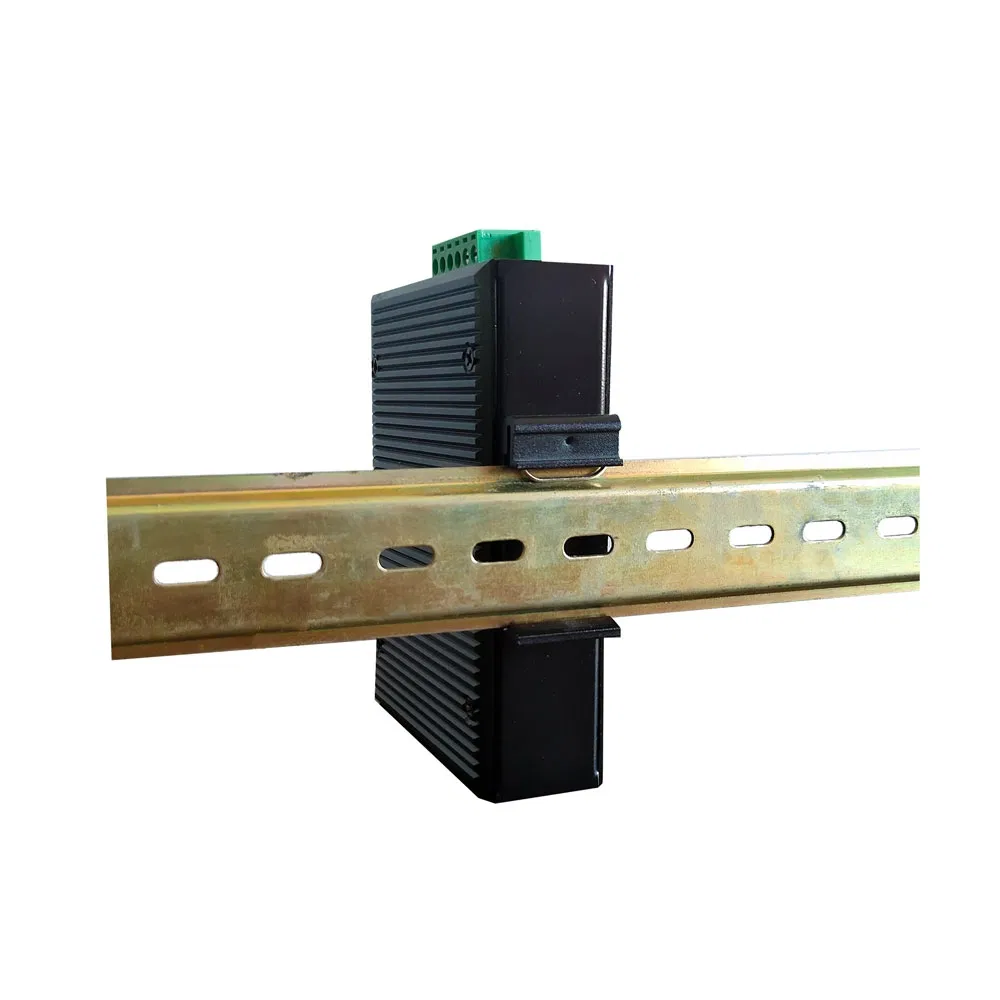

DIN-rail design
Product Parameters
series Industrial
Media converter, 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the UT11F-SC2, up to 20km
with the UT11F-SC20 .The UT11F
series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under
the temperature range from -40ºC
to 85ºC
allows the UT11F
series to be placed in almost any difficult environment.
Features
1-port 10/100Base-Tx RJ-45 with
auto
negotiation and
auto-MDI/ MDI-X function
1-port 100Base-Fx interface SC/FC/ST/SFP
Multi-Mode up to 2km
Single-Mode up to 20km/40km/60km/80km
12V to 52V DC, redundant power input
-40ºC
to 85ºC
operating temperature
IP40 aluminum housing
Supports 6KV DC Ethernet ESD
protection
Supports 6KV DC EFT protection for power
line
Free Fall, Shock and Vibration
Stability
DIN-rail design
Product Parameters
Preview

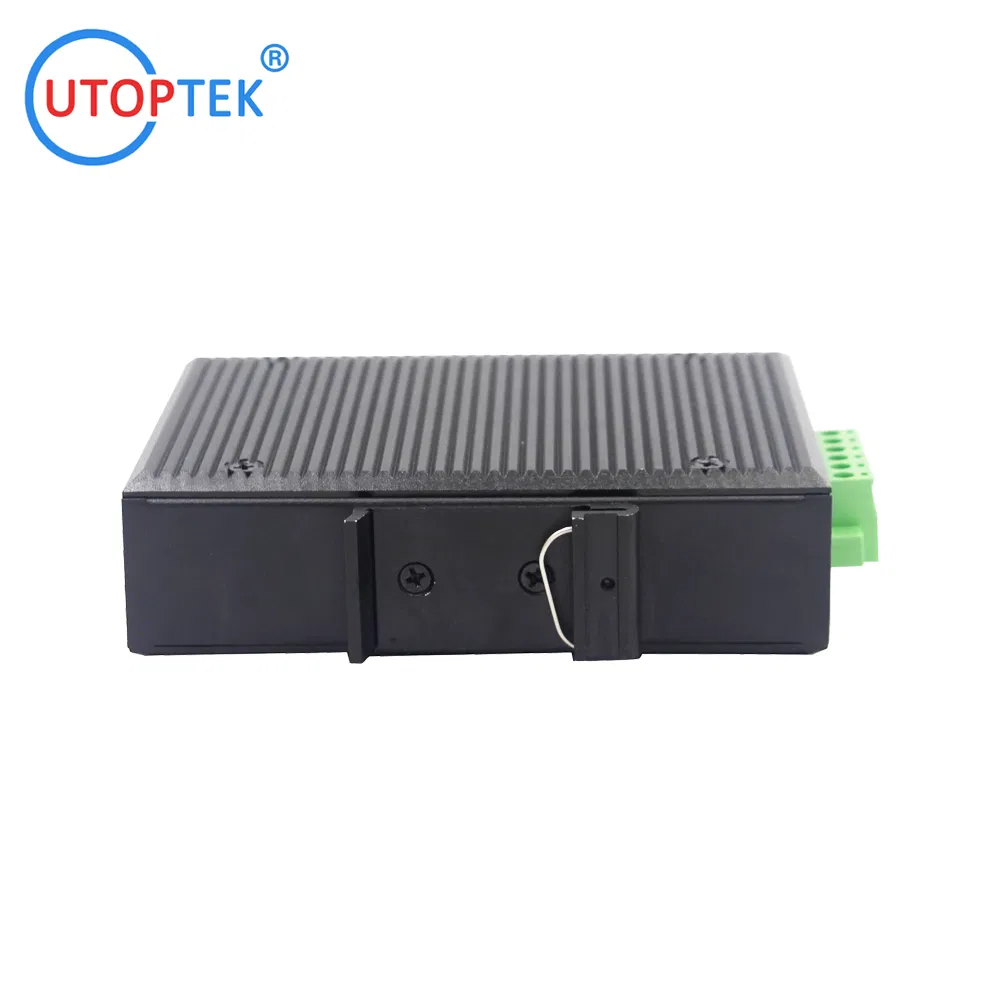

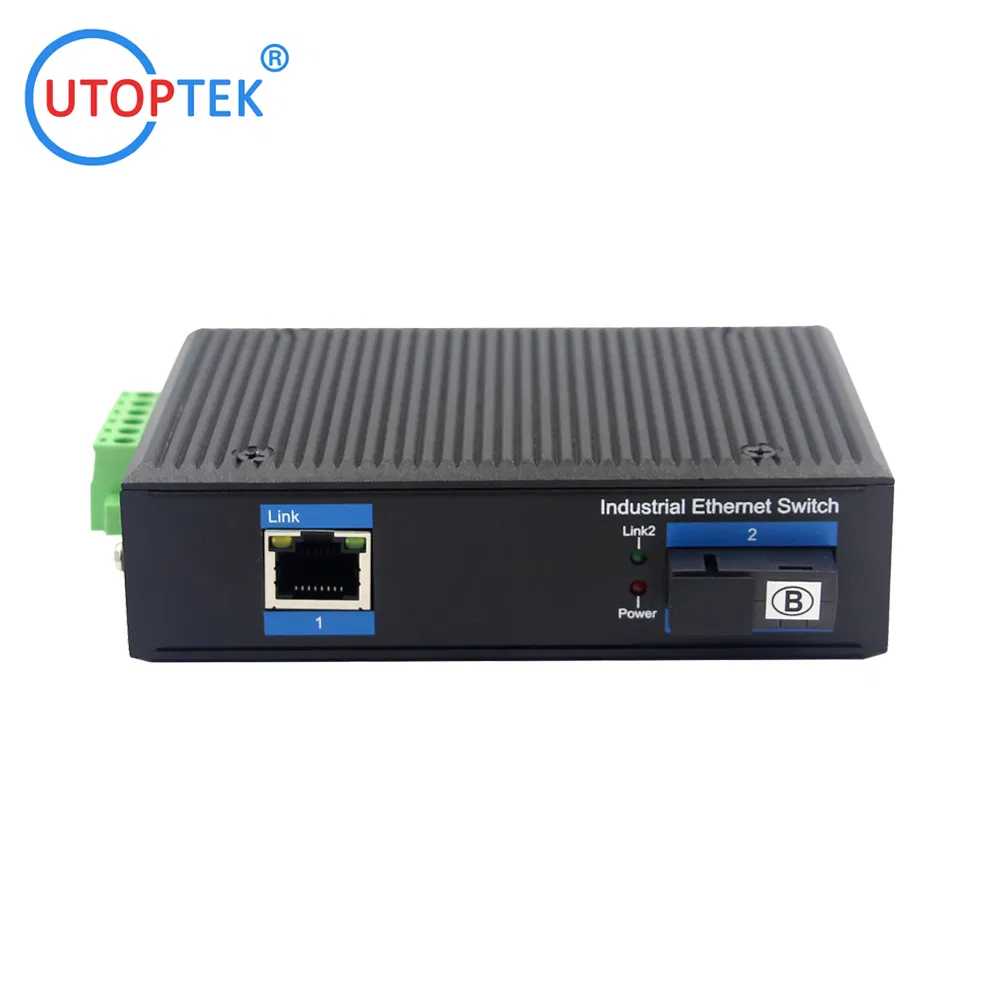

Detailed Photos
Preview
Preview
Preview
Preview
Preview
Preview
Preview
Preview
Preview
Company Profile
Preview
Preview

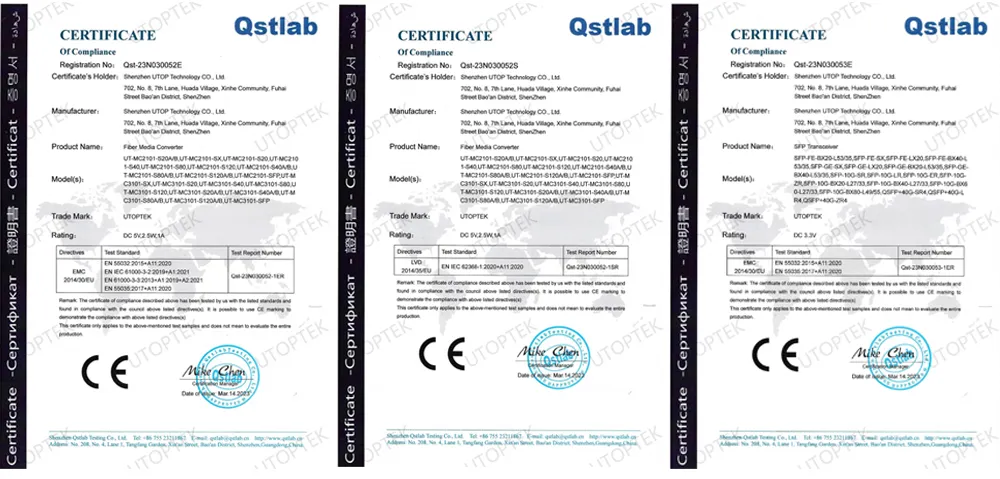

Certifications
Preview
Preview
Customer's Feedbacks
Preview
Preview
Preview
FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
Q2.What certification did you get?
Q3 :What about your delivery time?
Q4.What your common shipping method?
Q5.How about your product warranty time?
Q6. How to handle quality issues with your product?
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
Q2.What certification did you get?
Q3 :What about your delivery time?
Q4.What your common shipping method?
Q5.How about your product warranty time?
Q6. How to handle quality issues with your product?
