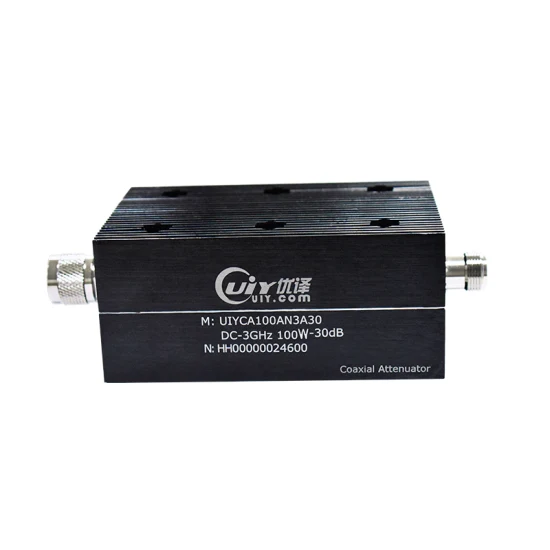

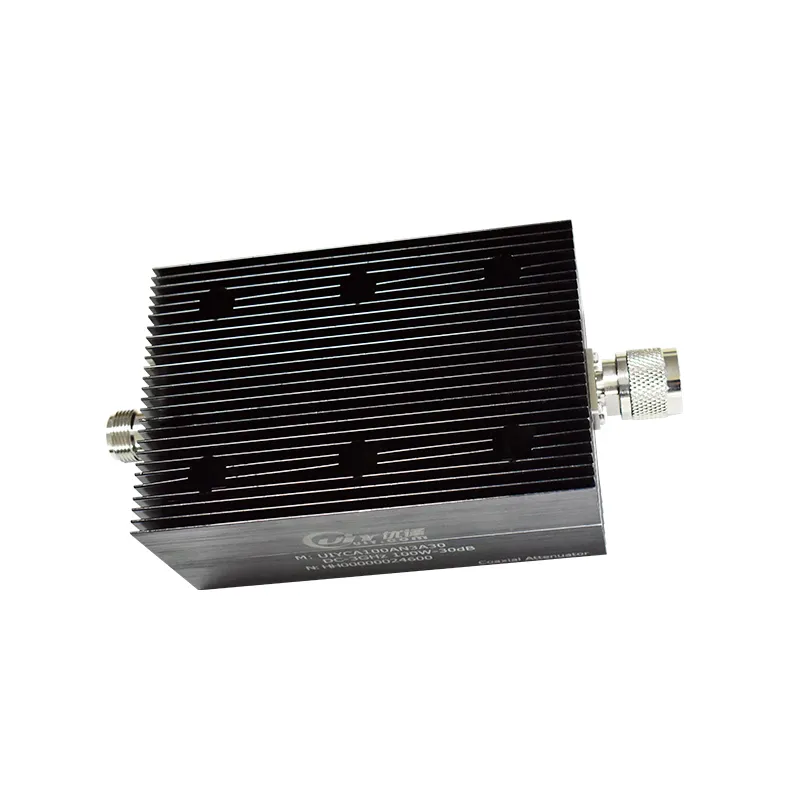

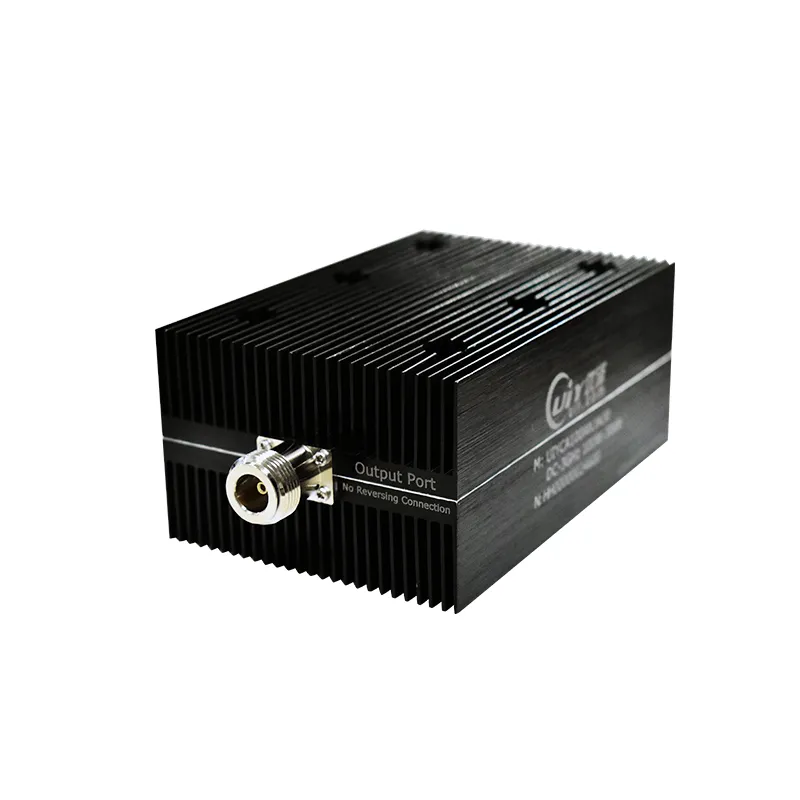

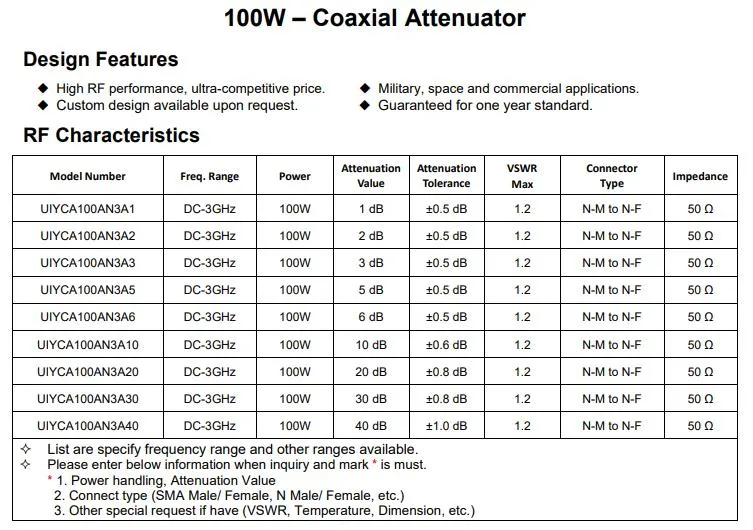

Quick Details

Model NO.
UIYCA100AN3A
Type
RF Coaxial Attenuator
Brand Name
UIY
Frequency Range
DC-3GHz
Attenuation Value
1/2/3/5/6/10/20/30/40dB
Attenuation Tolerance
±0.5 dB
VSWR Max
1.2
Power
100W
Connector Type
N-Female/N-Male
Impedance
50 ohm
Certification
IOS9001,IOS14001,RoHS
Warranty
1 year

Custom Design
Applications:
Aviation and Navigation
Public Address System Radio Set
Meteorological Monitoring
Biomedical Instrumentation
Optical Communication Technology
Wireless Infrastructure
Microwave Subsystems
4G LTE 5G NR Mobile Communciations

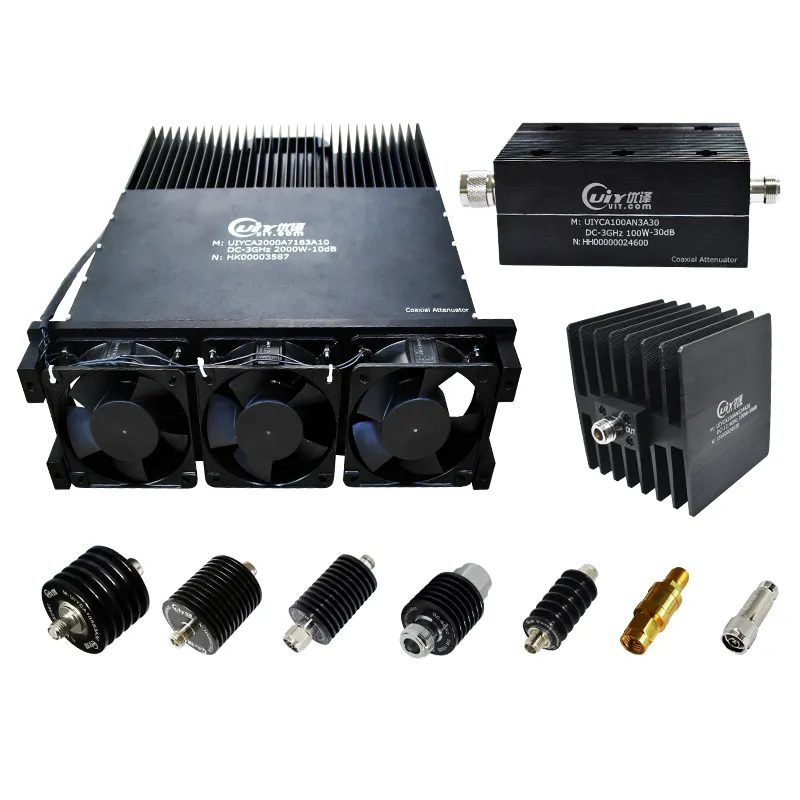

UIY RF Coaxial Attenuator Custom Design available:
•Operating Frequency DC-26.5GHz.
•Connector Type optional SMA, N, BNC, 2.4mm, 2.92mm, 7/16 DIN, and TNC with female, jack, male, male to female and plug genders.
•Power Offered 0.5 Watts, 2 Watts, 5 Watts, 10 Watts, 25 Watts, 30watts, 50 Watts, 80watts, 100 Watts, 150watts, 200watts, 300watts, 500 Watts, 1000 Watts and 2000 Watts model.

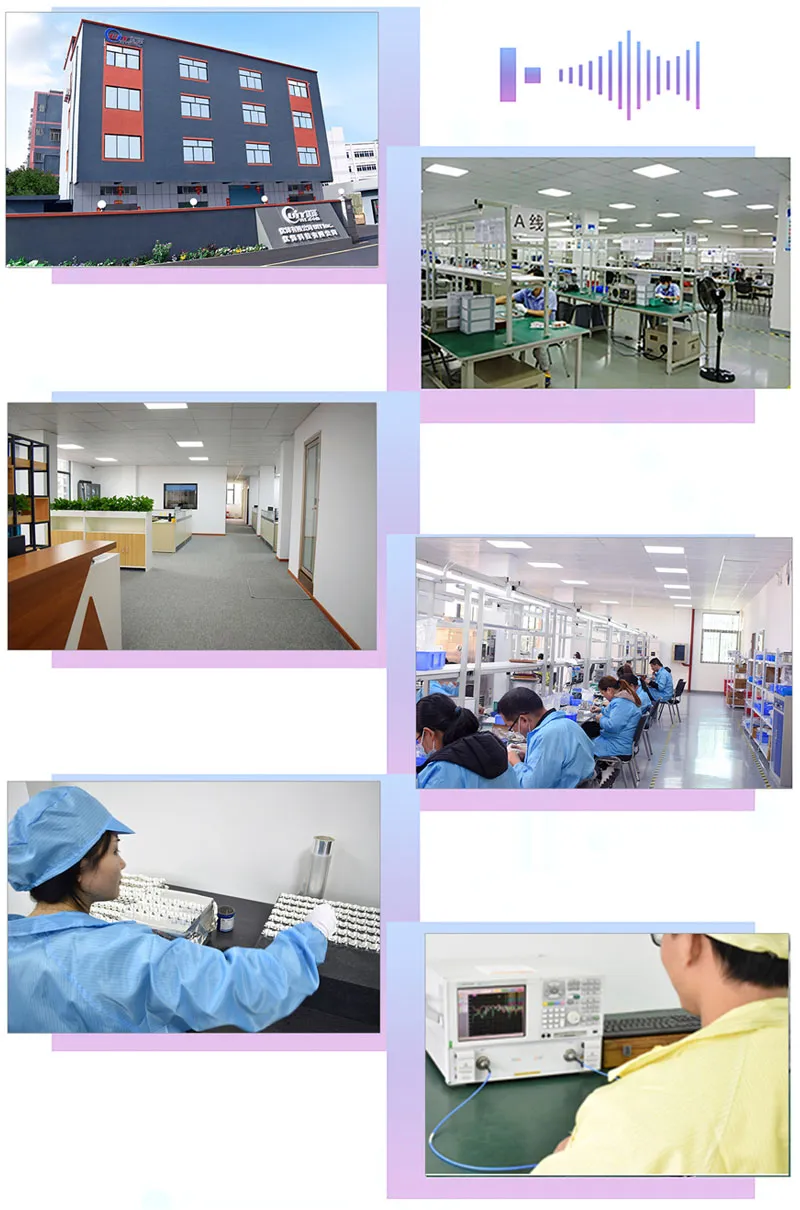

UIY Inc. focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of quality, technology and pretty competitive price.broadest inventory of microwave and RF products available.UIY Inc. Exceptional customer service and technical support are on hand to support our customers on RF terminators.
Low insertion loss, high isolation, high power handling. Exceptional customer service and technical support are on hand to support our customers on RF Module.

Our Advantages
______________________________________________________________________________________________________________________

1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.
Application:
RF Load Termination (also know as RF load, Dummy Load and Coaxial Termination)
is used for end connection of coaxial transmission system and is an energy absorbing element in the system.
•Power Offered 0.25 Watts, 0.5 Watts, 1 Watts, 2 Watts, 5 Watts, 10 Watts, 25 Watts, 50 Watts, 100 Watts, 500 Watts, 1000 Watts and 2000 Watts model.
•Impedances 50 Ω or 75 Ω.
We are always at your disposal.
FAQ:
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.
2. Question: what is the minimum order quantity?
Minimum order 1 piece.
3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.
4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.
5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.
6. Question: why do you choose us?
Our products are complete in specifications, small in size, excellent in indicators and low in price. our products are in full
compliance with iso 9001 international standard, with high-precision testing equipment and QC team, and we have established a
strict quality control system. We are committed to providing our customers with high-quality products for a long time.
