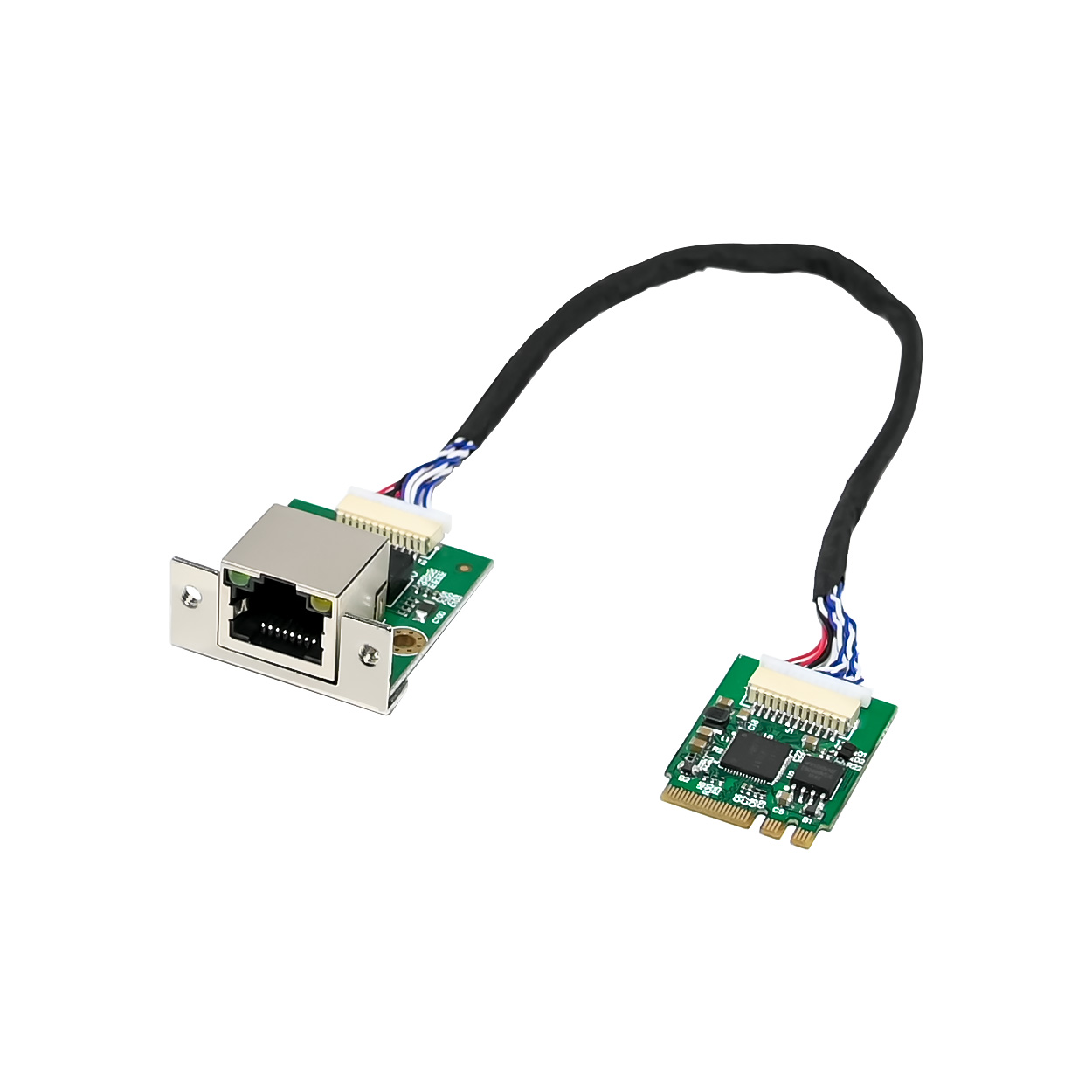

M.2 A+E key Intel I225 2.5G Network card adopts Intel a high performance network controller i225-V. This controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to2.5G) –MDI (Copper) standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE connections, and it can also support Intel vProR technology on specific Intel platforms . It is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints.

Product Feature.

* Compliant with PCI Express specification Revision 3.1(5GT/s) * Compliant with M.2 Key A+E NGFF card Electromechanical Specification * Compatible with M.2 Key A/E(2242) card Electromechanical Specification * MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s * Complies with singleport 1GbE RJ45 port (copper) * Complies with theMDI standard IEEE802.3 Ethernet interface for2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, 3ab ,IEEE802.3u and IEEE802.3 ) * 3 Auto-negotiator * 3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames * Automatic cross-over detection function(MDI/MDI-X) * IEEE 1588 Protocol and 802.1AS implementation * Supporting Time Sensitive Networking(TSN) Capabilities * Support IEEE802.3az-Energy Efficient Ethernet(EEE) * Full Wake-On-Lan support * TCP/UDP,IPv4 checksum offloads(Rx/Tx) * Transmit Segmentation offloading(TSO)(IPv4,IPv6) * Support for packets up to 9.5KB Jumbo Frames
