基本信息产品详情
基本信息
型号/编号 | SLD7 5/8"-25 |
材料 | 铸钢 |
抓取范围(英寸) | 2又四分之三英寸到7又八分之八英寸 |
转矩范围 | 0-20千牛米 |
旋转速度 | 0至16转/分钟 |
液压油流 | 每分钟80至120升 |
系统压力 | 16兆帕 |
整体尺寸 | 2500X1200X1600毫米 |
重量 | 大约5000公斤 |
运输包 | 标准木制包装 |
起源 | 中国 |
商品编码 | 8431431000 |
生产能力 | 每年生产 100 套 |
包装尺寸 | 把 250厘米乘以120厘米乘以160厘米。 |
包装总重量 | 五千公斤 |
包装大小 | 250.00厘米乘以120.00厘米乘以160.00厘米。 |
包装总重量 | 五千公斤 |
产品详情

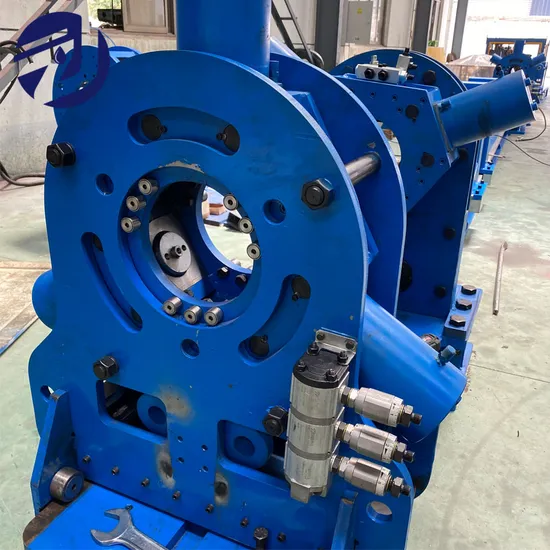

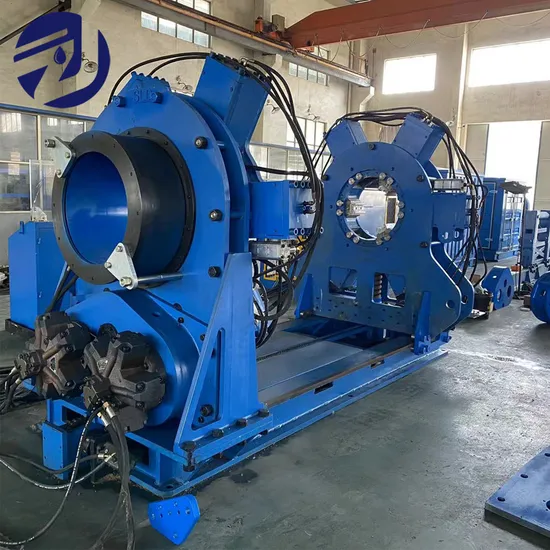

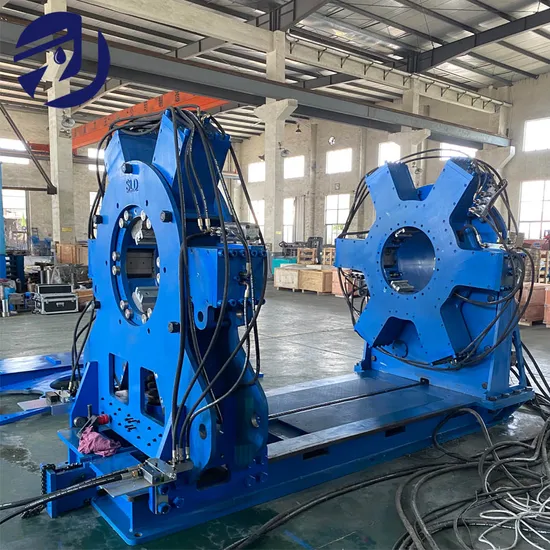

SLD Make Up/Break Out Unit
Preview

Preview
Features and Benefits
•
Hydraulically controlled clamp increases reliability, the main/back clamp are all oil cylinder clamping, stable and reliable
Fully rotational with a traversing tail stock, the main clamp can rotate any circle continuously 360 degrees, and the back clamp can be equipped with left-moving and right-moving device
The hydraulic control device provides power for the bucking machine, the motor drives the plunger pump, the high pressure oil passes through the multi-way valve, which
respectively
controls the positive and reverse rotation of the main clamp, the tightening and loosening of the main clamp, the tightening and loosening of the back clamp, the moving left and right of the back clamp. And the control panel has 3 pressure adjusting handwheels to facilitate the adjustment of pressure.

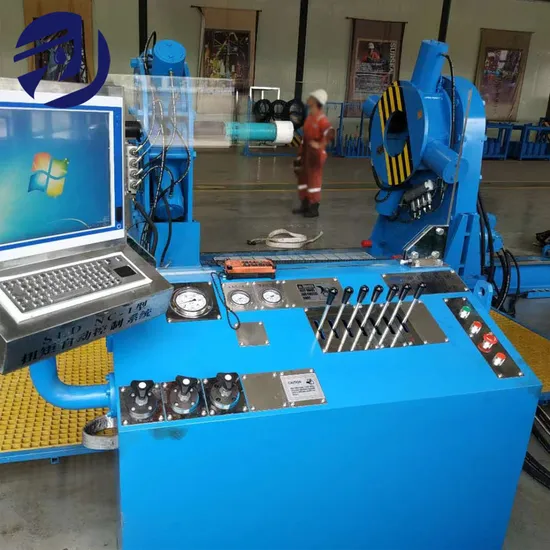

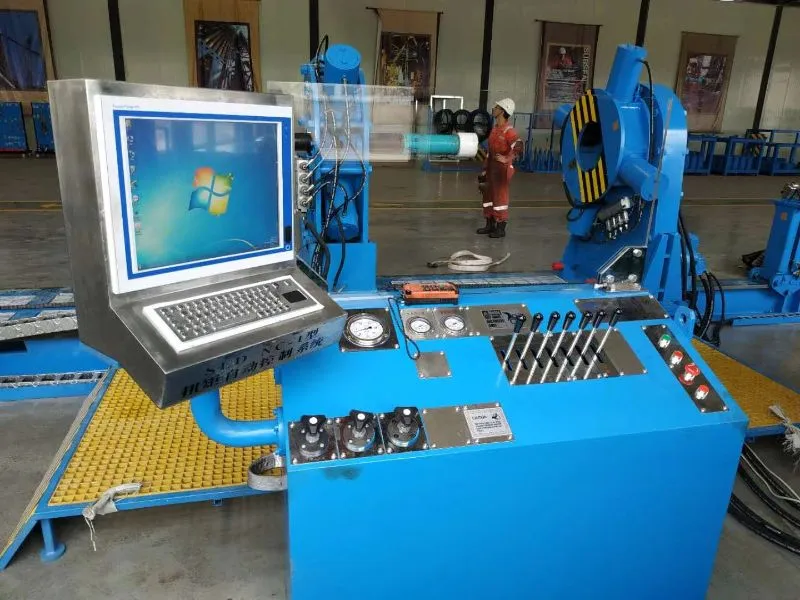

Equipped with automatic torque control and display system, after setting the torque value, through the sensor under the back clamp to measure the signal, after computer processing, automatically generate the turns count - torque, time - torque, speed - time curves, when the buckle reaches the set torque value, the relief valve is automatically unloaded, the equipment stops rotating, the torque can be measured, the English and Chinese interface can be freely switched. KN.m and lb-ft free to switch
Accurate graph reports on threaded makeups for full authentication and traceability
Automatic deceleration when operating torque approaches set torque
•
Hydraulically controlled clamp increases reliability, the main/back clamp are all oil cylinder clamping, stable and reliable
Fully rotational with a traversing tail stock, the main clamp can rotate any circle continuously 360 degrees, and the back clamp can be equipped with left-moving and right-moving device
The hydraulic control device provides power for the bucking machine, the motor drives the plunger pump, the high pressure oil passes through the multi-way valve, which
respectively
controls the positive and reverse rotation of the main clamp, the tightening and loosening of the main clamp, the tightening and loosening of the back clamp, the moving left and right of the back clamp. And the control panel has 3 pressure adjusting handwheels to facilitate the adjustment of pressure.
Equipped with automatic torque control and display system, after setting the torque value, through the sensor under the back clamp to measure the signal, after computer processing, automatically generate the turns count - torque, time - torque, speed - time curves, when the buckle reaches the set torque value, the relief valve is automatically unloaded, the equipment stops rotating, the torque can be measured, the English and Chinese interface can be freely switched. KN.m and lb-ft free to switch
Accurate graph reports on threaded makeups for full authentication and traceability
Automatic deceleration when operating torque approaches set torque
Preview

Preview
The Machine Consists of
Preview
2-3/8"至7-5/8"螺纹的组合与拆卸单元液压顶压机
¥362000 ~ ¥434400
