基本信息
型号/编号 | XSD2210 译作:XSD2210 XSD2816 译作:XSD2816 XSD3016 译作:XSD3016 XSD3620 译作:XSD3620 |
耗水量 | 每小时20-60吨 |
螺钉速度 | 18转/分 |
电机类型 | 交流电动机 |
电机功率 | 7.5千瓦 |
旋转速度 | 每分钟转1-2转 |
车轮桶直径 | 2600毫米 |
螺钉直径 | 750毫米 |
保修 | 一年 |
售后服务 | 一年 |
模型 | 3016 |
起源 | 15千瓦 |
大小 | 3810*2820*3083毫米 |
重量 | 6.1吨 |
输入大小 | 小于10毫米 |
推进器直径 | 3000毫米 |
定制的 | 支持 |
颜色 | 支持定制 |
名字 | 洗砂机 |
另一个名字 | 螺旋式砂石清洗机 |
运输包 | 木盒或裸色 |
规格 | XS3016 |
商标 | 凯创 |
起源 | 河南 |
商品编码 | 8474100000 |
生产能力 | 每月100套 |
包装尺寸 | 620.00厘米×230.00厘米×250.00厘米 |
包装总重量 | 6100千克 |
包装尺寸 | 620.00厘米×230.00厘米×250.00厘米 |
包装总重量 | 6100千克 |
产品详情
Product Description
Preview

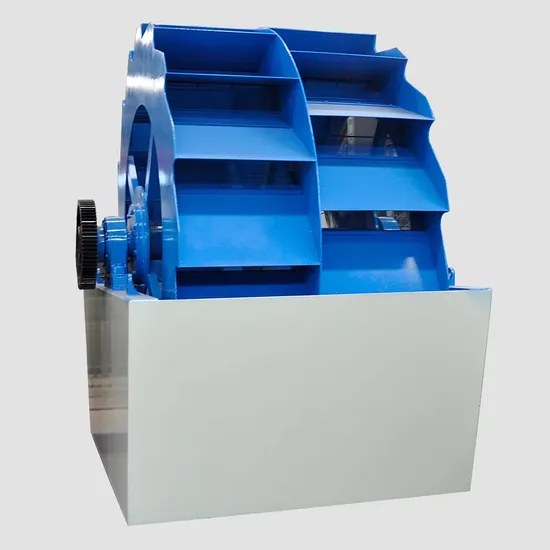

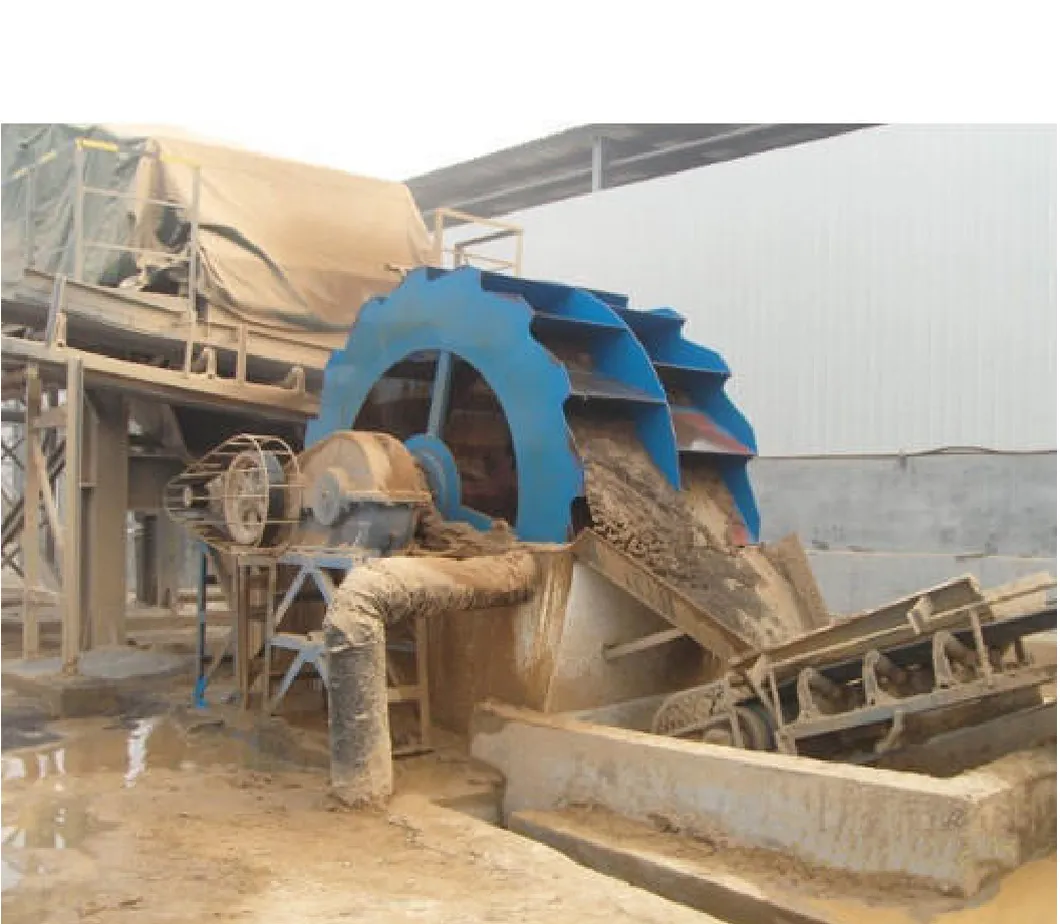

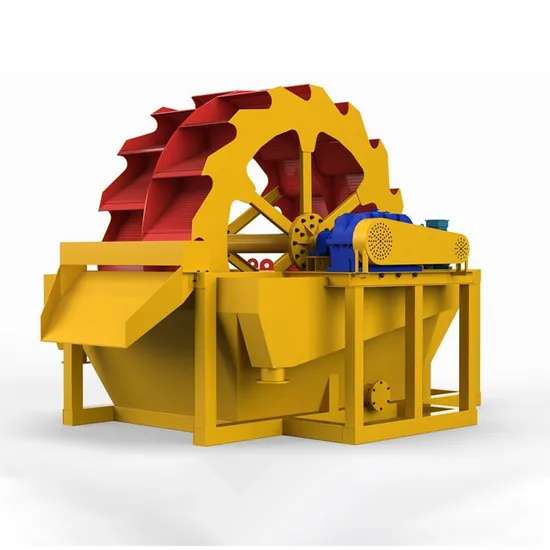

Wheel sand washer or wheel bucket sand washer is a kind of sand washing machine which can clean and separate the stone powder mud in sand and gravel, its novel sealing structure and reliable transmission device ensure the efficiency of cleaning and dewatering.
It is widely used in sand washing industries of sand and gravel quarries, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station, etc.

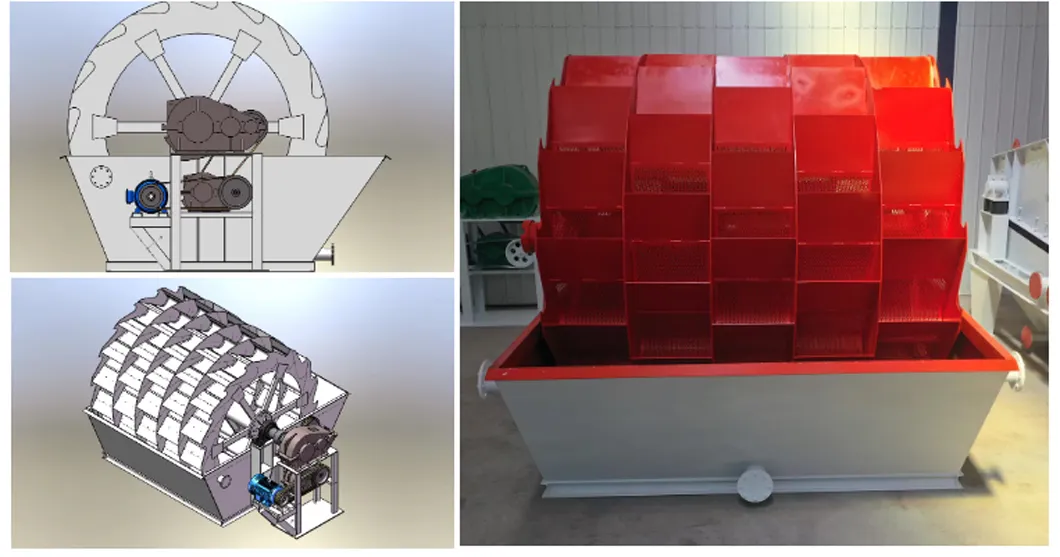

The motor drives the wheel bucket for rotation via v-belt, reducer and gears. Sand is fed from the feeding chute to the washing tank, tumbling with the wheel impeller and grinding each other, it removes the impurities covering the sand surface.
Meanwhile water is continuously feeding to form strong water flow, it takes away the impurities and light materials via the discharge gate, thus completes the cleaning.
It is widely used in sand washing industries of sand and gravel quarries, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station, etc.
The motor drives the wheel bucket for rotation via v-belt, reducer and gears. Sand is fed from the feeding chute to the washing tank, tumbling with the wheel impeller and grinding each other, it removes the impurities covering the sand surface.
Meanwhile water is continuously feeding to form strong water flow, it takes away the impurities and light materials via the discharge gate, thus completes the cleaning.
Preview

Preview

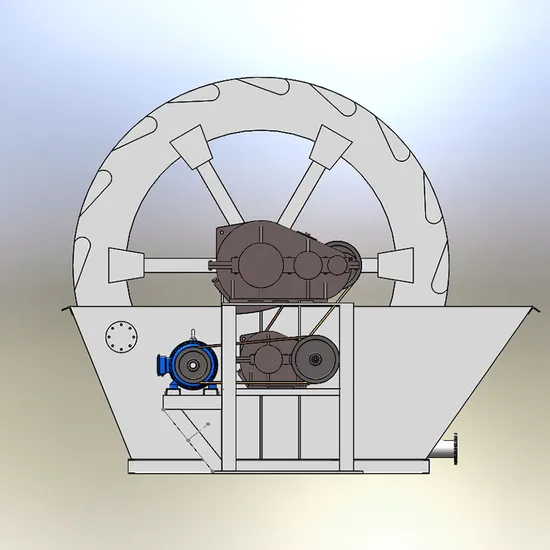

Working Principle
A solids and water mixture is fed into the trough, in a low turbulent flow, where the decantation take place
• The material feed is located in opposite side of the product discharge
• The solids settle
• The trough has sloping walls to collect these solids in the trough center
• The buckets from the rotating wheel dredge these solids and then drop from the buckets into the discharge chute
• The water flowing towards the overflow

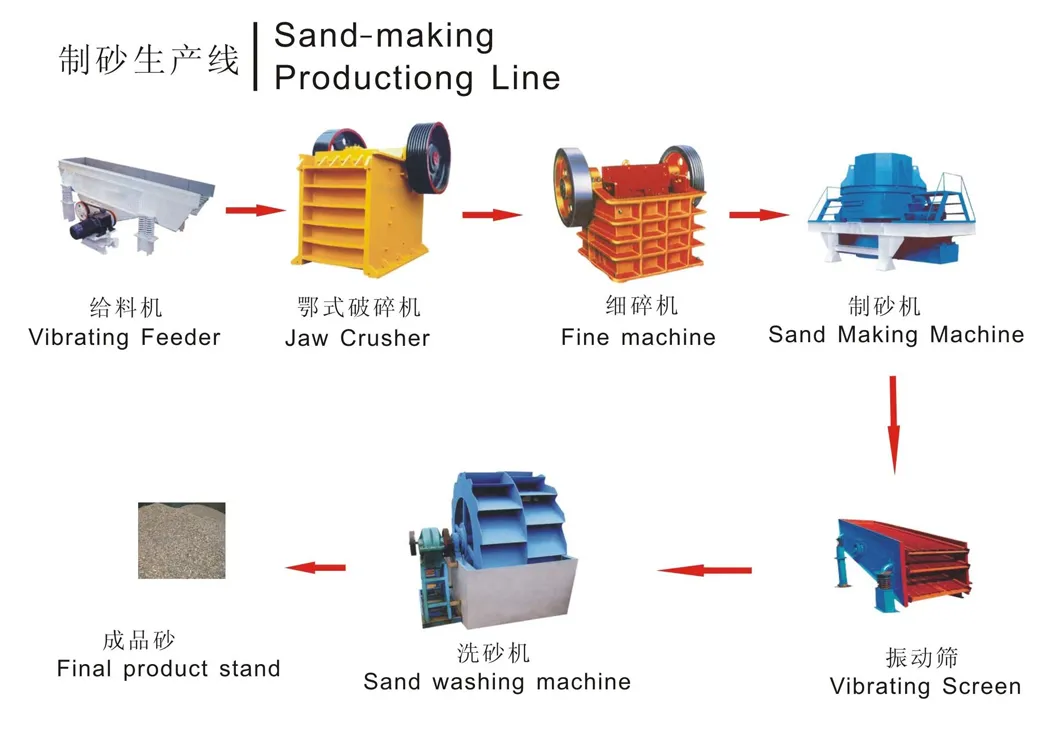

Production line
A solids and water mixture is fed into the trough, in a low turbulent flow, where the decantation take place
• The material feed is located in opposite side of the product discharge
• The solids settle
• The trough has sloping walls to collect these solids in the trough center
• The buckets from the rotating wheel dredge these solids and then drop from the buckets into the discharge chute
• The water flowing towards the overflow

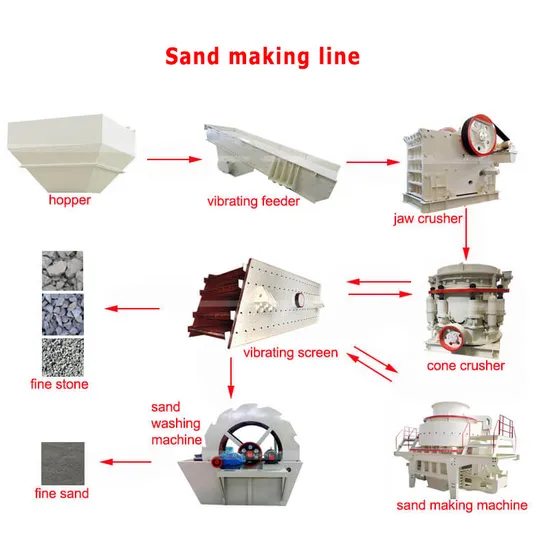

Production line
Preview

Preview

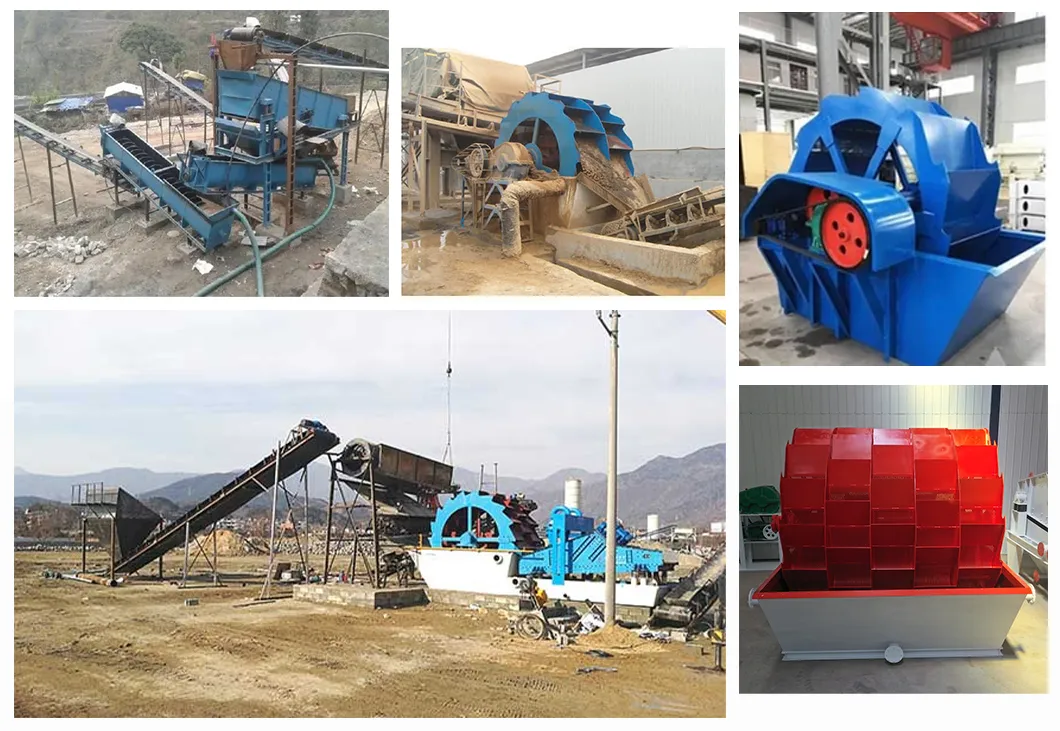

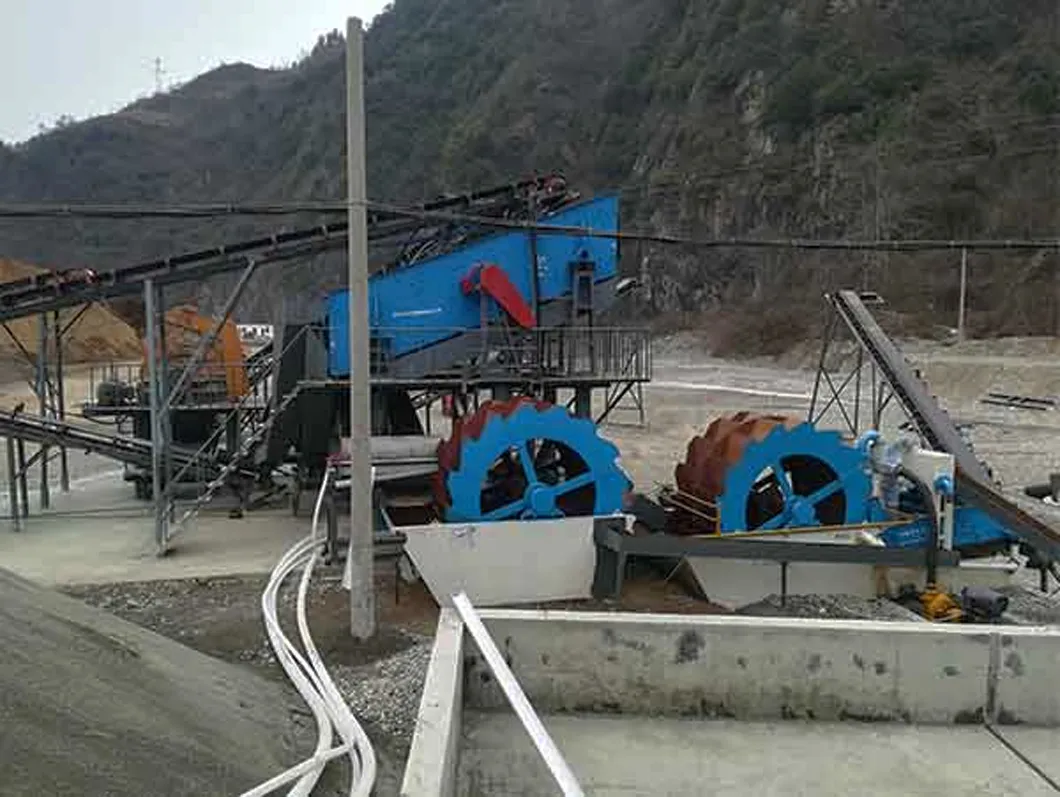

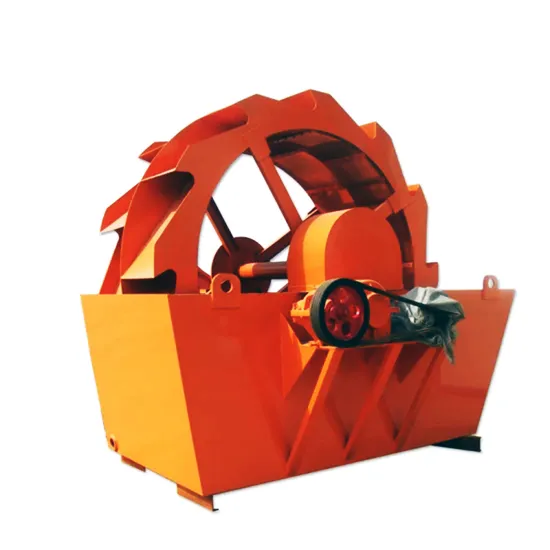

Product Show
Preview

Preview

Preview

Preview
