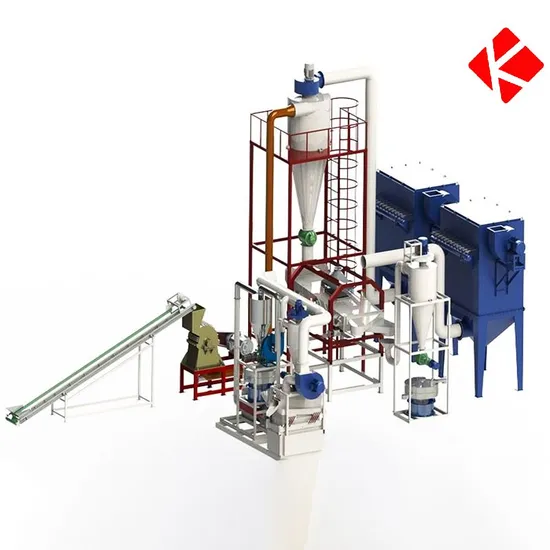

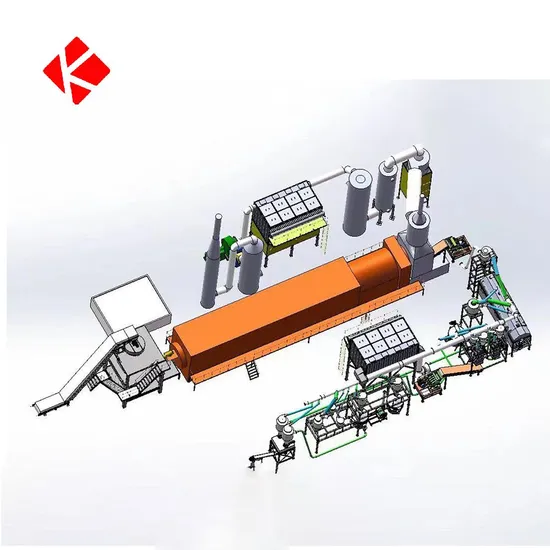

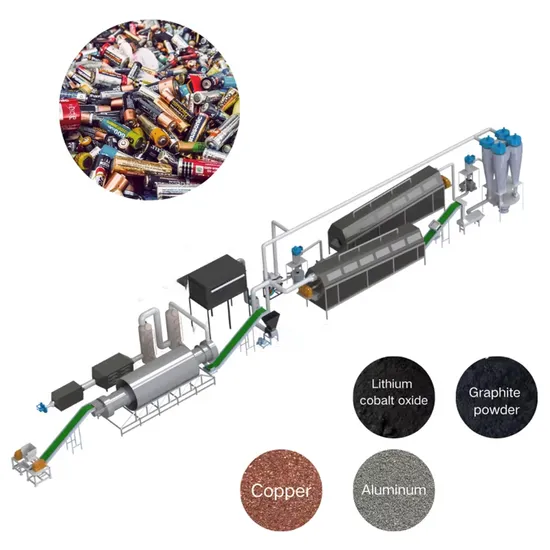

new lithium ion battery recycling machine crushing capacity 300kg/h Small Scale Waste Car Prius Li-ion Battery Recycling is used for dismantling and recycling the Laptop Battery, cellphone battery, (EV) Car Battery, soft package battery, Hard Shell Battery, shell batter cylindrical battery,LI-Polymer - Pouch Type Battery, Automotive Pack and Modules Batterles, Positive and Negative Plates etc. The final products of this plant line is graphite powder (black mass), cobalt acid lithium, aluminum (aluminum granule) and copper(copper granule),plastic, steel shell and separator plastic etc.Its mainly recovers metal and black powder on the positive and negative plates of the battery. So as to make profits from sales.

Product Parameters

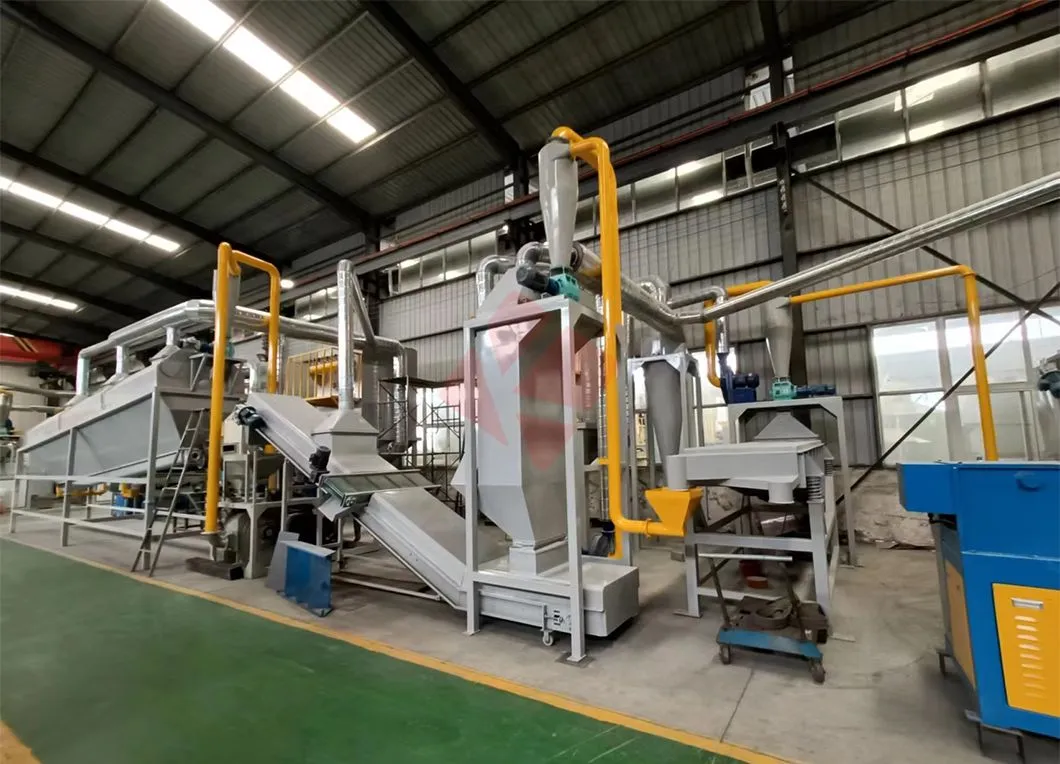

Working Principle
Produced by our factory, as the most Strict quality control system:

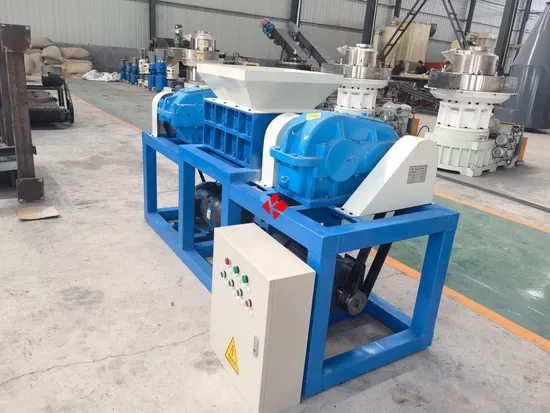

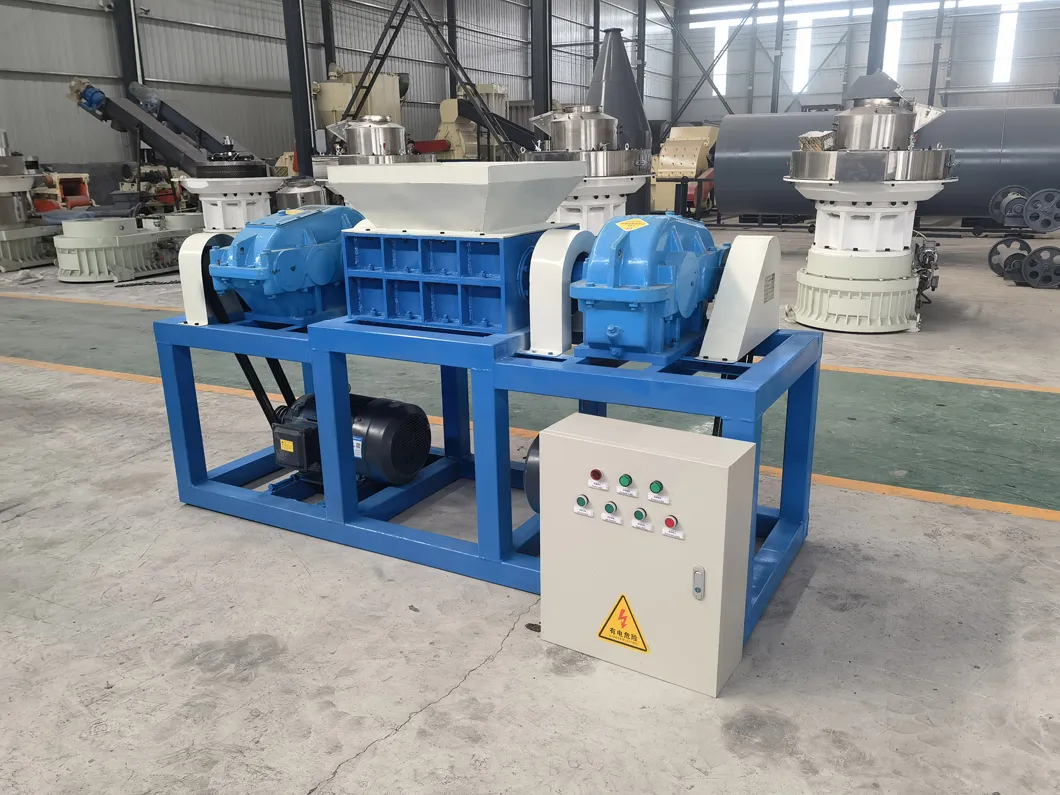

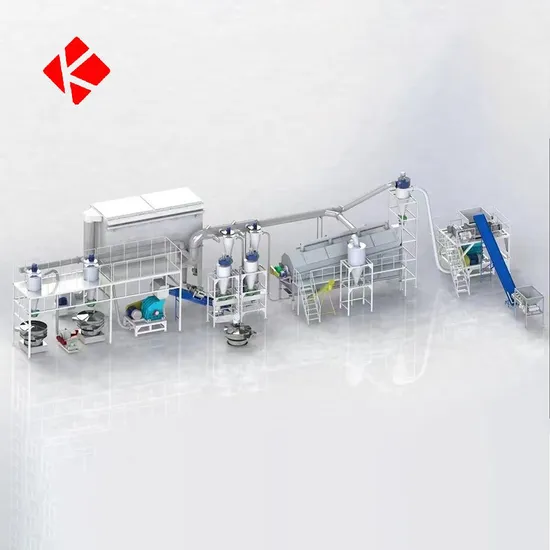

To ensure the machine performance, for every machine before leave our factory, no matter its single machine or big production line, we all connecting whole line, buy raw materials to trial running, to ensure every part are up to standard.1. Double-shaft shredder
In the pre crushing stage, the discharged lithium battery is subjected to primary crushing, with a crushing size of about 25mm, which cn aviod the danger of insufficient battery discharge to subsequent processes and help improve subsequent processing efficiency.2. Primary crusher
In the fine crushing process, the pre curshed lithium battery is finely crushed to about 10mm, and the steel shell, diaphrag, electrode plate, and battery powder are crushed and separated to facilitate subsequent sorting.3. Primary drum screen

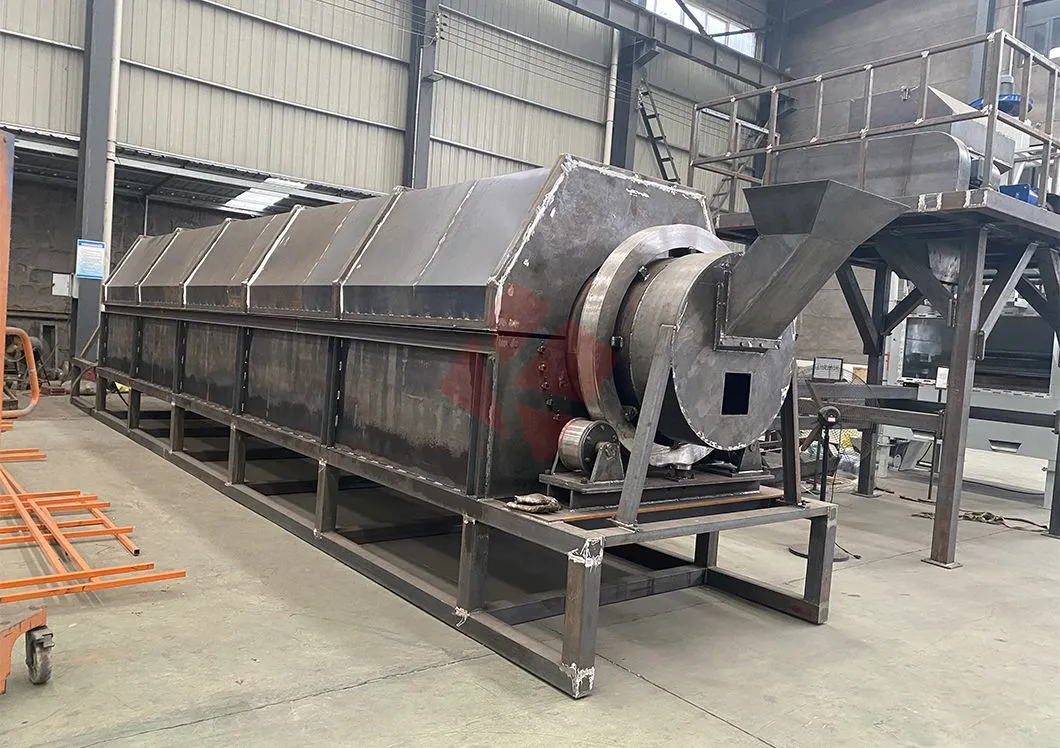

In the screening process, the drum screen separates the dissociated battery powder by flipping nd rotating. The recycling amount of battery powder in this process reaches 60%, and the sealed drum ensures no dust overflow.4. Magnetic separator
In the screening process, the drum screen separates the dissociated battery powder by flipping and rotating. The recycling amount of battery powder in this reaches 60%, and the sealed drum ensures no dust overflow.5. Z-type air sorting machine
The separation separator is a Z-type air separator that uses aerodynamic principles to break up materials and separate light and heavy materials. The separator is collected by s cyclone collector snd sent to a linear screen, and the polar plates are sent to the next equipment through the discharge port.6. Secondary crusher
In the fine crushing process, the pre crushed lithium battery is finely crushed again to around 5mm, and te remaining motor material is further crushed and dissociated to improve the recovery rate.7. Secondary drum screen
In the screening process, the drum screen separates and dissociated battery powder by flipping and rotating. The recovery rate of battery powder in this process reaches 95%, and the drum is sealed without dust overflow.8. Grinder
In the grinding process, a high-speed grinding mschine aggregares and shapes the mixture of copper nd aluminum foils to achieve consistent specifications for the subsequent separation of copper and aluminum.9. Rotary vibrating screen
In the screening process, the rotary vibrating screen separates the residual battery powder after grinding through vibration. The recovery amount of bsttery powder in this process reaches 98%, with. cloesd drum and no dust overflow.10. Gravity separator
In the separation process of copper and alumium,the specific gravity sorting machine utilizes airflow and vibration frition to cause copper with a significant proportion to settle and move upwards from the bottom layer,shile aluminum with a low proportion is suspended and moves downwards from the surface,achieving the effect of copper and aluminum separation.11. Exhausted gas cleaning system
All the ultra fine dust is brought into the pulse dust collector by the negative pressure system for collection. The filtered exhaust gas will continue to be sent by the negative pressure system to the exhaust gas treatment equipment for air purification, so that it can be discharged at high altitude after reaching the national emission standard.
Application

Application industry:
Electronics,photovoltaic,semiconductor, automobile manufacturing, electroplating new energy, new materials, precision processing, fine chemicals and other industries
Product application: Cell Phone Battery, Power Battery, Household Battery, Positive Electrode, Negative Electrode, Battery Board, Soft package battery, Cellphone battery, Shell battery, Soft lithium battery, Hard-shell lithium battery, Cylindrical lithium battery, Lithium battery positive and negative plates, 18650 lithium battery, Ternary lithium battery, Scrapped car, lithium battery, Lithium iron phosphate battery, Power lithium battery and other waste lithium batteries and etc.Different types of lithium bat-teries have different recycling procedures~ Please contact us for detailed configuration~
Our Advantages

1.Fully sealed negative pressure sorting Fully sealed negative pressure sorting, no dust leakage.2.High sorting accuracy.High sorting accuracy,high efficiency, large processing capacity.3.Humanized stepless adjustment.Humanized stepless adjustment of wind speed to meet the needs o materials with different attributes.4. Double drum separation .Double-drum separation is optional, which can separate light, medium and heavy three-component materials.5. PLC electronic control mechanical integrated control .The RDF machine is composed of frame, motor, feed inlet, transmission system, pressure roller, ring die, electric heating ring, discharge outlet, etc.
