Good Quality tyre recycle machine Tire Recycling Crusher Machine tire shredder for Rubber Powder

Waste tire recycling rubber cutter machine/used tire cutting machine
is to crush waste tires into rubber powder in different sizes. The final rubber powder is with purity of 99.99%, can be used to make rubber tiles, rubber mat, asphalt, waterproof material, filler of artificial grass.

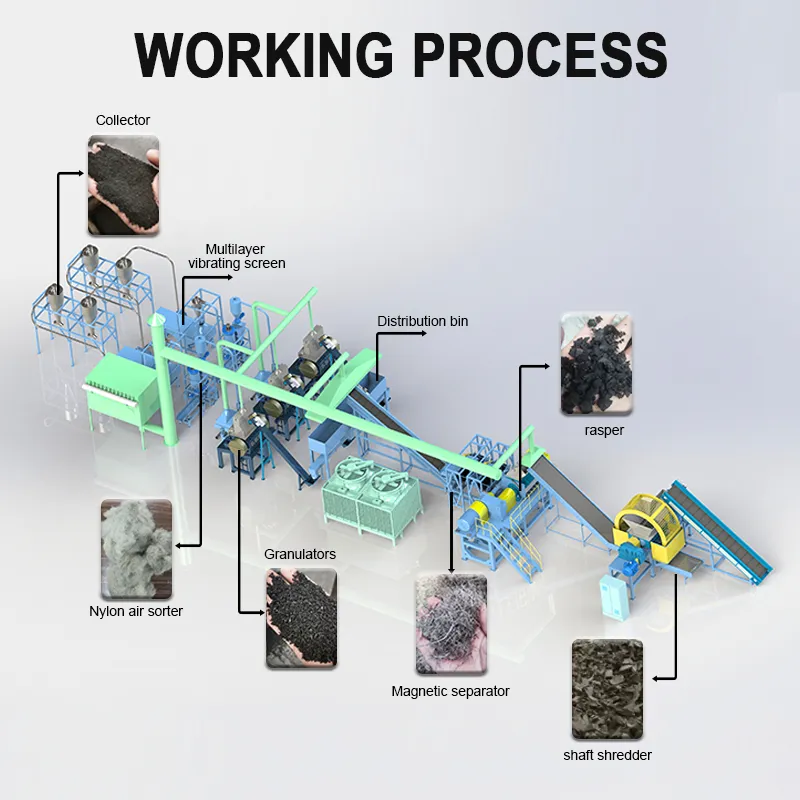

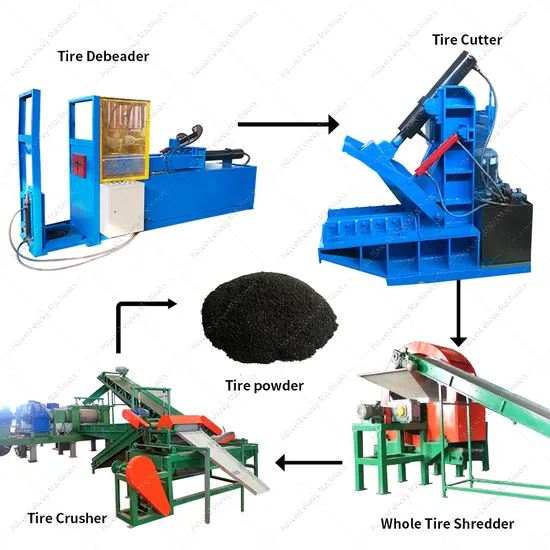

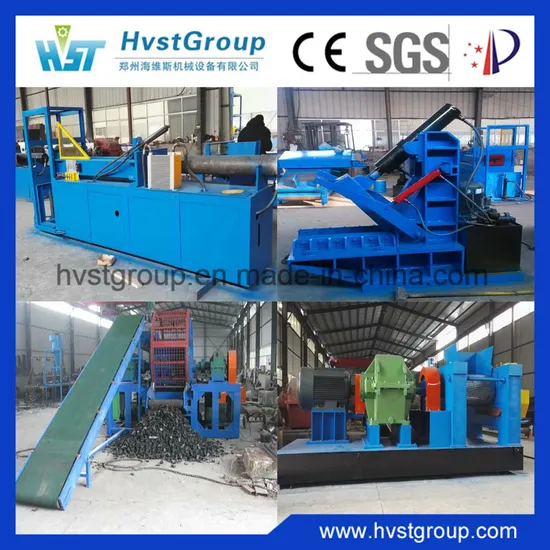

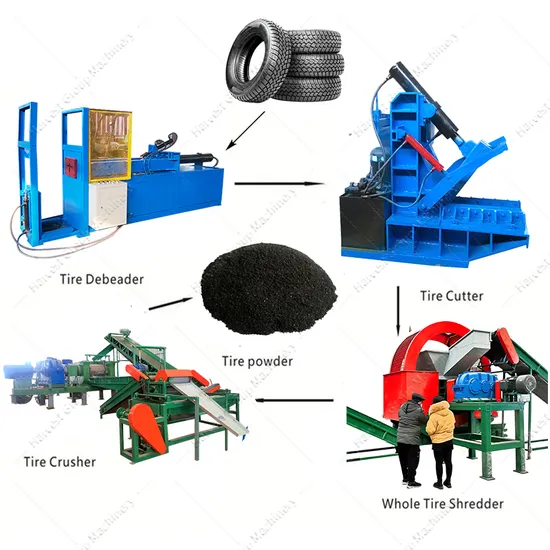

The working process of waste tire recycling machine:
Waste tire -
Tire de beader- whole tire cutting -
tire shredder -
Rubber crushing -
magnetic separator -
fiber separator -
Rubber powder

Specification of
used tire cutting machine:

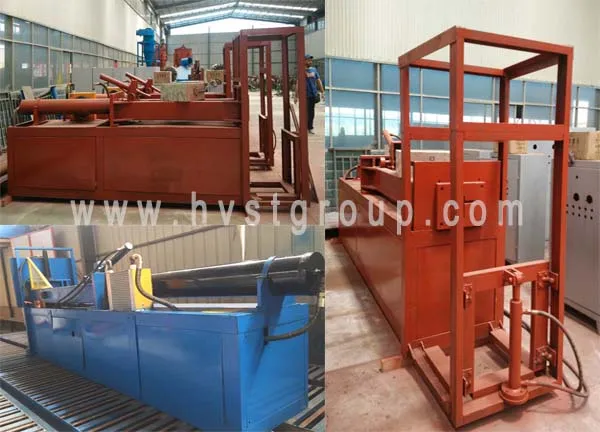

First step: Tire de bearder, it is used to pull the steel wire out of tire

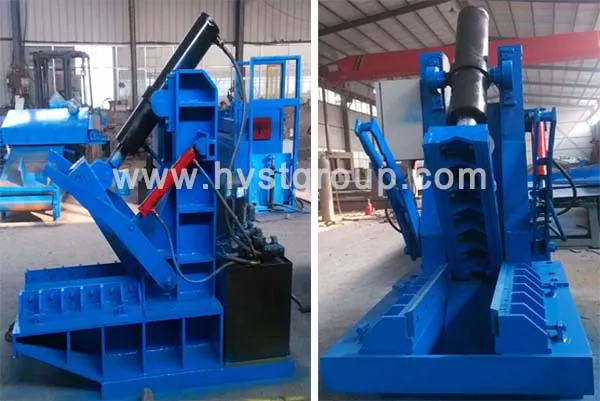

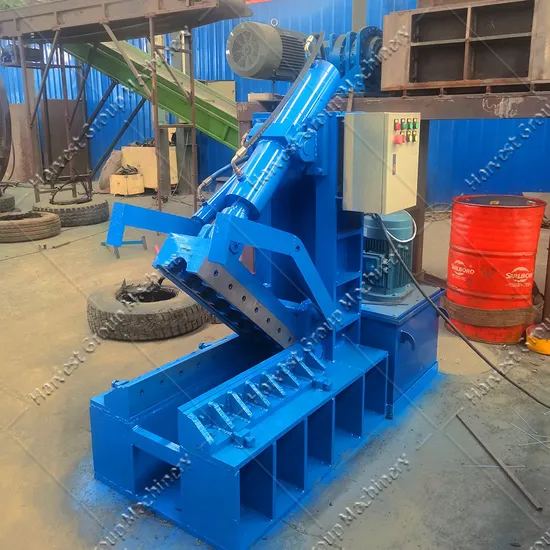

Second step (
optional): it is used when tire size is larger than 850mm

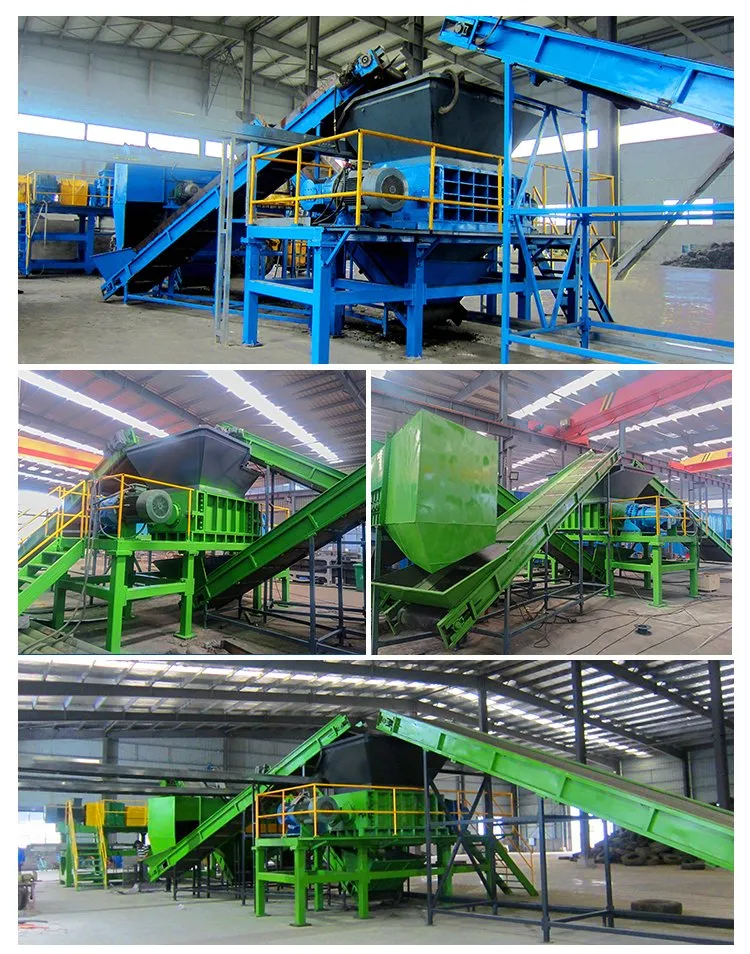

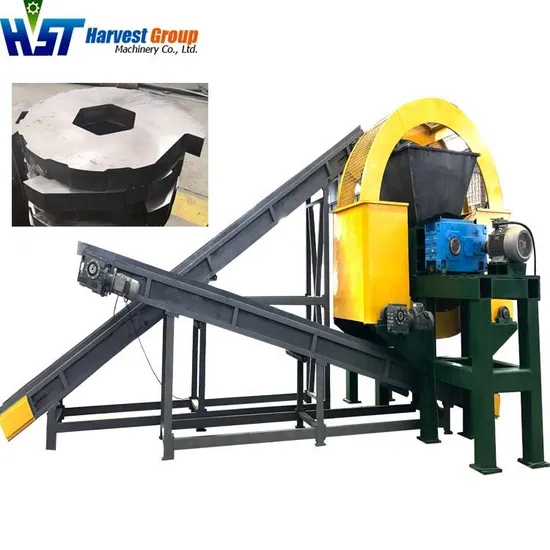

Third step: tire shredder
1. This whole tire shredder can cut whole tire into 50X50mm and 60X60mm rubber block as you need.2. The oversize types can be cut to small pieces by whole tire cutter.

Fourth step: Rubber crusheris used to grind the chunks into smaller mesh powder through the vibrating screen as you need.

Advantages of tire recycling machine:
1.Crusher roller speed ratio:
Ours is 1: 2.5, while the old type roller speed ratio is 1: 1.38.2.Roller structure:
Our two rollers are both grooved, which increase the friction and then improve the output, while the old type is one with groove, and the other is smooth.3.Roller material:
The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3
years warranty of the roller. While the old types machine use cast iron to make the rollers, very easy to break or crack in two.4.Machine feature:
Our machine is energy saving 1/3. For example, producing 1T powder, our machine electricity consumption is only 150°, while their electricity consumption is about 250- 280° in making 1T powder.5.Bearing:
Our machine use rolling bearing, there are 8
pieces bearing inside, while the old machine use the slide bearings (

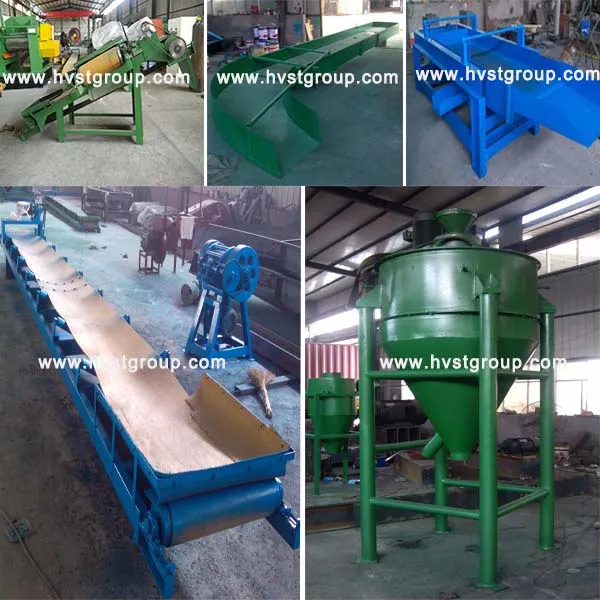

bush), which is not as good as ours.Auxiliary equipment:
Magnetic separator: to separate the scrap steel from rubber powder;
Main feeder: to convey the big sizes rubber granules into rubber crusher;
Vibrating screens: to separate the fine rubber powder from bigger sizes;

Customize your solution
