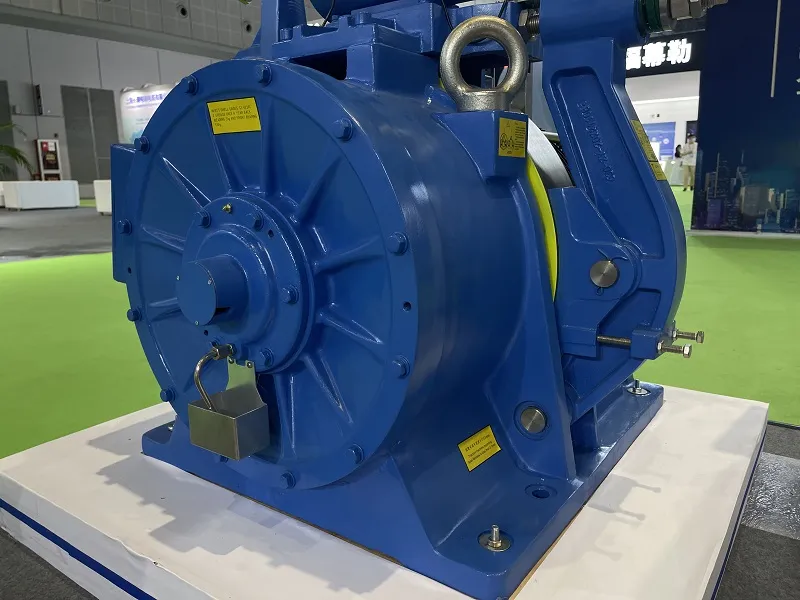

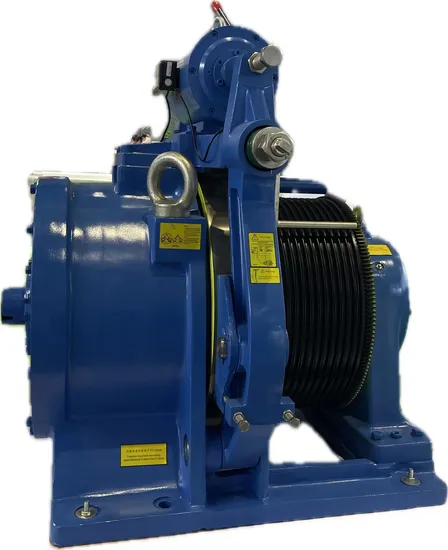

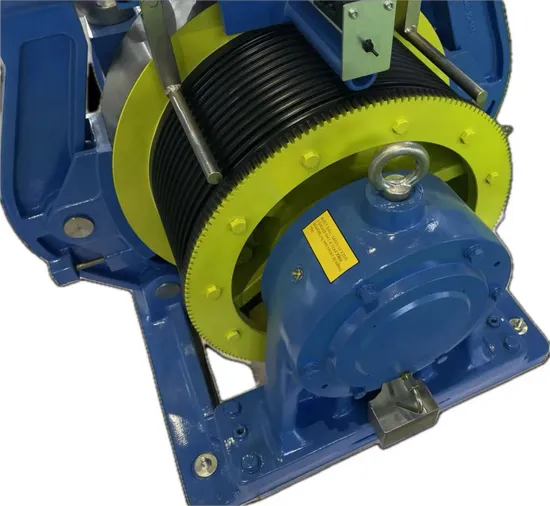

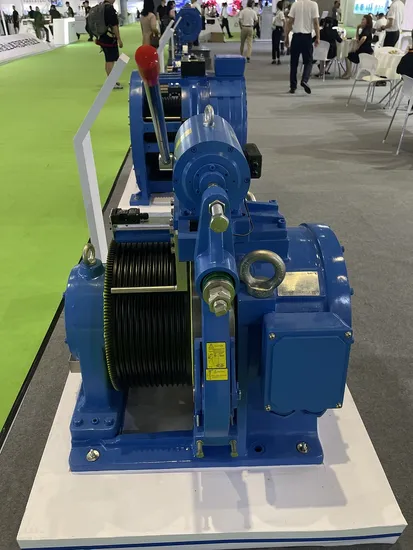

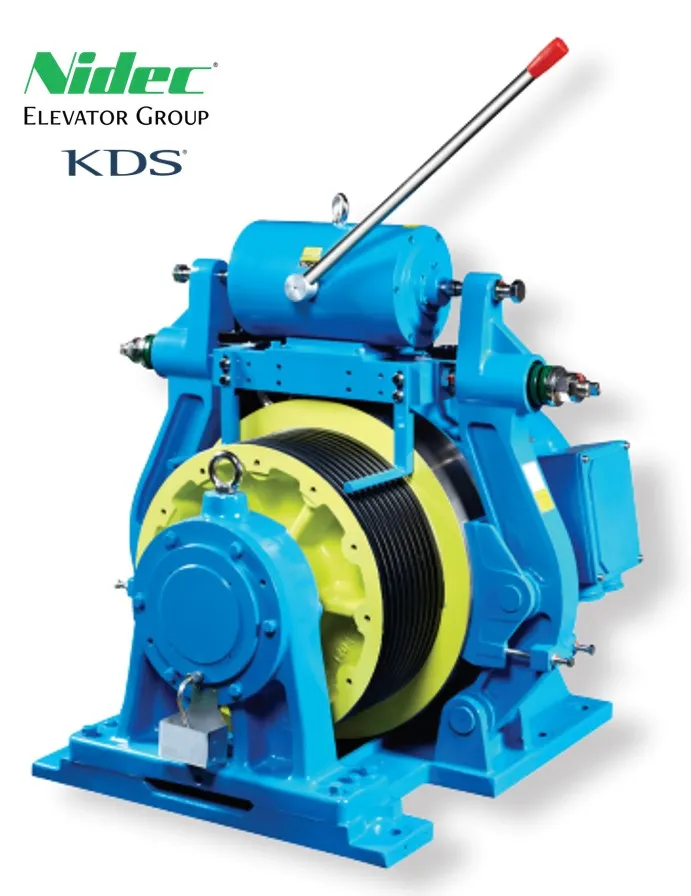

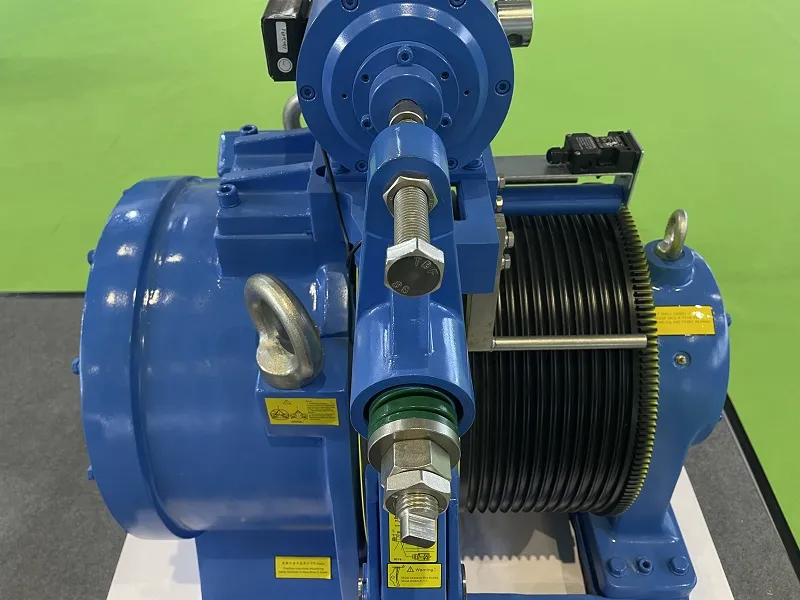

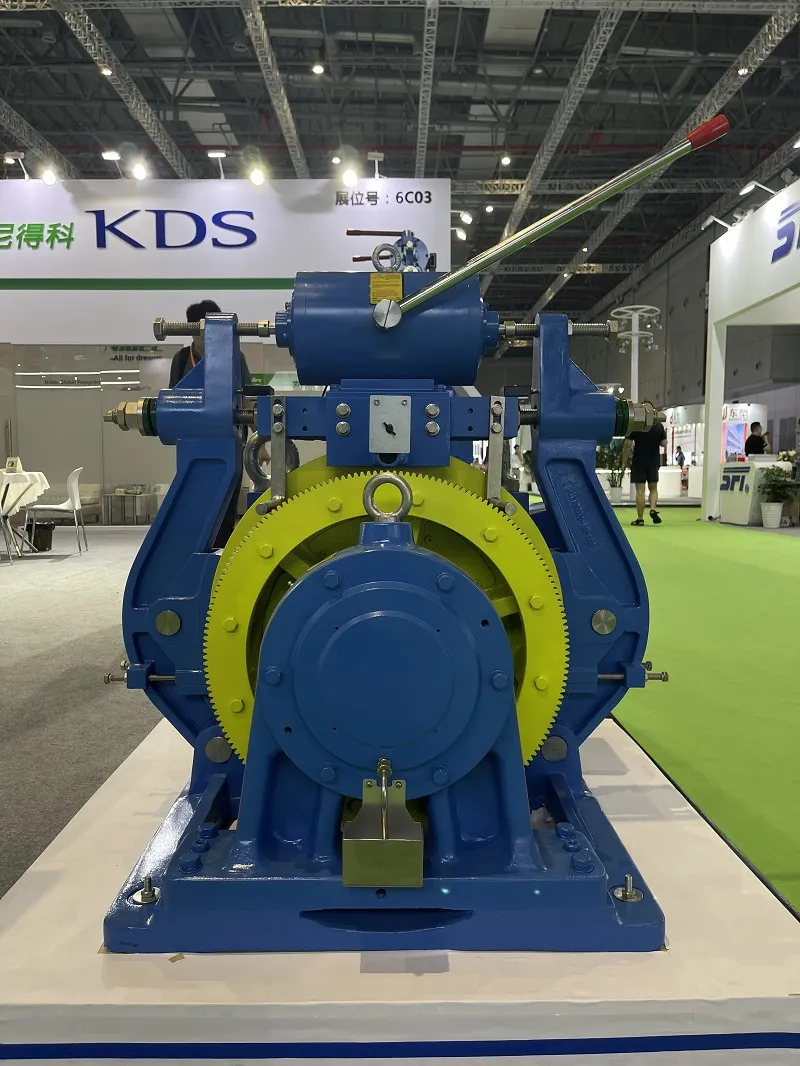

Nidec Kds Traction Machine: WTY2/SWTY2 Series
Magnetic synchronous gearless traction machine is composed of magnetic synchronous motor, sheave, and break system. It operates and changes speed through a closed-loop control by an Encoder. Compared with traditional traction machine, it features with higher efficiency, lower starting current, bigger starting torque, and smoother operation. As magnet materials are used, it is small in size and light in weight; Through a gearless reducer, it operates with lower noise and higher reliability.

Send an inquiry
Product Parameters
Specification
Capacity
Elevator Speed
Rated output
Rated current
Dia. Of Sheave
ropes
groove distance
Roping
Max. load
Weight
Model
kg
m/s
kW
A
mm
kg.
WTY2-1600-100
1600
1
11.0
25
520
5-Φ13
20
2:1
10000
1150
WTY2-1600-150
1.5
16.5
40
WTY2-1600-160
1.6
17.6
WTY2-1600-175
1.75
19.3
42
WTY2-1600-200
2
22.0
50
WTY2-1600-250
2.5
27.6
60
WTY2-2000-100
2000
13.5
32
6-Φ13
1250
WTY2-2000-150
20.6
WTY2-2000-160
WTY2-2000-175
24.0
51
WTY2-2000-200
27.5
WTY2-2000-250
34.5
75
SWTY2-1000-100
1000
1.00
6.7
18
1:1
SWTY2-1000-150
1.50
10.1
28
SWTY2-1000-160
1.60
10.8
SWTY2-1000-175
11.8
SWTY2-1000-200
2.00
13.4
SWTY2-1000-250
2.50
16.8
37
SWTY2-1150-100
1.0
7.3
17
7-Φ13
1300
SWTY2-1150-150
10.9
SWTY2-1150-160
11.7
SWTY2-1150-175
12.8
SWTY2-1150-200
2.0
14.6
34
SWTY2-1150-250
18.2
41

Company profile

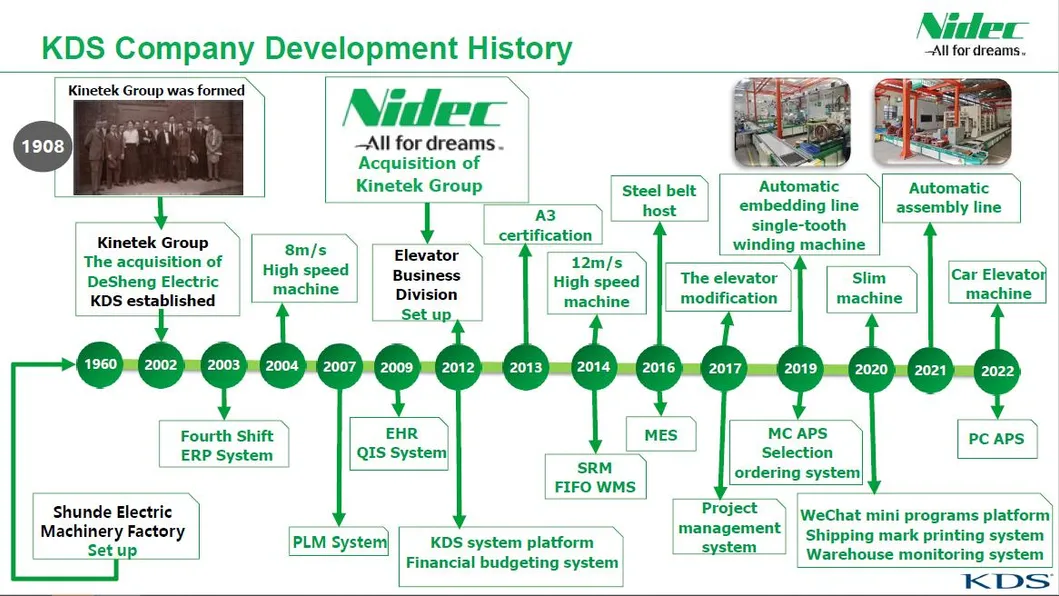

Kinetek companies have an over 110 years track record of providing the highest quality, most reliable, most advanced motors, controls and motion systems available in the marketplace. We trace our roots to 1908 with the founding of Imperial Electric. Kinetek companies hold market leading positions in the elevator marketplace and many other commercial and industrial segments.

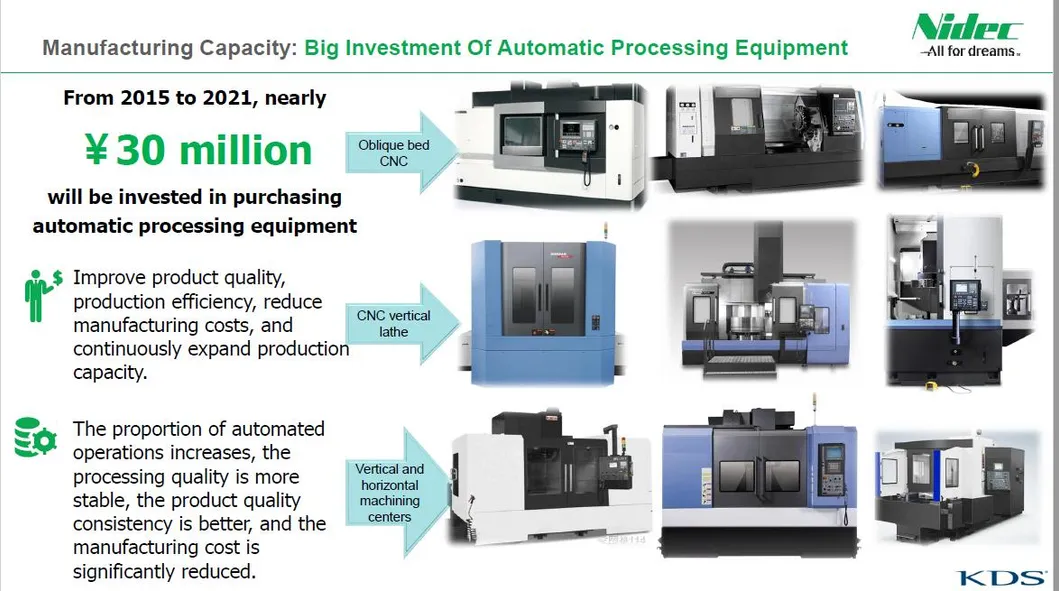

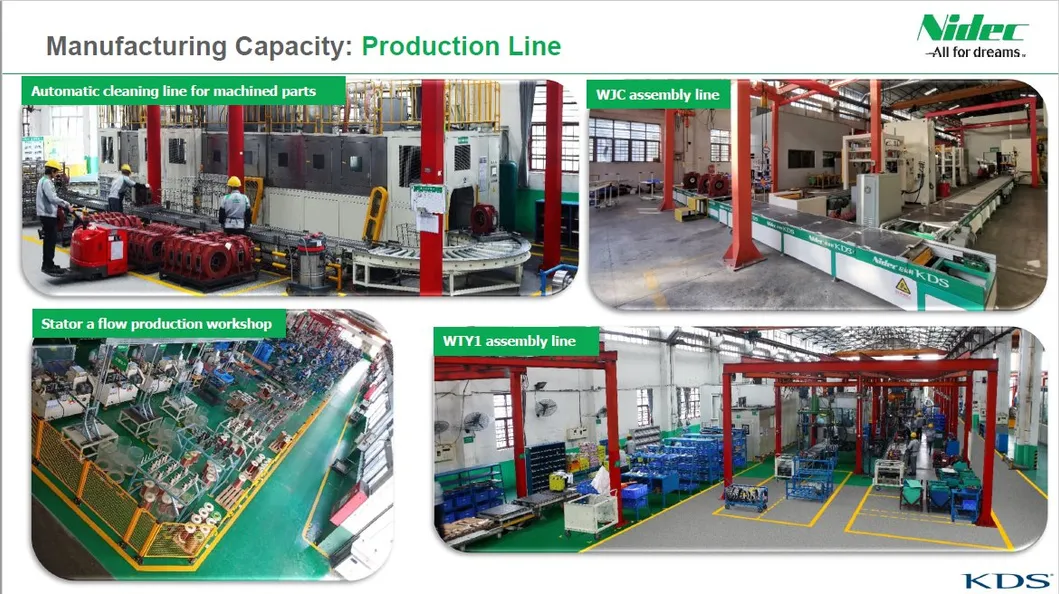

With innovative engineering design and a global manufacturing footprint, Kinetek meets the requirements of the most sophisticated customers in the world. In China, Kinetek operates four manufacturing facilities--annually producing thousands of motors, machines, gearing, shafts and controls for domestic and international customers. In 2012 we became part of Nidec Group, a global leader in the design and production of electric motors and related electronics components. The Nidec Group includes more than 100 manufacturing and sales locations in 25 countries, and employs more than 107,000.KNOW MORE ABOUT US
