基本信息
| 型号编号 | GW-23GW-V |
| 雷电防护 | 具有防雷保护功能 |
| 认证 | ISO, RoHS, CE |
| 条件 | 新 |
| 权力 | 23分贝毫瓦 |
| 覆盖率 | 800-1500平方米 |
| 收益 | 70分贝 |
| GSM 900兆赫 | 890-915MHz 和 935-960MHz（无线电频率） |
| GSM2100兆赫 | 1920-1980兆赫，2110-2170兆赫 |
| 电源供应 | 交流电90-264伏，直流电6伏/3安 |
| 阻抗 | 50欧姆 |
| RF连接器 | N型母头 |

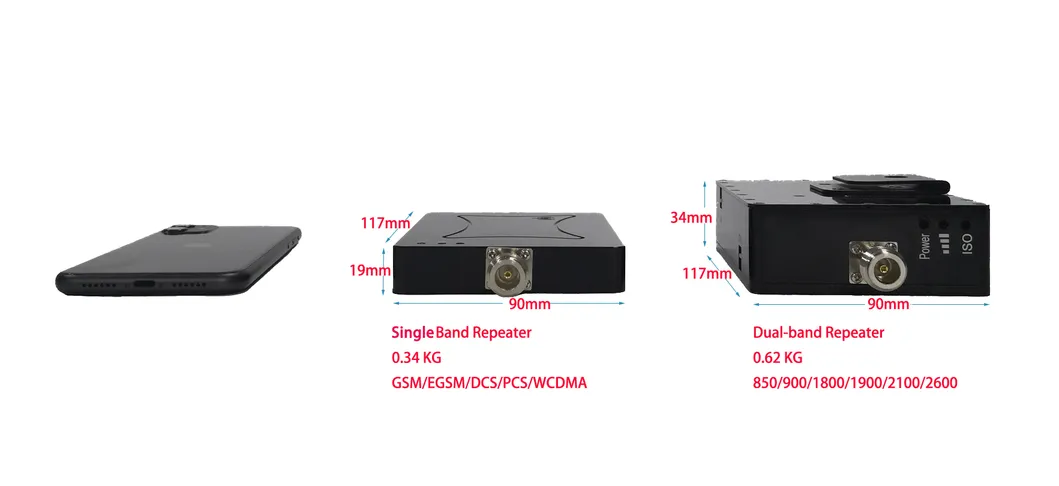

| 重量 | 0.62千克 |
| 描述 | 无线电话增强器/移动中继器 |
| 运输包 | 中性包装 |
| 规格 | CE, RoHS |
| 商标 | 格瑞特温 |
| 起源 | 深圳 |
| 商品编码 | 8543709200 |
| 生产能力 | 每月2,000件 |
| 包装尺寸 | 11.80厘米 * 9.10厘米 * 3.60厘米 |
| 包总重 | 1.2千克 |
| 交货时间 | 7天（1-10件） 15天（11-20件） 24天（21-50件） 待商议（> 50件） |
| 包装尺寸 | 11.80厘米 * 9.10厘米 * 3.60厘米 |
| 包总重 | 1.2千克 |
| 提前期 | 7天（1-10件） 15天（11-20件） 24天（21-50件） 待商议（> 50件） |
产品详情

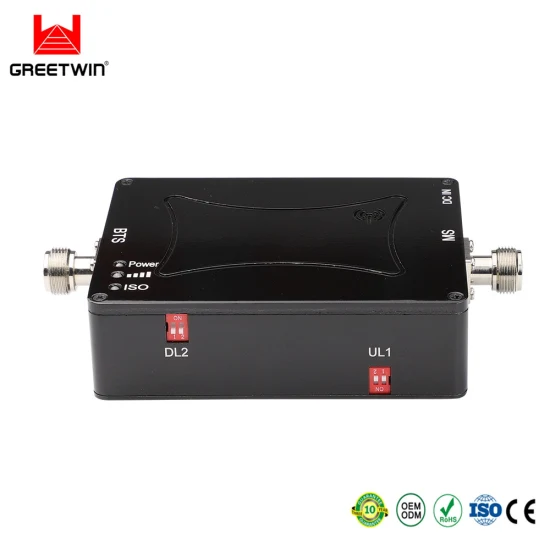

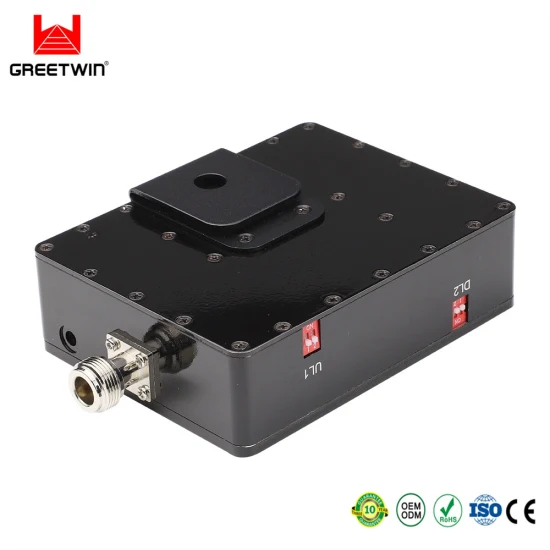

23dBm GSM900MHz WCDMA2100MHz
GSM Signal Repeater Booster 2g 3g 4g Mobile Phone Signal Booster
A cell phone reception booster is generally a repeater system that involves the amplifier adding gain or power to the reception in various directions.Even for a cheap cell phone signal booster, maximum gain differs by application.The work of an outside antenna is to both receive and transmit signals to a cellular tower with enhanced power and sensitivity.Usually the dB gain is never below 7 dB and can be over 10 dB gain.The system's elements conduit is the coaxial cable.It is also a factor in transmission loss.
GSM Signal Repeater Booster 2g 3g 4g Mobile Phone Signal Booster
A cell phone reception booster is generally a repeater system that involves the amplifier adding gain or power to the reception in various directions.Even for a cheap cell phone signal booster, maximum gain differs by application.The work of an outside antenna is to both receive and transmit signals to a cellular tower with enhanced power and sensitivity.Usually the dB gain is never below 7 dB and can be over 10 dB gain.The system's elements conduit is the coaxial cable.It is also a factor in transmission loss.
Preview
Preview
Product Description
Preview
Advantages:
3.ODM/OEM service is available.
Production Information
3.ODM/OEM service is available.
Production Information
Preview
Preview
Preview

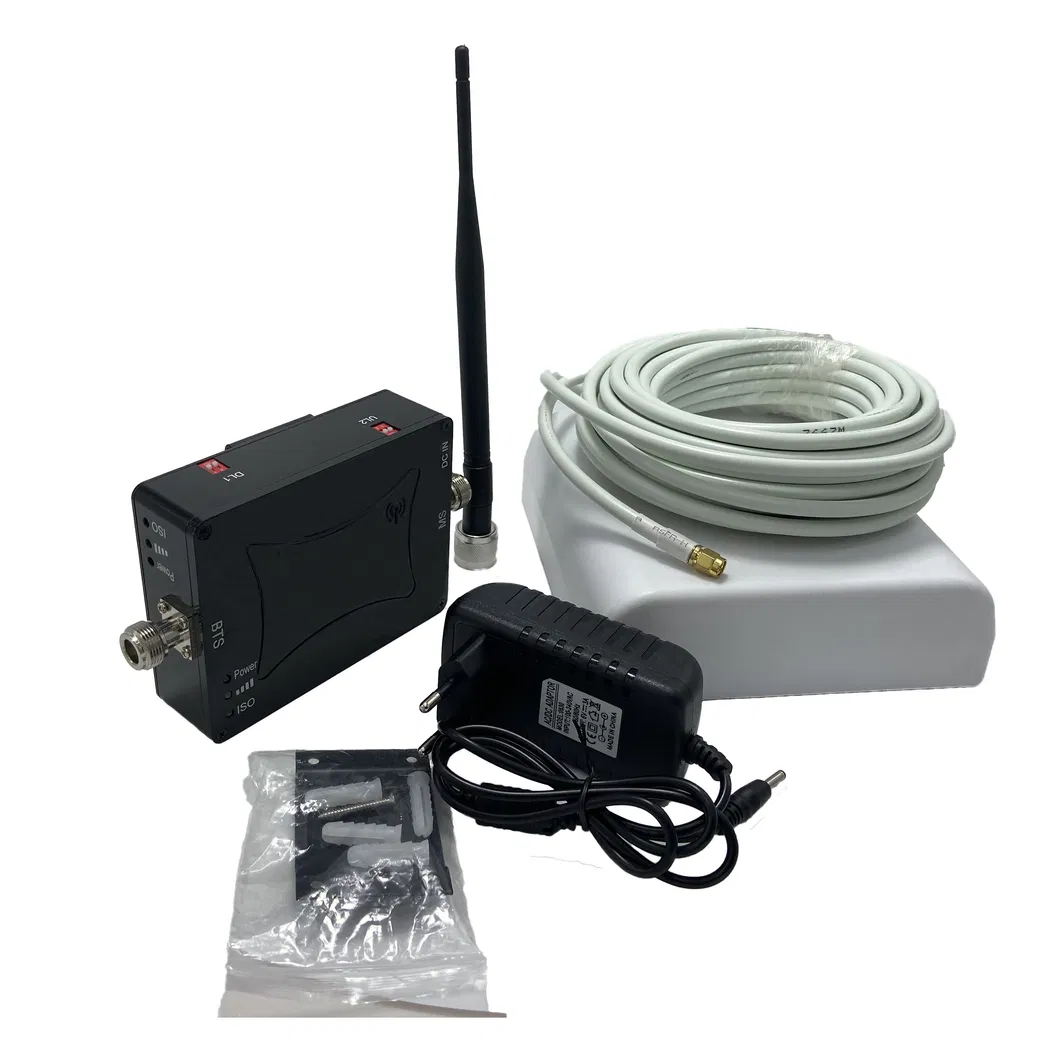

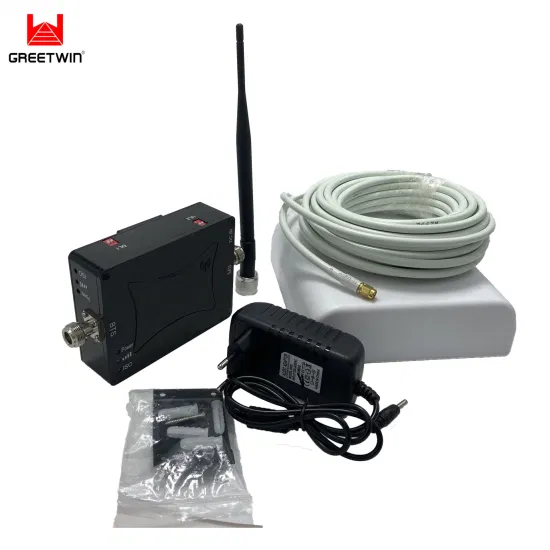

A Full Set Of Package:
1)1pcs*signal booster
2)1pcs*indoor antenna
3)1pcs*outdoor antenna
4)1pcs*power adapter
Parameter
1)1pcs*signal booster
2)1pcs*indoor antenna
3)1pcs*outdoor antenna
4)1pcs*power adapter
Parameter
Preview
Preview
Installation Instructions
The booster is fixed onto the wall through expansion bolts.
A.Drill holes in the selected place and install expansion bolts.B.Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.C. Place the booster on and fasten it.D. Connect cables and power cables to the booster respectively.E. After installing the booster as described above, power on the booster to check the operation status.

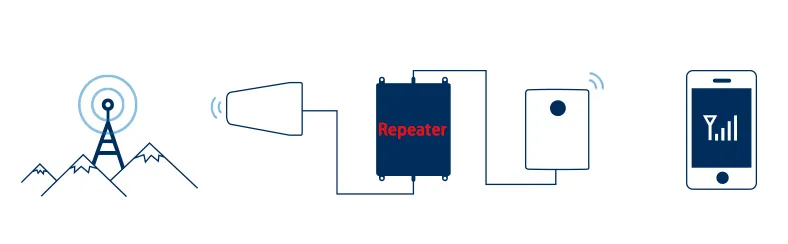

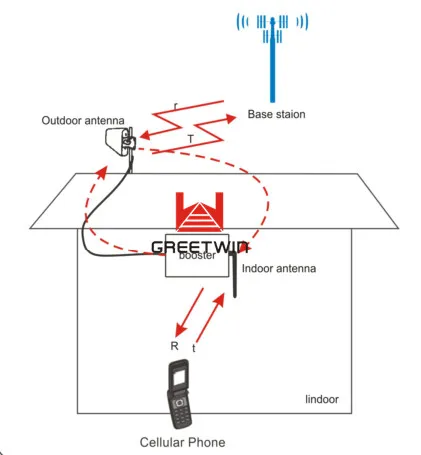

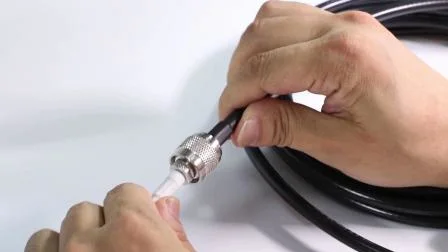

Connection:
A.BTS Port: donor antenna cable is connected with Outdoor Port;
B.MS Port: service whip antenna is connected with Indoor Port;
C.DC IN: connected with Power adaptor.
The booster is fixed onto the wall through expansion bolts.
A.Drill holes in the selected place and install expansion bolts.B.Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.C. Place the booster on and fasten it.D. Connect cables and power cables to the booster respectively.E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A.BTS Port: donor antenna cable is connected with Outdoor Port;
B.MS Port: service whip antenna is connected with Indoor Port;
C.DC IN: connected with Power adaptor.
Preview
Preview
FAQ
Preview
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by ****** Trade Assurance, the most favor, and security method.*Other methods please
Contact
Q1.Payment MethodT/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by ****** Trade Assurance, the most favor, and security method.*Other methods please Contact us with more details.
us with more details.
Q2.Delivery Date&Lead Time
*Click
it to get the
sample.
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/GSM/CDMA/DCS/AWS/PCS/WCDMA/LTE,etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to
C
ontact
Please feel free to Contact
us with your inquiry, we will find the frequency you need and address your problems.
us with your inquiry, we will find the frequency you need and address your problems.

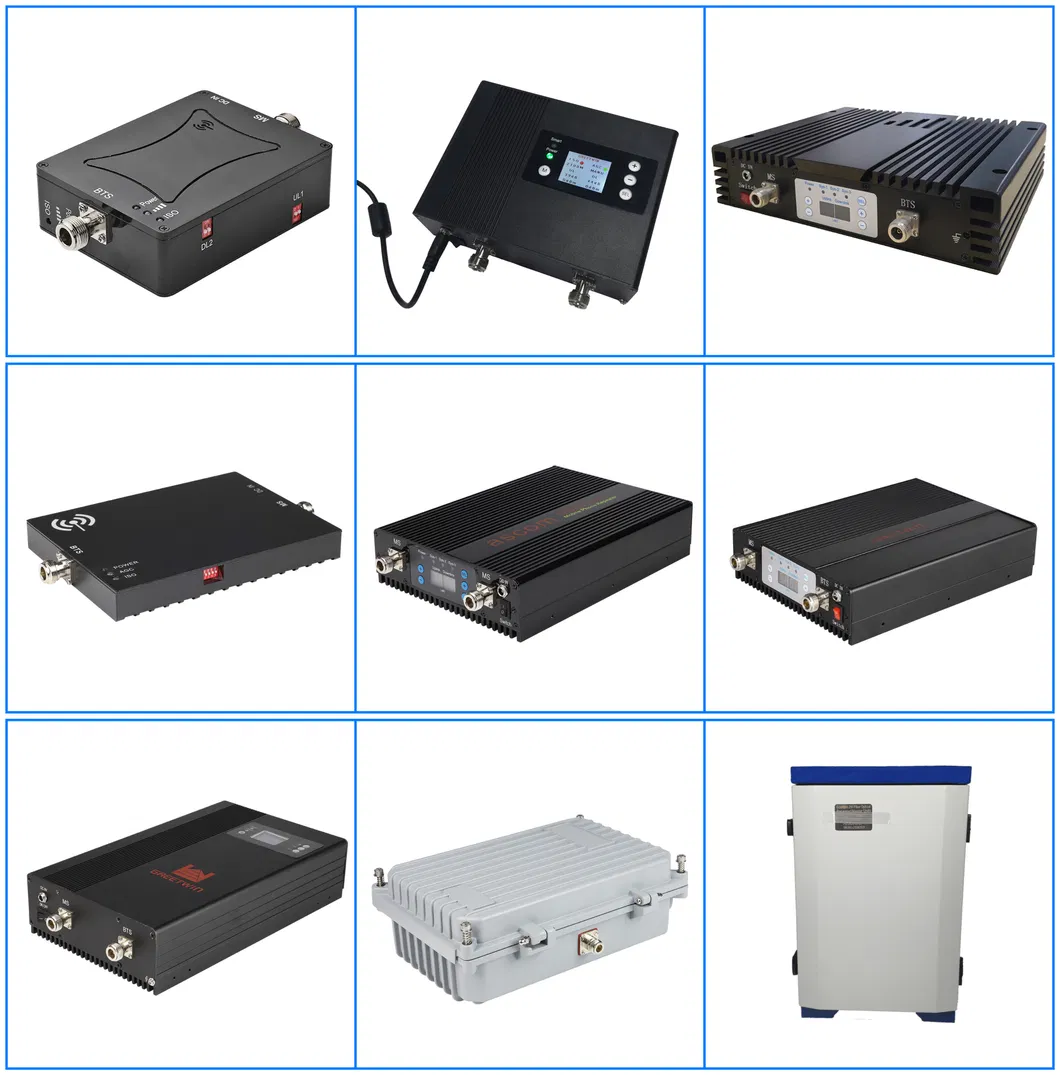

Other Signal Repeater
More signal repeater please CLICK it!
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by ****** Trade Assurance, the most favor, and security method.*Other methods please
Contact
Q1.Payment MethodT/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by ****** Trade Assurance, the most favor, and security method.*Other methods please Contact us with more details.
us with more details.
Q2.Delivery Date&Lead Time
*Click
it to get the
sample.
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/GSM/CDMA/DCS/AWS/PCS/WCDMA/LTE,etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to
C
ontact
Please feel free to Contact
us with your inquiry, we will find the frequency you need and address your problems.
us with your inquiry, we will find the frequency you need and address your problems.
Other Signal Repeater
More signal repeater please CLICK it!
