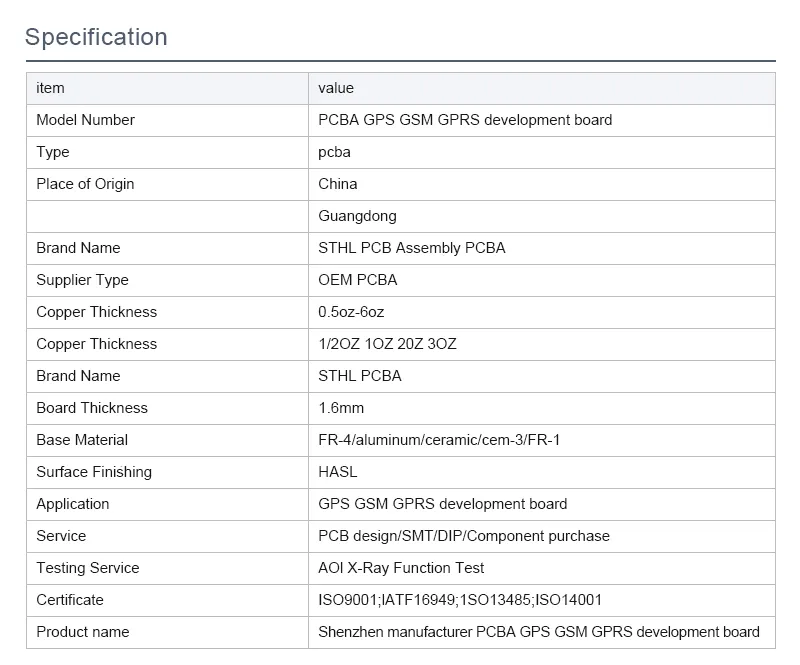

WHY CHOOSE STHL PCBASpecification

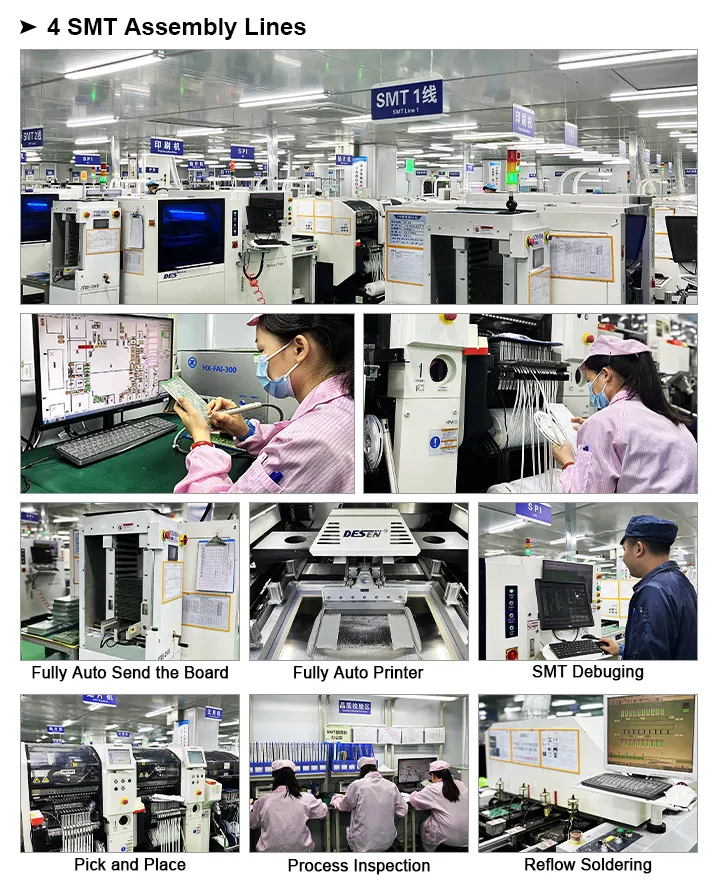

SMT Workshop
:Quality System:
1. ISO-9001:2015 Quality System Standard
2. Quality Standard: IPC-610-D class 2,
3. Soldering Standard: J-STD-001 class 1,2,3
4. ESD Standard: ESD-MIL-STD-1686
5. Workshop management:5S
6. FAI-first article inspection
7. In process visual inspection
8. AOI inspection
9. Machine calibration and preventative maintenance
10. ERP material and process management ( ERP=enterprise resource planning computer system)PCBA Testing and maintenance department
STHL provide custom test service according to client's requirements and products. Usually STHL PCBA Tech
offers a full range of testing service. Including:
*AOI(Automatic Optical Inspection)
* Function Testing
* In Circuit Testing
* Testing Jig
* Testing Service
* X-Ray for BGA Testing
* Printing Solder Paste Test

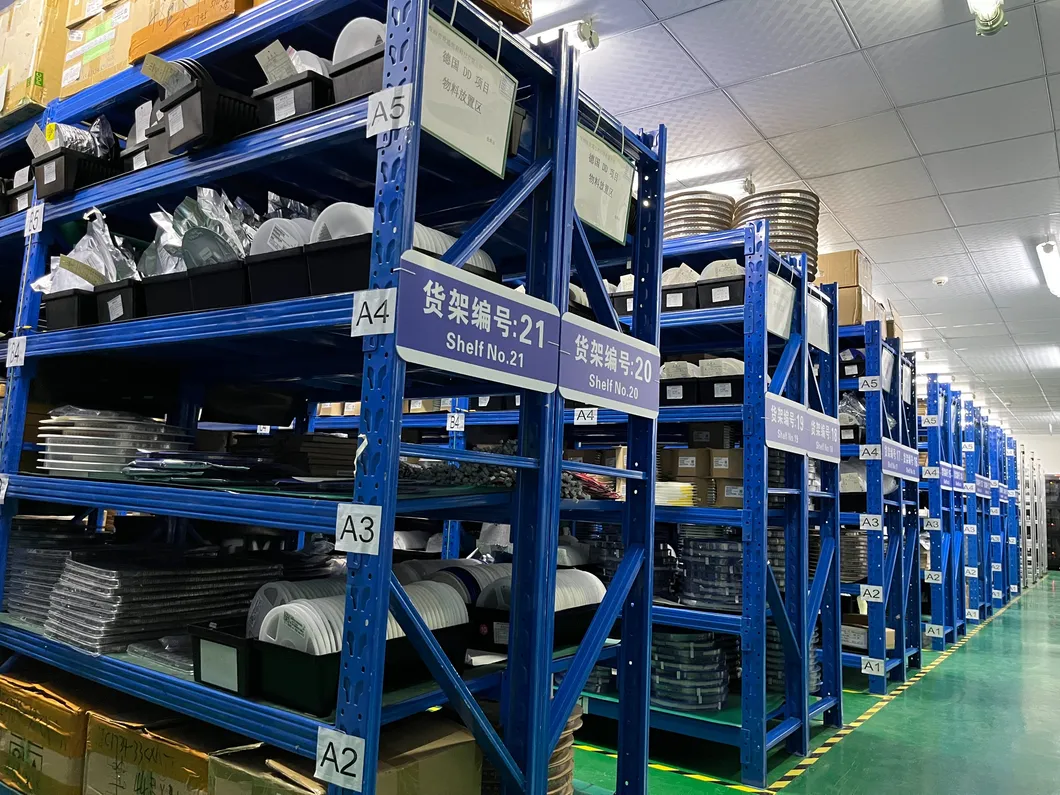

Each PCBA board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested. Flash testing and earth bonding tests can also be undertaken where required.Warehouse

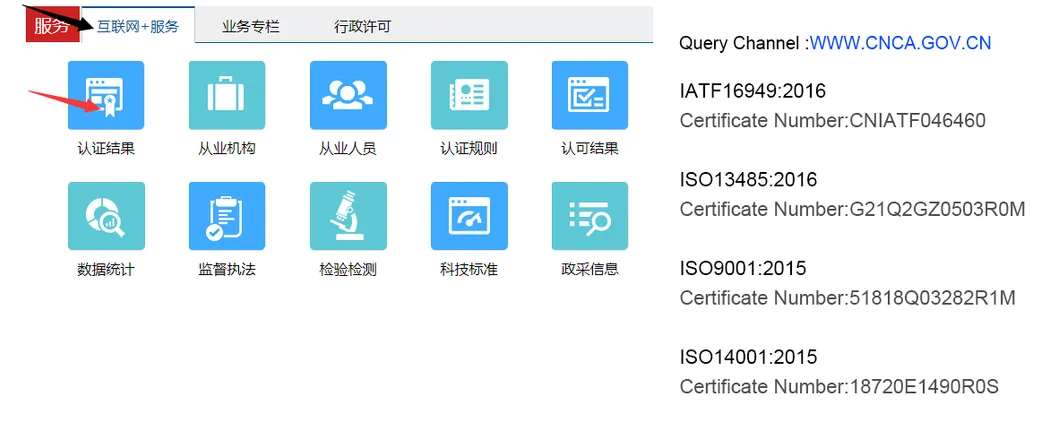

Customer Visit:CERTIFICATION
STHL PCBA is a combined company with 200 employees; it was established in 2006 located in 2nd Floor,
B4 building, Anle Industrial zone, Hangcheng Av. , Gushu ,Xixiang Town,Bao'an District ,
Shenzhen ,Guangdong , 518126 China. ,the company occupies an area of 2000 square meters ,
STHL PCBA has passed ISO9001:2008 Certification in 2012 , and pased ISO9001:2015 Certification in

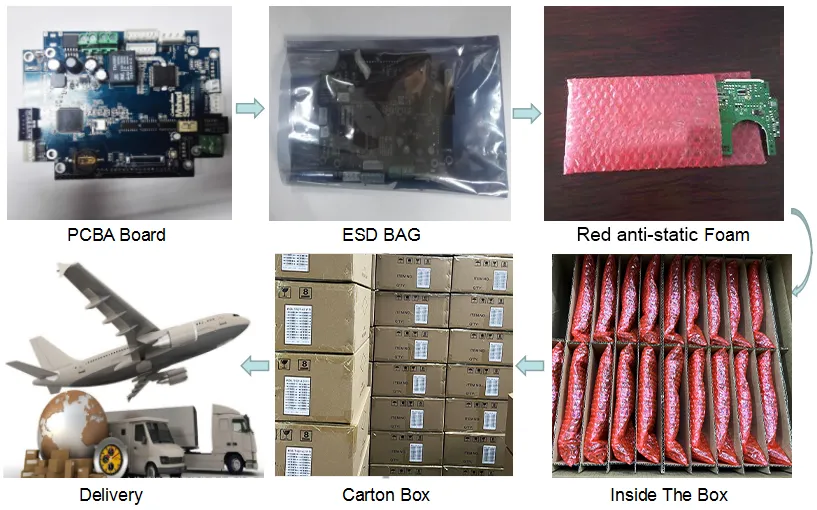

2018. They have successful foreign trading experience in Europe , North America and South America.PACKING AND SHIPPING
1.High quality shockproof packaging. Inside: Red or white blister+card board; Outside:carton.2.Depends on Customer's require, STHL PCBA offfer economical fast forwarder.FAQ
Q1.What is needed for quotation?
A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.Q4. MOQ?
A: There is no MOQ in STHL PCBA. We are able to handle Small as well as large volume production with flexibility.Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.Q6. Do you accept process materials supplied by clients?
A Yes, we can provide component source, and we also accept component from client.Fr4 1.6mm PCB Android Phone PCB Android Phone PCB
