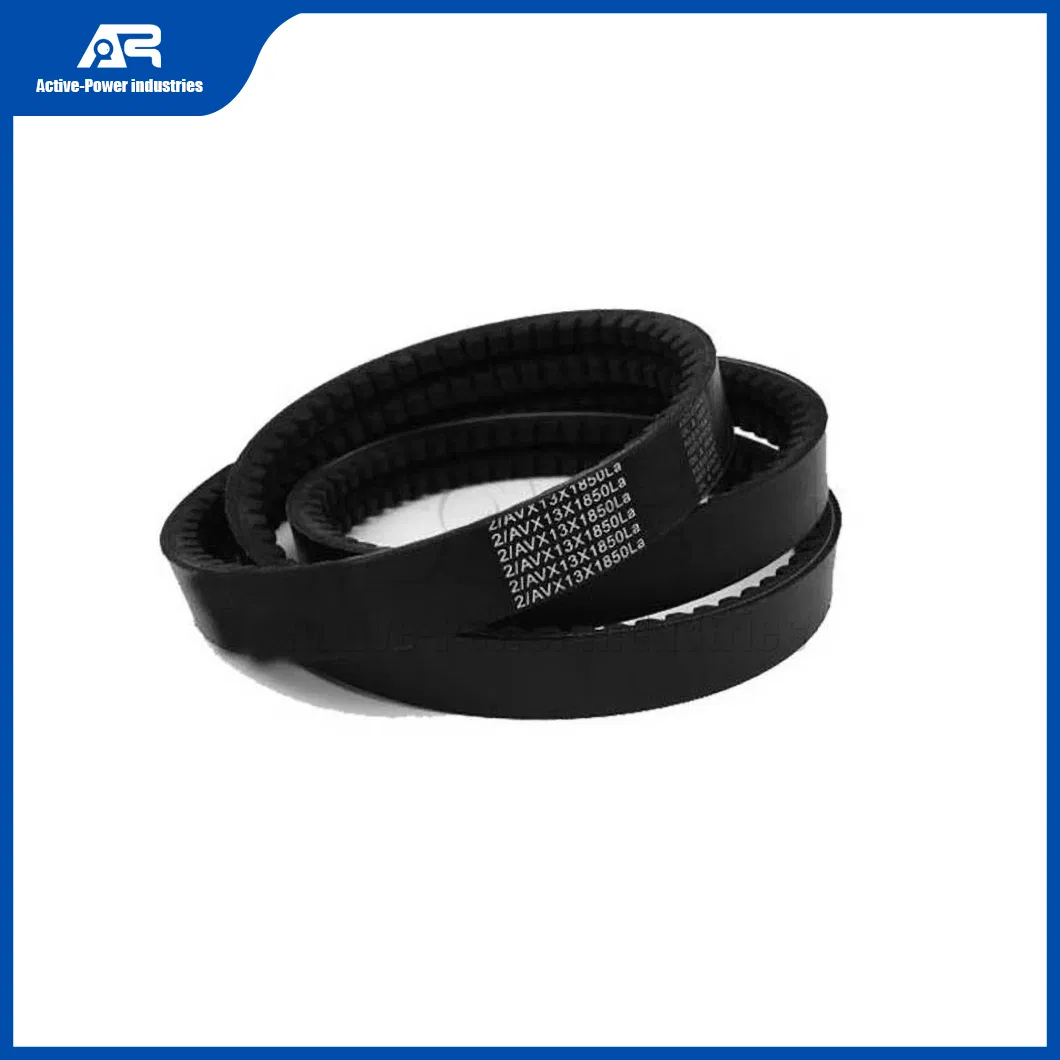

ACTIVE-POWER Industrial V Belts China Manufacturing AV10X AV13X AV15X AV17X AV22X R5 Series Cogged Raw Edge Belt For Bus

Raw Edge V-BeltsThe Ordinary Raw Edge V-Belts have the Advantages Of Large Transmission Power, Long Service Life, Small Performance Fluctuation, Oil Resistance, Heat Resistance, Wear Resistance, And High Transmission Efficiency. It Is Widely Used In Cooling Fans, Water Pumps, Compressors, Etc. Of Automobile Engines. Power Transmission Ensures Safe Performance Even At High Speeds.The trimmed standard triangular belt meets the GB 1171 standard and meets the strict transmission requirements.

What is a V-Belt?A V-Belt Ls is A Flexible And Efficient Power Transmission Device Capable Of transferring From One Shaft To Another, it
is Known For shaping securely into the Sheaves Of the Shaft. The Unique Shape Of V Belts Helps Them FitTightly And Snugyinto The Grooves Of The Sheave, Giving Them Additional SurfaceContact And Increased Stability.

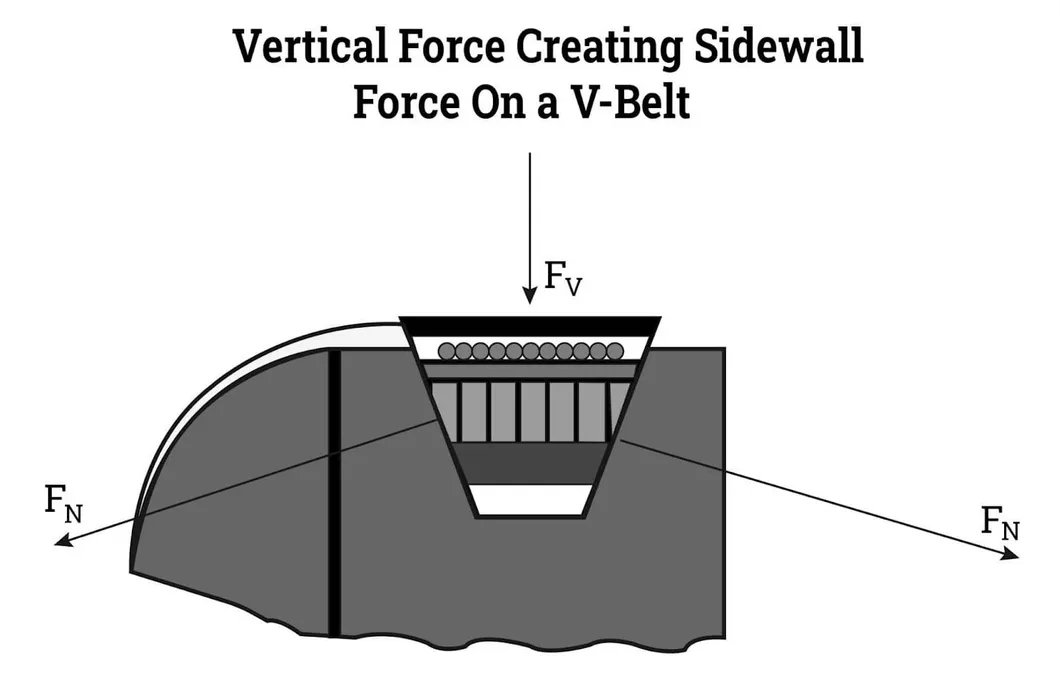

When There is belt Tension, Vertical Forces Perpendicular To The Top of the Vbelt Push Lts links against The Grooves Of The Sheave. As The Forces Increase, TheBeltwedges Tightlyinto The Sheave Grooves, Which Increases The Friction BetweenThe Surfaces Ofthe Belt And The Sheave Walls, The Ever-Growing Connection Allows AHigher Torque To Be Transmitted, While The Increased Friction Minimizes The Loss OfPower Through Slippage.

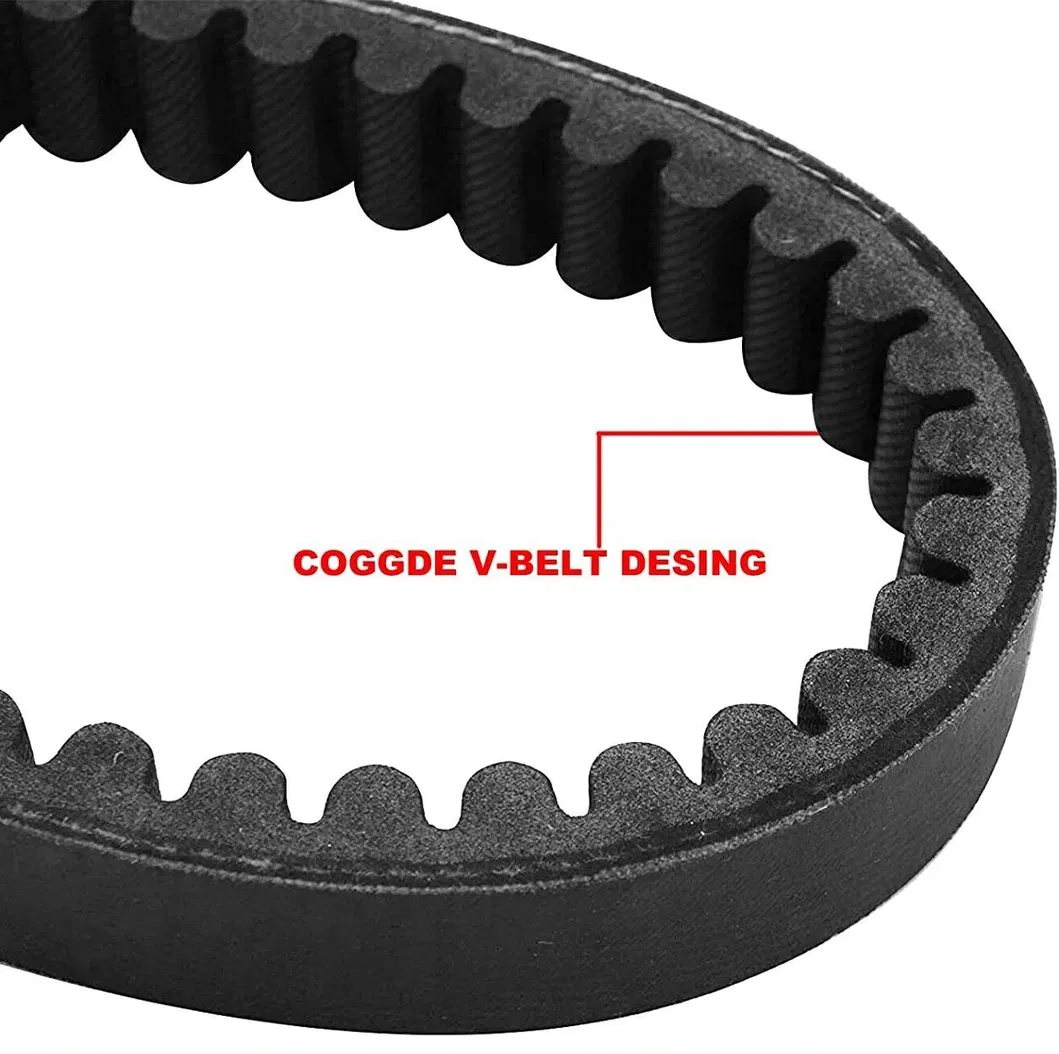

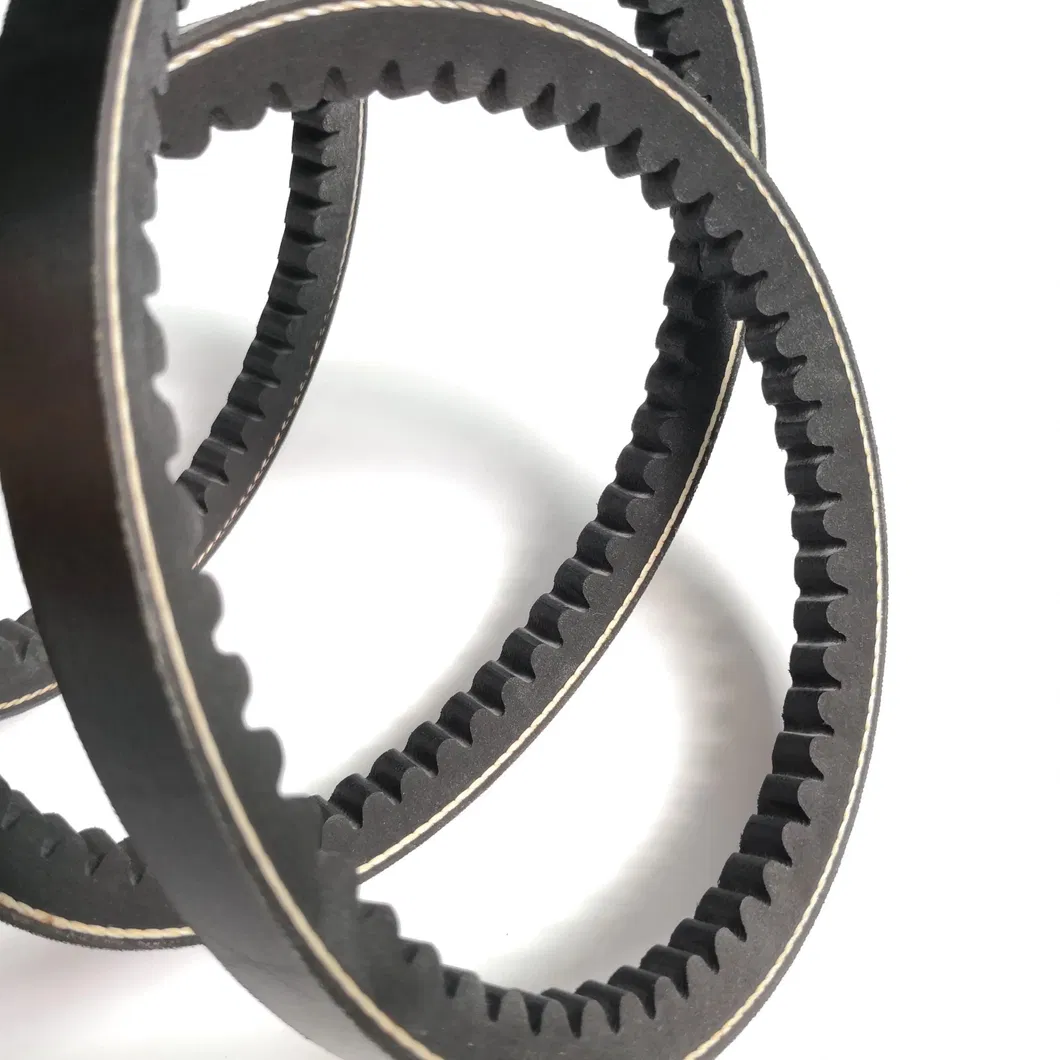

The Gear Shape At The Bottom Of The Belt Increases Flexibility And Extends Its Service Life.

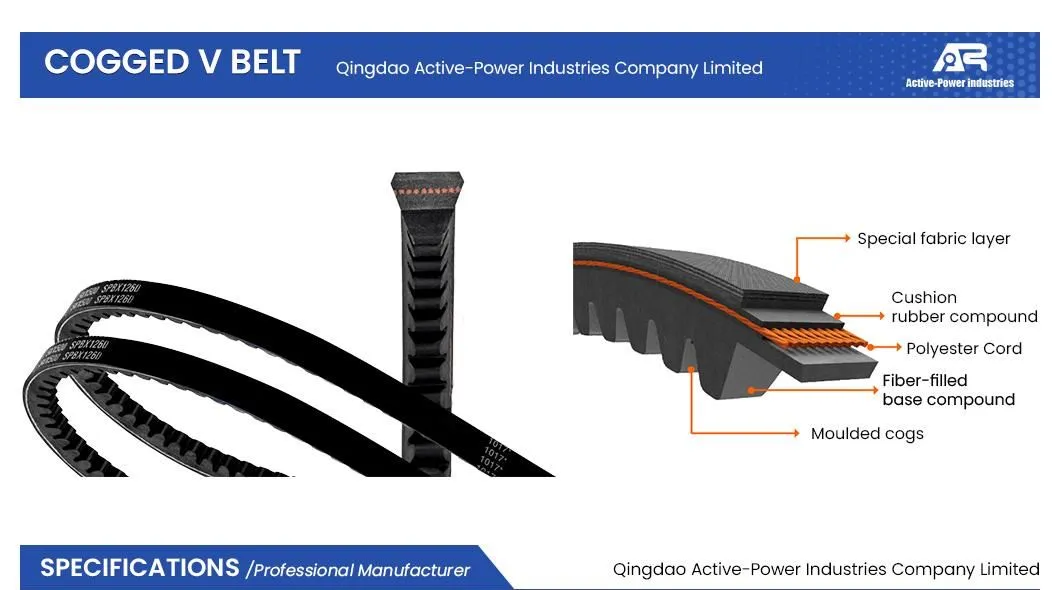

The Cut-Edge Toothed V-Belt Has A Strong Tooth System Structure That Can Accurately Fit The Pulley Groove, Exhibits Excellent Wear Resistance To Side Pressure, And Exhibits Excellent Flexibility, Thus Transmitting Power More Efficiently.
The Resulting Enhanced Transmission Capability Reduces Considerable Costs In Energy Consumption.

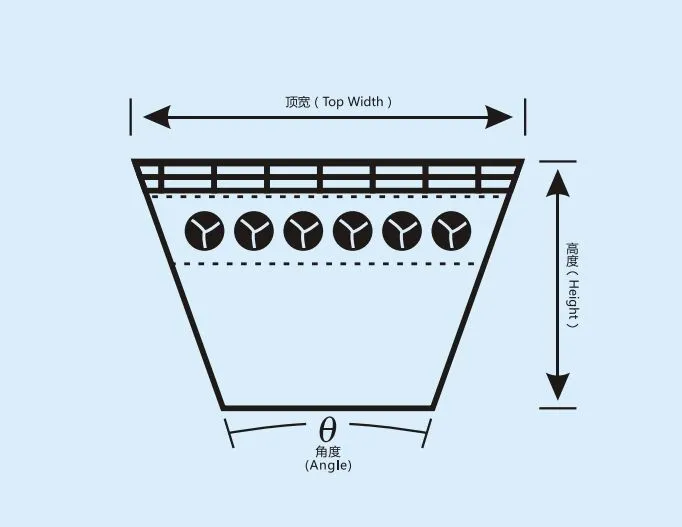

Product Parameters

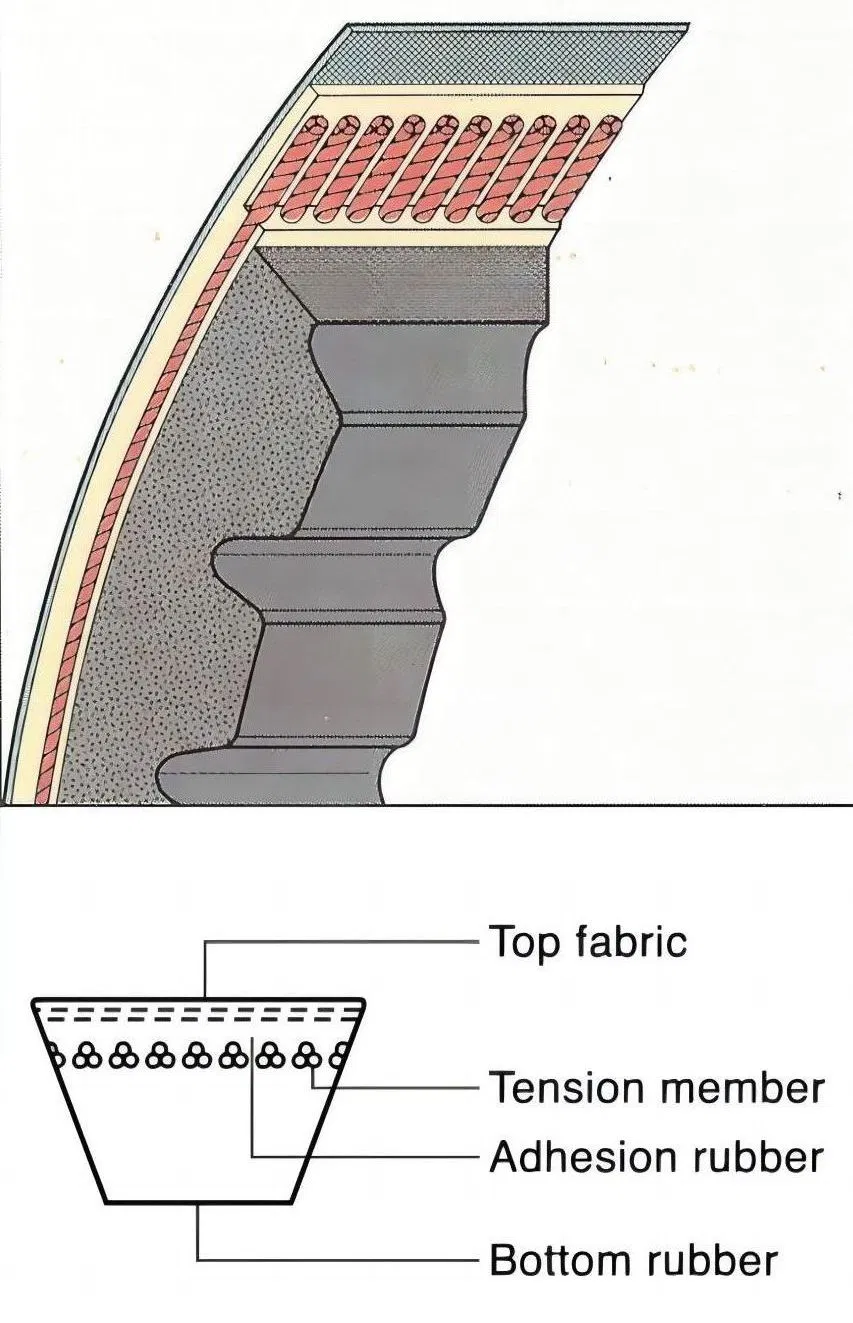

A .
Cover Fabric
The cover is abrasion-resistant.
flexible and provides a firm grip on the sheaves to minimize slippage during use. It is woven from several plies of yarn.
rubber treated for maximum adhesion and protects the contents from the elements and static build-up under adverse usage conditionsB . Adhesion Rubber
The Adhesion rubber binds the tensile cord. fabric cover and compression rubber to prevent separation of the belt components during useC.
Tension Cord
The tensile cord is the power transmission element within the belt cord and is wound around the belt in an uninterrupted spiral for enhanced tensile strength.
the cords are twisted in various configurations to match the load application and pre-stretched before belt assembly for length stabilization and minimum stretch during useD.
Compression Rubber
The compression rubber provides support for the load-carrying tensile cords while dissipating heat generated from belt use.
It is formulated to be resistant to flex cracking and compression fatigue

Characteristic1.Temperature range - 30~80 °C.
2.The service life under normal conditions is more than 60,000 kilometers
3.Complete product specifications.
Our Advantages

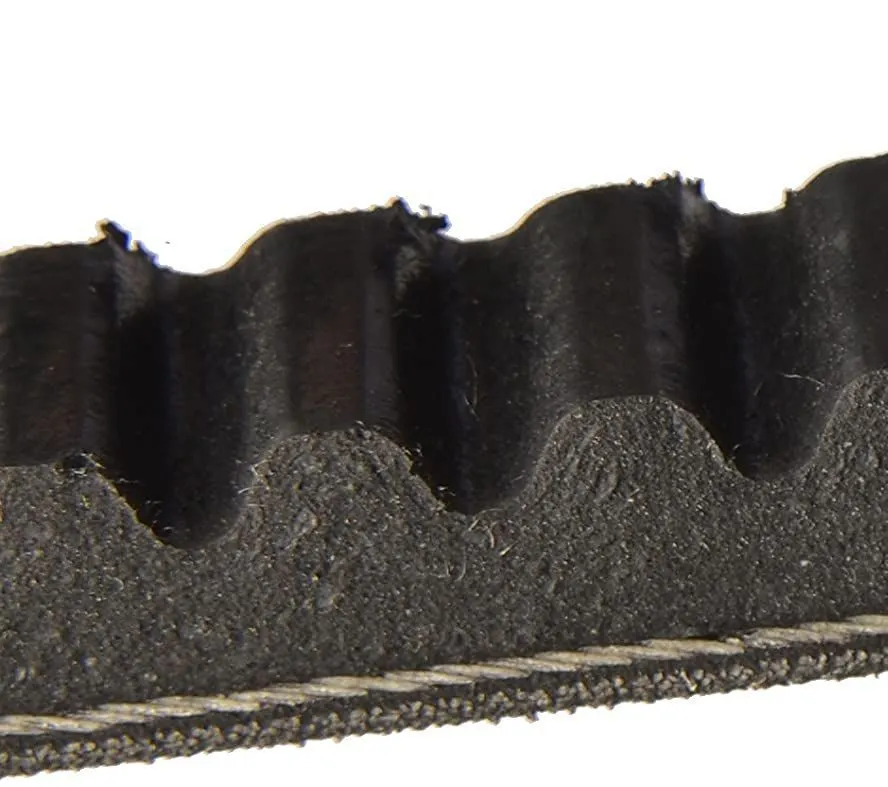

Notches reduce bending stress, allowing the belt to wrap more easily around small-diameter pulleys and allowing better heat dissipation. Excessive heat is a major contributor to premature belt failure.

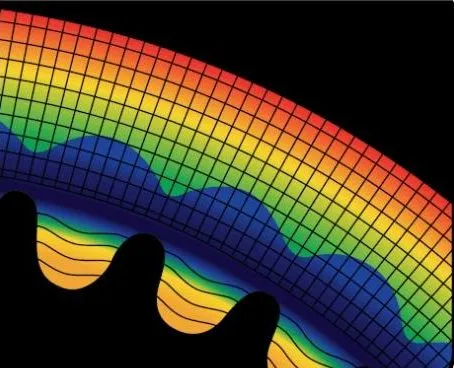

Bending stress (red area) is evenly distributed in a well-engineered notched v-belt, while the tensile cord (between red and yellow bands) remains well supported, all without sacrificing flexibility.

The raw edge design reduces bending resistance and friction, leading to improved power transmission efficiency.
This results in less energy loss during operation, which can contribute to fuel efficiency and overall performance in automotive applications.

Engineering a notched belt is a balancing act between flexibility, tensile cord support, and stress distribution.
Precisely shaped and spaced notches help to evenly distribute stress forces as the belt bends, thereby helping to prevent undercard cracking and extending belt life

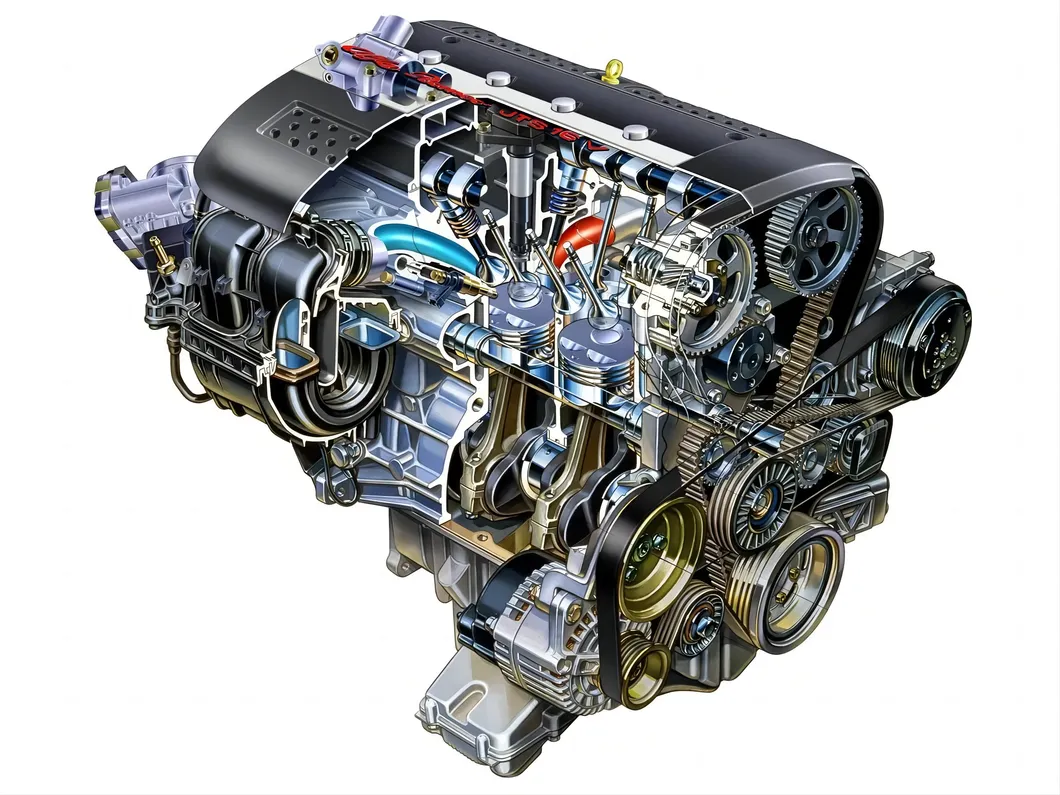

Automotive raw edge V-belts are versatile and suitable for a variety of automotive systems, including engine accessory drives, air conditioning compressors, power steering systems, and more. They provide reliable performance across different vehicle models and operating conditions.

QingDao Active - Power Industries Company Limited, Is One Of The Largest Trading Companies In China Dealing With All Kinds Of Rubber Products, PVC Products, And Bearing.We Own A Good Management System To Guarantee High Quality, Prompt Delivery, And Reliable Service To Our customers from America, South America, Europe, And The world.We Have More Than 15 Years Experiences To Manufacture And Export Our Products. We Have A Very Good Team To Process Each Order Professionally, TO Avoid Potential Problems With Our Customers. Our Engineers Are Efficient And Professional To Handle All Of This. We Also Supply Special Products According To The Client Enquire.We Can Provide The Perfect Service T Our Clients Whatever Mass Of Order Or A of orders or A Spot Of Orders. We Can Consolidate a Different Kind Of Goods In One Container And Ship It To You.

Q1. What Is Your Terms Of Packing?
A: Generally, We Pack Our Goods In Neutral White Boxes And Brown Cartons. If You Have a Legally Registered Patent, We Can Pack The Goods In Your Branded Boxes After Getting Your Authorization Letters.Q2. What Is Your Terms Of Payment?
A: T/T 30% As Deposit, And 70% Before Delivery. We'll Show You The Photos Of The Products And Packages Before You Pay The Balance.Q3. What Is Your Terms Of Delivery?
A: EXW, FOB, CFR, CIF, DDU.Q4. How About Your Delivery Time?
A: Generally, It Will Take 10 To 20 Days After Receiving Your Advance Payment. The Specific Delivery Time Depends
Q5. Can You Produce According To The Samples?
A: Yes, We Can Produce By Your Samples Or Technical Drawings. We Can Build The Molds And Fixtures.Q6. What Is Your Sample Policy?
A: We Can Supply The Sample If We Have Ready Parts In Stock, But The Customers Have To Pay The Sample Cost And The Courier Cost.Q7. Do You Test All Your Goods Before Delivery?
A: Yes, We Have 100% Test Before Delivery
