LRDS Linear Resistance Displacement Sensor
Description
L
RDS
linear displacement sensor is made of aluminum alloy and has good environmental adaptability. Its linearity is less than 1% and its detection accuracy is up to 0.1 mm. When the input voltage is 5VDC, the output signal is 0 ~ 5V. When in use, as long as the sensor body is fixed on the reference object and its measuring rod spherical plain bearing is fixed on the measured point, the relative displacement between objects can be directly measured. It is also widely used to measure a variety of physical quantities (converted into displacement in advance), such as tension, pressure, vibration, liquid level and so on.
Features
High reliability and long service life
High resolution and sensitivity
High linearity and good repeatability
Wide measurement range
Specifications

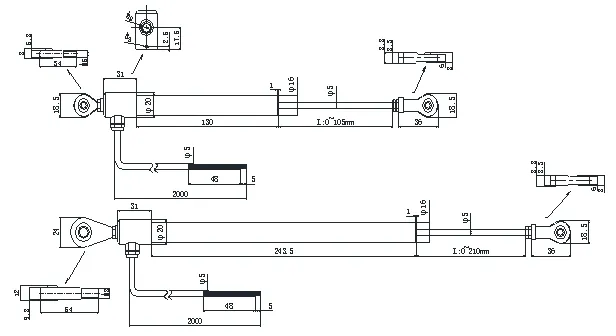

Sensor Order Number and Dimension
Ordering code of linear resistance displacement sensor

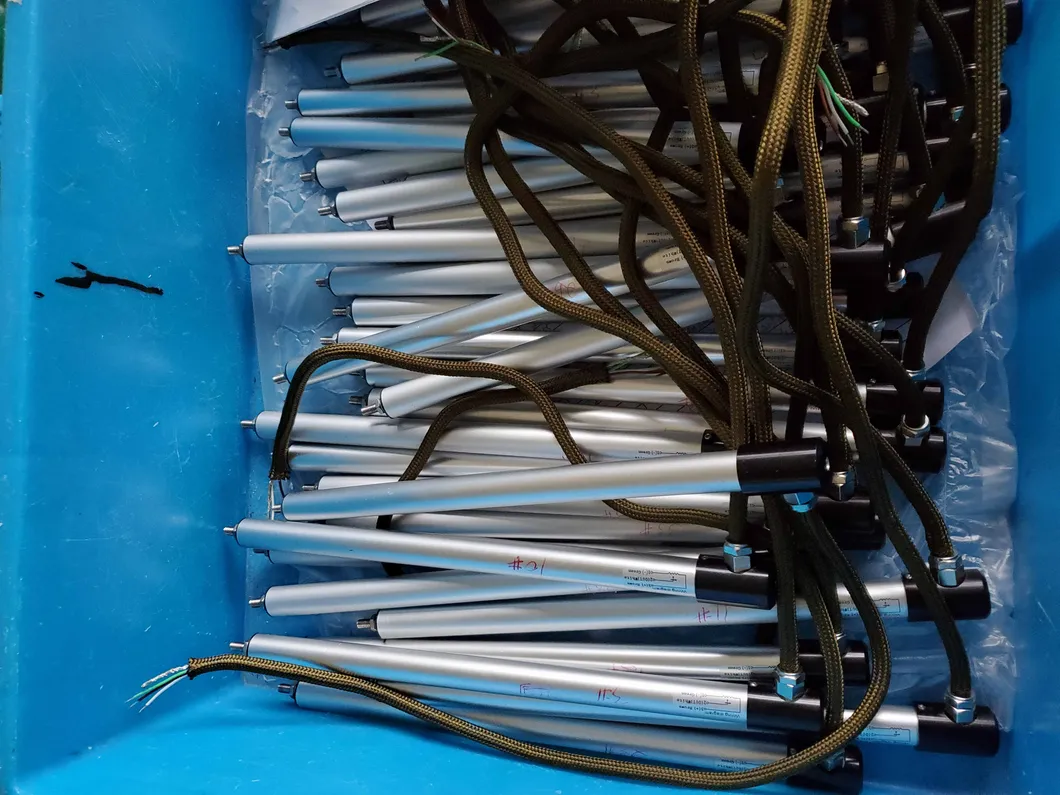

Photos
