基本信息
| 型号编号 | CB-RRJ50 |
| 加工过的材料 | 泡沫 |
| 塑料类型 | EPS |
| 螺丝 | 单螺杆 |
| 自动化 | 自动化 |
| 电脑化 | 计算机化的 |
| 认证 | ISO9001:2008质量体系认证 |
| 进料入口尺寸 | 650毫米×400毫米 |
| 螺钉直径 | 138毫米 |
| 螺钉长度 | 1090毫米 |
| 螺钉转速 | 165转/分 |
| 工作中心高 | 250毫米 |
| 加热功率 | 3千瓦 |
| 驱动电机功率 | 7.5千瓦 |
| 筛孔直径 | 40毫米 |
| 叶片的旋转直径 | 250毫米 |
| 刀片数量 | 12件 |
| 总体尺寸 | 1200*1000*1400mm |
| 重量 | 800公斤 |
| 运输包 | 木箱和塑料薄膜 |
| 规格说明 | 每小时50公斤 |
| 商标 | CONBOPLAS |
| 起源 | 张家港 |
| 商品编码 | 84778000 |
| 生产能力 | 每月30套 |
| 包装尺寸 | 一千厘米乘以一千厘米乘以一千厘米。 |
| 包装总重量 | 1000.000千克 |
| 包装尺寸 | 一千厘米乘以一千厘米乘以一千厘米。 |
| 包装总重量 | 一千千克 |
产品详情

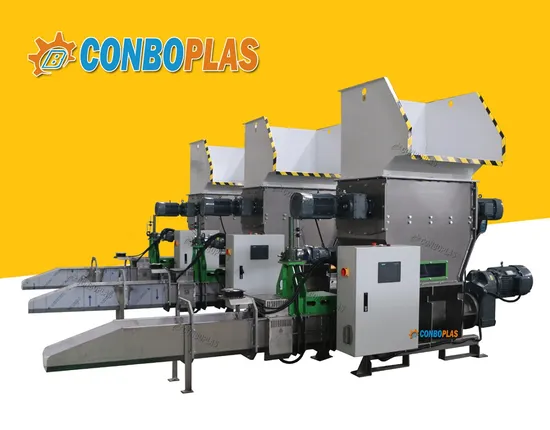

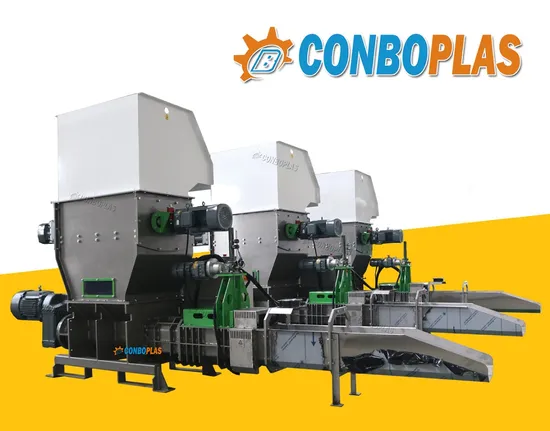

50kg/h 100kg/h 150kg/h 200kg/h plastic EPS XPS PS EPE Foam Board Box Hot Melting Machine
Preview
Product Description
Preview
This hot melting machine is used for the bigger size waste recycling center, the EPS, EPP, EPE material can all treated by this unit, and the space of the waste material can be reduced 80%-90%. Processing multiple materials-packing box, containers, foaming box.
Features
This device uses a single axis crushing blade, the blade fixed on the shaft, and the blade on the shaft is dislocated. The blade is evenly arranged on the blade shaft in the same direction. When the crusher blade is working, it is broken into smaller pieces by cutting blades. The material will be pushed from a high -speed rotation screw to the heating cylinder. The screw of the host can be transported and heated, so that it can reach the hot melt state, and then squeeze out and cut it into pieces one by one through a hydraulic cutting knife, which is more convenient for storage and transportation.
Product Parameters
Features
This device uses a single axis crushing blade, the blade fixed on the shaft, and the blade on the shaft is dislocated. The blade is evenly arranged on the blade shaft in the same direction. When the crusher blade is working, it is broken into smaller pieces by cutting blades. The material will be pushed from a high -speed rotation screw to the heating cylinder. The screw of the host can be transported and heated, so that it can reach the hot melt state, and then squeeze out and cut it into pieces one by one through a hydraulic cutting knife, which is more convenient for storage and transportation.
Product Parameters
Preview

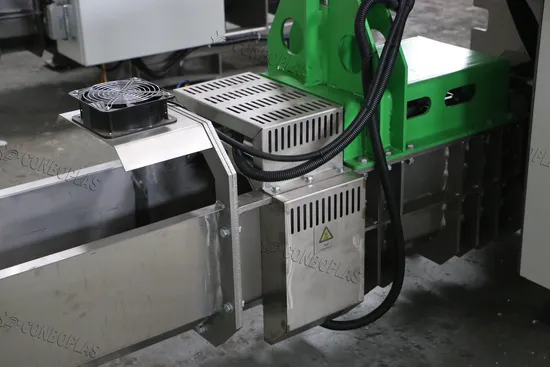

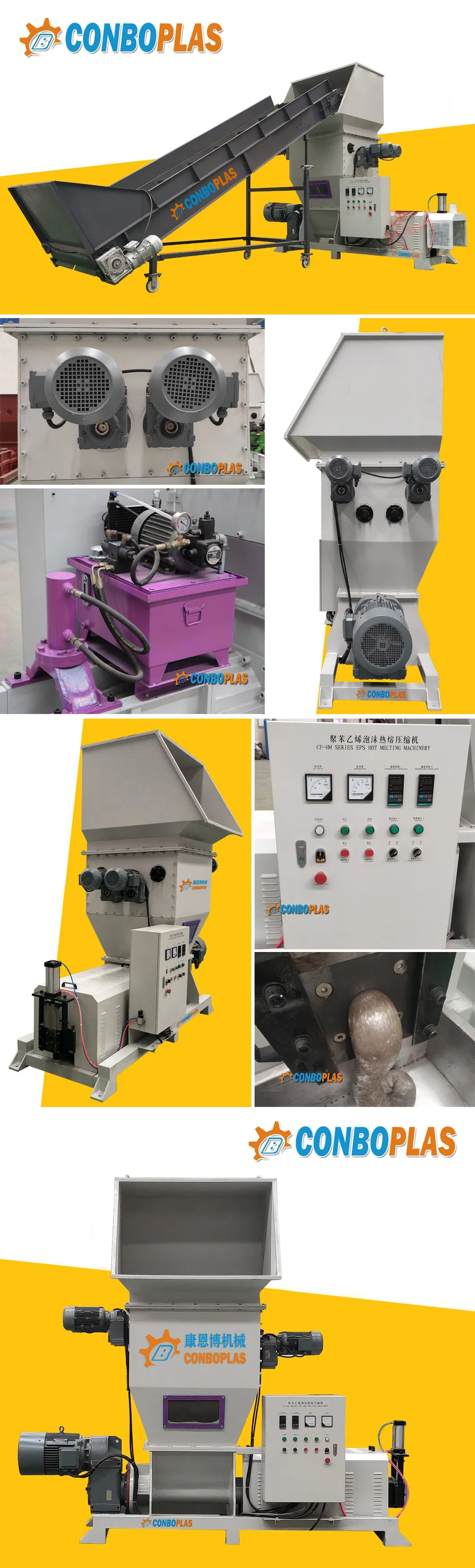

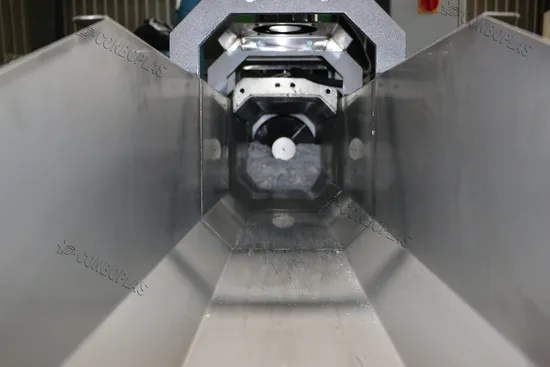

Detailed Photos
Preview
Preview
Certifications
Preview
Preview

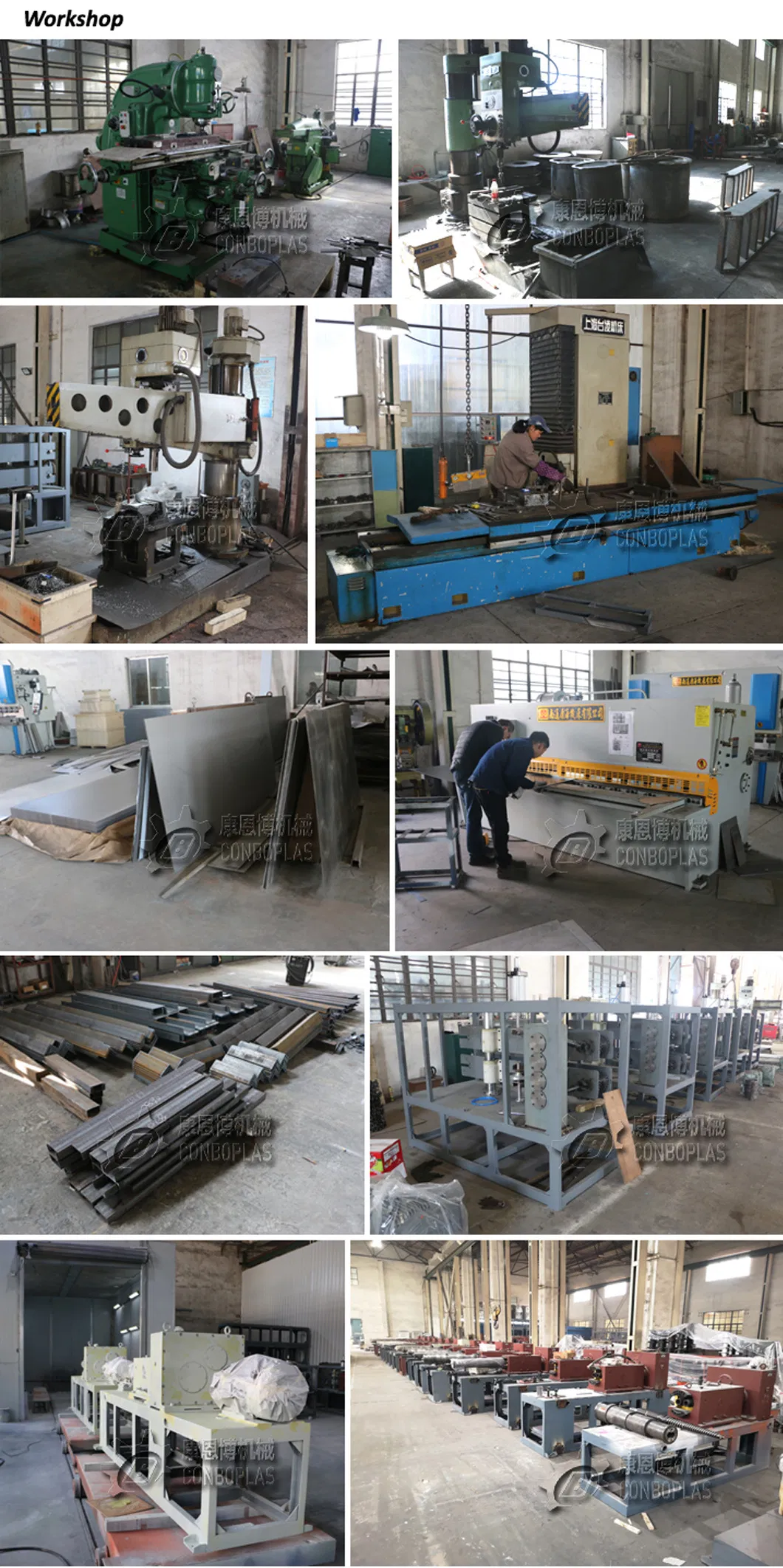

Machining Equipment
Preview
Preview

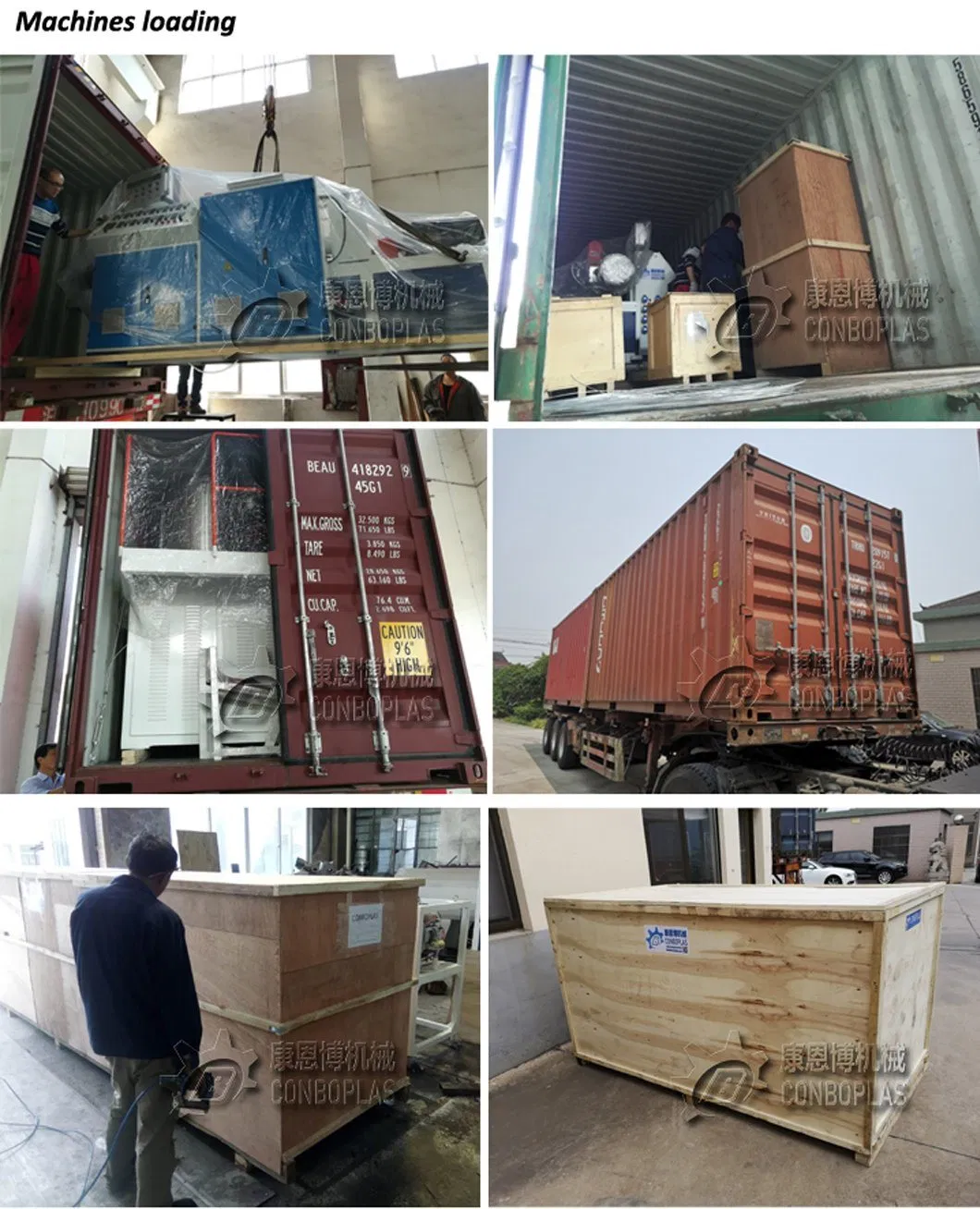

Packaging & Shipping
Preview
Preview
FOR FURTHER DETAILS, PLS FEEL FREE TO CONTACT US. THANKS!
