基本信息
| 型号编号 | 150毫米 |
| 标准 | DIN：德国工业标准。 ASTM：美国材料与试验协会。 |
| 山灵（音响公司） | 投掷 |
| 特性 | 耐腐蚀性 |
| 材料 | 金属 |
| 氮化硬度 | Hv900或以上 |
| 正直 | 每米0.015毫米 |
| 铬镀层厚度 | 0.02毫米至0.085毫米 |
| 申请材料 | PP、PE、ABS、as、PS等 |
| 定制 | 是的 |
| 应用程序设备 | 高压聚乙烯(HDPE)、低压聚乙烯(LDPE)、聚丙烯吹膜 |
| 材料选择 | 38crmoaia、SKD11、SKD61、不锈钢 |
| 备件类型 | 挤出机 |
| 适用行业 | 制造厂，机械修理厂 |
| 表面处理 | 氮化处理与双金属处理 |
| 单面厚度 | 1.5-2毫米 |
| 表面硬度 | HRC52-55 |
| 接合系统 | 完全内啮合 |
| 生产能力 | 每月150套 |
| 尺寸 | 定制的 |
| 运输包 | 木制箱 |
| 规格说明 | 直径为50毫米 |
| 商标 | 瀚视 |
| 起源 | 中国上海 |
| 商品编码 | 84778000 |
| 生产能力 | 十万 |
产品详情
Product Description
Preview
Customized PP PE PVC ABS PET Plastic Extrusion Single Screw And Barrel For Plastic Extruder Machine factory price
Product application
High speed single screw plastic extruder, strong torque, large thrust, high strength alloy steel gear and shaft superior performance, easy to operate, friendly control interface, high speed extrusion, high yield and high quality products, is a popular plastic processing machinery.
Product Parameters
Specification:
1) 38CrMoAlA(JIS SACM645)
2) 42CrMo(JIS SCM440)
3) 9Cr18Mov
4) CW6Mo5Cr4V2Characteristic
High quality alloy-steel
Heat-treatment
Nitriding treatment
Electroplated hard-chrome finish
Spray
bimetallic
coating
Depth of nitriding layer: 0.5~0.8mm
Nitriding hardness: 900~1000Hv
Nitriding brittleness: less than one grade
Surface roughness: Ra0.4
Straightness of screw: 0.015mm
Surface hardness of chromium plating after nitriding: greater than 950Hv
Chromium plating thickness: 0.025~0.085mm
Product application
High speed single screw plastic extruder, strong torque, large thrust, high strength alloy steel gear and shaft superior performance, easy to operate, friendly control interface, high speed extrusion, high yield and high quality products, is a popular plastic processing machinery.
Product Parameters
Specification:
1) 38CrMoAlA(JIS SACM645)
2) 42CrMo(JIS SCM440)
3) 9Cr18Mov
4) CW6Mo5Cr4V2Characteristic
High quality alloy-steel
Heat-treatment
Nitriding treatment
Electroplated hard-chrome finish
Spray
bimetallic
coating
Depth of nitriding layer: 0.5~0.8mm
Nitriding hardness: 900~1000Hv
Nitriding brittleness: less than one grade
Surface roughness: Ra0.4
Straightness of screw: 0.015mm
Surface hardness of chromium plating after nitriding: greater than 950Hv
Chromium plating thickness: 0.025~0.085mm
Preview
Preview
Preview
Application
PVC wood plastic, PE wood plastic, ultra-high molecular plate, free brick plate, 1:2 above high calcium buckle plate, high calcium pipe, high calcium profile, soft PVC sheet, PVC foam board and other ordinary plastics, PP, PE, ABS, PVC, raw material granulation, production of pipe, profile, sheet and other products.
PVC wood plastic, PE wood plastic, ultra-high molecular plate, free brick plate, 1:2 above high calcium buckle plate, high calcium pipe, high calcium profile, soft PVC sheet, PVC foam board and other ordinary plastics, PP, PE, ABS, PVC, raw material granulation, production of pipe, profile, sheet and other products.
Preview

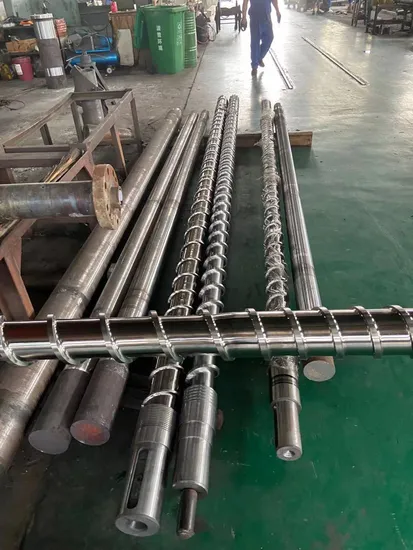

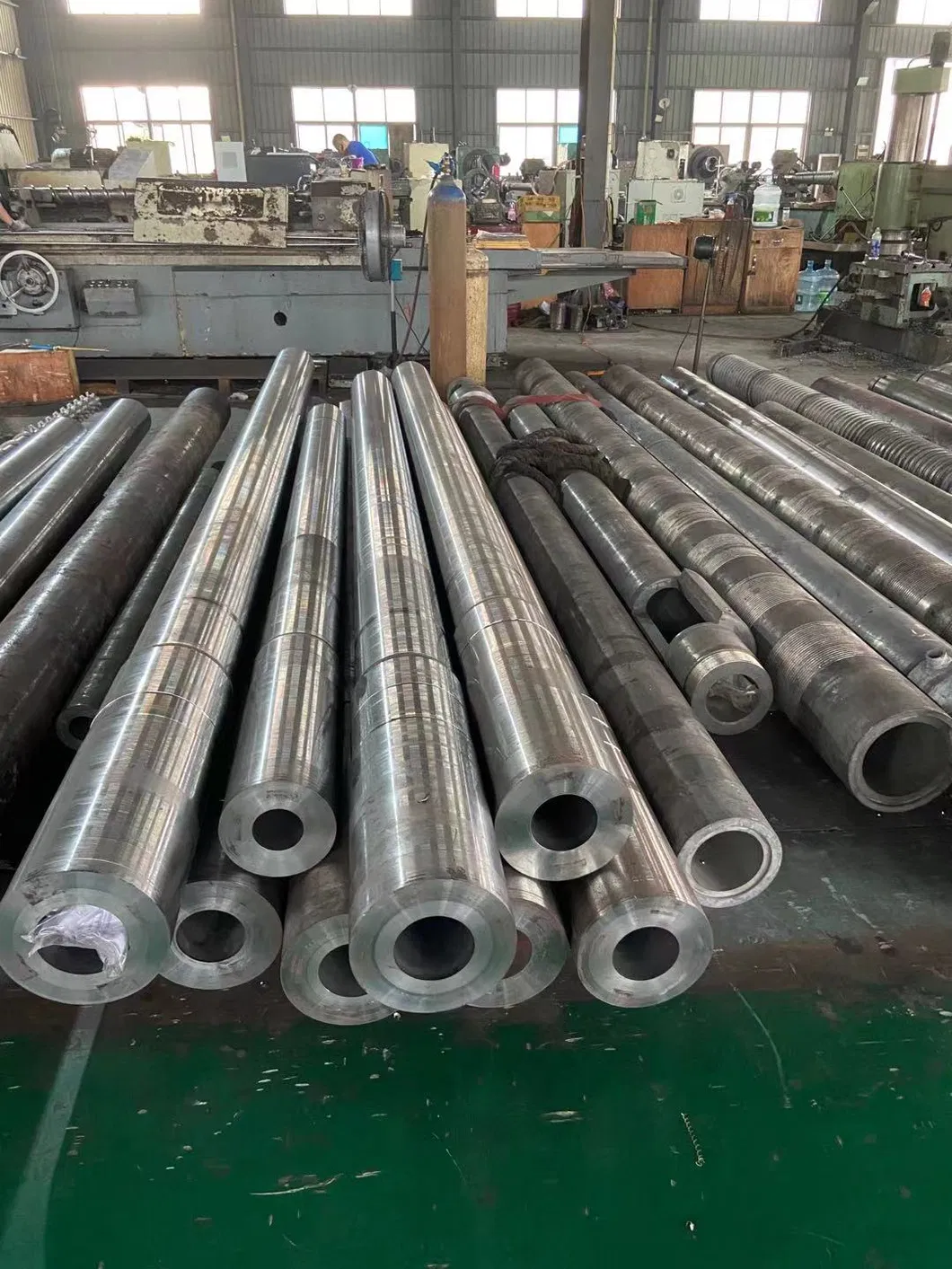

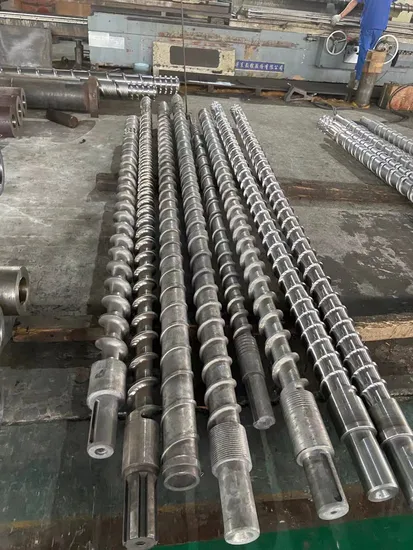

Detailed Photos
Preview

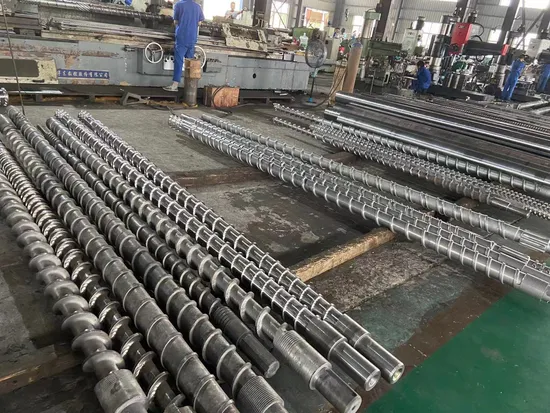

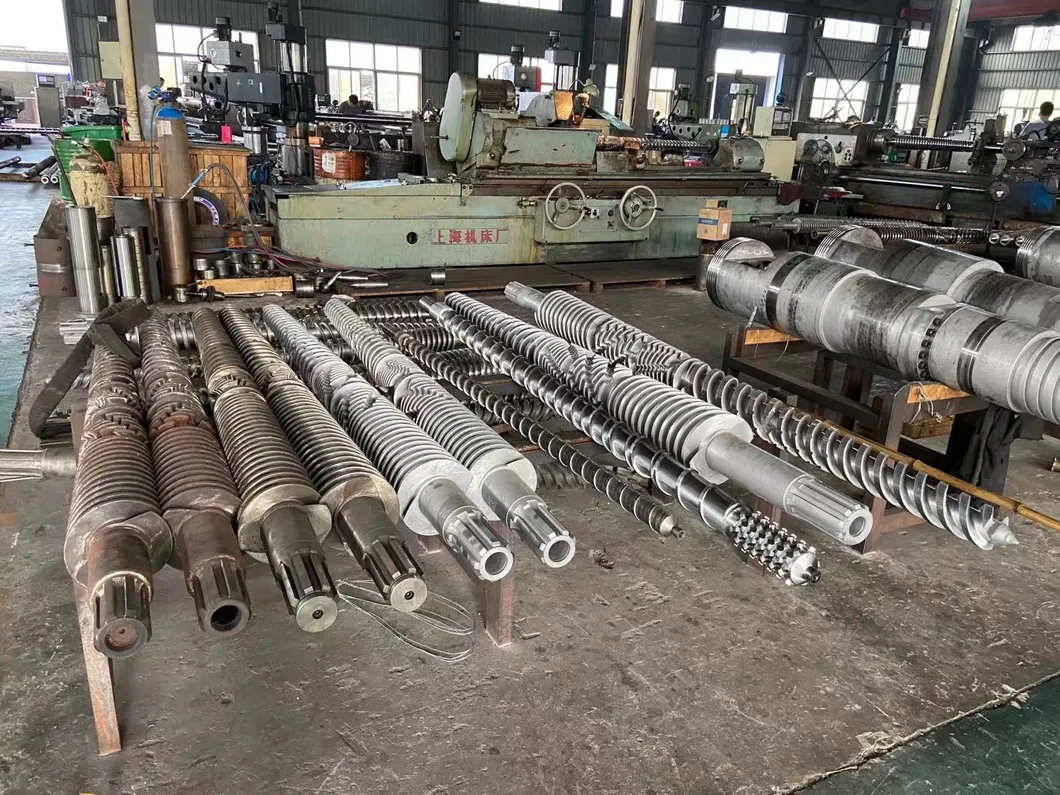

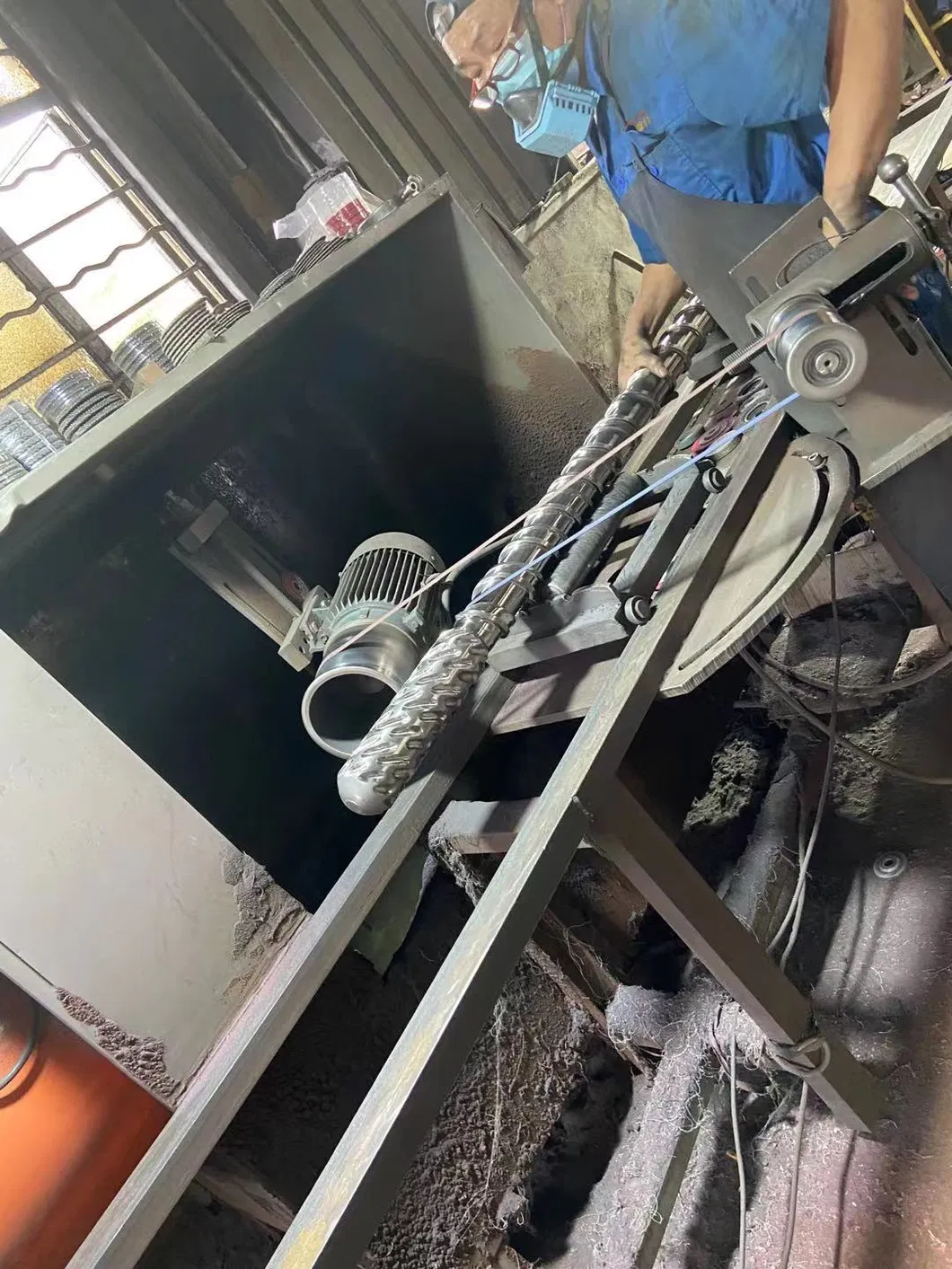

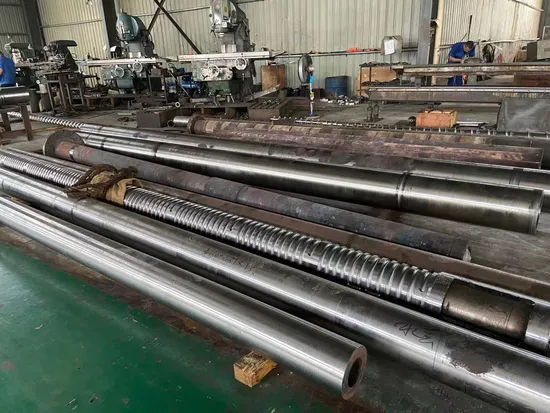

Factory picture
Preview
Preview
Packaging & Shipping
Preview
1)Packing: Wrapped up by film in wooden cases2)Port Departure: Ningbo Port3)Delivery time: 25 working days upon receipt of 30% deposit(days based on your quantity)We use strong plywood or wooden case for all our products.
Preview
FAQ
Preview
Q1. Are you a trading company or a manufacturer?
We are a BSCI&ISO-9001 certificated manufacturer.Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.
We are a BSCI&ISO-9001 certificated manufacturer.Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.
