基本信息
| 型号编号 | XC-X300G |
| 发动机 | 1.3马力/1.1千瓦 |
| 运输能力 | 每小时300公斤 |
| 装载距离 | 3.5兆 |
| 静态风压 | 1300毫米水柱 |
| 认证 | 总工程师 |
| 用法 | 工业塑料 |
| 控制器 | 微型计算机 |
| 运输包 | 像往常一样，木箱 |
| 规格 | |
| 商标 | 谢程 |
| 起源 | 中国广东省江门市 |
| 商品编码 | 84282000 |
| 生产能力 | 每月500 |
产品详情
Stainless Steel Mesh Protection Conveying Stations Single-Phase Material Loaders
Product Description

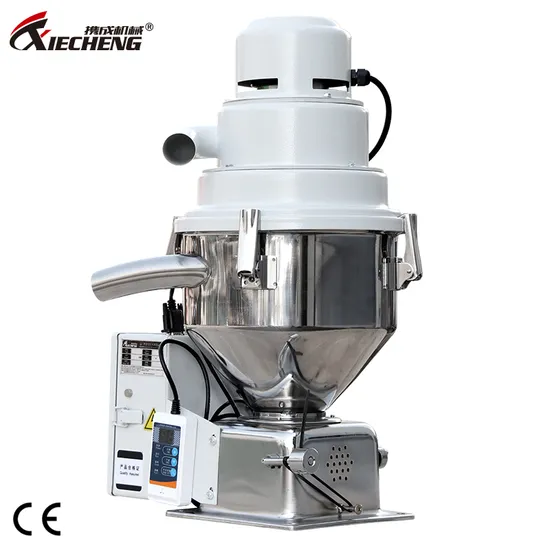

Self-Contained Hopper Loader
300 Hopper loaders are mainly used beside injection molding machines, extrusion machines or other machines to dry the plastic materials, which are installed on the drying hopper directly. For its high installing position, it use wire-controlled controller to control and automatically complete the loading work.Product Specifications
Model
XC-X300G
Motor
Model
Carbon Brush
Specification
1.1kw/1.3hp 1φ
Conveying capacity (kg/hr)
300
Loading Distance (m)
3.5
Static Wind Pressure (mm/H2O)
1300
Storage Tank Capacity (L)
7.5
Conveying Tube Inner Diameter (mm)
φ38
The Attached Hoses (mm)
φ38mm×3.5m 1pcs
Dimensions L x W x H(cm)
42x34x57
Weight (kg)
12
If you want more sizes, please contact us for details
CONTACT SUPPLIER
Product Details

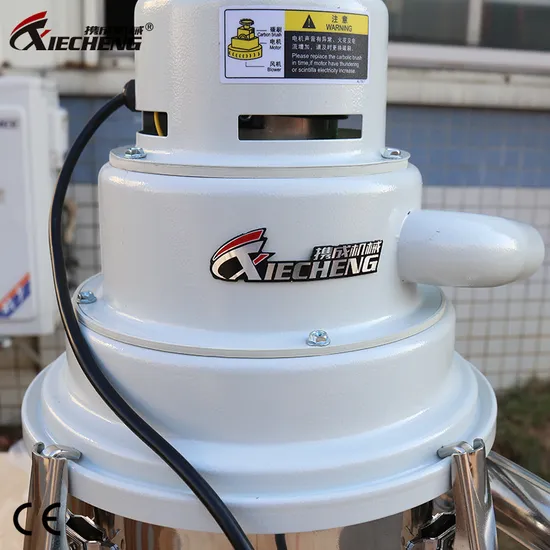

01 Motor

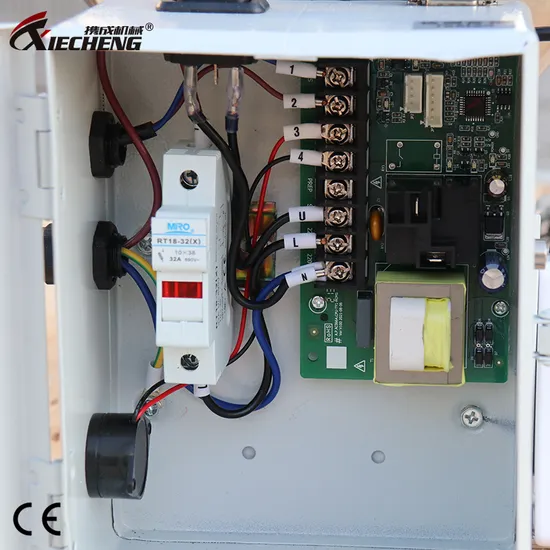

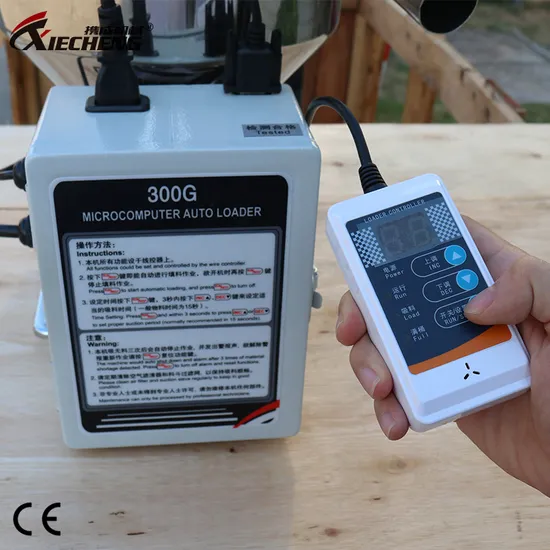

300G adopts high-speed carbon brush motor, small size, strong suction, suitable for conveying new materials.02 Controller
▪ Wire-controlled controller, easy to use;
▪ Alarm for overload and material shortage;
03 Stainless Steel Material
All stainless steel contact parts, to ensure no pollution in material conveying.04 Balance Switch
Installing with balance switch. Use physical principles to adjust the work of the baffle.Application Range
About Us
Company ProfileIn 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions. Authenticated by IS09001, XIECHENG also successfully established the "6+1+C" full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers' specific demands.Exhibition
