China Factory 300g1HP Electric Plastic Industrial Hopper Auto Loader
Product Description

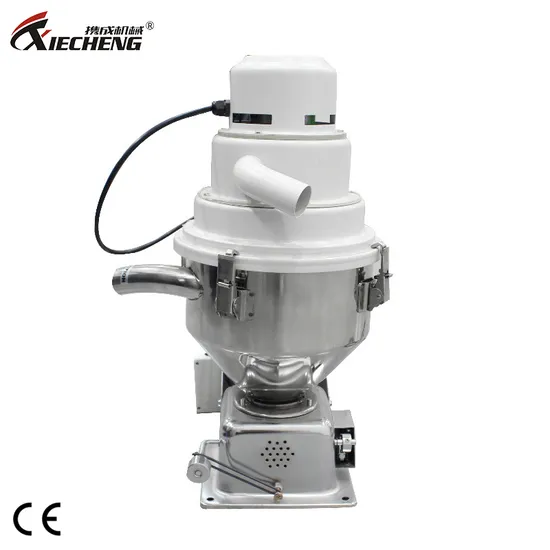

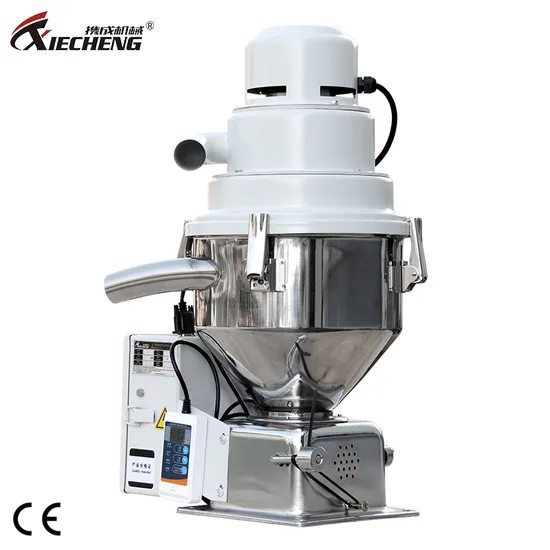

Self-Contained Hopper Loader
300 Hopper loaders are mainly used beside injection molding machines, extrusion machines or other machines to dry the plastic materials, which are installed on the drying hopper directly. For its high installing position, it use wire-controlled controller to control and automatically complete the loading work.Product Specifications
Model
XC-X300G
Motor
Model
Carbon Brush
Specification
1.1kw/1.3hp 1φ
Conveying capacity (kg/hr)
300
Loading Distance (m)
3.5
Static Wind Pressure (mm/H2O)
1300
Storage Tank Capacity (L)
7.5
Conveying Tube Inner Diameter (mm)
φ38
The Attached Hoses (mm)
φ38mm×3.5m 1pcs
Dimensions L x W x H(cm)
42x34x57
Weight (kg)
12
If you want more sizes, please contact us for details
CONTACT SUPPLIER
Product Details

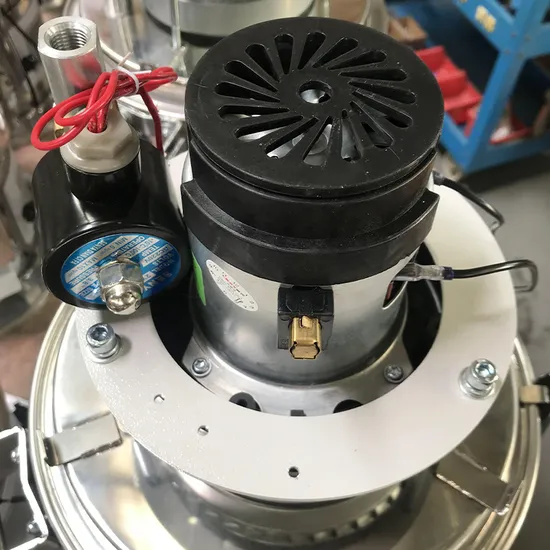

01 Motor

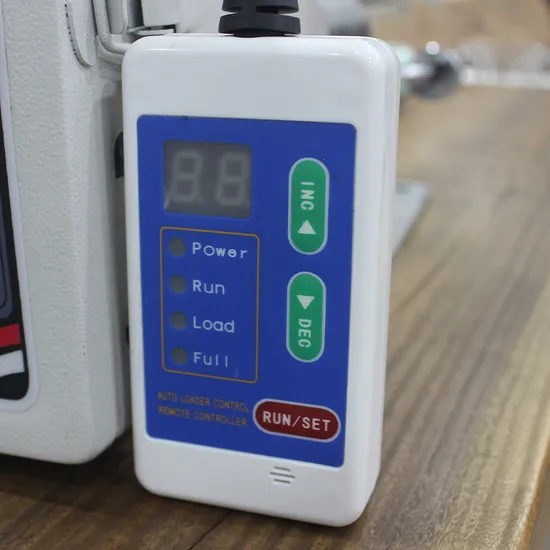

300G adopts high-speed carbon brush motor, small size, strong suction, suitable for conveying new materials.02 Controller
▪ Wire-controlled controller, easy to use;
▪ Alarm for overload and material shortage;
03 Stainless Steel Material
All stainless steel contact parts, to ensure no pollution in material conveying.04 Balance Switch
Installing with balance switch. Use physical principles to adjust the work of the baffle.Application Range
