Small Centralized Feeding System Plastic Loader For Injection Machine
Product Description

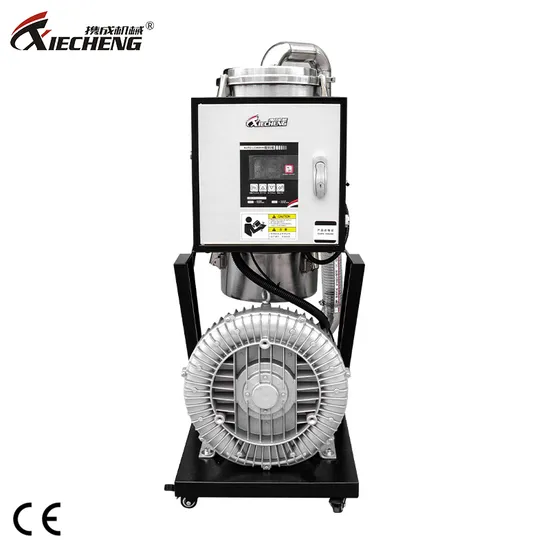

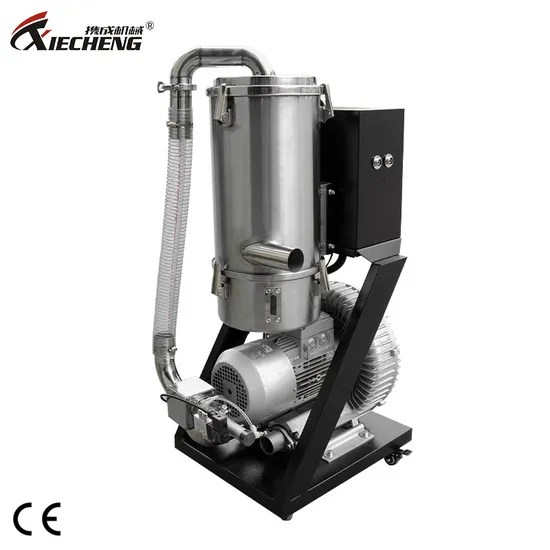

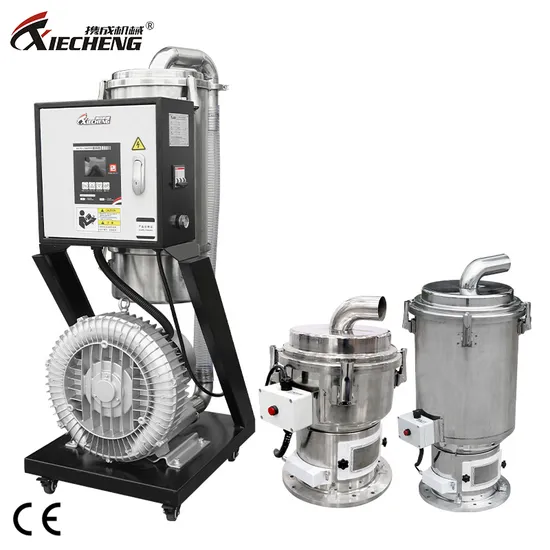

Separate-Vacuum Hopper Loader
It is specially developed for the situation of large amount of materials conveying, long conveying distance and crushed materials and powder. High-power motor with enlarged hose and hopper.Product Specifications
Model
XCAL-1.5HP
XCAL-2HP
XCAL-3HP
XCAL-5HP
XCAL-7.5HP
XCAL-10HP
XCAL-15HP
Motor
1.5 /1.1
2/1.5
3/2.2
5/3.75
7.5/5.5
10/7.5
15/11
Conveying Capacity (kg/hr)
450
500
590
820
1000
1300
1500
Loading Distance (m)
5
5
5
5
6
6
6
Static Wind Pressure (mm/H2O)
2800
2800
2800
3200
4200
4500
4500
Storage Tank Capacity (L)
7.5
7.5
12
24
30
30
30
Conveying Tube Inner Diameter(mm)
φ38
φ38
φ51
φ51
φ63
φ63
φ63
Specification of the Attached Hoses
φ38mm×4m 1pc
φ38mm×4m 1pc
φ51mm×10m 1pc
φ51mm×10m 1pc
φ63mm×12m 1pc
φ63mm×12m 1pc
φ63mm×12m 1pc
Dimensions (cm)
Host
50x42x109
69x52x144
99x85x142
hopper
38x28x45
38x28x45
43x33x58
43x33x69
43x33x83
Weight (kg)
Host
65
65
68
90
135
140
168
hopper
6
6
6
10
12
12
12
If you want more sizes, please contact us for details
CONTACT SUPPLIER
Product Details
01 LCD Controller
▪ Industry leading LCD microcomputer controller with adjustable parameters, intuitive display and convenient operation;
▪
Optional RS485 communication function to realize. remote automatic management.02 Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.03 Motor
Adopt induction high-pressure motor, which has the function of reversing and automatically removing dust, with low noise and long life.04 Filter
Unique cyclone barrel and large dust isolation and collection system adopt advanced design, easy and fast to maintain.05

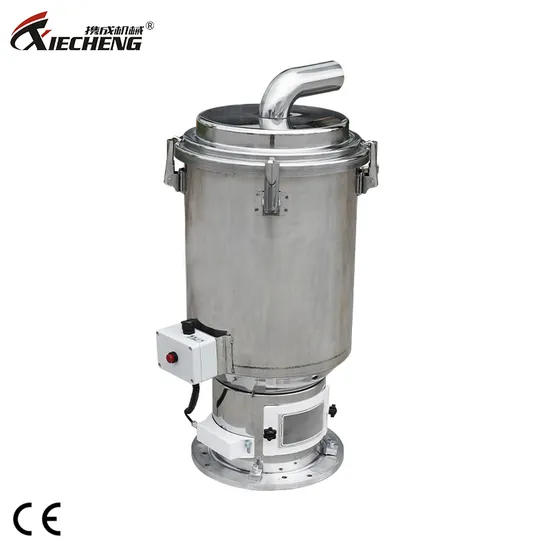

Stainless Steel Hopper
Stainless steel hopper, to ensure that the raw materials are not polluted during transportation.06
Vacuum Breaking Valve
≥ 5HP equipped with vacuum breaking valve as standard to prevent frequent start , stop or prolong the service life of the motor.Application Range
