The ton bag feeding station is an incredibly practical piece of equipment, playing a pivotal role in the advancement of modern production processes. With ongoing technological advancements and enhancements, the performance and capabilities of the ton bag feeding station are set to improve significantly. This will broaden its application across various fields, injecting greater intelligence and convenience into production processes. For businesses, the quest to incorporate cutting-edge technology and boost production efficiency remains a timeless pursuit. The ton bag feeding station is a revolutionary piece of equipment that stands out as an invaluable asset, worthy of promotion and utilization throughout diverse industrial landscapes.

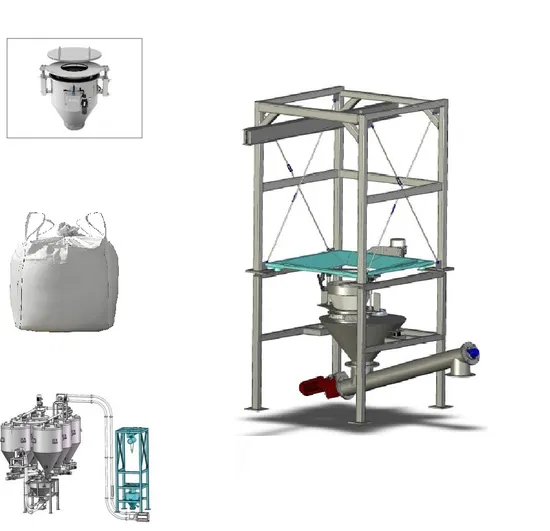

Main Structure

Characteristic Description
The pneumatic clamping mechanism boasts a sophisticated double circular ring bag clamping structure. As the large bag is hoisted above the clamping device, a simple press of the controller button extends the cylinder piston rod, elevating the pressure plate. At this juncture, the operator manually threads the ton bag's mouth through the central hole of the pressure plate, positioning it between the inner and outer rings. Another press of the controller button retracts the cylinder piston rod, lowering the pressure plate to align seamlessly with the upper plane of the rings. This operation forms a closed material channel between the bag's mouth and the inner ring, allowing the material to flow smoothly into the lower hopper once the bag mouth tie rope is removed. The synchronized action of the pressure plate and sealing ring efficiently prevents any dust leakage, ensuring a clean and secure transfer process.
Application Industries
The ton bag feeding station finds extensive application in the food, pharmaceutical, chemical, and metallurgical industries. It is adept at the unpacking and unloading of dry powders and granular materials, such as plastic resins and food additives, efficiently handling them when packaged in large bags.

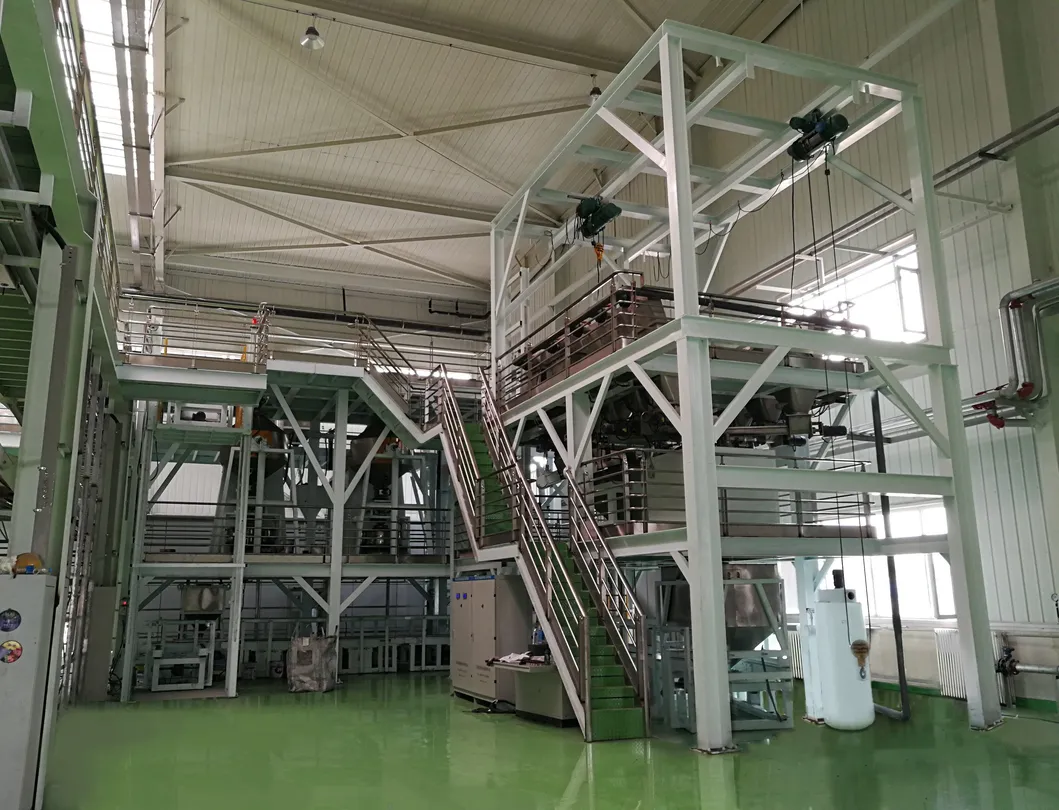

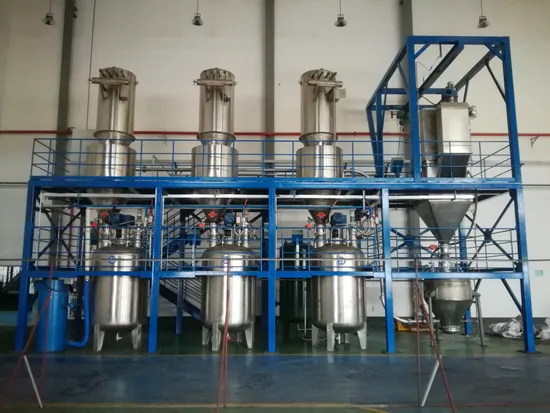

Customer Reference
