基本信息产品详情证书
基本信息
型号编号 | PNHS |
螺丝 | 双螺杆 |
逆变器 | 逆变器 |
电磁加热器 | 电磁加热器 |
自动化 | 自动的 |
计算机化的 | 非计算机化 |
定制的 | 定制的 |
认证 | CE,ISO9001:2008 |
条件 | 新 |
应用 | 宠物饲料颗粒机 |
公司品牌 | Wanrooetech |
材料 | 宠物 |
摩托车品牌 | 西门子 |
电机功率 | 取决于 |
螺钉设计 | 平行双螺杆 |
屏幕交换法 | 液压螺钉换热器 |
电源 | 380V 50Hz |
容量 | 每小时200至1000公斤 |
保证时间 | 一年 |
交通套餐 | 木制箱 |
规格 | 取决于 |
商标 | 万若科技 |
起源 | 江苏 |
商品编码 | 84778000 |
生产能力 | 每年500套 |
包装尺寸 | 250.00厘米乘以250.00厘米乘以200.00厘米。 |
包装总重量 | 2000.000公斤 |
包装尺寸 | 250.00厘米×250.00厘米×200.00厘米 |
包装总重量 | 2000.000公斤 |
产品详情
Product Description
Preview

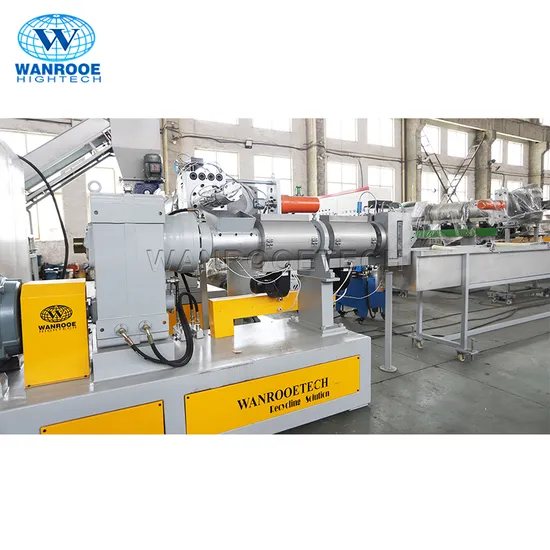

100-1000kg/H Waste PP PE BOPP Plastic Film Jumbo Bag Regrind Plastic Scraps Pelletizer Two Stage Plastic Crushed Granulator Machine
Applications:Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.Description:This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→
Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

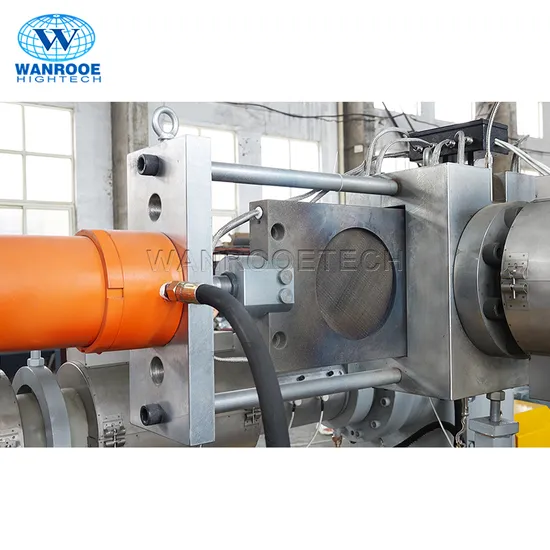

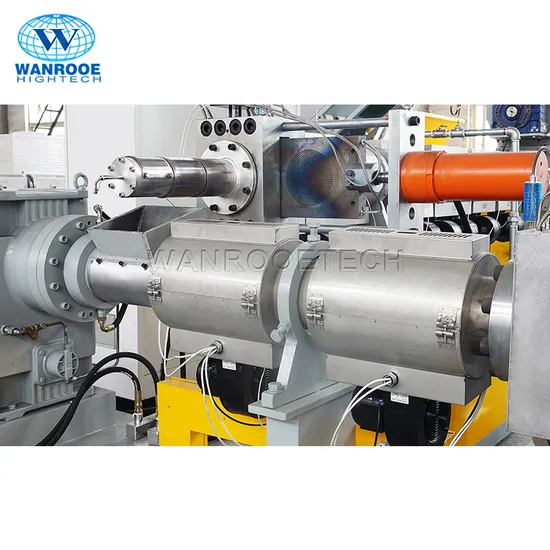

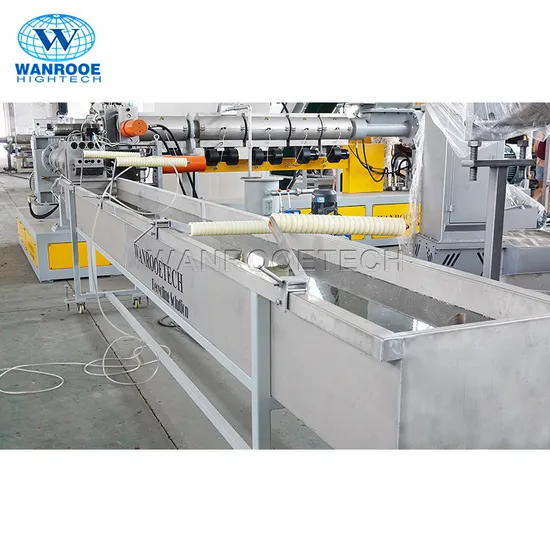

Detailed description of each items:1.Screw Feeder: convey Plastic scraps into the main machine.2.1# Extruding system: plasticizing material and exhausting gas.3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.4.2# Extruding system: plasticizing material.5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.6.Water ring pelletizing machine: cutting pellets in water.7.Water tank: cooling pellets.8. Dewater machine: make pellets dry.9.Vibration sieve: remove bad pellet and keep good pellet.10.Air Blower: convey good pellets into silo.11.Storage silo: keep pellet.Equipment Lists:1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.5.2# Extruder
6.2# Die head and screen changing device.7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.10.Air drying system11.Cyclone hopperFeatures:1. Allow free assembling of the screw component, based on raw material type.2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.4. The main screw has vacuum exhaustion.5.Water ring granulator machine, attached with dryer.6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Technical Parameters:
Applications:Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.Description:This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→
Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each items:1.Screw Feeder: convey Plastic scraps into the main machine.2.1# Extruding system: plasticizing material and exhausting gas.3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.4.2# Extruding system: plasticizing material.5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.6.Water ring pelletizing machine: cutting pellets in water.7.Water tank: cooling pellets.8. Dewater machine: make pellets dry.9.Vibration sieve: remove bad pellet and keep good pellet.10.Air Blower: convey good pellets into silo.11.Storage silo: keep pellet.Equipment Lists:1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.5.2# Extruder
6.2# Die head and screen changing device.7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.10.Air drying system11.Cyclone hopperFeatures:1. Allow free assembling of the screw component, based on raw material type.2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.4. The main screw has vacuum exhaustion.5.Water ring granulator machine, attached with dryer.6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Technical Parameters:
Preview

Preview
Our Service1. One
year
guarantee
for
whole
machine.2.24
hours
technical
support.3. Our engineers
can
provide
service
overseas.The
service
is
free,
but
the
charge
of
round
air-tickets,
food
and
hotel
is
to
the
customer's
account.4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.5. We also can provide training service which help operators handle the machine well.
year
guarantee
for
whole
machine.2.24
hours
technical
support.3. Our engineers
can
provide
service
overseas.The
service
is
free,
but
the
charge
of
round
air-tickets,
food
and
hotel
is
to
the
customer's
account.4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.5. We also can provide training service which help operators handle the machine well.
Preview
证书
标题:专利



Preview
每小时产量100-1000公斤的废PP、PE、BOPP塑料薄膜大袋粉碎机、塑料颗粒机、两级塑料破碎造粒机
¥72400 ~ ¥217200
化工产业链 · 塑料橡胶机械 · 塑料造粒机
产地江苏
