基本信息
型号 | DGF |
原材料 | PE |
螺丝 | 电气液压控制 |
逆变器 | 逆变器 |
电磁加热器 | 没有电磁加热器 |
自动化 | 自动的 |
电子化的 | 电脑化 |
定制的 | 定制的 |
认证 | CE, ISO9001:2008, BV |
条件 | 新(的) |
马达 | Weg |
电子元件 | 克勒克纳·穆勒 |
安全开关 | 施默萨尔 |
PLC机柜 | 瑞智达(Rittal) |
三角皮带 | 欧皮特 |
轴承 | 重负荷轴承 Twb |
Rotor的意思是“转子”。 | 转子型号多样 |
机械材料 | Q355 |
刀具材料 | D2/ SKD11 |
转子直径 | 500-800毫米 |
定子刀片 | 两行三列 |
屏幕尺寸 | 6-20毫米 |
交通总包 | 拉伸膜/木托盘 |
规格说明 | DGH500-800 |
商标 | DGM |
起源 | 中国无锡 |
商品编码 | 84778000 |
生产能力 | 每年2000套 |
包装尺寸 | 3300.00厘米乘以2300.00厘米乘以4200.00厘米。 |
包装总重量 | 7000 千克 |
包装大小 | 3300.00cm * 2300.00cm * 4200.00cm |
包总重 | 7000千克 |
产品详情
Product Description
Preview

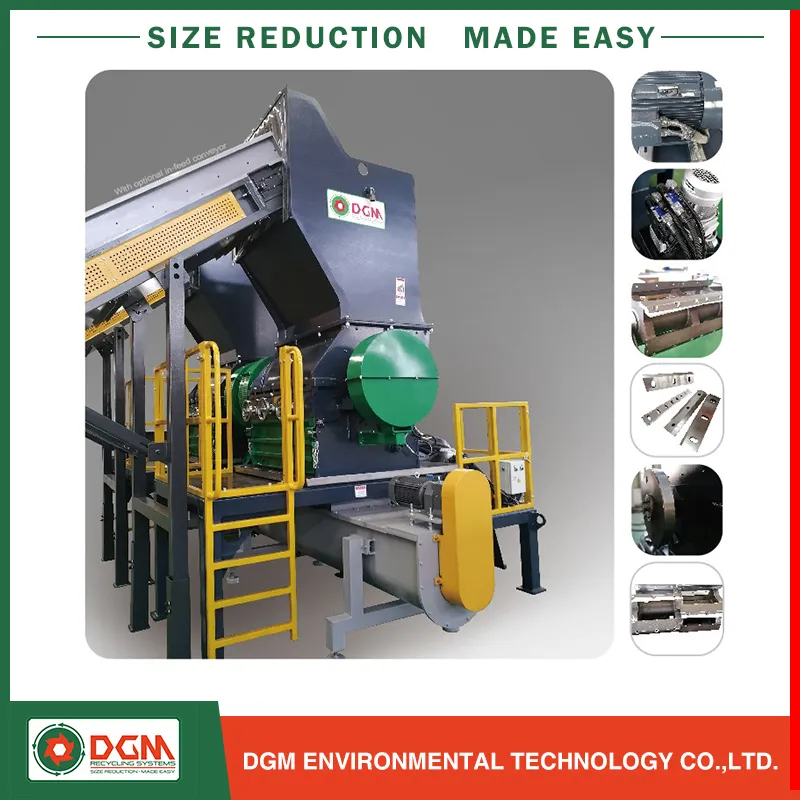

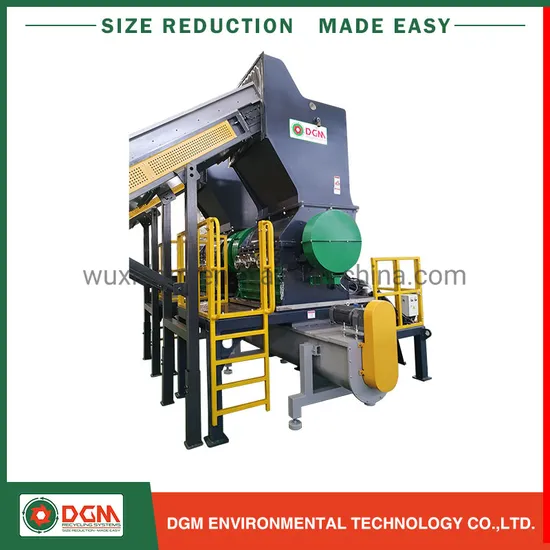

LDPE Film Hped Bottle Plastic Recycling Crusher Machine Grinder Granulator
The DGF Series -specify for Film
and Bottle Granulator has a
centrally hinged two-piece cutting chamber with a
robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a
hinged screen cradle and hinged door for easy screen access.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.
The base frame has a
solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with 3
sets of curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a
complete stop. A
safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
The DGF Series -specify for Film
and Bottle Granulator has a
centrally hinged two-piece cutting chamber with a
robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a
hinged screen cradle and hinged door for easy screen access.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.
The base frame has a
solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with 3
sets of curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a
complete stop. A
safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Preview

Preview

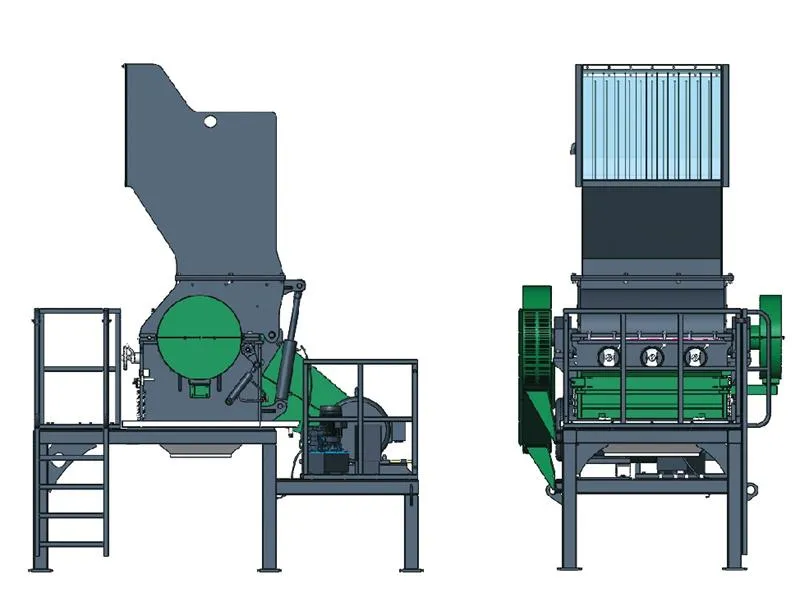

Layout
Preview

Preview
Features
Complete soundproofed enclosure
Deflector wedge
V-cut technology
Heavy duty bearings
Oversized external bearing housings
Knives are externally adjustable
Robust welded steel construction
Wide choice of rotor variations
Electrical hydraulic control -
to open housing
Electrical hydraulic control -
to open screen cradle
Replaceable wear plates
Amp meter control
Integrated control panel
Options

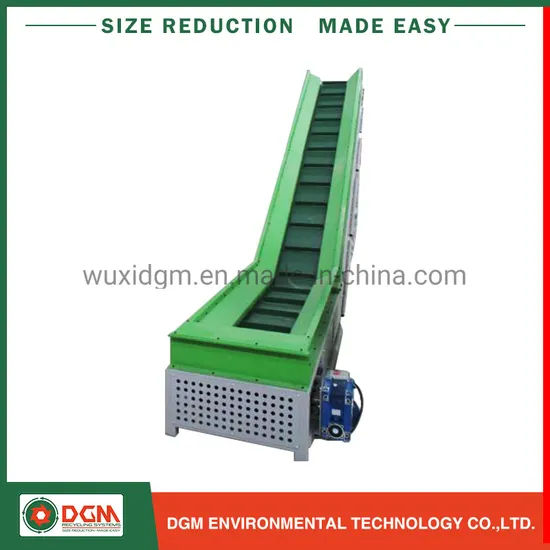

Soundproof conveyor channel
Extra flywheel
Double infeed hopper
Roller feeder
Mounted screw feeders in hopper Winding protection
Metal detector
Metal separator
Bespoke colour scheme
Increased motor drive
Applications
PLASTICS
RUBBER
WOOD
BIOMASS
PAPER
ALTERNATIVE FUELS (RDF/SRF)
DOMESTIC &
COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a
wholly owned subsidiary of Miracle Automation Engineering Group, a
pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging &
Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.4. Excellent logistic team to guarantee the shredder and granulators machines to be safely shipped to customers appointed location.5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
Complete soundproofed enclosure
Deflector wedge
V-cut technology
Heavy duty bearings
Oversized external bearing housings
Knives are externally adjustable
Robust welded steel construction
Wide choice of rotor variations
Electrical hydraulic control -
to open housing
Electrical hydraulic control -
to open screen cradle
Replaceable wear plates
Amp meter control
Integrated control panel
Options
Soundproof conveyor channel
Extra flywheel
Double infeed hopper
Roller feeder
Mounted screw feeders in hopper Winding protection
Metal detector
Metal separator
Bespoke colour scheme
Increased motor drive
Applications
PLASTICS
RUBBER
WOOD
BIOMASS
PAPER
ALTERNATIVE FUELS (RDF/SRF)
DOMESTIC &
COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a
wholly owned subsidiary of Miracle Automation Engineering Group, a
pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging &
Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.4. Excellent logistic team to guarantee the shredder and granulators machines to be safely shipped to customers appointed location.5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
Preview

Preview

Preview
FAQ
Preview
Q1: Are you a
trading company or a
factory?
Q2: Will you provide pre-sale services?
We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
trading company or a
factory?
Q2: Will you provide pre-sale services?
We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
