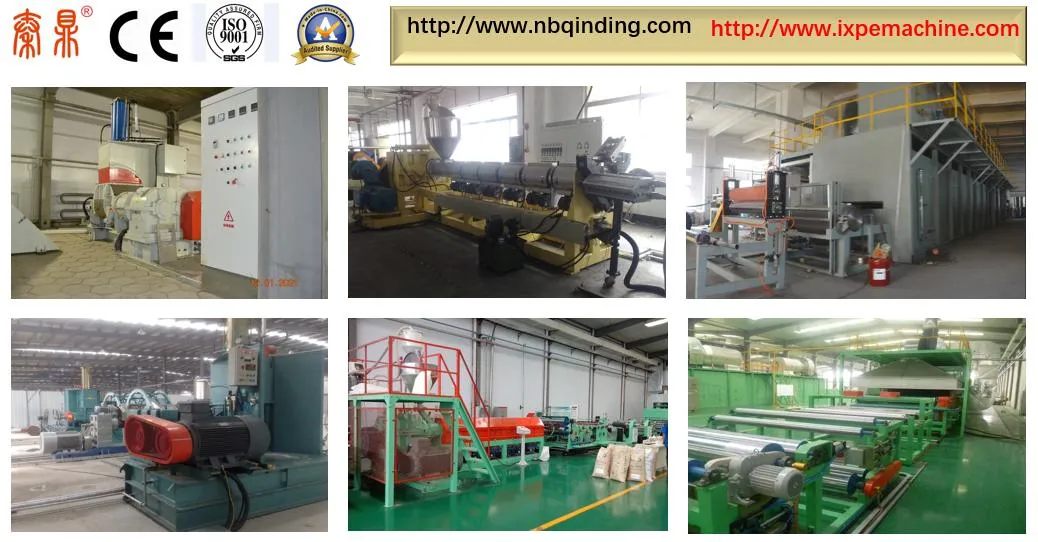

XPE XLPE IXPE cross-linked foaming machine production line consists of a granulation system, a mixed ingredient conveying system,
a sheet extruder, a gas heating
Horizontal
foaming furnace and a winding auxiliary machine. It is a Ningbo Qinding Material Technology Co., Ltd. A foaming production line designed and manufactured according to the XPE production process, specializing in the production of XPE products.

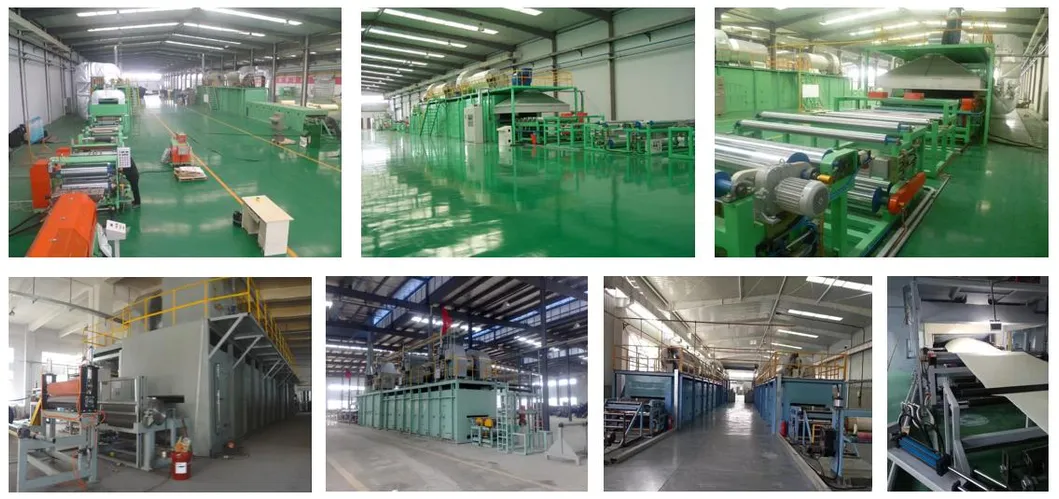

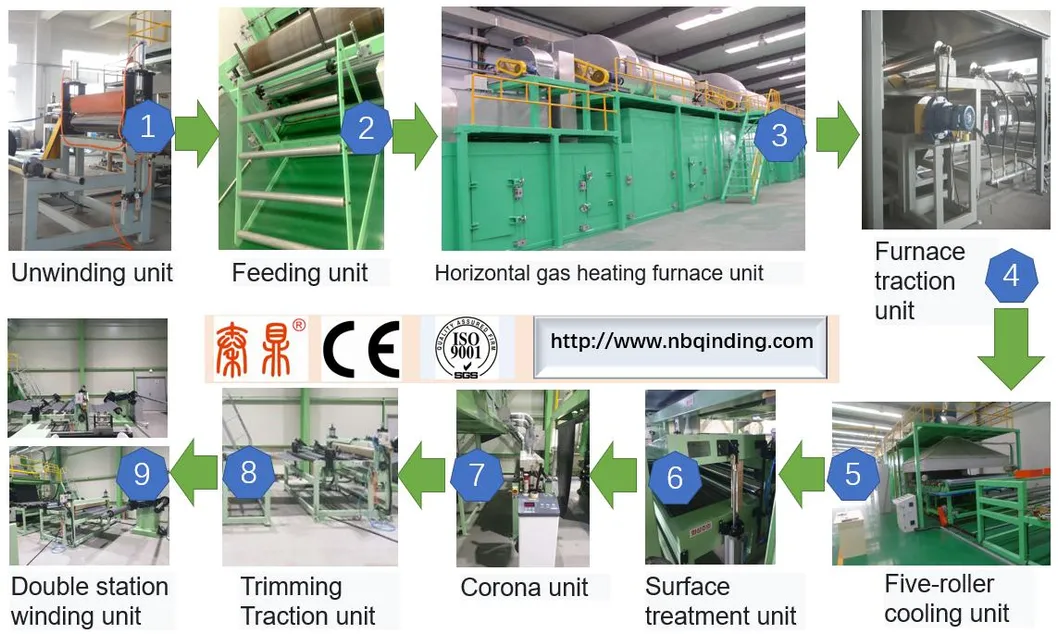

This foaming furnace is a horizontal furnace, which mainly produces chemically cross-linked polyethylene foamed products, and the heating method is gas heating. It has the advantages of large output, uniform width and thickness of products, high efficiency, convenient maintenance and stable production. The equipment includes an unwinder, a 22m horizontal furnace, a combustion unit, a 5-roller cooling machine at the furnace mouth, a correction machine, a trimming machine, a sheet traction machine, and a double-station winder. Optional corona machine and surface treatment machine.
The range of XPE products that can be produced by this production line: the magnification is 5~40 times, the width is 400~2200mm, and the thickness is 2~23mm.

The production process of XPE IXPE XLPE cross-linked foaming is as follows:
Raw materials (PE, AC, etc. are mixed according to the formula) --- Granulation --- Mixed according to the formula --- Extruded sheet master piece ---Horizontal
Gas heating
foaming furnace --- Winding IXPE products.
The production process of XPE IXPE XLPE cross-linked foaming is as follows:
Raw materials (PE, AC, etc. are mixed according to the formula) --- Granulation --- Mixed according to the formula --- Extruded sheet master piece ---Horizontal
Gas heating foaming furnace --- Winding IXPE products.1.GranulationThe granulation unit adopts a 75L internal mixer and 150# single screw extruder, and a cooling receiving systemthe. The output can reach 280kg/h.The internal mixer chamber adopts electric heating (also can be heated by steam or heat-conducting oil), the heating speed is fast and the heat preservation performance is good.Collect temperature, pressure and time signals, through PLC integrated control, realize constant temperature and automatically complete banburying.The 150# single-screw extruder granulator adopts PLC control and precise temperature control; the screw length to diameter ratio is 14:1, which conforms to the IXPE and XPE granulation process; the eccentric cutting speed is adjustable, the granulation is uniform, and the discharge speed Fast; the mold is specially designed, easy to disassemble and assemble, and easy to clean.The cooling receiving system consists of two-stage air cooling and a temporary storage warehouse.2.Master sheet
extruderThe XPE IXPE sheet extruder usually uses 150# or 160# single screw extruder. The width of the sheet is 500~900mm, and the thickness is 0.5-5mm. The extruded product is uniform and natural, and the surface is smooth. The extruder unit has large extrusion capacity, simple operation and convenient maintenance.3.Automatic mixerThis automatic mixer is a human-computer interaction system, equipped with formula input, storage, selection, automatic feeding, weighing, mixing, lack of material alarm and other functions. It can be applied to materials of different shapes such as liquid materials, powder materials, pellets, and blocks. Weighing and conveying. It has the advantages of accurate weighing, no residue in feeding, easy cleaning, simple and convenient maintenance. Including modular silo, storage silo, weighing system, conveying system, high-speed mixer, electrical control system, etc.4.Horizontal
Gas heating foaming furnaceThis foaming furnace is an XPE IXPE cross-linked foaming furnace. The heating method is gas heating.This foaming furnace is a horizontal furnace, which mainly produces chemically cross-linked polyethylene foamed products, and the heating method is gas heating. It has the advantages of large output, uniform width and thickness of products, high efficiency, convenient maintenance and stable production. The equipment includes an unwinder, a 22m horizontal furnace, a combustion unit, a 5-roller cooling machine at the furnace mouth, a correction machine, a trimming machine, a sheet traction machine, and a double-station winder. Optional corona machine and surface treatment machine.The foamable range is 5-40 times, the foaming thickness is 2~23mm, the foaming width is 400~2200mm, and the output can reach 250~300kg/h.

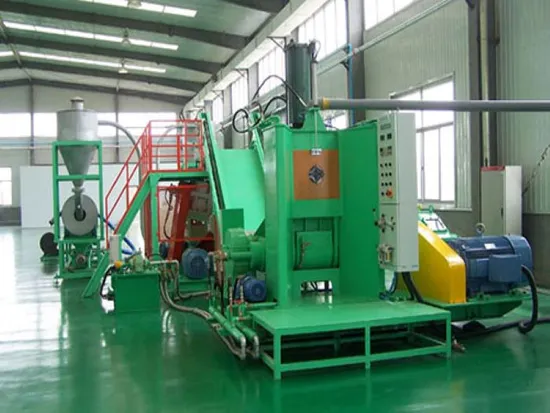

The granulation unit adopts a 75L internal mixer and 150# single screw extruder, and a cooling receiving systemthe. The output can reach 280kg/h.
The internal mixer chamber adopts electric heating (also can be heated by steam or heat-conducting oil), the heating speed is fast and the heat preservation performance is good.Collect temperature, pressure and time signals, through PLC integrated control, realize constant temperature and automatically complete banburying.
The 150# single-screw extruder granulator adopts PLC control and precise temperature control; the screw length to diameter ratio is 14:1, which conforms to the IXPE and XPE granulation process; the eccentric cutting speed is adjustable, the granulation is uniform, and the discharge speed Fast; the mold is specially designed, easy to disassemble and assemble, and easy to clean.
The cooling receiving system consists of two-stage air cooling and a temporary storage warehouse.
2.

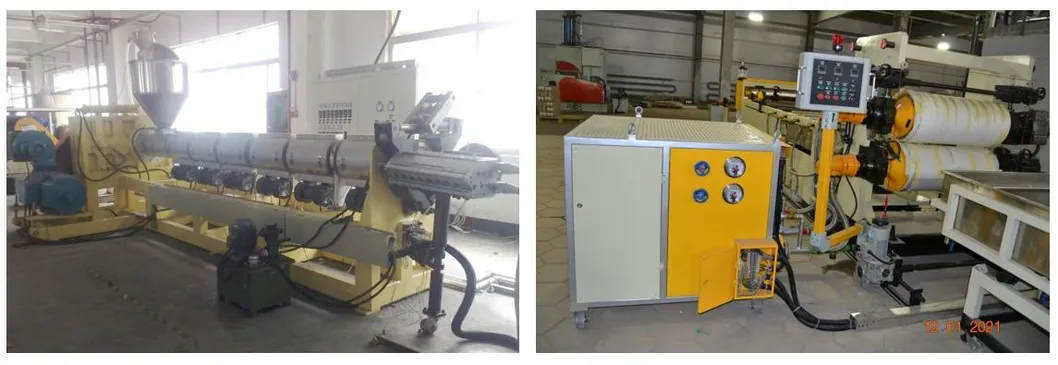

Master sheet
extruder

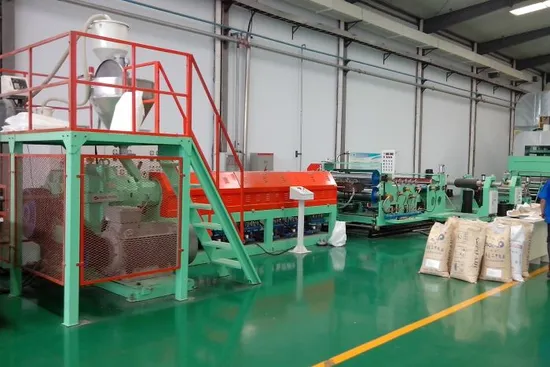

The XPE IXPE sheet extruder usually uses 150# or 160# single screw extruder. The width of the sheet is 500~900mm, and the thickness is 0.5-5mm. The extruded product is uniform and natural, and the surface is smooth. The extruder unit has large extrusion capacity, simple operation and convenient maintenance.

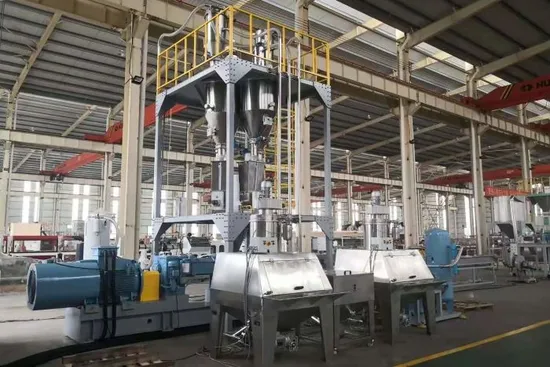

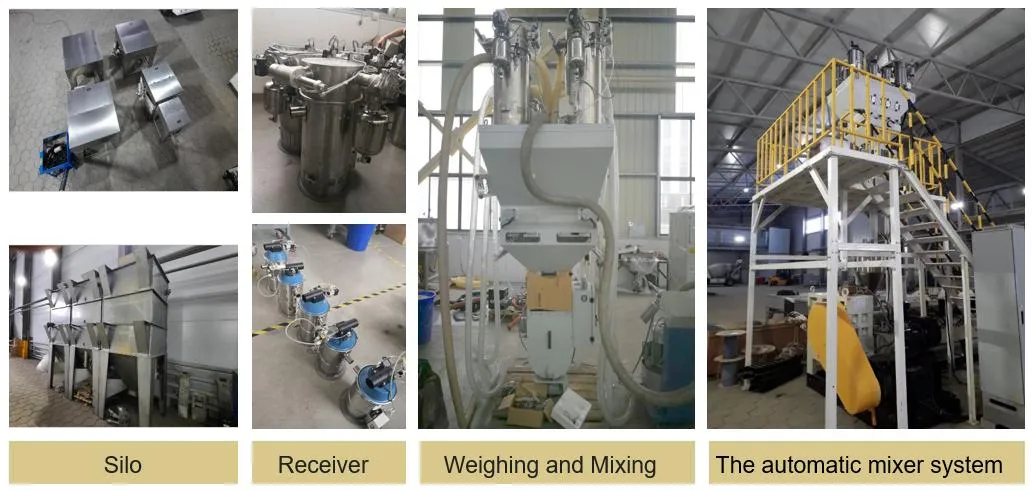

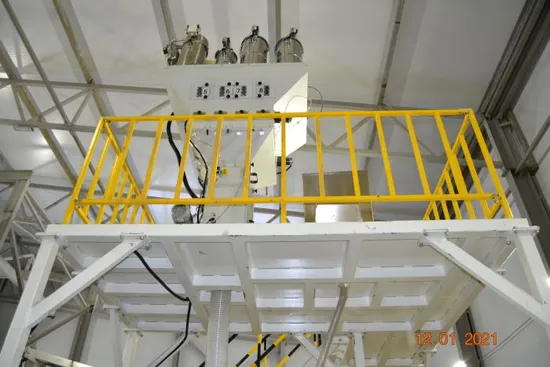

This a
is a human-computer interaction system, equipped with formula input, storage, selection, automatic feeding, weighing, mixing, lack of material alarm and other functions. It can be applied to materials of different shapes such as liquid materials, powder materials, pellets, and blocks. Weighing and conveying. It has the advantages of accurate weighing, no residue in feeding, easy cleaning, simple and convenient maintenance. Including modular silo, storage silo, weighing system, conveying system, high-speed mixer, electrical control system, etc.

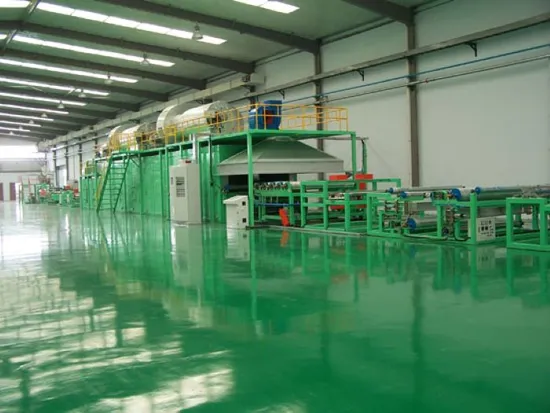

4.Horizontal
foaming furnace
This foaming furnace is an XPE IXPE cross-linked foaming furnace. The heating method is gas heating.
The foamable range is 5-40 times, the foaming thickness is 2~23mm, the foaming width is 400~2200mm, and the output can reach 250~300kg/h.

Product Parameters

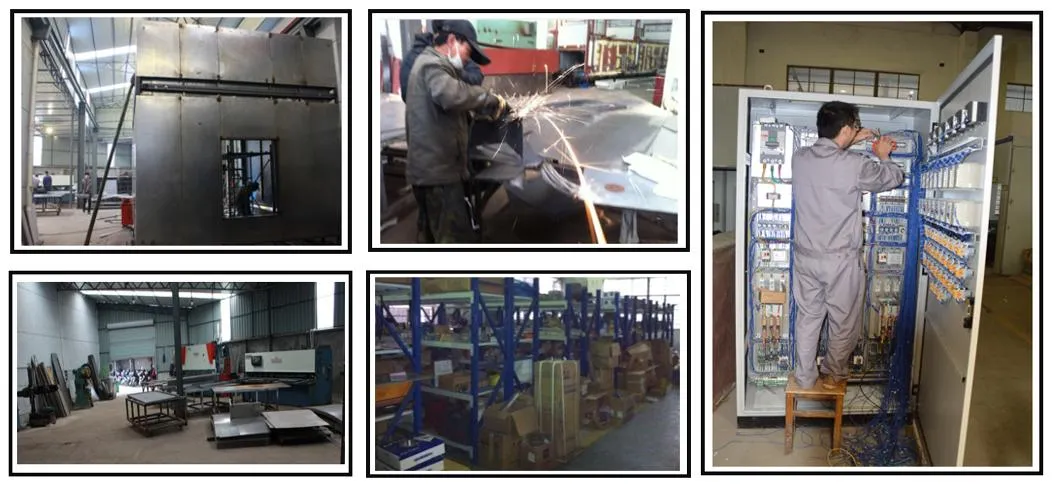

Ningbo Qinding Material Technology Co., Ltd. (hereinafter referred to as Qinding Company) is a company dedicated to the research, development, production and sales of PE crosslink foam teach (XPE machine, XPE foam machine, IXPE machine, IXPE foam machine ,etc.PE teach foam). Qin Ding's main products are:XPE machine, XPE foam machine, IXPE machine, IXPE foam machine, XPE foam equipment, IXPE foam equipment, IXPE foam sheet extrurtion line, PE foam furnace ,Crosslink Foam Line, XPE Foam, IXPE Foam, etc.
Qin Ding Company is led by 2 senior engineers in the PE teach foam industry and set up a special R&D center, including many professional engineers in the PE teach foam industry for more than 20 years. We have 11 invention patents-XPE foam machine, IXPE foam machine etc., 1 utility model patent-Crosslink foam line, 2 computer software copyrights-Automatic compounding machine for cross-linked foam production line, and 11 related registered trademarks.
Qin Ding has advanced technical conditions in the PE foam teach industry, and constantly improves our XPE foam equipment and IXPE foam equipment in the PE foam teach industry to adapt to new formulas and processes. Qin Ding has a professional R&D team and can provide a variety of advanced XPE machine and e IXPE machine solutions for customers to choose from. Qin Ding has a number of professional engineers who can provide customers with long-term and professional technical assistance and after-sales service in the production of Crosslink Foam Line.
The Crosslinked PE Foam Production Line produced by Qin Ding has passed the EU CE certification and has many customers in the domestic and international XPE Crosslink Foam and IXPE crosslink foam industries. We provide not only XPE foam equipment and IXPE foam equipment, but also high-quality PE teach foam services, whether it is Crosslink foam pre-sales consultation, IXPE Machine after-sales service, or PE teach foam technical formula, Crosslink Foam Line personnel training, XPE and IXPE scale production can give you a satisfactory answer. Welcome new and old friends to inquire and negotiate.

Service Commitment
The fully automatic XPE/IXPE foam production line produced by Qin Ding has passed the EU CE certification and has many customers in the domestic and international industries. We provide not only equipment, but also high-quality services. Whether it is pre-sales consultation, after-sales service, or technical formula, personnel training, and large-scale production, we can give you a satisfactory answer.
1. Service tenet:
1.1 Quality policy: provide customers with more reliable products and services;
1.2 Mission: Make customers feel at ease about buying and using products;
1.3 Service commitment: 100% implementation of the contract, providing fast and excellent after-sales service.
2. Pre-sale service:
2.1 Provide customers with consulting services on the structure, configuration, input-output and other matters of the IXPE production line (XPE production line), and provide detailed production line configuration plans according to the customer's target market;

3. In-sale service
3.1 After the contract is signed, Qin Ding will design the equipment basic drawing according to the actual construction situation of the customer's workshop (the customer is responsible for the basic construction), and assist the customer in the layout of cooling water, gas, electricity, and compressed air;

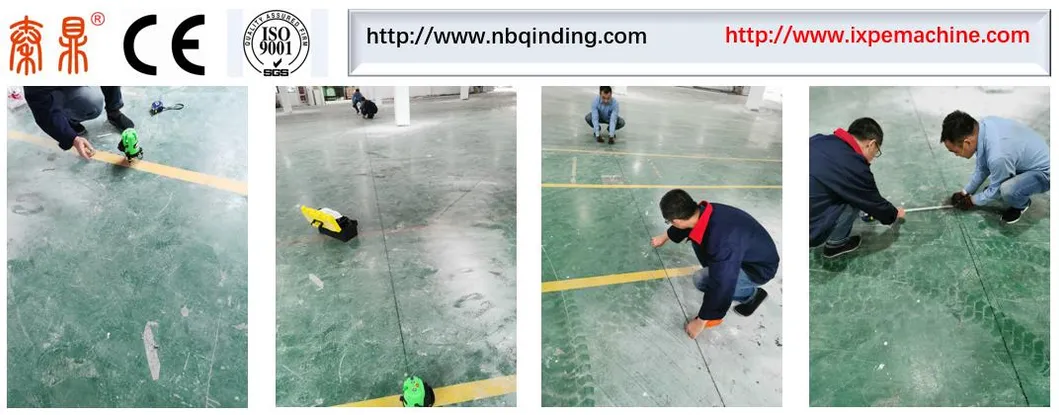

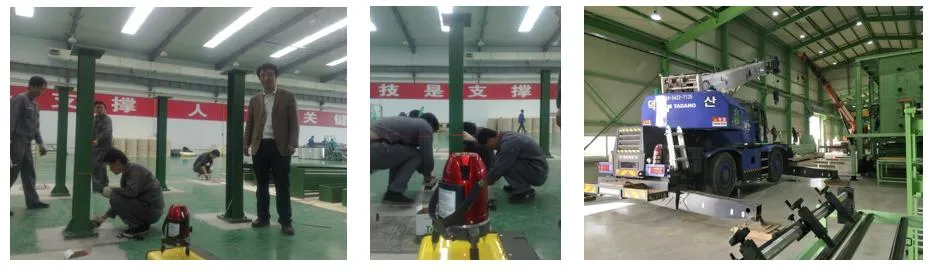

3.2 Installation: After the production line is shipped, Qin Ding will arrange project managers, professional mechanical and electrical engineers to arrive at the customer site to guide the installation;

4. Personnel training:

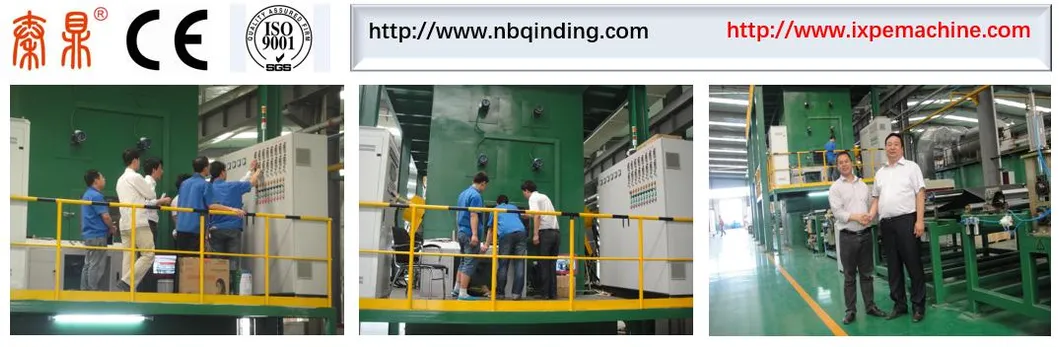

4.1 Process training: The training will be carried out at the customer's site, and will be completed by the Qinding company debugger and the customer's company operator. The training time is 2 weeks, so that the relevant operators are able to use the equipment to achieve the expected results;

5. After-sales service:
5.1 After-sales consultation: The email sent by the customer due to various problems during normal use will be responded to within 1 working day;
5.2 The entire equipment is guaranteed for one year, and it is responsible for maintenance outside the period. Only the material cost is charged for maintenance;
5.3 Visit customers from time to time to track product quality and ensure the safe operation of equipment.

1. How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
2. What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
3. Can you train a new XPE / IXPE enterprises?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
4. Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, there are vulnerable parts. We provide you enough quantity of spare parts, these spare parts will ship to you with machines together.
5,How long is the guarantee period of the machines? When does it start?
The guarantee period of our equipment is two years, calculated the date from when it leaves the factory. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.
