基本信息
| 型号（NO.） | DPH-260 |
| 原材料 | 聚氯乙烯 |
| 塑形模式 | 普恩奇模制 |
| 应用程序 | 机械与硬件、食品与饮料、医疗、玩具、商品、纺织品、化工、服装 |
| 驱动类型 | 电动（的） |
| 计算机化的 | 电脑化 |
| 认证 | ISO9001:2008, CE, QS, GMP |
| 售后服务 | 可提供海外机械服务工程师 |
| 机器类型 | 全自动泡罩包装机 |
| 使用 | 小型制药厂 |
| 为……打包 | 固体装填 |
| 包装材料 | PVC硬质片; Ptp铝箔;透析纸 |
| 原则 | 辊板热成型与热封 |
| 截止频率 | 每分钟40-160次 |
| 最大形成区域和深度 | 245*110*12毫米 |
| PVC硬质板 | 0.15-0.3*260毫米 |
| Ptp铝箔 | 0.02减去0.03乘以260毫米 |
| 透析纸 | 50-100克* 260毫米 |
| 运输包 | 出口标准包装 |
| 规格 | 4350毫米乘1070毫米乘2200毫米 |
| 商标 | 皇家制药 |
| 起源 | 中国上海 |
| 商品编码 | 8422303090 |
| 生产能力 | 每月25套 |
产品详情
Product Description
Preview
Preview

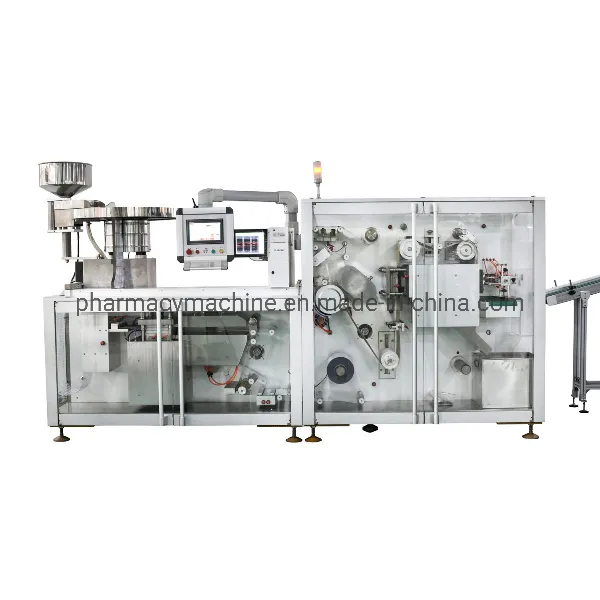

DPH-260 Pharmaceutical High Speed Roller-plate Automatic
Blister Machine
Blister Machine
Preview
Preview
Instruction and features:
DPH-260 Roller-plate high speed blister packing machine collected plate type forming and roller sealing as incorporator. It applies to medicine packaging, such as variety specification of sugar coated tablet,tablets,capsule,soft capsule and so on. It's also suitable for packing small hardware, electronical element, medical devices and foods which the shape is similar with above pharmaceuticals.Feature:

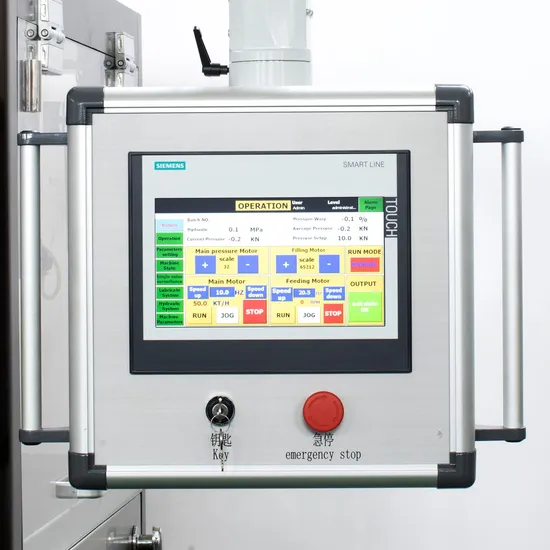

1.High speed, high stability and high accuracy when machine running.2. Width of PVC and PTP both are 260mm, and design is more humanized.3. Flat plate is front pressure to form, roller plate type to seal, so that make the grid pattern more beautiful.4. It can be equipped with universal feeding or special pipeline feeding according to the shape of medicines.5. PLC human-machine interface to operate, stepless frequency inverter to main transmission. Each station use an independent worm gear reducer and link to universal coupling device.6. The cutting frequency is up to 40-160 plates /min (the speed is adjustable according to the format length).7. Printing batch numbers and plate impressing adopt plate drawing type handy replacement structure.8. Lengthen filling platform which can improve yield and easy to equip with camera detection, automatic eliminate convey system, and conveyor link to automatic cartoning machine.9. Cross cutting (borderless cutting) will not waste packing materials. This machine can save packing materials about 10%.10. Adopting servo traction system, make stroke length be adjustable arbitrary, accurate and consistent. The cutting position is easy to adjust which make plate perfect.11. This high speed roller-plate blister packing machine is easy to replace mould and guide rail. The mould for ALU-PVC adopts orientation chute, and the guide rail use integral aluminum alloy structure, which make installation more convenient.Product Prameters:
Sample picture:
Sample's drawing:
DPH-260 Roller-plate high speed blister packing machine collected plate type forming and roller sealing as incorporator. It applies to medicine packaging, such as variety specification of sugar coated tablet,tablets,capsule,soft capsule and so on. It's also suitable for packing small hardware, electronical element, medical devices and foods which the shape is similar with above pharmaceuticals.Feature:
1.High speed, high stability and high accuracy when machine running.2. Width of PVC and PTP both are 260mm, and design is more humanized.3. Flat plate is front pressure to form, roller plate type to seal, so that make the grid pattern more beautiful.4. It can be equipped with universal feeding or special pipeline feeding according to the shape of medicines.5. PLC human-machine interface to operate, stepless frequency inverter to main transmission. Each station use an independent worm gear reducer and link to universal coupling device.6. The cutting frequency is up to 40-160 plates /min (the speed is adjustable according to the format length).7. Printing batch numbers and plate impressing adopt plate drawing type handy replacement structure.8. Lengthen filling platform which can improve yield and easy to equip with camera detection, automatic eliminate convey system, and conveyor link to automatic cartoning machine.9. Cross cutting (borderless cutting) will not waste packing materials. This machine can save packing materials about 10%.10. Adopting servo traction system, make stroke length be adjustable arbitrary, accurate and consistent. The cutting position is easy to adjust which make plate perfect.11. This high speed roller-plate blister packing machine is easy to replace mould and guide rail. The mould for ALU-PVC adopts orientation chute, and the guide rail use integral aluminum alloy structure, which make installation more convenient.Product Prameters:
Sample picture:
Sample's drawing:
