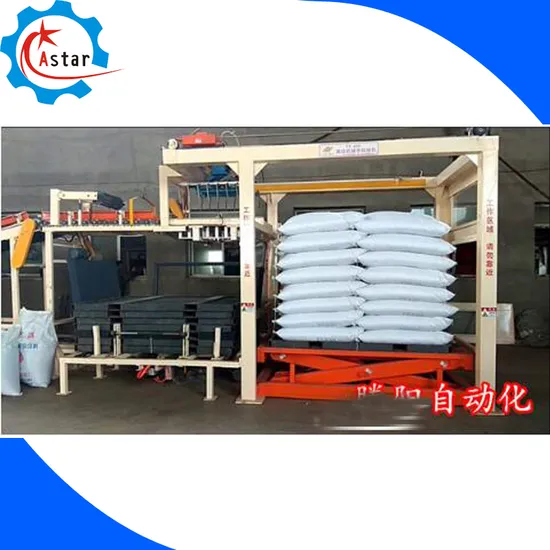

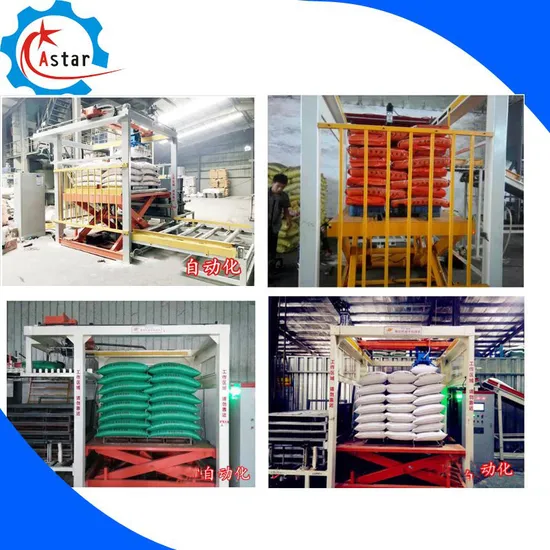

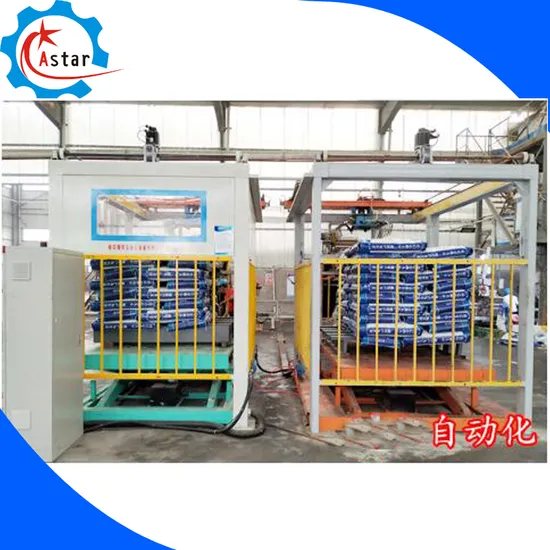

High Speed Automatic Robot Palletizer System /Bag Palletizing Machine Description:
High Speed Automatic Robot Palletizer System /Bag Palletizing Machine is widely use in many area, such as feed factory, wood pellet factory, cement factory ,
and any factory need palletizing .it is simple structure with easy operation manual .Save Labor, and low investment .
Model:
TY-500
Capacity:
500bags/H
Voltage:
380V
50HZ
Power
5KW
Machine Dimension:
L2400mm×W2000mm×H3000mm
The layer number of pallet
1-12
layers
Air supply pressure:
0.6-1.0Mpa
Weight :
2000Kg
Consist as below :
Wrapping Machine :
Specification:
Diameter of turntable:
2200mm
Turntable height:
500mm
Conveyor width :
1520mm
rolling conveyor
Dimension:
3400*2200*2550 mm
Weight :
1200kg
Total Power:
2.3 KW
Voltage:
AC380V
Air pressure:
0.6-0.8Mpa
Speed:
0~12
rpm/min

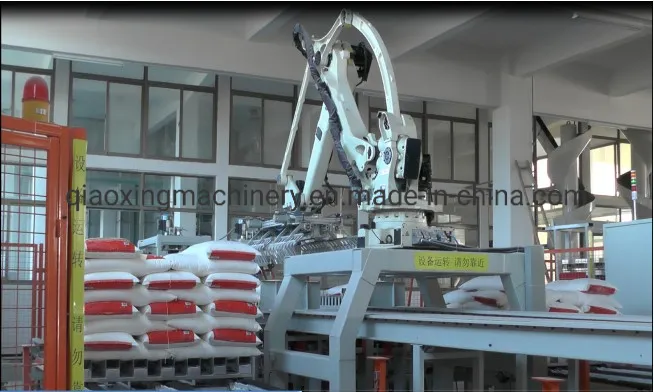

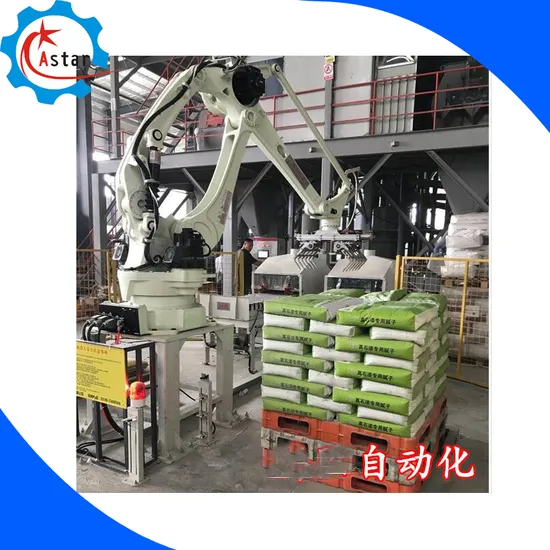

Except this low cost palletizer machine, we also have the robot palletizer machine with high capacity .
High Speed Automatic Robot Palletizer System /Bag Palletizing Machine

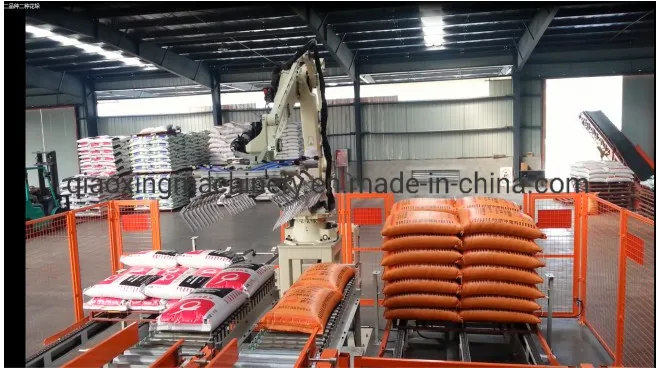

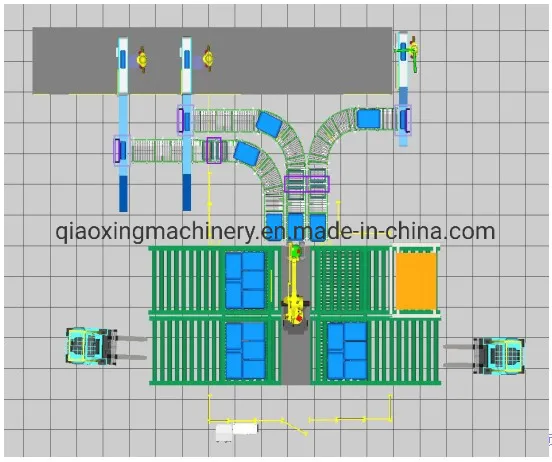

Palletizing process:
1. Sealing machine
2. Transfer to the automatic feeding device along the transmission line
3. Send to the leveling mechanism via the transmission line for shaping before palletizing
4. Transfer to the area to be palletized
5. The robot sends the product code to the corresponding tray according to the program settings.
6. After the palletizing is completed, the tray is transferred to the blanking position through the transmission line
7. Forklift unloading
Remarks: The entire robot palletizing area is semi-closed with safety barriers, and personnel are not allowed to enter the robot's working range through any transmission line. The guardrail has a
manual maintenance door.

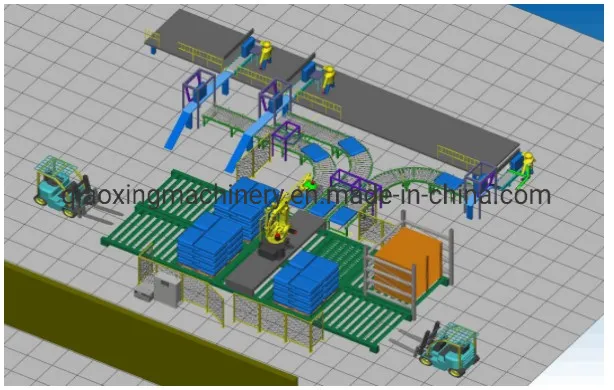

Conveying products →
automatic correction →
automatic flattening mechanism →
automatic palletizing →
forklift storage
We Also Have The Full Automatic Packing Machine Too ,
they can be consist by the full automatic line ,
Packing machine-Palletizer-Wrapping Machine :

To know more
, pls contact with us freely.
